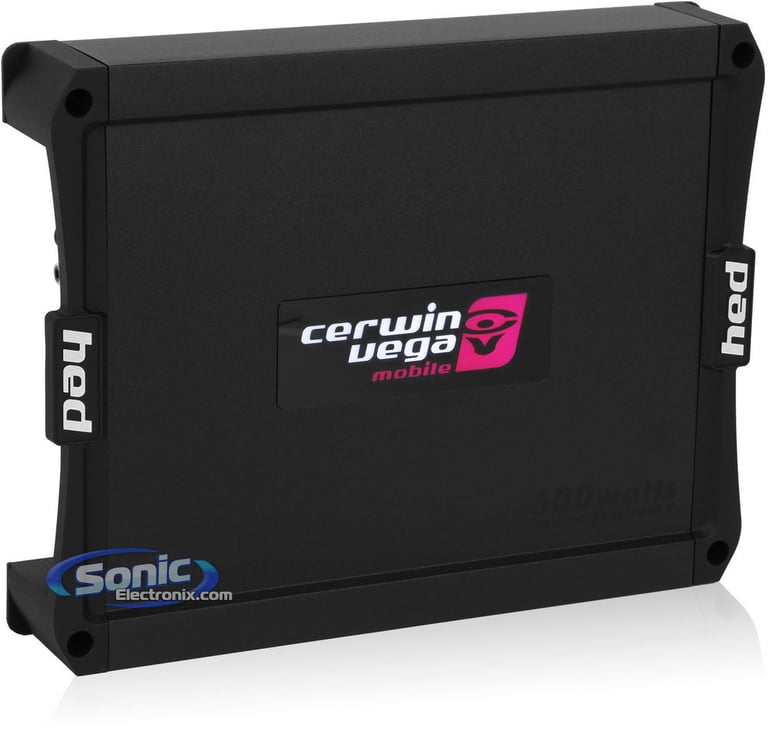

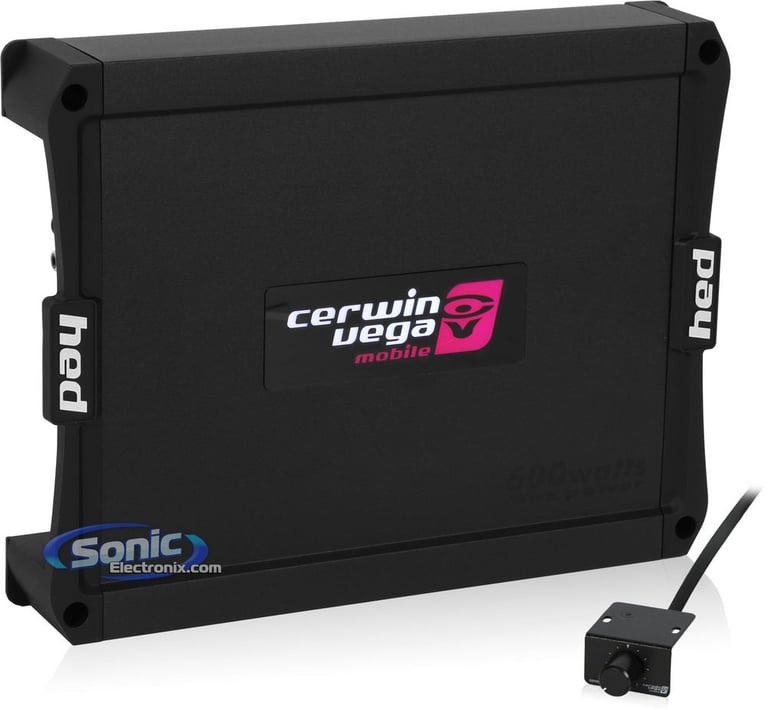

Cerwin-Vega HED3600.2

600W Max 2-Channel HED3 Series Class AB Car Power Amplifier

Product videos
highlight-star-icon

• 80W x 2 Chan. @ 4 ohm
• 160W x 2 Chan. @ 2 ohm
• 320W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation

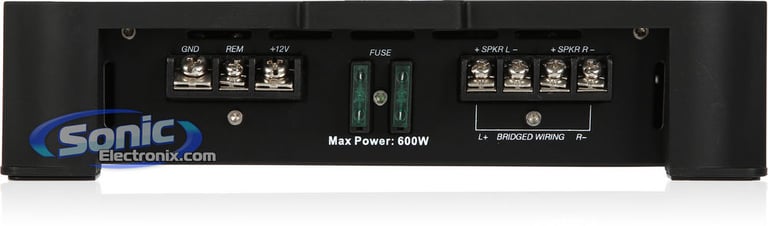

• 4 Gauge Power and Ground Inputs

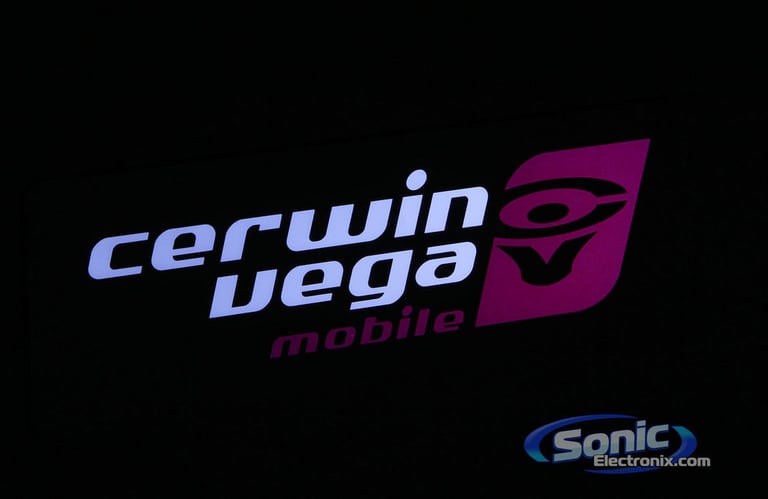

• Illuminated Cerwin-Vega Badge

Learn more about the hed36002

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

xed6002 thumbnail

Cerwin-Vega XED600.2

OUR PRICE: $89.99

View item

Loading...
AXABH-FD1 main

Axxess AXABH-FD1

Amplifier Bypass Harness for select 2011-2017 vehicles from Ford with Sony Amplified

1
-11.77%

$29.99

List price $33.99

72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

6
-10.01%

$8.99

List price $9.99

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

REF687F main

Infinity REF687F (INFSPKRF687FUS)

360W Peak (120W RMS) 6x8" Reference Series 2-Way Coaxial 3-ohm Speakers

1
-18.76%

$129.95

List price $159.95

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$89.99

List price $107.99

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

C2-650X main

JL Audio C2-650x

120W RMS 6.5" C2 Series 2-Way Coaxial 4-ohm Car Speakers

26
FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

S2-S68 main

Alpine S2-S68

460W Peak (150W RMS) 6x8" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

3
-16.69%

$149.95

List price $180.00

Product Highlights


• 80W x 2 Chan. @ 4 ohm
• 160W x 2 Chan. @ 2 ohm
• 320W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• Illuminated Cerwin-Vega Badge

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • HED3 Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 80 watts x 2 chan.
    • 2 ohm: 160 watts x 2 chan.
    • Bridged, 4 ohm: 320 watts x 1 chan.
  • Max power output: 600 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Vega Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • 2 or Mono channel operation

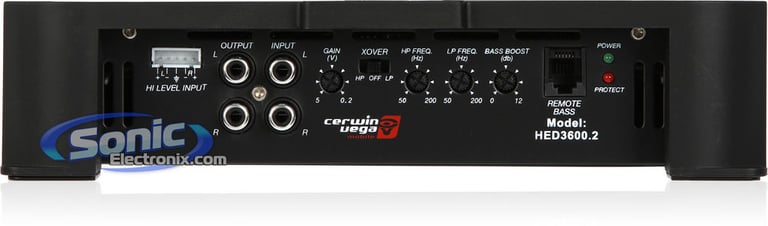

  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Level: 200mV-5V
  • Variable high-pass filter (50-200 Hz, Butterworth 12 dB/octave)
  • Variable low-pass filter (50-200 Hz, Butterworth 12 dB/octave)
  • 8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-1/8"W x 11-9/16"D x 2-1/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Cerwin-Vega XED600.2 thumbnail
(newest, current model)
Cerwin-Vega HED3600.2 thumbnail
(previous model, replaced by Cerwin-Vega XED600.2)

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

PBR300X2 small

Rockford Fosgate Punch PBR300X2

• 100 watts x 2 channel @ 4 ohm
• 150 watts x 2 channel @ 2 ohm
• Bridged: 300 watts x 1 channel @ 4 ohm
• Total RMS Power: 300 watts
• Class BR 2 ohm Stable 2-Channel Amplifier

(22)

$249.99

List price $279.99

GP-2000.2 small

Crunch GP-2000.2

• 500 watts x 2 channel @ 4 ohm
• 1000 watts x 2 channel @ 2 ohm
• Bridged: 2000 watts x 1 channel @ 4 ohm
• Total Peak Power: 2000 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

$74.99

List price $119.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
80 watts x 2 channel
RMS Power @ 2 ohms
160 watts x 2 channel
Bridged RMS Power
320 watts x 1 channel
Amplifier Specifications
Series
HED3 Series
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
600 watts
Total RMS Power Output
320 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
104 dB
Bass Boost
0 - 12 dB

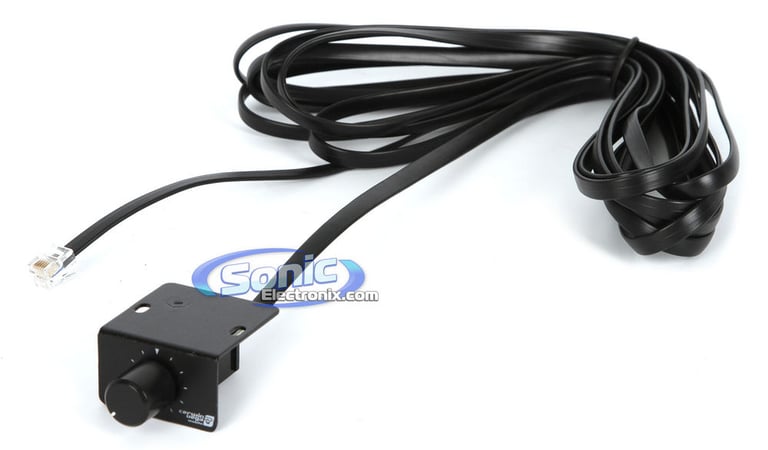

Remote bass/level controller
No
Fuse Rating
30A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HED3600.2

Weight:

7.50lbs

Internal SKU:

hed36002

Internal Product ID:

68557
