Name: Autotek ATA800.2 OPEN BOX COMPLETE
Brand: Autotek
SKU: LS-ata8002-OBCra222261
Price: 39.99 USD
Availability: Discontinued

by Autotek

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

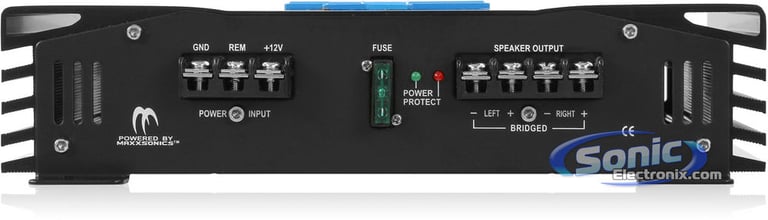

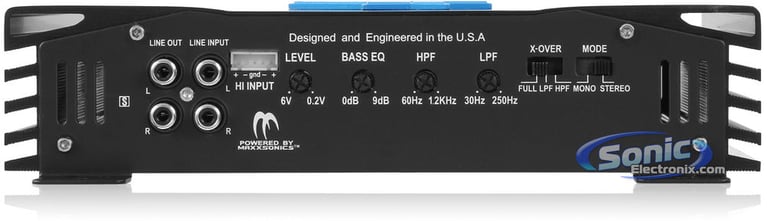

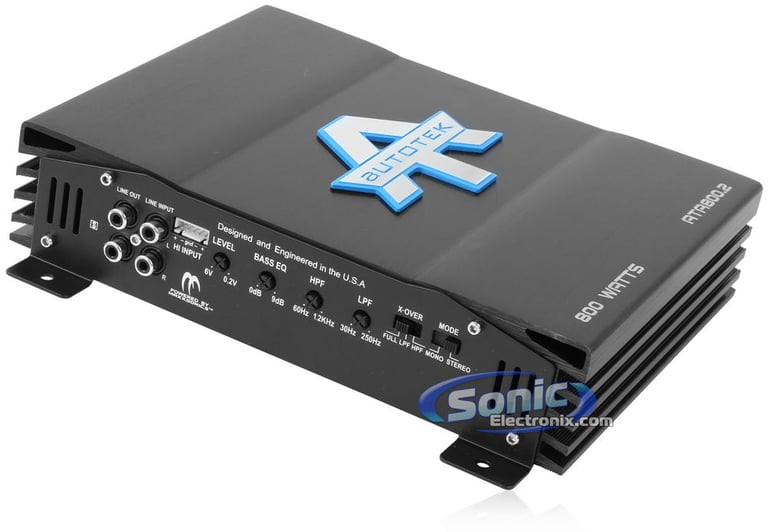

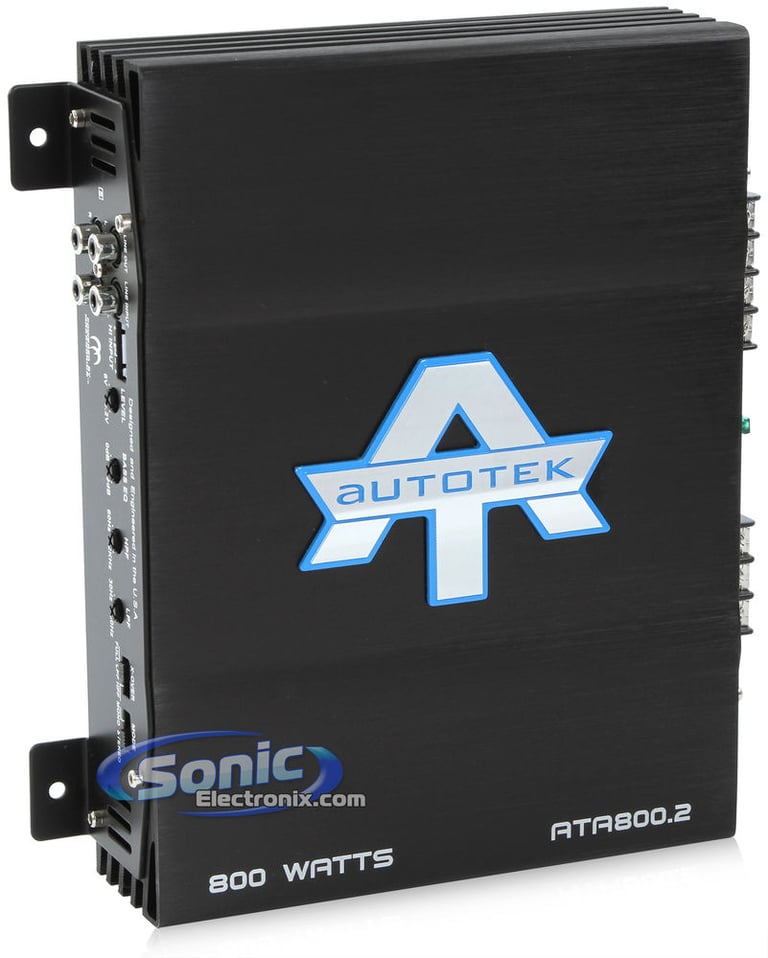

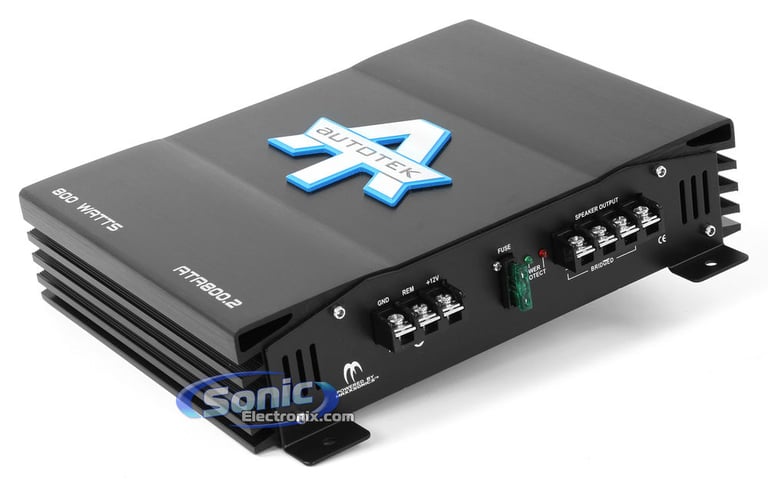

Autotek ATA800.2 OPEN BOX COMPLETE Image 1 — Autotek ATA800.2 OPEN BOX COMPLETE

Autotek ATA800.2 OPEN BOX COMPLETE Image 2 — Autotek ATA800.2 OPEN BOX COMPLETE

Autotek ATA800.2 OPEN BOX COMPLETE Image 3 — Autotek ATA800.2 OPEN BOX COMPLETE

Autotek ATA800.2 OPEN BOX COMPLETE Image 4 — Autotek ATA800.2 OPEN BOX COMPLETE

Autotek ATA800.2 OPEN BOX COMPLETE Image 5 — Autotek ATA800.2 OPEN BOX COMPLETE

Autotek ATA800.2 OPEN BOX COMPLETE Image 6 — Autotek ATA800.2 OPEN BOX COMPLETE

Autotek ATA800.2 OPEN BOX COMPLETE Image 7 — Autotek ATA800.2 OPEN BOX COMPLETE

Autotek ATA800.2 OPEN BOX COMPLETE Image 8 — Autotek ATA800.2 OPEN BOX COMPLETE

Autotek ATA800.2 OPEN BOX COMPLETE Image 9 — Autotek ATA800.2 OPEN BOX COMPLETE

Autotek ATA800.2 OPEN BOX COMPLETE Image 10 — Autotek ATA800.2 OPEN BOX COMPLETE

Autotek ATA800.2 OPEN BOX COMPLETE Image 11 — Autotek ATA800.2 OPEN BOX COMPLETE

Autotek ATA800.2 OPEN BOX COMPLETE Image 12 — Autotek ATA800.2 OPEN BOX COMPLETE

Autotek ATA800.2 OPEN BOX COMPLETE Image 13 — Autotek ATA800.2 OPEN BOX COMPLETE

Autotek ATA800.2 OPEN BOX COMPLETE Image 14 — Autotek ATA800.2 OPEN BOX COMPLETE

Autotek ATA800.2 OPEN BOX COMPLETE Image 15 — Autotek ATA800.2 OPEN BOX COMPLETE

Autotek ATA800.2 OPEN BOX COMPLETE Image 16 — Autotek ATA800.2 OPEN BOX COMPLETE

Autotek ATA800.2 OPEN BOX COMPLETE-video

Product videos

Product highlights

• Max Power: 200W x 2 @ 4 ohm, 400W x 2 @ 2 ohm
• Total Peak Power: 800W
• Adjustable 12dB Crossovers
• Dimensions: 9.45" W x 7.09" L x 2.08" H

Learn more about the LS-ata8002-OBCra222261

Product Highlights

• Max Power: 200W x 2 @ 4 ohm, 400W x 2 @ 2 ohm
• Total Peak Power: 800W
• Adjustable 12dB Crossovers
• Dimensions: 9.45" W x 7.09" L x 2.08" H

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

General Features:

Item Condition: Open Box Complete

Item is scratched
ATA Series 2-Channel Class AB Car Amplifier
Max Power Rating:

4 ohm: 200 watts x 2 chan.
2 ohm: 400 watts x 2 chan.
Bridged, 4 ohm: 800 watts x 1 chan.

Max power output: 800 watts x 1 chan.
Variable Bass Boost (0 to +9 dB bass boost at 45 Hz)
4/2 or Mono channel operation

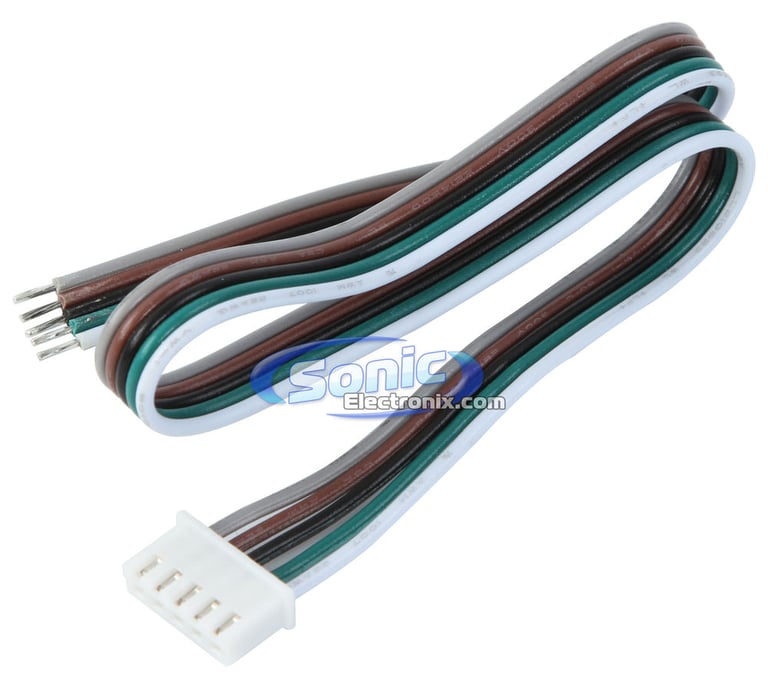

Speaker-level (high-level) inputs
Variable high-pass filter (60-1,200 Hz, 24 dB/octave)
Variable low-pass filter (30-250 Hz, 24 dB/octave)
Adjustable 12dB crossovers
4 gauge power and ground wiring is required for installation

Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier

Dimensions: 9.45"W x 7.09"L x 2.08"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

200 watts x 2 channel

RMS Power @ 2 ohms

400 watts x 2 channel

Bridged RMS Power

800 watts x 1 channel

Power Specifications - Full Range Channels

Peak Power @ 4 ohms

200 watts x 2 channel

Peak Power @ 2 ohms

400 watts x 2 channel

Bridged Peak/Max Power

800 watts x 1 channel

Amplifier Specifications

Series

ATA Series

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

800 watts

Total RMS Power Output

400 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

.05%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

60 - 1200 Hz

Low-Pass Crossover Frequency

30 - 250 Hz

Signal-to-Noise Ratio

90 dB

Bass Boost

0 - 9 dB

Remote bass/level controller

Fuse Rating

30A x 1

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
