Name: Alpine KTP-190U (Open Box)
Brand: Alpine
SKU: LS-ktp190u-OB7
Price: 91.25 USD
Availability: Discontinued
Rating: 4.6667 (3 reviews)

Shop all Alpine

by Alpine

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

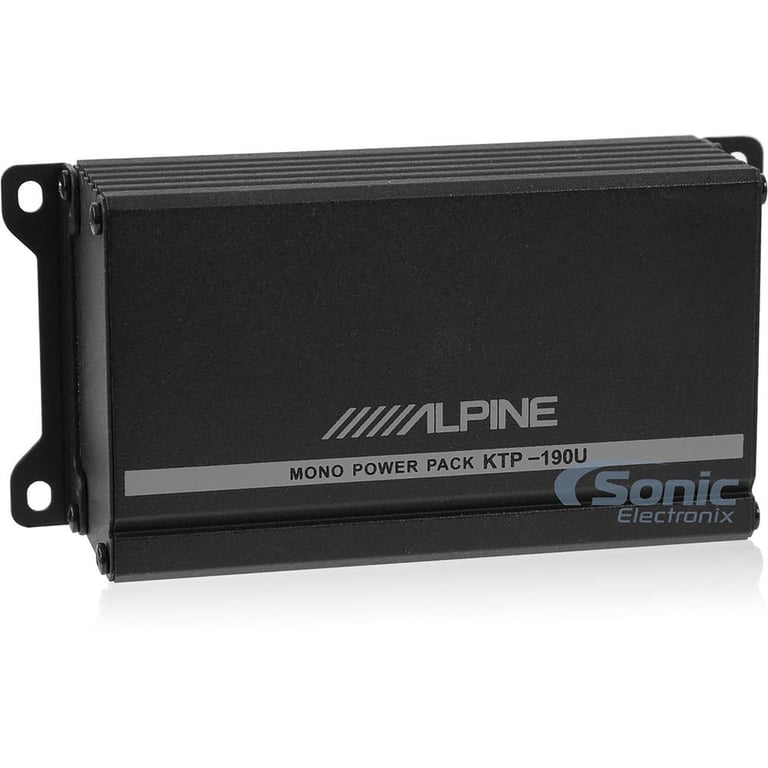

Alpine KTP-190U (Open Box) Image 1 — Alpine KTP-190U (Open Box)

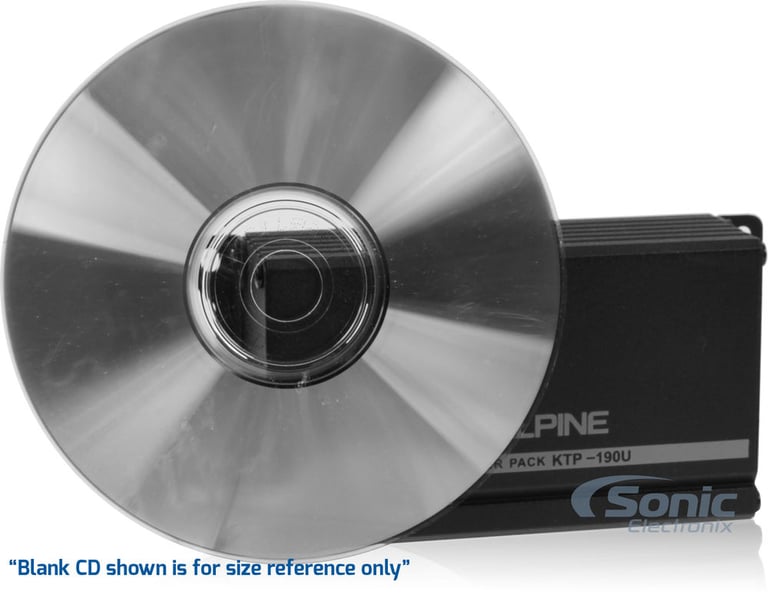

Alpine KTP-190U (Open Box) Image 2 — Alpine KTP-190U (Open Box)

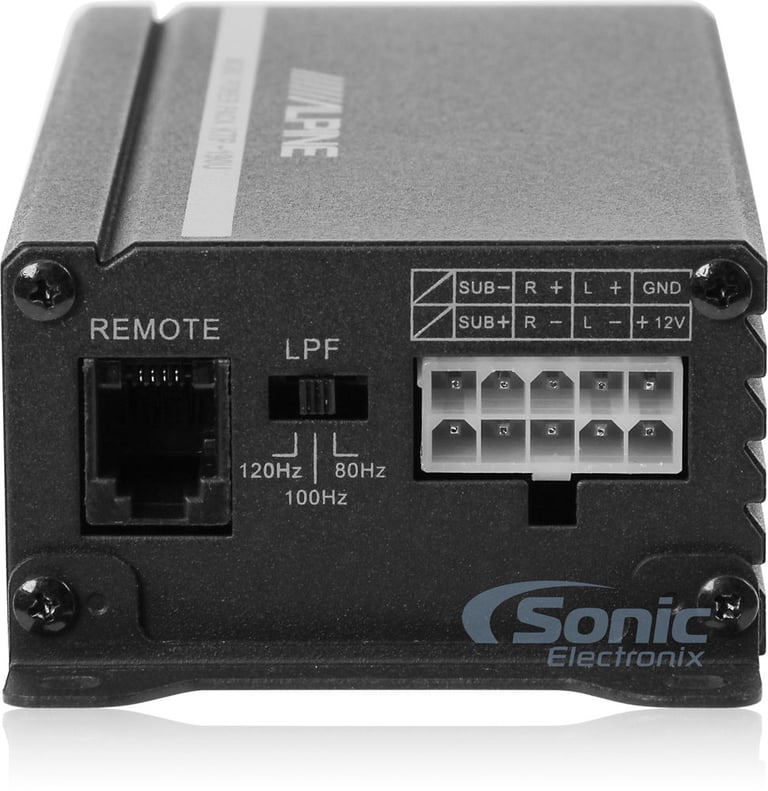

Alpine KTP-190U (Open Box) Image 3 — Alpine KTP-190U (Open Box)

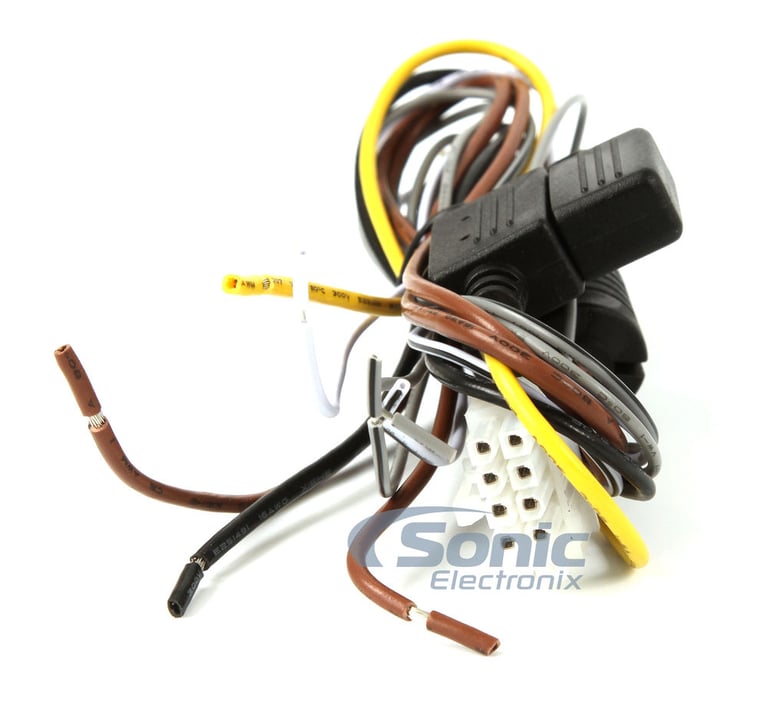

Alpine KTP-190U (Open Box) Image 4 — Alpine KTP-190U (Open Box)

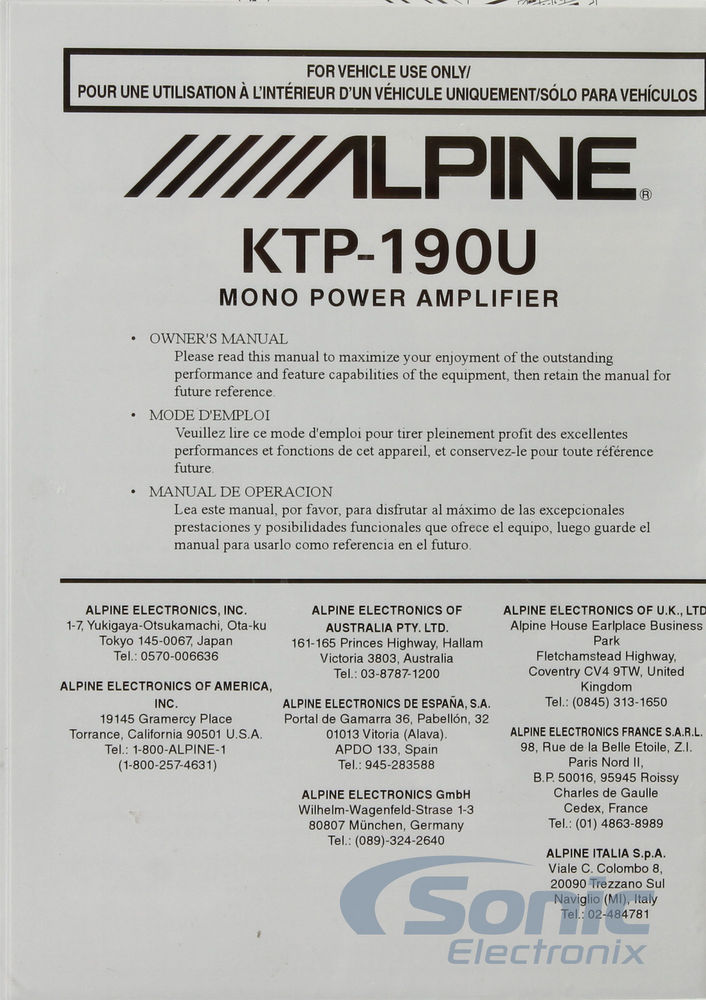

Alpine KTP-190U (Open Box) Image 5 — Alpine KTP-190U (Open Box)

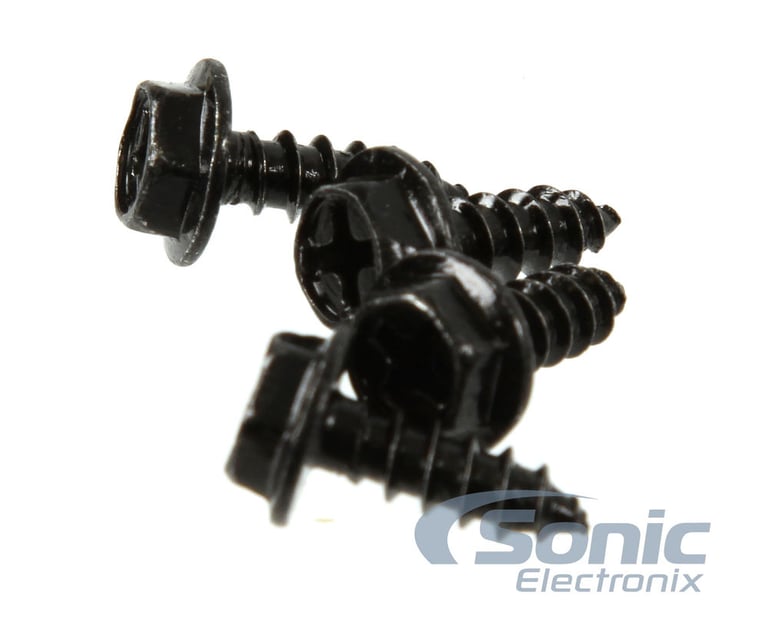

Alpine KTP-190U (Open Box) Image 6 — Alpine KTP-190U (Open Box)

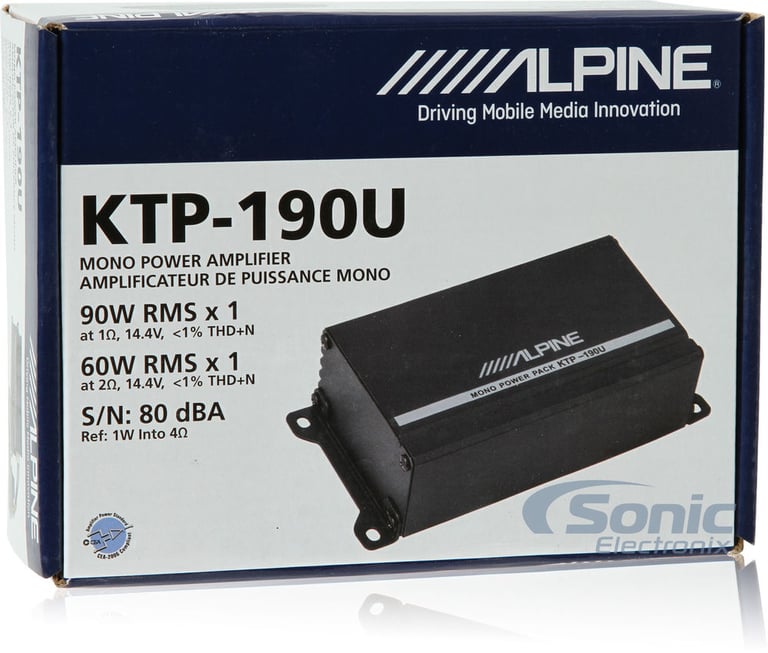

Alpine KTP-190U (Open Box) Image 7 — Alpine KTP-190U (Open Box)

Product highlights

• Item Condition: Open Box
• RMS Power: 30W x 1 @ 4 ohm, 60W x 1 @ 2 ohm, 90W x 1 @ 1 ohm
• Total Peak Power: 190W
• Selectable Low Pass Filter
• Dimensions: 5-3/8" W x 2-5/8" D x 1-9/16" H

Learn more about the LS-ktp190u-OB7

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition: Like New Open Box

General Features:

KTP Series Monoblock Class D Car Amplifier
RMS Power Rating:

4 ohm: 30 watts x 1 chan.
2 ohm: 60 watts x 1 chan.
1 ohm: 90 watts x 1 chan.

Max power output: 190 watts
Runs off same power circuit as the receiver

Must be 15 amps or more

Mono channel operation
Selectable low-pass filter (80, 100 and 120 Hz, 12 dB/octave)
Frequency Response: 10-120 Hz
12 gauge power and ground wiring is required for installation

Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier

Dimensions: 5-3/8"W x 2-5/8"D x 1-9/16"H
Authorized Internet Dealer
1-year Sonic Electronix Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

30 watts x 1 channel

RMS Power @ 2 ohms

60 watts x 1 channel

RMS Power @ 1 ohm

90 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

90 watts

Maximum Input Gauge Size

12 AWG

Minimum Impedance Unbridged

1 ohm

THD at Rated RMS Power

Built-in Crossover

Low-Pass (LP)

Signal-to-Noise Ratio

80 dB

Fuse Rating

10A x 1

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix

Customer Ratings & Reviews

Alpine KTP-190U (Open Box) thumbnail image

Overall rating distribution

5 star		67%
4 star		33%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		5
Value		5
Features		4
Design		5
Usability		5

Customer Reviews

Sort by:

Alpine, you did well!

The following review is for KTP-190U, which is a part of the bundle you are viewing.

Great amp if you need extra power to power an aftermarket sub especially wired down to 1 ohm. Replaced my factory sub with a Kicker dual 2 ohm free air subwoofer and used the Alpine to feed it power. 90w was sufficient enough to feed the sub with the low level signal coming from the factory bose amplifier. Didn't need the rux nob because I can control the bass & subwoofer level output off the factory headunit. Very compact, very efficient, very easy to install....4 wires and you're done. I only wish alpine had a more powerful model maybe 150/200w rms but I'm very content with it. Installed this in my 2006 Acura RL with no subwoofer burbs, and no active noise cancellation or phase distortion.

By Ro on April 15, 2017

3 found this helpful

Report abuse

Works good

The following review is for KTP-190U, which is a part of the bundle you are viewing.

The amp works good, the only con is that I didn't notice it only has high level inputs, no rca input, but I made it work. I used it to power my factory Bose subwoofer in the console of a 2004 suburban which is a 2 ohm dvc, so the amp is running a 1 ohm load and it works fine.

By William on January 29, 2016 Checkmark Icon

Verified purchase

1 found this helpful

Report abuse

Alpine, you did well 2.0!

The following review is for KTP-190U, which is a part of the bundle you are viewing.

Great amp if you need extra power to power an aftermarket sub especially wired down to 1 ohm. Replaced my factory sub with a Kicker dual 2 ohm free air subwoofer and used the Alpine to feed it power. 90w was sufficient enough to feed the sub with the HIGH level signal coming from the factory bose amplifier. Didn't need the rux nob because I can control the bass & subwoofer level output off the factory headunit. Very compact, very efficient, very easy to install....4 wires and you're done. I only wish alpine had a more powerful model maybe 150/200w rms but I'm very content with it. Installed this in my 2006 Acura RL with no subwoofer burbs, and no active noise cancellation or phase distortion.

By Ro on April 15, 2017

Report abuse
