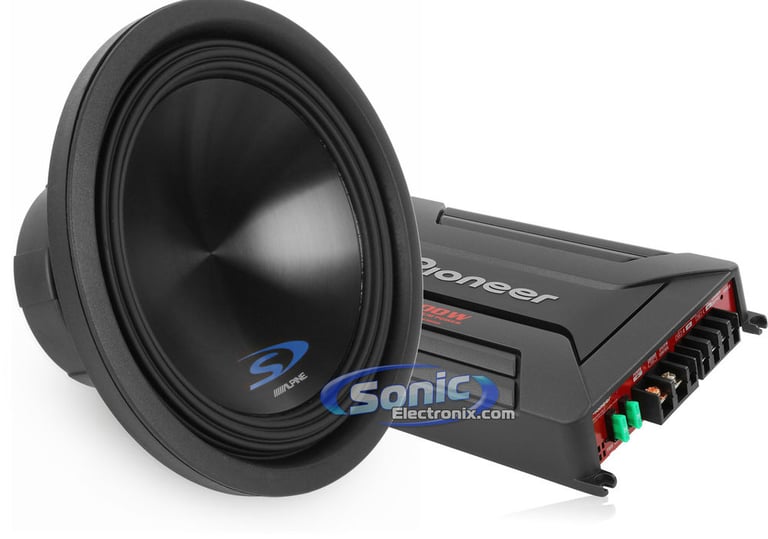

Alpine + Pioneer Bass Package

12" Dual 2-Ohm Type-S Subwoofer + 450W RMS 2-Channel Amplifier

Alpine
Shop all Alpine
highlight-star-icon

• Perfect Way to Add Bass to Your System
• GM Series 450W RMS Amplifier
• 12" Dual 2 Ohm Subwoofer
• 500W RMS

Learn more about the gma5602_sws12d2

We apologize

This item has been discontinued

Description


Alpine brand icon

Authorized dealer

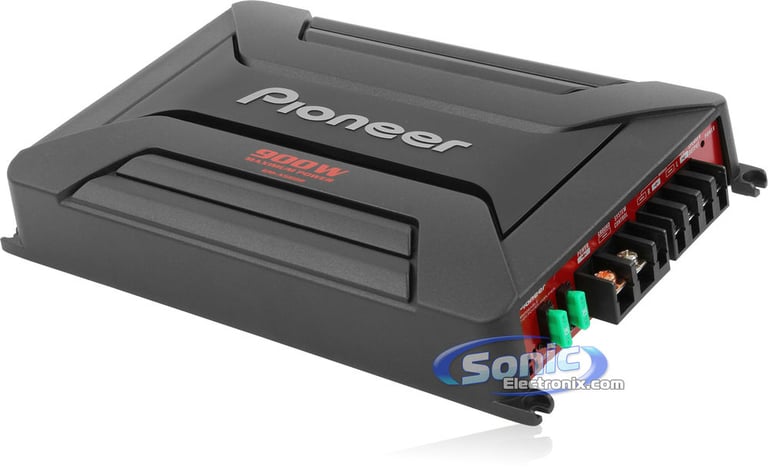

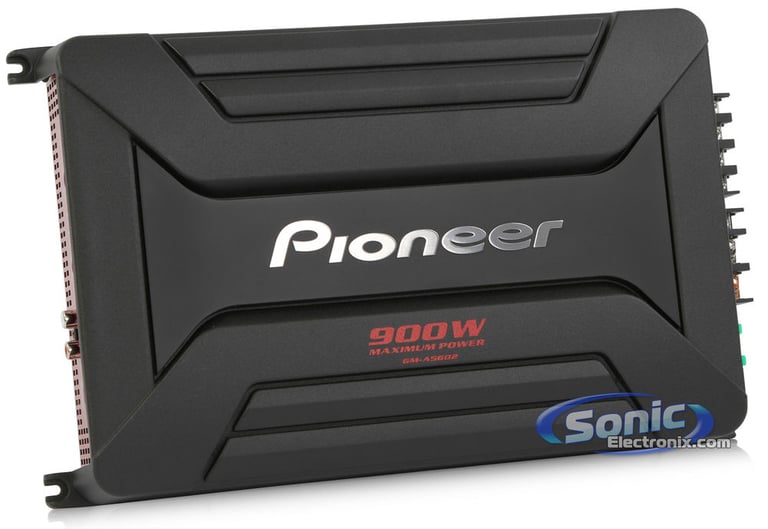

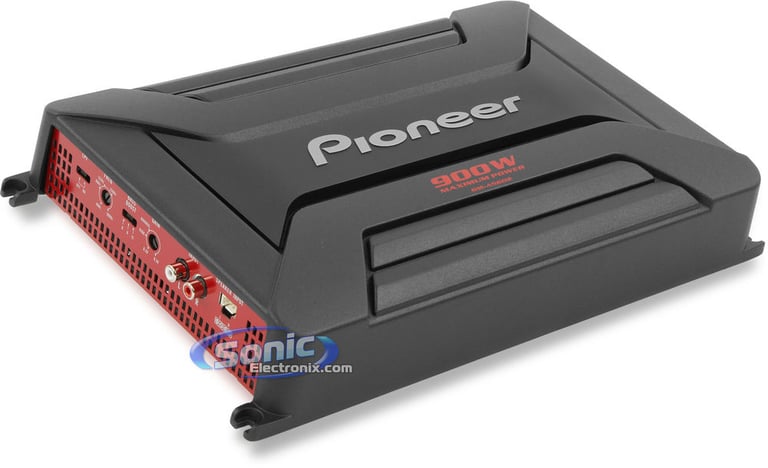

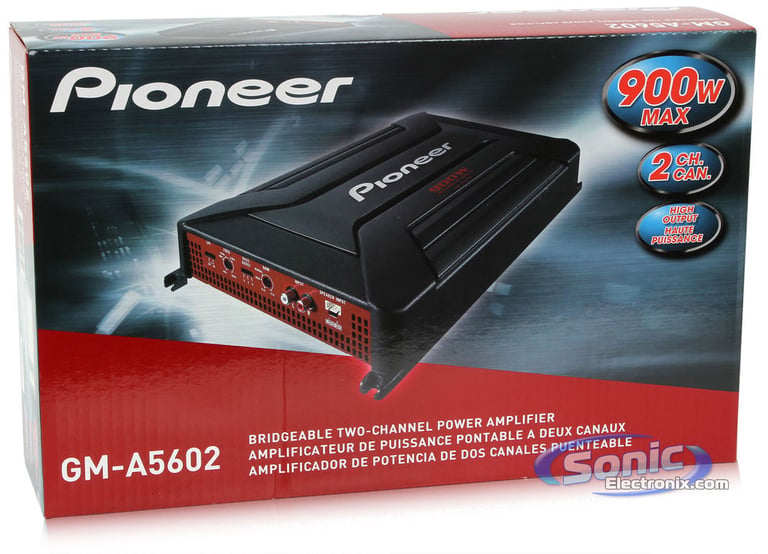

Pioneer GM-A5602

900W Peak (450W RMS) 2-Channel A Series Bridgeable Class AB 2-Ohm Stable Car Amplifier
Quantity: 1

General Features:

  • Pioneer A-Series GM-A5602
  • Class-AB FullRange 2-Ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 150 watts x 2 chan.
    • 2 ohms: 225 watts x 2 chan.
    • Bridged, 4 ohms: 450 watts x 1 chan.
  • Max power output: 900 watts.
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Balanced Isolator Input Circuit
  • LED power (on) and protect (off) indicators
  • Soft start turn-on
  • 2 or Mono channel operation
  • Speaker-level (high-level) inputs with Signal Sensing Turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity:
    • Low level: 300mV - 6.5V
    • High level: 3V - 26V
  • Frequency Response: 10 - 70,000 Hz
  • Total Harmonic Distortion (THD): <0.05%
  • Signal to Noise Ration: >96 dB

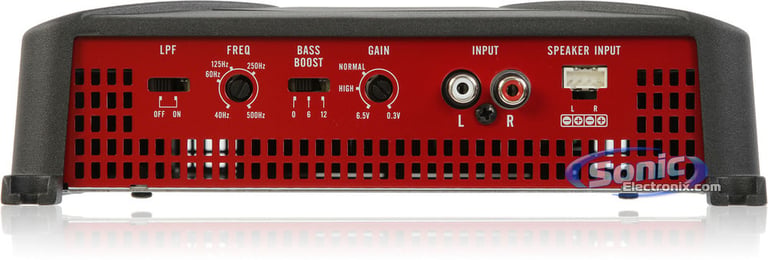

  • Selectable crossover modes: LPF / OFF
  • Variable crossover frequency 40 - 500 Hz, 12 dB/octave
  • Selectable Bass Boost: 0, +6 dB, +12 dB bass boost at 50 Hz

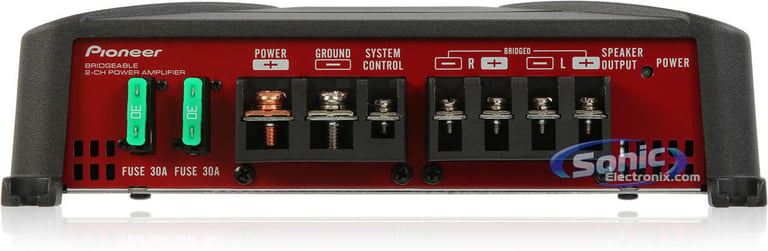

  • Fuse Rating: 30A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 13-3/4"W x 8-1/2"L x 2-1/2"H
  • 1-year Sonic Electronix Warranty

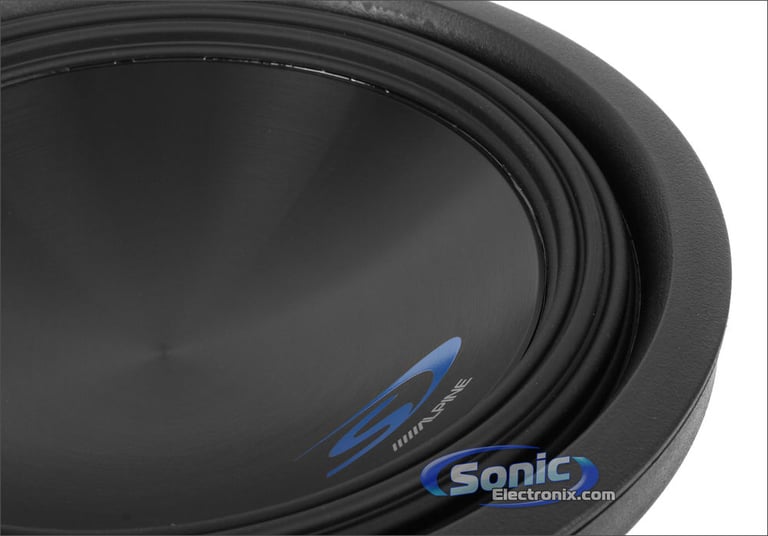

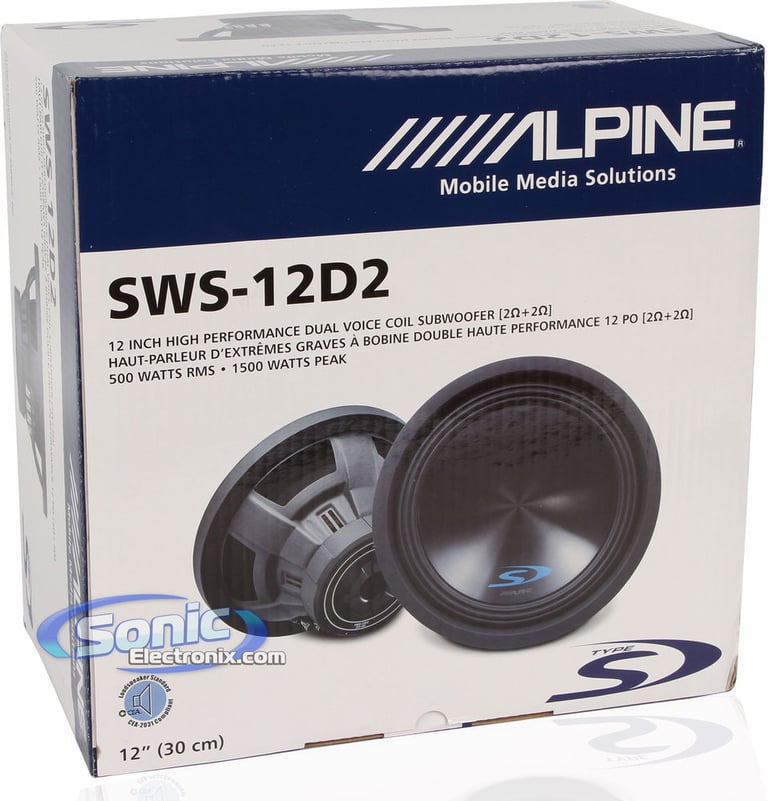

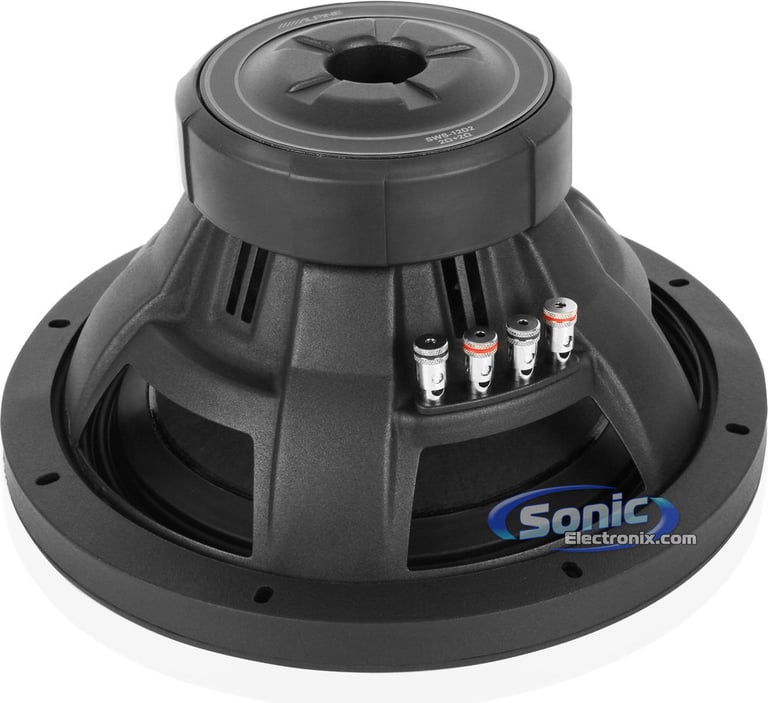

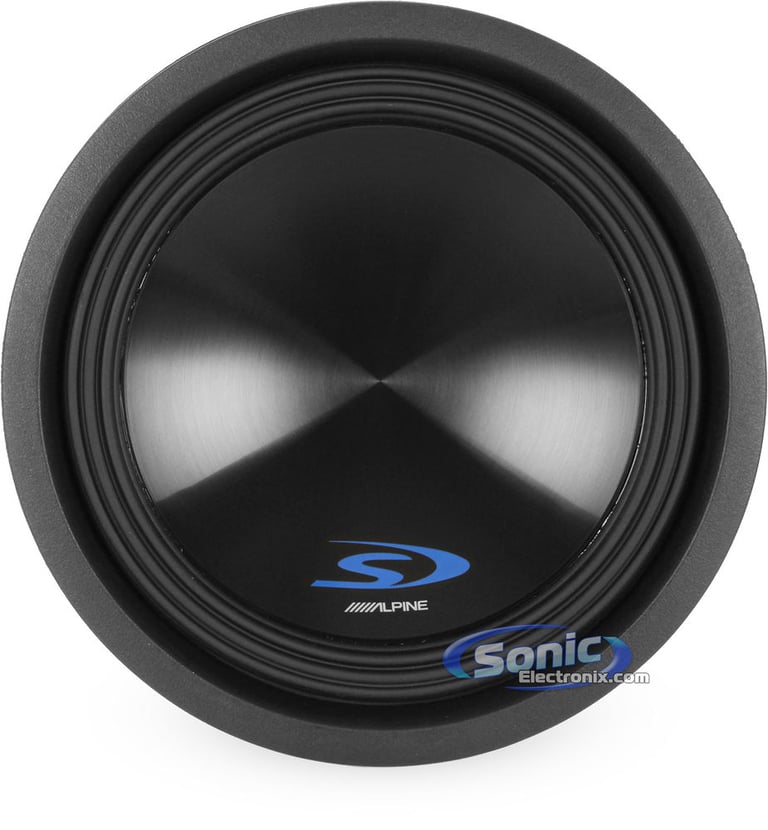

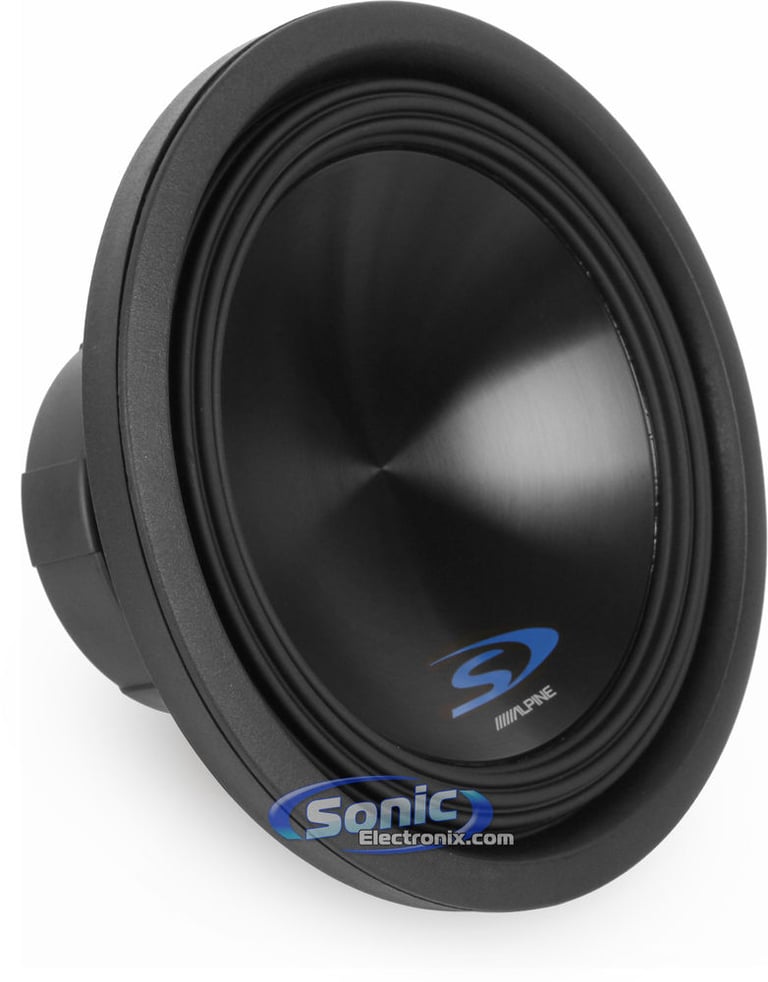

Alpine Type-S SWS-12D2

1500W Peak 12" Type-S Series Dual 2-Ohm High Performance Subwoofer
Quantity: 1

General Features:

  • 12" Type-S Series Car Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 500 watts
  • Recommended power range: 150 - 500 watts RMS
  • Impedance: Dual 2 ohms
  • Kevlar treated pulp cone
  • Durable HAMR Santoprene surround
  • High strength steel frame
  • Progressive conex
  • 2.6" 5-Layer High-Temp Voice Coil
  • 64oz. Strontanium Ferrite magnet motor structure
  • 12" Protective 2-Piece Subwoofer Grille Available, sold separately:
  • Frequency response: 26-200 Hz
  • Resonance Frequency (Fs): 34Hz
  • Top-mount depth: 5-7/8"
  • Sensitivity: 86.4dB
  • CEA-2031 compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty




PROP 65 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

Item Details


Manufacturer:

Model Number:

GMA5602_SWS12D2

Weight:

21.15lbs

Internal SKU:

gma5602_sws12d2

Internal Product ID:

79456

Customer Ratings & Reviews



5 star
70%
4 star
22%
3 star
4%
2 star
0%
1 star
4%



Durability
4.3
Value
4.7
Features
4.4
Design
4.5
Usability
4.9

Customer Reviews

Sort by:

Loading...

Powerful little amp! Gets pretty warm though.....

The following review is for GM-A5602, which is a part of the bundle you are viewing.

Okay this is a long review, but i like to study electronics before I buy them so I'm going to try to give a helpful over-all review here for the other people like me. I bought this amp to put in my fiances car. 1992 Toyota Corolla. Between my dad and I, we have owned every model of this Pioneer GM series two channel amp. This is by far the loudest. The wattage ratings for it are definitely accurate. I have it paired with a Pioneer TS-W310S4 (1,400 watts max and 400 rms) running 4 ohms bridged @ 450 watts rms in a vented Belva enclosure. I have installed many stereo systems for family and friends and i am a bit of a car audio enthusiast. This little amp is LOUD. it says it runs 450 watts rms bridged and I know it does every bit of that. I have had Pioneer, Kenwood, and Hifonics amps. I currently have a Hifonics BRX1100.1D running two Kenwood KFC-W3013PS subs running 2 ohms @ 800 watts rms in the back of a 2001 Chevy Impala. This little set up in my fiances car is just as loud as my set up. With the back seat down in her car, its even louder than mine. This amp is very precise and loud with no signal clip or distortion. Beware though, it WILL get hot running it hard for a while. It has no cooling fan. That's why I gave it four stars in some places. I haven't had it kick into protect yet though. Even when it gets hot it doesn't lose power like my Kenwood amp did. I have always been a firm believer in Pioneer products. I replaced all the factory speakers and head unit in both our cars with Pioneer products. Even added some pioneer Tweeters In both cars so the full range would be just as loud as the low frequencies. Over all, you can't go wrong with this amp or any Pioneer products. Sonics low prices and very fast shipping is just icing on the cake.

By Adam on March 19, 2014

52

found this helpful.

Good

The following review is for SWS-12D2, which is a part of the bundle you are viewing.

I bought two of the 12 inch type s subs and am happy with them. They arnt the loudest but are worth the money. Great for someone getting into the sub game

By Charlie on January 10, 2013

50

found this helpful.

Alpine Subs

The following review is for SWS-12D2, which is a part of the bundle you are viewing.

Worked great in my application, always have had good experience with Alpine products. The dual voice coil configuration makes it easy to order what you need to run your subs at 2 ohms.

By Brandon on July 23, 2013

49

found this helpful.

Great sub and great price!

The following review is for SWS-12D2, which is a part of the bundle you are viewing.

Alpine has never let me down. This subwoofer hits extremely hard. I have one powered by an alpine mrv-m500 wired at 4 ohms in a ported box. The amp is only at the normal output power setting and that's all I need. This sub is a great buy for anyone who wants the perfect amount of bass to not drown out the music completely. Don't get me wrong though, this sub is capable of doing that if you want it to.

By Steven on August 17, 2014

46

found this helpful.

Yeaaaaa!

The following review is for SWS-12D2, which is a part of the bundle you are viewing.

If u know me I like bass! I have 2 of these in the ground shaker 2 12 sqp
Box and it slams. I was surprised cause that's really nota big box. Imagine
A custom box! Other than that I have it hooked up to a brutis 1200 @ 2 ohms. Good subs.

By Dfife on February 25, 2013

46

found this helpful.

subs

The following review is for SWS-12D2, which is a part of the bundle you are viewing.

My boyfriend wanted these subs so i decided to buy them fir him hes happy with them

By lily on March 27, 2014

45

found this helpful.

descent!

The following review is for SWS-12D2, which is a part of the bundle you are viewing.

This speaker was second choice in regards of finding one that had high temp voice coils. I hooked it up to class d autotek1500d and dropped ohms to 1. I broke it in over three weeks and then as soon as she started banging good, it blew. It had great sound but maybe sealed box and hot summer day banging didn't go well? Either way can't really be mad it was good just not good enough for my application. Vented boxes keep speakers cooler just don't have that tight low I like so if you like sealed set up then get something that can handle the heat!

By oldschoolbasshead on September 2, 2013

45

found this helpful.

Best subs around for the price

The following review is for SWS-12D2, which is a part of the bundle you are viewing.

Started with a 10" alpine type E that is now in my girlfriends toyota celica. Bought 2 of these for my car and they sound amazing no matter what style of music im listening to. I couldnt say enough good things about these subs. Extremely satisfied with all alpime products, especially the type S subs.

By Jacob on August 21, 2013

45

found this helpful.

bass shaking, hard hitting, deep low traveling bass by far!!!!!

The following review is for SWS-12D2, which is a part of the bundle you are viewing.

I had just replaced 4 10" orion cobalt subwoofers in a 5 cubic foot box ported at 45hertz. with a sws12d2 subwoofer in a 1.5 cubic foot L vented wedge box tuned at 35.1 hertz. this thing hits as hard as my old 4 orion 10" and hits as low as the 4 10". for the price of this sws you get more then your money's worth!!! this sub slams hard in my hatch back!!! I've been thinking bout getting a sws15d2. don't get me wrong the 12 is loud n hits low. but im a bass head!!!! to the fullest!!!

By bass head!!! on November 12, 2012

46

found this helpful.

It Alright

The following review is for SWS-12D2, which is a part of the bundle you are viewing.

I have owned two of these both have broken on me. Thee first was my fault and the second was a factory issue but would not honor warrenty. They sounded awesome when they worked. I had only one hooked up at a time in a ported box with a alpine mrv500 amp.

By Tyler on August 10, 2013

44

found this helpful.
