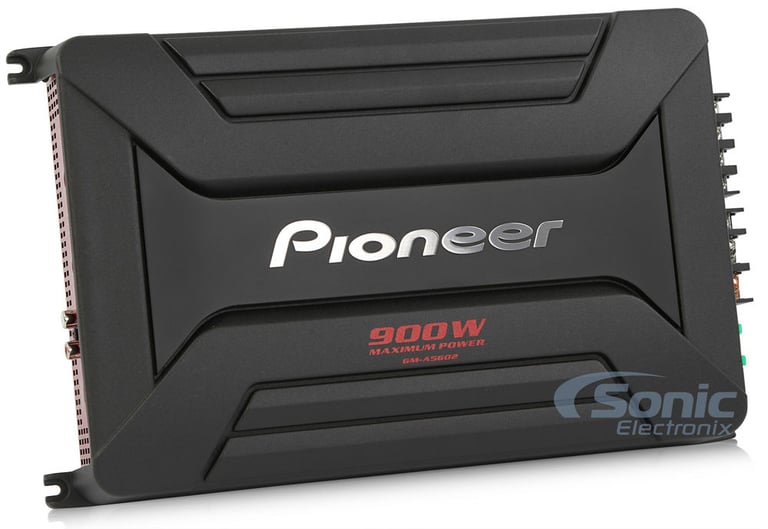

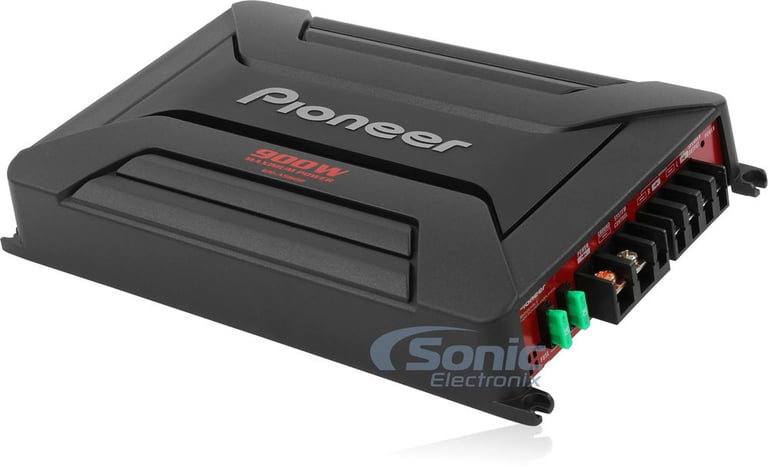

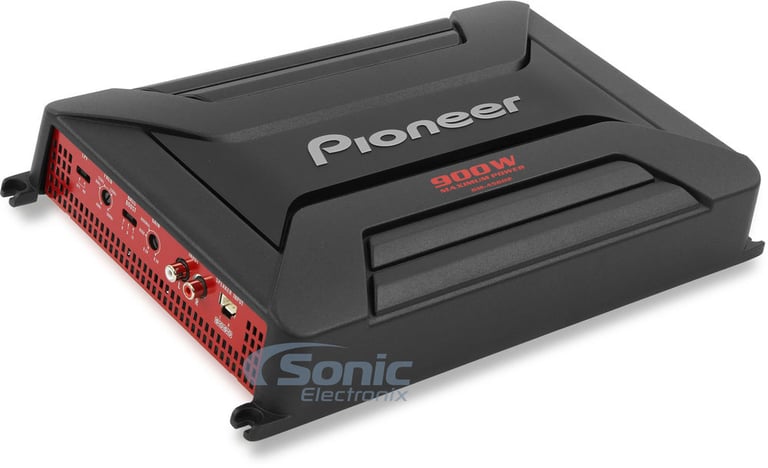

Pioneer GM-A5602

900W Peak (450W RMS) 2-Channel A Series Bridgeable Class AB 2-Ohm Stable Car Amplifier

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• RMS: 150W x 2 @ 4 ohm, 225W x 2 @ 2 ohm, 450W x 1 @ 4 ohm
• Total Peak Power: 900W
• CEA-2006 Compliant
• Dimensions: 13-3/4"W x 8-1/2"L x 2-1/2"H

Learn more about the gma5602

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

gma5702 thumbnail

Pioneer GM-A5702

OUR PRICE: $99.99

View item

Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

Product Highlights


• RMS: 150W x 2 @ 4 ohm, 225W x 2 @ 2 ohm, 450W x 1 @ 4 ohm
• Total Peak Power: 900W
• CEA-2006 Compliant
• Dimensions: 13-3/4"W x 8-1/2"L x 2-1/2"H

Description


Pioneer brand icon

Authorized dealer



General Features:

  • Pioneer A-Series GM-A5602
  • Class-AB FullRange 2-Ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 2 chan.
    • 2 ohm: 225 watts x 2 chan.
    • Bridged, 4 ohm: 450 watts x 1 chan.
  • Max power output: 900 watts.
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Balanced Isolator Input Circuit
  • LED power (on) and protect (off) indicators
  • Soft start turn-on
  • 2 or Mono channel operation
  • Speaker-level (high-level) inputs with Signal Sensing Turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity:
    • Low level: 300mV - 6.5V
    • High level: 3V - 26V
  • Frequency Response: 10 - 70,000 Hz
  • Total Harmonic Distortion (THD): <0.05%
  • Signal to Noise Ration: >96 dB

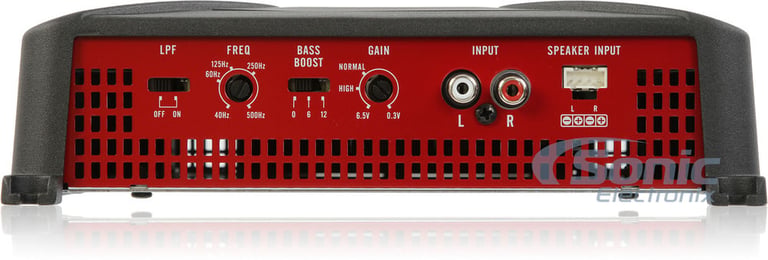

  • Selectable crossover modes: LPF / OFF
  • Variable crossover frequency 40 - 500 Hz, 12 dB/octave
  • Selectable Bass Boost: 0, +6 dB, +12 dB bass boost at 50 Hz

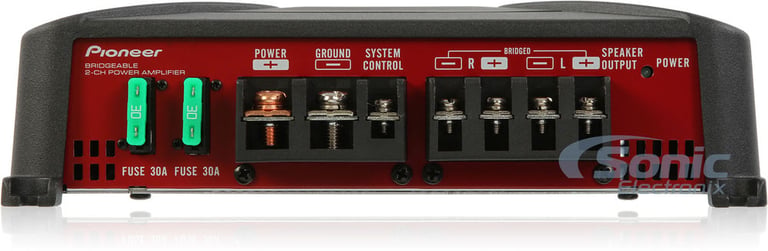

  • Fuse Rating: 30A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 13-3/4"W x 8-1/2"L x 2-1/2"H
  • 1-year Sonic Electronix Warranty

Product history:

Pioneer GM-A5702 thumbnail
(newest, current model)
Pioneer GM-A5602 thumbnail
(previous model, replaced by Pioneer GM-A5702)
Pioneer GM-5500T thumbnail
(previous model, replaced by Pioneer GM-A5602)
Pioneer GM-5400T thumbnail
(previous model, replaced by Pioneer GM-5500T)
Pioneer GM-5300T thumbnail
(previous model, replaced by Pioneer GM-5400T)

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

PBR300X2 small

Rockford Fosgate Punch PBR300X2

• 100 watts x 2 channel @ 4 ohm
• 150 watts x 2 channel @ 2 ohm
• Bridged: 300 watts x 1 channel @ 4 ohm
• Total RMS Power: 300 watts
• Class BR 2 ohm Stable 2-Channel Amplifier

(22)

$249.99

List price $279.99

GP-2000.2 small

Crunch GP-2000.2

• 500 watts x 2 channel @ 4 ohm
• 1000 watts x 2 channel @ 2 ohm
• Bridged: 2000 watts x 1 channel @ 4 ohm
• Total Peak Power: 2000 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

$74.99

List price $119.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 2 channel
RMS Power @ 2 ohms
225 watts x 2 channel
Bridged RMS Power
450 watts x 1 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
300 watts x 2 channel
Peak Power @ 2 ohms
450 watts x 2 channel
Bridged Peak/Max Power
900 watts x 1 channel
Amplifier Specifications
Series
GM Series
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
900 watts
Total RMS Power Output
450 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Full (AP)
Low-Pass Crossover Frequency
40 - 500 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
Selectable: 0dB / 6dB / 12dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

GM-A5602

Weight:

6.15lbs

Internal SKU:

gma5602

Internal Product ID:

74606

Product and How-to Videos


  • Pioneer GM Series Car Amplifiers
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Pioneer GM-A5602 thumbnail image

5 star
56%
4 star
33%
3 star
0%
2 star
0%
1 star
11%



Durability
4.1
Value
4.6
Features
3.8
Design
4.2
Usability
5

Customer Reviews

Sort by:

Loading...

Powerful little amp! Gets pretty warm though.....

Okay this is a long review, but i like to study electronics before I buy them so I'm going to try to give a helpful over-all review here for the other people like me. I bought this amp to put in my fiances car. 1992 Toyota Corolla. Between my dad and I, we have owned every model of this Pioneer GM series two channel amp. This is by far the loudest. The wattage ratings for it are definitely accurate. I have it paired with a Pioneer TS-W310S4 (1,400 watts max and 400 rms) running 4 ohms bridged @ 450 watts rms in a vented Belva enclosure. I have installed many stereo systems for family and friends and i am a bit of a car audio enthusiast. This little amp is LOUD. it says it runs 450 watts rms bridged and I know it does every bit of that. I have had Pioneer, Kenwood, and Hifonics amps. I currently have a Hifonics BRX1100.1D running two Kenwood KFC-W3013PS subs running 2 ohms @ 800 watts rms in the back of a 2001 Chevy Impala. This little set up in my fiances car is just as loud as my set up. With the back seat down in her car, its even louder than mine. This amp is very precise and loud with no signal clip or distortion. Beware though, it WILL get hot running it hard for a while. It has no cooling fan. That's why I gave it four stars in some places. I haven't had it kick into protect yet though. Even when it gets hot it doesn't lose power like my Kenwood amp did. I have always been a firm believer in Pioneer products. I replaced all the factory speakers and head unit in both our cars with Pioneer products. Even added some pioneer Tweeters In both cars so the full range would be just as loud as the low frequencies. Over all, you can't go wrong with this amp or any Pioneer products. Sonics low prices and very fast shipping is just icing on the cake.

By Adam on March 19, 2014

52 found this helpful


Great little amplifier!

This is a great little amplifier. I am using it to drive a a pair of component speakers mounted in the front doors of my vehicle. The speakers are rated at 90w x 2 RMS. I had originally tried to power them with an Alpine MRP-T130 that provided 50w x 2, but at higher levels the amp was entering protection mode. This amp is lightweight, but more than powerful enough at 150w x 2 @ 4Ω. The power easily provides excessively loud levels without any perceived distortion for hours on end. I feel that this product represents the best value of any stereo amplifier in this price segment.

Pros:
- CEA-2006 compliant
- Powerful
- Clean (great for highs or subs)
- Very reputable and experienced brand
- Light (improved gas mileage and performance for vehicle)

Cons:
- No single-band parametric EQ if using for a subwoofer
- No remote bass knob for subwoofer
- No high-pass crossover
- Not 1Ω stable (but you shouldn't expect that in this price range)
- Light (Class AB amps tend to be heavier with greater quality amps, but no problems so far)

By I'm Funkingitup on December 30, 2014

37 found this helpful


Who doesn't like to save money ?

Great products at great prices. Nothing more important to say than that.

By Ed on October 3, 2014

35 found this helpful


Good cheap amp.

Bought this to power my Pioneer TS-SWX2502, 10" sub. Works fanstasic bridged. It gets warm but never hot enough to trip out. Have yet to hear the bass distort/clip, even blasting it as loud as I can stand.

Great amp for the price, it looks well made.

By Kyle on November 8, 2014

34 found this helpful


sounds amazing!

had the system installed professionally on my 2013 lancer and it slams coupled together with all other pioneer component speakers and subs. Sonic Electronix has the best price and shipping time and everything was delivered of course perfect condition. I would definitely purchase from here again especially Pioneer the sound quality is amazing!

By ANDREW on May 3, 2015 Checkmark Icon Verified purchase

28 found this helpful


Best amp

Best amp you'll ever own . I install it and never had problems , I love pioneer products . 5 star amp

By Jimmy on March 2, 2015

28 found this helpful


Certified on a Budget

Perfect match for a 10 year old KFC-W3011 sub. The 450w RMS certified pioneer amp has no problem giving life to a 400w RMS Kenwood sub. I even used my multi-meter and a 40Hz test tone along with my excelon head unit and had no problem getting what I wanted out of this amp. The amp is bridged at 4ohms and hits just right for a small car setup. At some point I plan to try this same amp out on a pair of 6x9s. I have no complaints.

By MRDOTJC on March 7, 2017

4 found this helpful


Amp

Good price and quality I would recommend this product for the price

By Rob on January 12, 2016

3 found this helpful


Junk Amplifier

Would not recommend to my worse enemy. This is not capable of handling 2 10" sub-woofers at all may handle 1 low powered sub not 2. Lasted less than 2 years had to replace with a better unit and the cost was far more expensive.

By Bill on November 22, 2016 Checkmark Icon Verified purchase




EB92B small

Kicker Phenom Series EB92B - Black

In-Ear MicroFit Phenom Series Aluminum Headphone Monitors

(13)

$14.95

List price $39.95

DDXP201-TN-2 small

MTX Audio Thunderform DDXP201-TN (Black, Loaded)- Open Box

Dodge Dakota 1997-2004, 2 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure

$249.99

List price $699.95

XS-GT1626A_CSM small

Sony XS-GT1626A with Sound Dampener

6-1/2" 2-Way Xplod Car Speakers (Also Fits 6-3/4" Openings) with Included Sound Dampening Material

$43.95

List price $94.98

BAR-CAM small

ScyTek Bar-Cam (Barcam 1)

Universal Bar-Style Rear View Back-Up Camera w/ Night Vision

(6)

$64.99

List price $89.99

1SV12B small

Single 12" Vented MDF Subwoofer Enclosure (Belva 1SV12B)

12-inch Vented Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (1.8 cu ft airspace 1SV12B)

(123)

$79.99

List price $95.99

EB92MB small

Kicker Phenom Talk EB92MB - Black

MicroFit In-Ear Phenom Talk Series Black Monitor Ear Buds with Microphone

(5)

$39.95

List price $49.95

C-ONE EP-WHITE small

Beyerdynamic C-ONE EP-WHITE - White Ear-Pads

Replacement Pair of Original White Leatherette Earpads/Ear Cushions (709255)

$17.99

List price $40.00

XS-GS1720S small

Sony XS-GS1720S (Open Box)

6.5" / 6.75" 2-Way GS Series Component Car Audio Speaker System

$64.99

List price $209.99

YX545X small

zBoost (YX545X) SOHO Xtreme In-Door Signal Booster

Boosts Cell-Phone Signal In-Doors for Devices on 800 and 1900 MHz Up To 5500 Square Feet

(2)

$429.99

List price $549.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1988 Dodge Raider

1991 Eagle Premier

2015 Ford Expedition

1981 Ford F-150

2004 Ford Freestar

1997 Toyota Celica

2014 Ram 2500

2010 Ford Focus

2002 Ford Windstar

2012 Volvo S80

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
