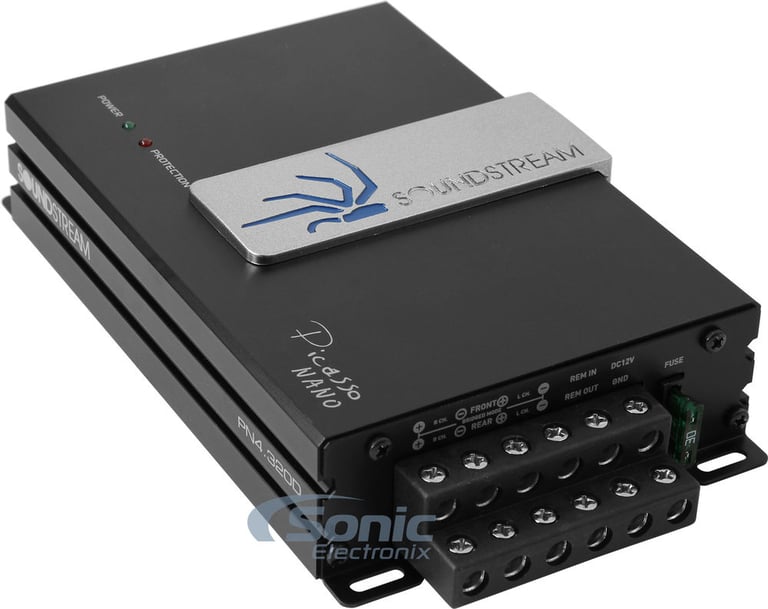

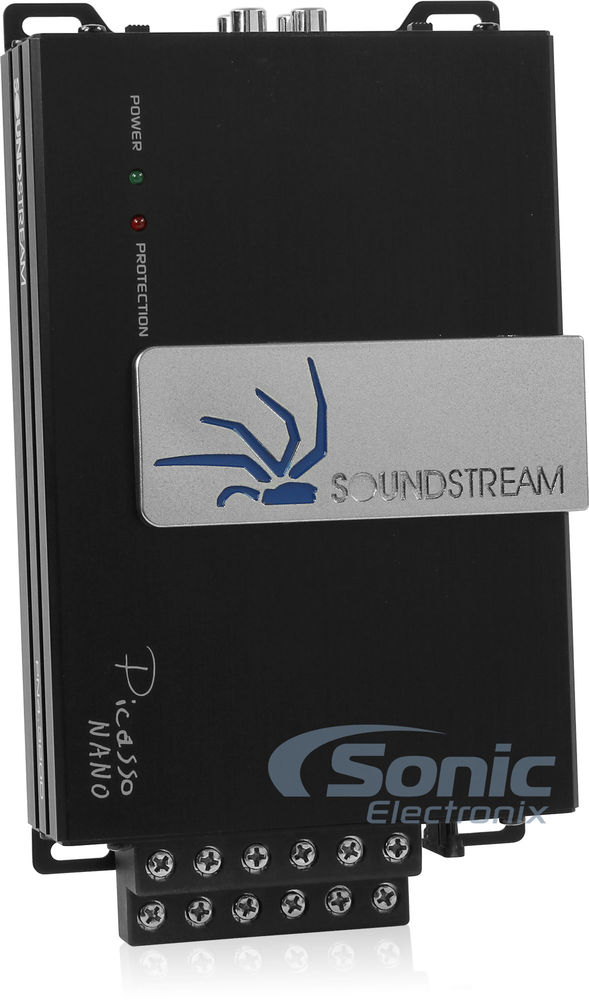

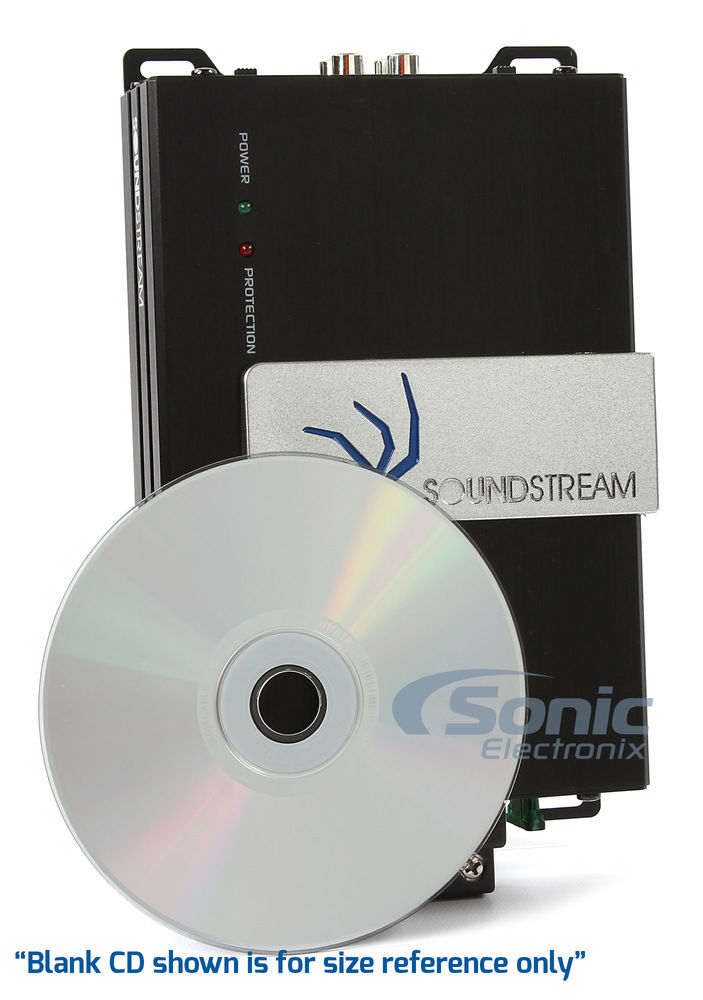

Soundstream PN4.320D

320W 4-Channel Picasso Nano Class-D Amplifier

Product videos
highlight-star-icon

• RMS Power: 60W x 4 @ 4 ohm, 80W x 4 @ 2 ohm, 160W x 2 @ 4 ohm Bridged
• Total Peak Power: 320W
• Dash Mount Remote Bass Level Control Included
• Dimensions: 4.75"W x 7"L x 2"H

Learn more about the pn4320d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

Product Highlights


• RMS Power: 60W x 4 @ 4 ohm, 80W x 4 @ 2 ohm, 160W x 2 @ 4 ohm Bridged
• Total Peak Power: 320W
• Dash Mount Remote Bass Level Control Included
• Dimensions: 4.75"W x 7"L x 2"H

Description


Soundstream brand icon

Authorized dealer

General Features:

  • Picasso Nano Series 4-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 4 chan.
    • 2 ohm: 80 watts x 4 chan.
    • 4 ohm, Bridged: 160 x 2 chan.
  • Max power output: 320 watts
  • Pulse Width Modulated MOSFET power supply
  • Heavy duty aluminum heatsink
  • Soft turn-on circuit
  • Thermal and speaker short protection circuitry
  • Dash mount remote bass level control included
  • Variable Bass Boost (0 to +12 dB bass boost at 80 Hz)
  • 4 and 2 channel operation
  • 180° phase switch

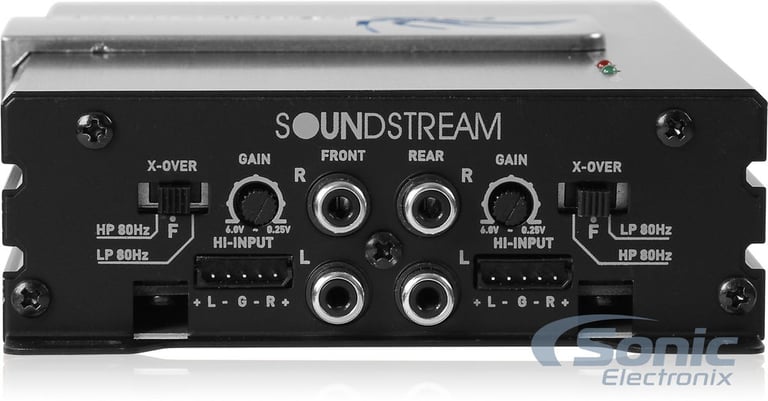

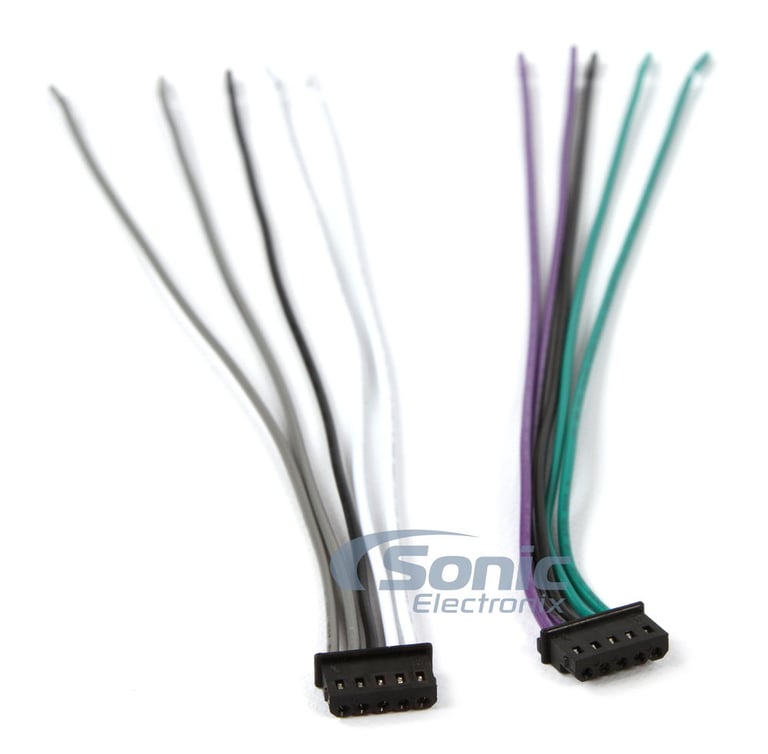

  • Speaker-level (high-level) inputs
  • Variable low-pass filter (50-250 Hz, 24 dB/octave)
  • Subsonic filter (12 dB at 10-50 Hz)

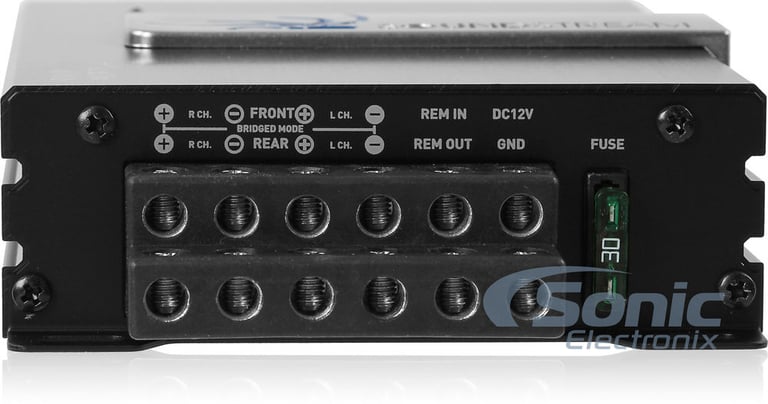

  • 4 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 4.75"W x 7"L x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

CXA360.4 small

Kicker CXA360.4 (46CXA3604T)

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

(16)

$229.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
80 watts x 4 channel
Bridged RMS Power
160 watts x 2 channel
Amplifier Specifications
Series
Picasso-Nano Series
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
320 watts
Total RMS Power Output
240 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PN4.320D

Weight:

4.00lbs

Internal SKU:

pn4320d

Internal Product ID:

79529

Product and How-to Videos


  • Soundstream Picasso Nano Amplifiers
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Soundstream PN4.320D thumbnail image

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
5
Features
4
Design
4
Usability
4

Customer Reviews

Sort by:

Loading...

Nice Amp for my Victory

I purchased this amp to install in the fairing of my 2013 Victory Cross Country Tour bike. I was able to mount it due to it's compact size onto an aluminum plate to help reduce vibration and aid in cooling. Connecting it was pretty straight forward with the proper wiring documentation. I used quality properly gauged wires and fuses and it powered up first try. I took my time setting the gain with my Polk DB521 and it has good clean sound. I have been running this amp for over a month with several longer rides and conditions and so far no issues. I would rate higher but durability will be key over time.

By KCKid on May 5, 2015
