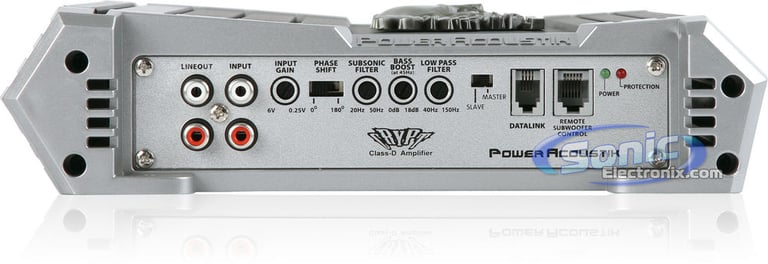

Power Acoustik CPT1-2200D-OPEN BOX Image 3 — Power Acoustik CPT1-2200D-OPEN BOX

Power Acoustik CPT1-2200D-OPEN BOX Image 4 — Power Acoustik CPT1-2200D-OPEN BOX

Power Acoustik CPT1-2200D-OPEN BOX Image 5 — Power Acoustik CPT1-2200D-OPEN BOX

Power Acoustik CPT1-2200D-OPEN BOX Image 6 — Power Acoustik CPT1-2200D-OPEN BOX

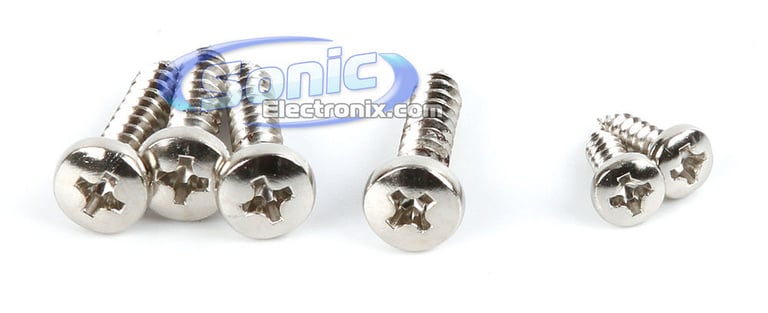

Power Acoustik CPT1-2200D-OPEN BOX Image 7 — Power Acoustik CPT1-2200D-OPEN BOX

Power Acoustik CPT1-2200D-OPEN BOX Image 8 — Power Acoustik CPT1-2200D-OPEN BOX

Power Acoustik CPT1-2200D-OPEN BOX Image 9 — Power Acoustik CPT1-2200D-OPEN BOX

Power Acoustik CPT1-2200D-OPEN BOX Image 10 — Power Acoustik CPT1-2200D-OPEN BOX

Power Acoustik CPT1-2200D-OPEN BOX Image 11 — Power Acoustik CPT1-2200D-OPEN BOX

Power Acoustik CPT1-2200D-OPEN BOX Image 12 — Power Acoustik CPT1-2200D-OPEN BOX

Power Acoustik CPT1-2200D-OPEN BOX Image 13 — Power Acoustik CPT1-2200D-OPEN BOX

Power Acoustik CPT1-2200D-OPEN BOX Image 14 — Power Acoustik CPT1-2200D-OPEN BOX

Power Acoustik CPT1-2200D-OPEN BOX Image 15 — Power Acoustik CPT1-2200D-OPEN BOX

Power Acoustik CPT1-2200D-OPEN BOX Image 16 — Power Acoustik CPT1-2200D-OPEN BOX

Power Acoustik CPT1-2200D-OPEN BOX-video

Product videos

Product highlights

• RMS: 700W x 1 @ 4 ohm, 950W x 1 @ 2 ohm, 1300W x 1 chan @ 1 ohm
• Total Peak Power: 2200W
• Class D Circuitry
• Bass Boost: 0-12 dB at 45 Hz
• 1 Pair of Preamp Outputs
• Dimensions: 12"L x 9-13/16"W x 2-5/16"H

Learn more about the LS-cpt12200d-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

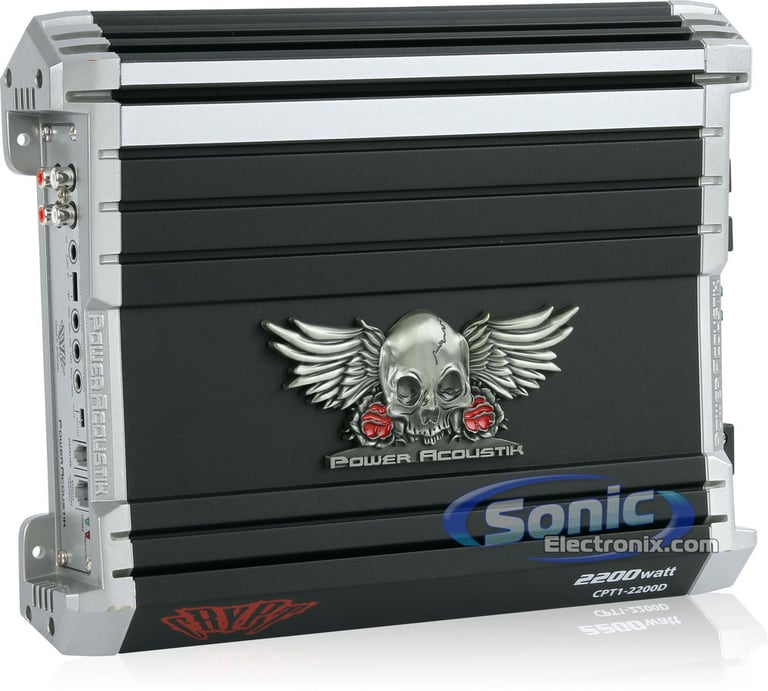

CRYPT Series Class D Monoblock Amplifier
RMS Power Rating:
- 4 ohm: 700 watts x 1 chan.
- 2 ohm: 950 watts x 1 chan.
- 1 ohm: 1300 watts x 1 chan.
Max power output: 2200 watts
Pulse Width Modulated power supply
MOSFET PSU Transistors

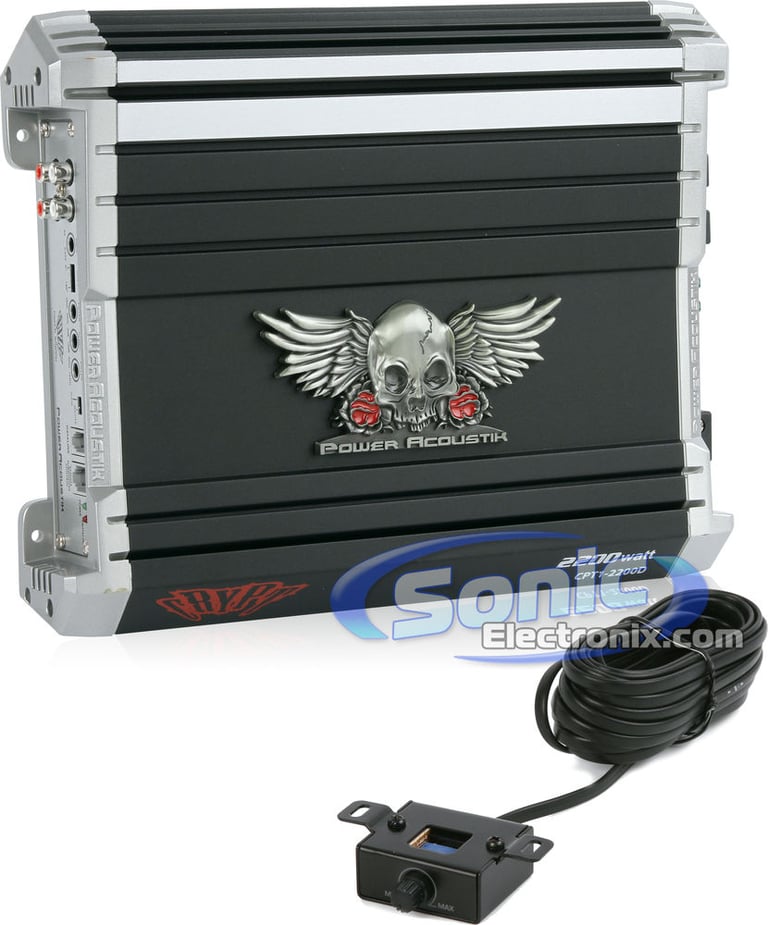

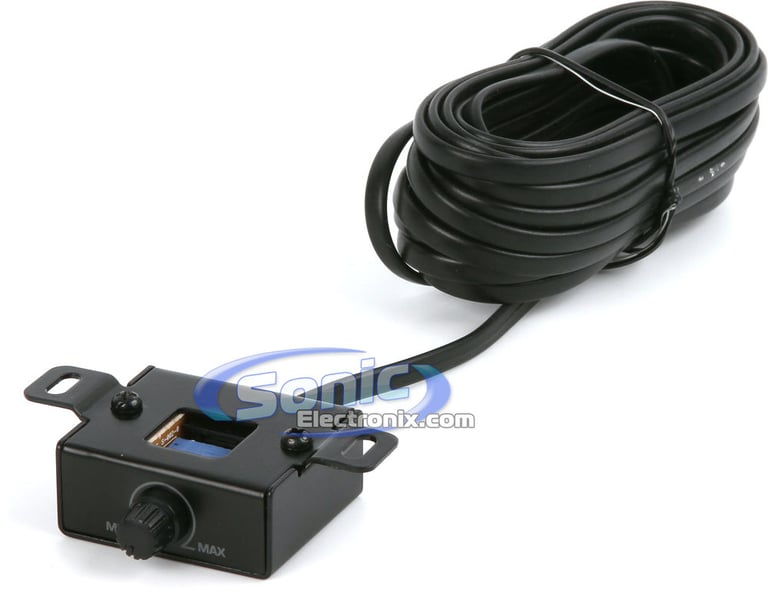

Wired remote bass level control included
LED power (green) and protect (red) indicators
Selectable bass boost (6, 12 dB at 45 Hz)
Soft Start Turn-on
Mono channel operation
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Heavy duty extruded aluminum chassis heatsink for maximum heat dissipation
Black textured finish with silver trim and cast metal badge
Nickel-plated RCA level inputs
Nickel-plated screw terminals

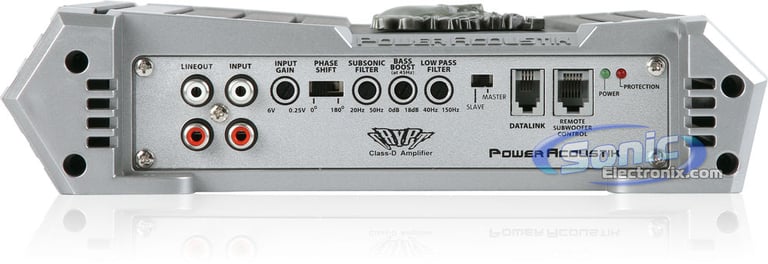

Input sensitivity:
- Level: 200mV-8V
Variable low-pass filter (50-250 Hz, 12 dB/octave)
Subsonic filter (20-50 Hz)
Phase Shift: 0-180 Degrees
Frequency response: 15-150 Hz
Dimensions: 12"L x 9-13/16"W x 2-5/16"H
2-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

700 watts x 1 channel

RMS Power @ 2 ohms

950 watts x 1 channel

RMS Power @ 1 ohm

1300 watts x 1 channel

Amplifier Specifications

Series

Crypt Series

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

2200 watts

Total RMS Power Output

1300 watts

Maximum Input Gauge Size

2 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.5%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 250 Hz

Subsonic Filter

20 - 50 Hz

Signal-to-Noise Ratio

80 dB

Bass Boost

6, 12 dB

Remote bass/level controller

Yes

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
