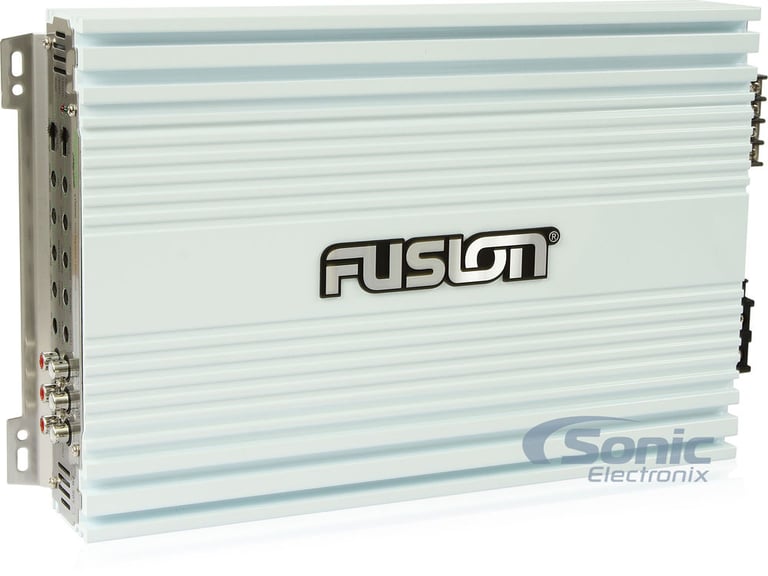

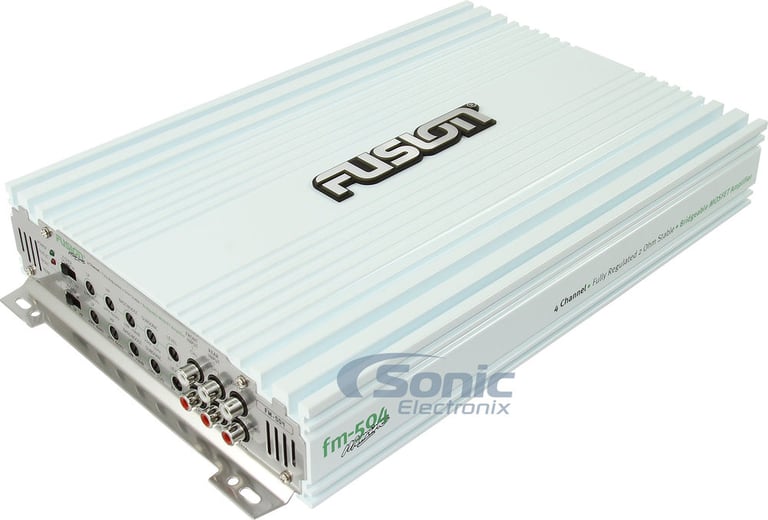

Fusion Electronics FM-504

500 Watt 4-Channel FM Series Marine Amplifier

Fusion
Shop all Fusion
highlight-star-icon

• 50W x 4 Chan. @ 4 ohm
• 75W x 4 Chan. @ 2 ohm
• 150W x 2 Chan. @ 4 ohm
• Class AB Design
• 4/2 Channel Operation

Learn more about the fm504

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DKGM-15 main

Crux DKGM-15

Stereo Replacement Interface with Steering Wheel Control Retention, Video Switcher, and Double DIN Dash Kit for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

19
-35.71%

$162.00

List price $252.00

95-2001 main

Metra 95-2001 Dash Kit

Install a new Double-DIN car stereo in select 1994-2012 vehicles from Chevrolet, GMC, Buick

13
-50.02%

$12.99

List price $25.99

GMK421 main

American International GMK421

Single DIN or Double DIN Stereo Dash Kit for select 1992-2012 vehicles from Chevrolet, GMC, Buick

15
-66.69%

$12.99

List price $39.00

AXDI-CL2 main

Axxess AXDI-CL2

Install a New Car Stereo and Retain Steering Wheel Controls, Factory Chimes, and Other Factory Features in select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

10
-10.75%

$82.99

List price $92.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

206
DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

CDX3119 main

Jensen CDX3119

Single DIN CD Multimedia Receiver with Bluetooth

3

Description


Fusion brand icon

Authorized dealer

General Features:

  • FM Series 500 Watt 4-Channel Marine Amplifier
  • Conformal coated PCBs - water resistant coating protects from salt, air, and moisture
  • RMS Power Rating:
    • 4 ohm: 50 watts x 4 chan.
    • 2 ohm: 75 watts x 4 chan.
    • Bridged, 4 ohm: 150 watts x 2 chan.
  • Peak Power Rating: 500 Watts
  • Class AB Design
  • Variable Bass Boost (0 to +18 dB bass boost, at 45Hz)
  • Bridgeable
  • 4-channel or 2- channel operation
  • Anti-corrosion gold plated terminals
  • FURANTZ Heat-Sink Technology
  • F.I.S.T FUSION Intercooled Semi-Conductor Technology - removes heat efficiently from semi-conductors for low distortion and thermal stability
  • Signal-to-Noise: 95dB
  • Variable high-pass filter (40-600 Hz)
  • Variable low-pass filter (40-160 Hz)
  • Dimensions: 8.67"W x 13"L x 2.26"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(137)

$349.99

List price $419.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(54)

$189.99

List price $239.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
Bridged RMS Power
150 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
500 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
High-Pass Crossover Frequency
40 - 600 Hz
Low-Pass Crossover Frequency
40 - 160 Hz
Signal-to-Noise Ratio
95 dB
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

FM-504

Weight:

9.00lbs

Internal SKU:

fm504

Internal Product ID:

81338
