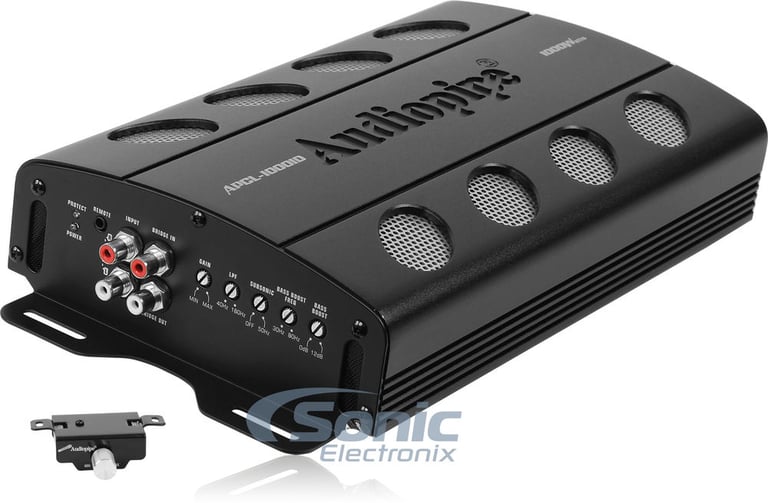

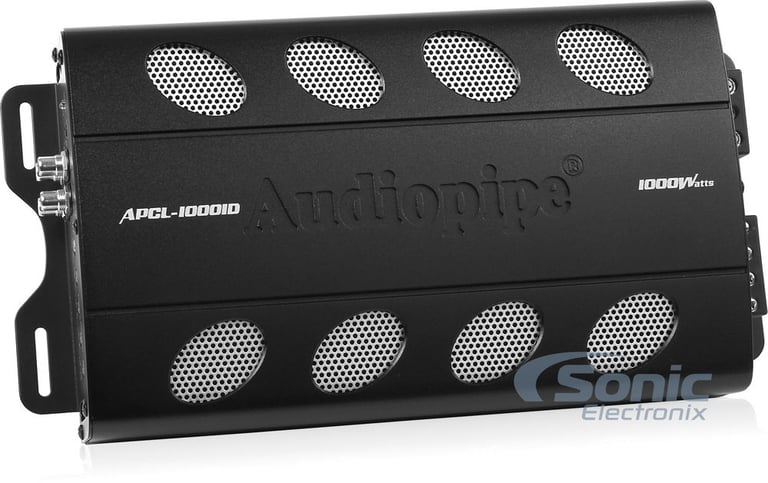

Audiopipe APCL-10001D

1000W Consumer Line Series Class D Monoblock Amplifier

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• RMS Power: 400W x 1 @ 4 ohm, 600W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Total Peak Power: 1000W
• Adjustable Low Pass Filter
• High Quality Aluminum Heat Sink
• Dimensions: 6.93" W x 11.34" L x 2.16" H

Learn more about the apcl10001d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

95-6511-17 main

Metra 95-6511-17 Dash Kit

Install a new Double-DIN car stereo in select 2007-2020 vehicles from Dodge, Jeep, Chrysler

8
-48.02%

$12.99

List price $24.99

40-EU10 main

Metra 40-EU10 Antenna Adapter

Install a New Car Stereo and Retain Factory Antenna in select 2000-2017 vehicles from BMW, Mercedes-Benz, Ford

44
-14.30%

$11.99

List price $13.99

99-6511 main

Metra 99-6511 Dash Kit

Install a new Single-DIN car stereo in select 2007-2020 vehicles from Dodge, Jeep, Chrysler Multi-Kit

12
-41.39%

$16.99

List price $28.99

72-7902 main

Metra 72-7902

Install New Speakers in select 1990-2024 vehicles from Ram, Dodge, Jeep

20
-28.59%

$9.99

List price $13.99

82-6601 main

Metra 82-6601

6" - 6.75" Speaker Adapter for select 2002-2018 vehicles from Jeep, Dodge

6
-41.39%

$16.99

List price $28.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

TWPZ main

DS18 TWPZ

80W Peak (40W RMS) 1" Slim Dome Super Tweeters

6
DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

Limited time!
CMR2724 main

Jensen CMR2724

7" Double DIN Touch Screen Digital Multimedia Receiver with Bluetooth

4
-25.00%

$82.49

List price $109.99

Product Highlights


• RMS Power: 400W x 1 @ 4 ohm, 600W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Total Peak Power: 1000W
• Adjustable Low Pass Filter
• High Quality Aluminum Heat Sink
• Dimensions: 6.93" W x 11.34" L x 2.16" H

Description


Audiopipe brand icon

Authorized dealer



Quality without the Cost

The Audiopipe Consumer Line series amplifiers were reengineered from the ground up in 2012 to provide plenty of high quality power for even the highest end sound system while keeping their footprint as compact as possible. Audiopipe didn’t skimp on the internals of these amps, the Consumer Line features the finest in electronic protection circuitry to protect against harmful short circuits, thermal overloads and overheating. These premium choice amplifiers are sure to impress.

Oversized Toroids for Better Sound

Oversized Toroids for Oversized Sound

The Consumer Line amplifiers are built with performance in mind, and a quick look under the hood of these amplifiers reveal oversized toroids. These toroids (basically just wire coils) help to regulate the voltage in the amplifier. By overbuilding them, Audiopipe ensures that every CL series amp puts out even, consistent power for the best possible sound, and the longest life from your components.

Outstanding Heat Dissipation

The Finest in Heat Dissipation

When redesigning the Consumer Line series, Audiopipe took great care in designing an amplifier that would not overheat. These amps feature a high quality aluminum heat sink with cooling fins running along each side and grills embedded in the top plate to ensure outstanding heat dissipation and prevent any unwanted heat related shutdowns.

Compatible with 16V Systems

16V System Compatibility

The Audiopipe Consumer Line Class D monoblock amps are intended for hard hitting sound, so much so that they were designed for compatibility with 16V vehicle electrical systems. Because the CL series amps are capable of accepting a higher voltage than the standard 12V amplifier, they are able to produce much more power.




General Features:

  • Consumer Line Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 400 watts x 1 chan.
    • 2 ohm: 600 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.
  • Double side FR-4 PCB with high quality SMD components
  • Pulse Width Modulated MOSFET power supply

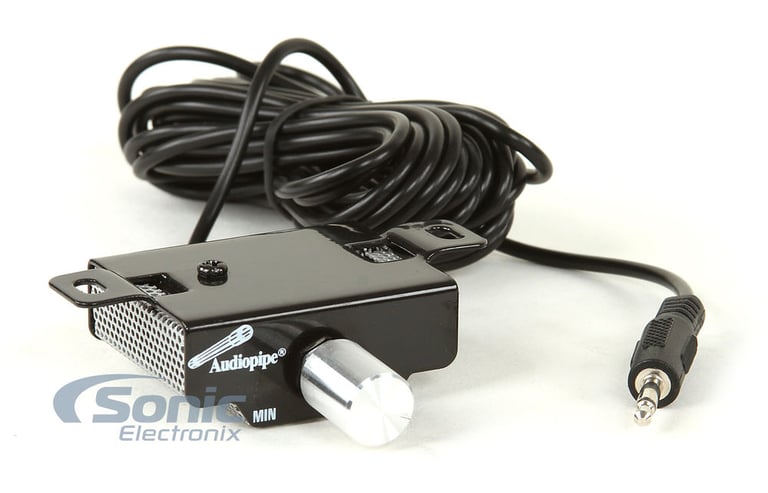

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Mono channel operation
  • Input sensitivity:
    • Low level: 200mV-5V
  • Input Sensitivity Speaker Level: 5-50 Hz

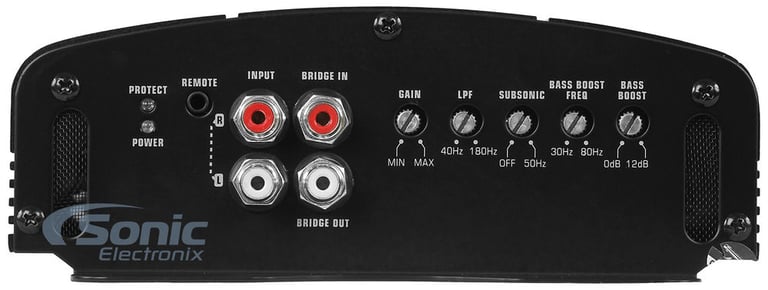

  • Variable low-pass filter (40-180 Hz, 24 dB/octave)
  • Subsonic filter (24 dB/octave at 15 Hz)
  • Preamp RCA outputs to daisy chain multiple amps
  • Overload, short circuit, thermal and low voltage protection circuitry
  • Phase adjustable
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation

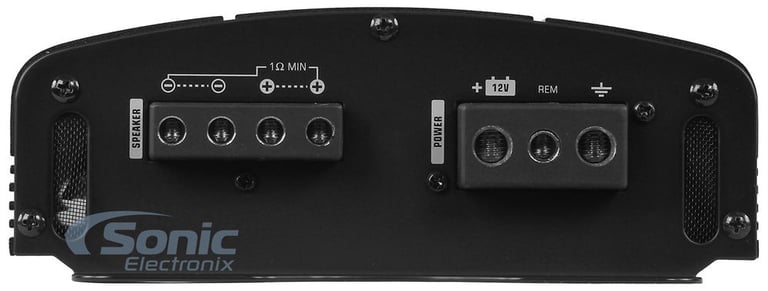

  • 4 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 6.93"W x 11.34"L x 2.16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
RMS Power @ 1 ohm
1000 watts x 1 channel
Amplifier Specifications
Series
Consumer Line Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
.05%
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 180 Hz
Subsonic Filter
5 - 50 Hz
Signal-to-Noise Ratio
70 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes

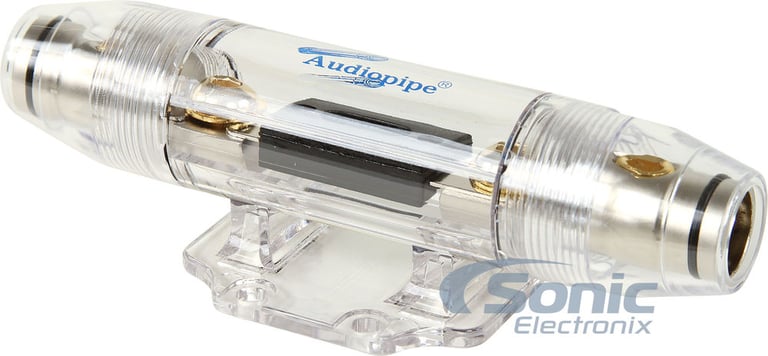

Fuse Rating
80A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

APCL-10001D

Weight:

8.80lbs

Internal SKU:

apcl10001d

Internal Product ID:

81645
