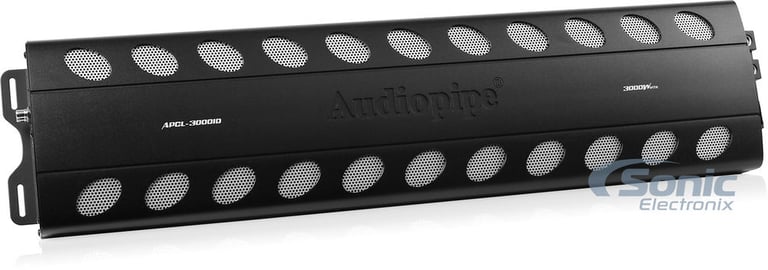

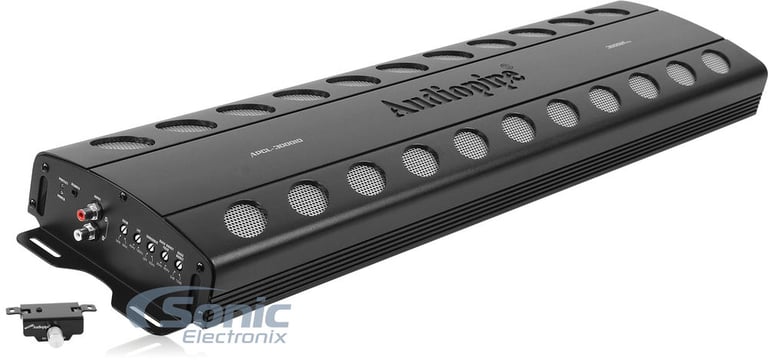

Audiopipe APCL-30001D

3000W Consumer Line Series Monoblock Class D Amplifier

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• RMS Power: 1800W x 1 @ 4 ohm, 3000W x 1 @ 2 ohm
• Total Peak Power: 6000W
• Adjustable Low Pass Filter
• High Quality Aluminum Heat Sink
• Dimensions: 7" W x 27.9" L x 2.2" H

Learn more about the apcl30001d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Product Highlights


• RMS Power: 1800W x 1 @ 4 ohm, 3000W x 1 @ 2 ohm
• Total Peak Power: 6000W
• Adjustable Low Pass Filter
• High Quality Aluminum Heat Sink
• Dimensions: 7" W x 27.9" L x 2.2" H

Description


Audiopipe brand icon

Authorized dealer

POWER SYSTEM WARNING: This amplifier requires a charging system capable of at least 150 amps. If your vehicle's charging system isn't powerful enough, it will damage or destroy this amplifier and possibly damage your vehicle, as well as void your warranty on the amp. You must perform electrical system upgrades to provide the power this kind of amp demands. Visit our Mean Green High Output Alternators store to find the right alternator for your vehicle.


Quality without the Cost

The Audiopipe Consumer Line series amplifiers were reengineered from the ground up in 2012 to provide plenty of high quality power for even the highest end sound system while keeping their footprint as compact as possible. Audiopipe didn’t skimp on the internals of these amps, the Consumer Line features the finest in electronic protection circuitry to protect against harmful short circuits, thermal overloads and overheating. These premium choice amplifiers are sure to impress.

Oversized Toroids for Better Sound

Oversized Toroids for Oversized Sound

The Consumer Line amplifiers are built with performance in mind, and a quick look under the hood of these amplifiers reveal oversized toroids. These toroids (basically just wire coils) help to regulate the voltage in the amplifier. By overbuilding them, Audiopipe ensures that every CL series amp puts out even, consistent power for the best possible sound, and the longest life from your components.

Outstanding Heat Dissipation

The Finest in Heat Dissipation

When redesigning the Consumer Line series, Audiopipe took great care in designing an amplifier that would not overheat. These amps feature a high quality aluminum heat sink with cooling fins running along each side and grills embedded in the top plate to ensure outstanding heat dissipation and prevent any unwanted heat related shutdowns.

Compatible with 16V Systems

16V System Compatibility

The Audiopipe Consumer Line Class D monoblock amps are intended for hard hitting sound, so much so that they were designed for compatibility with 16V vehicle electrical systems. Because the CL series amps are capable of accepting a higher voltage than the standard 12V amplifier, they are able to produce much more power.




General Features:

  • Consumer Line Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1800 watts x 1 chan.
    • 2 ohm: 3000 watts x 1 chan.
  • Double side FR-4 PCB with high quality SMD components
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included

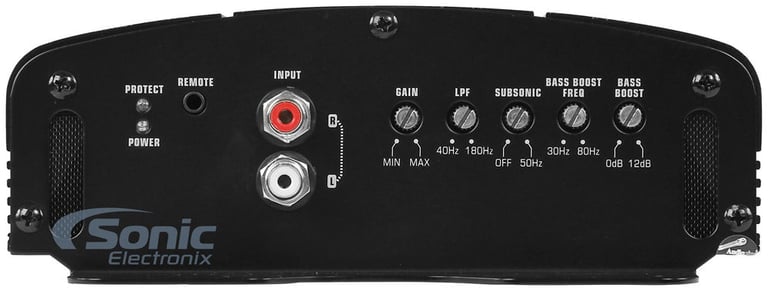

  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Mono channel operation
  • Variable low-pass filter (40-180 Hz, 24 dB/octave)
  • Subsonic filter (24 dB/octave at 15 Hz)
  • Overload, short circuit, thermal and low voltage system protection circuitry
  • Phase adjustable
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation

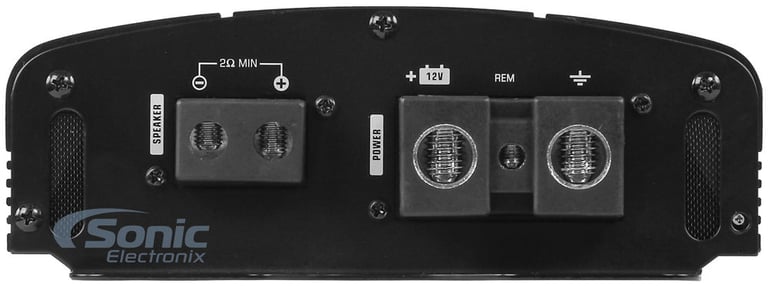

  • 1/0 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 7"W x 27.9"L x 2.2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

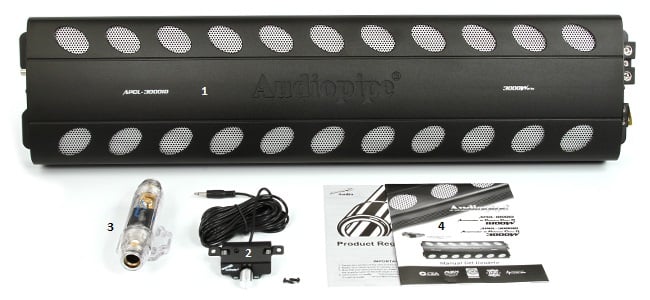

What's in the Box?

  1. APCL-30001D Monoblock Amplifier

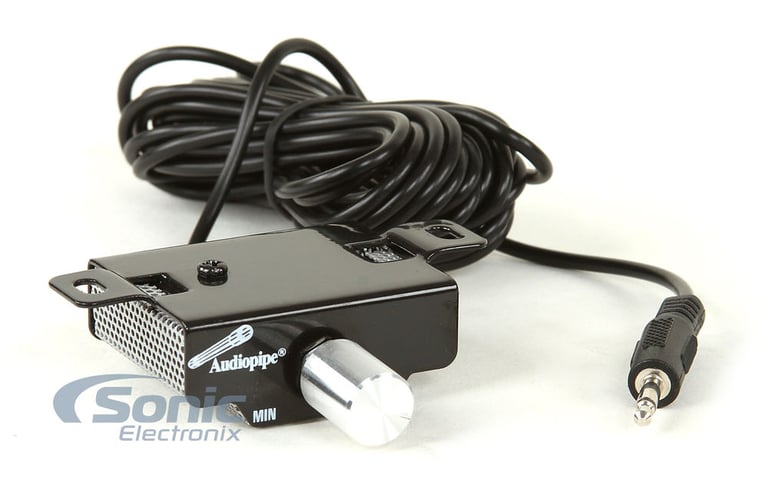

  2. Wired Remote Bass Level Control

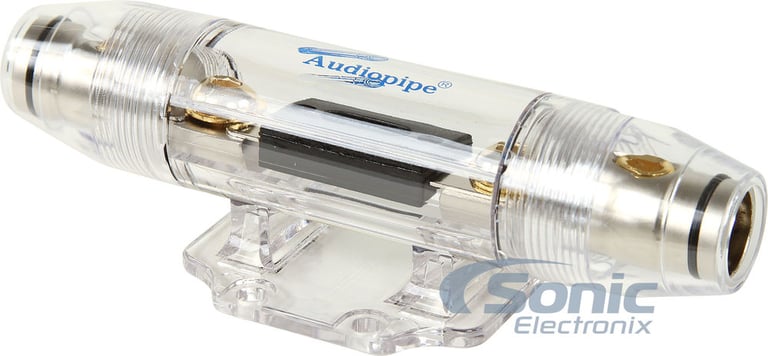

  3. Fuse Holder

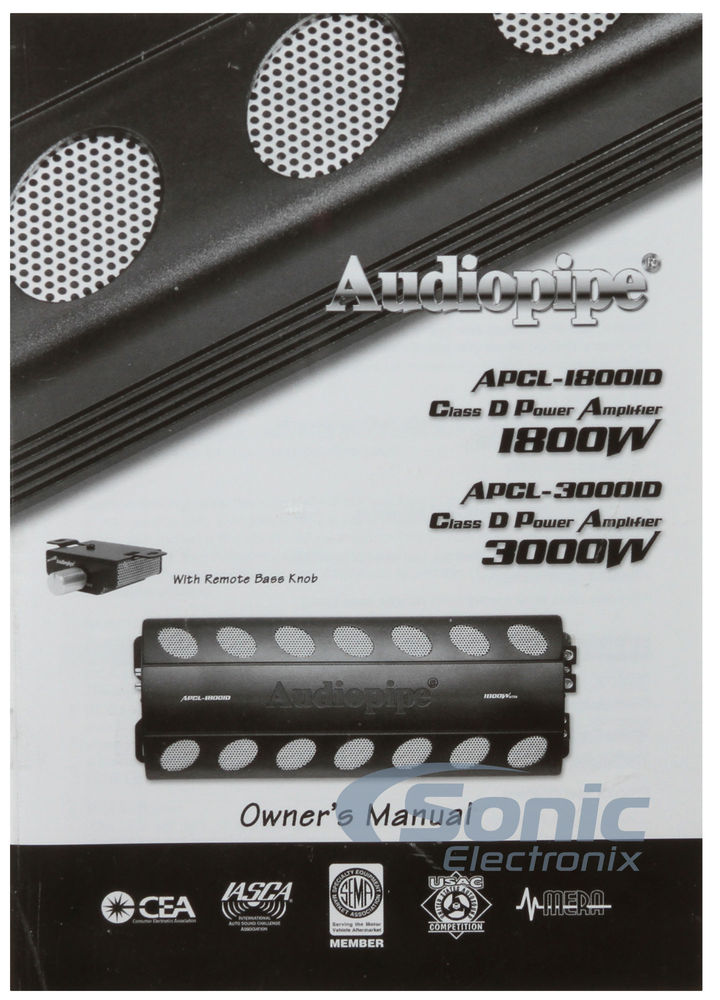

  4. User Guide

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1800 watts x 1 channel
RMS Power @ 2 ohms
3000 watts x 1 channel
Amplifier Specifications
Series
Consumer Line Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
6000 watts
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohm
THD at Rated RMS Power
.2%
Speaker Level Inputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 180 Hz
Subsonic Filter
5 - 50 Hz
Signal-to-Noise Ratio
70 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
200A x 1
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

APCL-30001D

Weight:

19.60lbs

Internal SKU:

apcl30001d

Internal Product ID:

81648

Product and How-to Videos


  • Audiopipe APCL Series Car Amplifiers | Product Overview
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Audiopipe APCL-30001D thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
5
Design
4.4
Usability
5

Customer Reviews

Sort by:

Loading...

Great amp

I got this amp on 3 12inch bd3 banging loud. This amp can power anything you put on it guaranteed. You are going to an extra battery for sure

By Chris on December 1, 2014

34 found this helpful


An EE's take on the bunk

Decent amplifier design, clamped output at 14v in under a reactive load is 3200w at 2ohm. pretty darned good even after an hour the amplifier never got too hot (above 70c is too hot). It's just fugly as sin.

By Robert Stever on March 6, 2015

21 found this helpful


great amp

its got lots of power hade to turn my gain down some it can blow ya subs my gain set low bass boost off i got it wire at 4 ohms still to loud

By smitty on September 25, 2014

22 found this helpful


AudioPipe APCL-30001D

I have this amp running two AidioPipe TXX-BD3-15's at two ohms. The amp is only turned up a little over half way and pushing my 15's super hard. This amp is truelly a beast for the cost. I'm very impressed!

By Rick on April 26, 2015

10 found this helpful


audiopipe amp

i own this amp and it is really impressive im powering 2 kicker cvx 15's in a 8cu ft box thats ported to factory specs in a dodge megacab and it slams also ohmed speakers to 1ohm upgraded alternator and 0 guage wiring

By KENNYC on December 11, 2017

3 found this helpful


proud

All I can say is clean power, dont pull a bunch of juice and mean!!!!

By Travis on August 22, 2016
