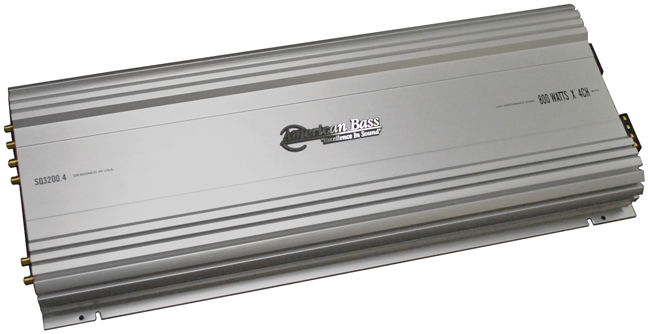

American Bass SQ32004

3200W 4-Channel Class A/B SQ Series Car Amplifier

Product videos
highlight-star-icon

• RMS Power: 200W x 4 @ 4 ohm, 300W x 4 @ 2 ohm
• Total Peak Power: 3200W
• S/N Ratio >100dB
• Dimensions: 9-5/8" W x 23-5/8" L x 2-1/4" H

Learn more about the sq32004

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Product Highlights


• RMS Power: 200W x 4 @ 4 ohm, 300W x 4 @ 2 ohm
• Total Peak Power: 3200W
• S/N Ratio >100dB
• Dimensions: 9-5/8" W x 23-5/8" L x 2-1/4" H

Description


American Bass brand icon

Authorized dealer

General Features:

  • SQ Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 4 chan.
    • 2 ohm: 300 watts x 4 chan.
    • Bridged, 4 ohm: 500 watts x 2 chan.
  • Max power output: 3200 watts
  • S/N Ratio >100dB
  • THD 0.02%
  • Channel Seperation >55dB
  • Input Sensitvity 0.15V-5V
  • Input Impedence 47KOhm
  • Slew Rate 10V/Usec
  • Damping Factor 200 at 4 Ohm
  • Fuse Rating 30A x 4
  • 4 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 9-5/8"W x 23-5/8"L x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
200 watts x 4 channel
RMS Power @ 2 ohms
300 watts x 4 channel
Bridged RMS Power
500 watts x 2 channel
Amplifier Specifications
Series
SQ Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
3200 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.02%
Signal-to-Noise Ratio
100 dB
Channel Separation
55 dB
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SQ32004

Weight:

18.00lbs

Internal SKU:

sq32004

Internal Product ID:

90813
