SPL FX4-1200

1200W Max, FX Series 4-Channel Amplifier

SPL
Shop all SPL
Product videos
highlight-star-icon

•1200W Max, FX Series 4-Channel Amplifier • 4 ohm: 100 watts x 4 chan • 2 ohm: 125 watts x 4 chan. • S/N Ratio: 98dB • THD: 0.02%

Learn more about the fx41200

We apologize

This item has been discontinued


Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

APH-CH01 main

PAC APH-CH01 AmpPro Speaker Connection Harness

Used in conjunction with AmpPro Harness when you add an amplifier to your factory radio for select 2007-2023 vehicles from Dodge, Jeep, Chrysler w/ Factory Amplified Sound Systems

1
-54.14%

$49.99

List price $109.00

72-6515 main

Metra 72-6515

Install New Speakers in select 1999-2024 vehicles from Dodge, Jeep, Chrysler

11
-10.01%

$8.99

List price $9.99

AXUSB-JP1 main

Axxess AXUSB-JP1

USB, HDMI and Auxiliary Replacement Panel for 2015-up Vehicles from Jeep

-10.00%

$62.99

List price $69.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

P1650 main

Rockford Fosgate Punch P1 P1650

220W Peak (110W RMS) 6.5" Punch P1 Series 2 Way Coaxial 4-ohm Speakers

61
VSP69 main

NVX VSP69

900W Peak (300W RMS) 6x9" V-Series 2 Way Coaxial Car Speakers

54
-16.67%

$109.99

List price $131.99

Limited time!
DMX4710S main

Kenwood DMX4710S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM & iDatalink Maestro Ready)

2
-37.71%

$299.00

List price $480.00

C2-650X main

JL Audio C2-650x

120W RMS 6.5" C2 Series 2-Way Coaxial 4-ohm Car Speakers

26
Limited time!
Kappa 63XF main

Infinity Kappa 63XF (INFSPKKA63XFAM)

510W Peak (170W RMS) 6.5" Kappa Series 2 Way Coaxial 3-ohm Speakers

10
-33.34%

$199.95

List price $299.95

Product Highlights


•1200W Max, FX Series 4-Channel Amplifier • 4 ohm: 100 watts x 4 chan • 2 ohm: 125 watts x 4 chan. • S/N Ratio: 98dB • THD: 0.02%

Description


SPL brand icon

Authorized dealer

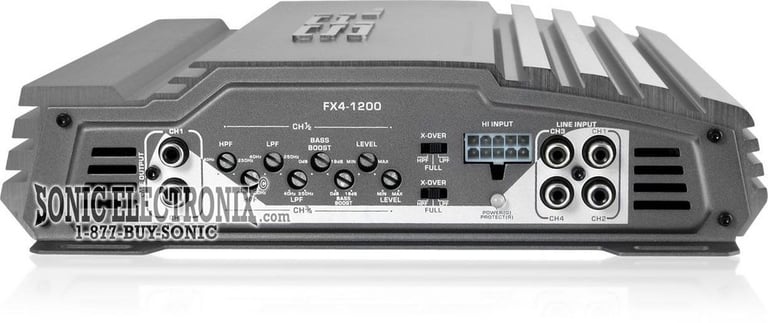

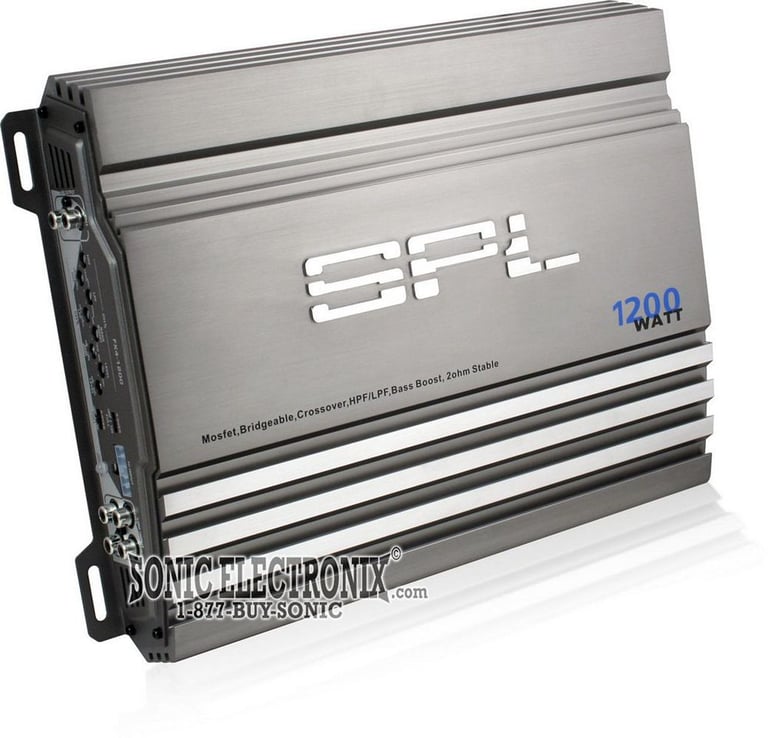

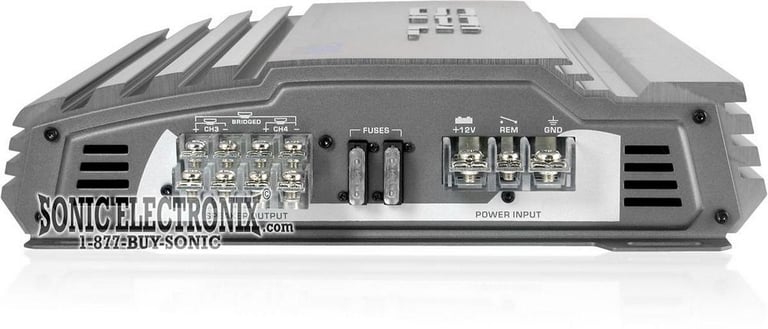

  • SPL FX4-1200 1200W Max, FX Series 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 chan.
    • 2 ohm: 125 watts x 4 chan.
    • Bridged, @ 4 ohm: 250 watts x 2 chan.
  • Full Mosfet Power Supply
  • PWM Circuitry
  • Full Selectable Crossover Hi/Full/Low
  • Three Way Protection Circuit
  • 2 Ohm Stable Stereo
  • Tri-Mode Capable
  • Variable Low Pass 40 Hz-250 Hz
  • Variable Hi Pass 40 Hz-250 Hz
  • Variable 18 dB Bass Boost @ 40 Hz
  • Frequency Response: 10 Hz to 30 KHz
  • S/N Ratio: 98dB
  • THD: 0.02%
  • System Distress Indicator
  • 4 Guage Power / Ground Connection
  • Platinum Plated RCA Connectors
  • Line Output
  • Dimensions: 14" L x 11.1" W x 2.3" H
  • 1-year Manufacturer's warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
125 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
250 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1200 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.02%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Subsonic Filter
n/a
Signal-to-Noise Ratio
98 dB
Channel Separation
n/a
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

SPL

Model Number:

FX4-1200

Weight:

12.00lbs

Internal SKU:

fx41200

Internal Product ID:

9173

Product and How-to Videos


Customer Ratings & Reviews


SPL FX4-1200 thumbnail image

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
4.9
Features
5
Design
4.5
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great buy for the price.

Sends good power,the setting very simple and easy to use and very little heating for the price of the amp powers pioneer subs great.

By YA BOY J.R.R. on January 10, 2011

14 found this helpful


crisp an clear

ive got this amp runin 4 midbass speakers and ive got 2 say 4 a cheap amp its the best,ive playing with car audio 4 more than 20yrs and spl will keep up with the big dogs easy......great price 2............

By james on October 18, 2007

12 found this helpful


AMAZING

This has so much power, Great value as well i highly recommend buying this amp for people who want to blow out your windows.

By Pops on November 22, 2013

11 found this helpful


Worth the money

i purchased this amp a few weeks ago. To replace the sony explode amp i tried first. The sony was a joke. They have no adjustment really what so ever, never have another. The spl for no more than the $100 price tag is well worth the money. seems to have good power out put and relatively clean sound for being a low end amp. Like the guy below said it does get hot in a hurry when pushed. That's the only bad thing i can say about it. Would recommend to anyone on a budget!

By Mark on March 22, 2010

10 found this helpful


Good

This amp puts out ALOT of power. Make sure you have strong speakers. Allot of people talk down on SPL. There's CDT Audio Components all around power by this amp, we have each speaker getting 100 watts and they sound great and the amp is turned up about 3/4 way..
If you need allot of power for a low price, this is the amp to get. It's pretty awesome. Good filters. Everyone should buy an amp for the door speakers. You'll never go back.

DOWNSIDE. This amp gets real hot, have to add a fan.

By R P on December 24, 2009

10 found this helpful


Best Value For Your Money!!!

Got it hooked up in my 91 Mustang GT Hatchback to Infinity 6829CF 6x8's in the back and to some Kenwood KFC-1693PS in the doors and it makes the speakers come alive. Would definitely recommend it for the price.

By Randy Savage on March 26, 2011

10 found this helpful




CTX-3200.1 small

RE Audio CTX-3200.1

1200W RMS CTX Series Class DE Monoblock Car Amplifier

(6)

$199.99

List price $774.99

41CST204 small

Kicker CST20 (41CST204)

200W Peak (100W RMS) 3/4" Titanium Dome CS-Series Tweeters - Pair

(13)

$39.95

List price $59.95

BP2000.4 small

Massive Audio BP2000.4

2000W Max Blade BP Series 4-Channel Class-D Amplifier w/ Remote Level Control

$239.99

List price $239.99

10W1v2-8 small

JL Audio 10W1v2-8

10" Single 8 ohm W1v2 Series Car Subwoofer

(2)

$159.95

List price $179.95

SSRCB20 small

Stinger SSRCB20

Competition Series Twisted RCA Interconnect - 20 Ft

$15.99

List price $19.00

PX1900.4 small

Massive Audio PX1900.4

Primo Series 4-Channel Amplifier (960W Total RMS)

$379.95

List price $644.95

FX4.50 small

MB Quart FX4.50

400W RMS 4-Channel Formula Series Amplifier

(3)

$79.99

List price $179.99

PLA1085 small

Pyle PLA1085 Blue Wave Series

(1)

$119.99

List price $273.99

EX48 small

Massive Audio EX48

1600W Max (800W RMS) Nano Edge Series Digital 4-Channel 2 ohm Stable Amplifier

$269.96

List price $679.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Jeep Cherokee

2012 Kia Forte

2002 Saab 9-3

2016 Ford Mustang

2014 BMW X3

2012 Dodge Durango

2001 Toyota Corolla

2019 MINI Cooper

2011 Ford Explorer

2016 Audi A6 Quattro

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
