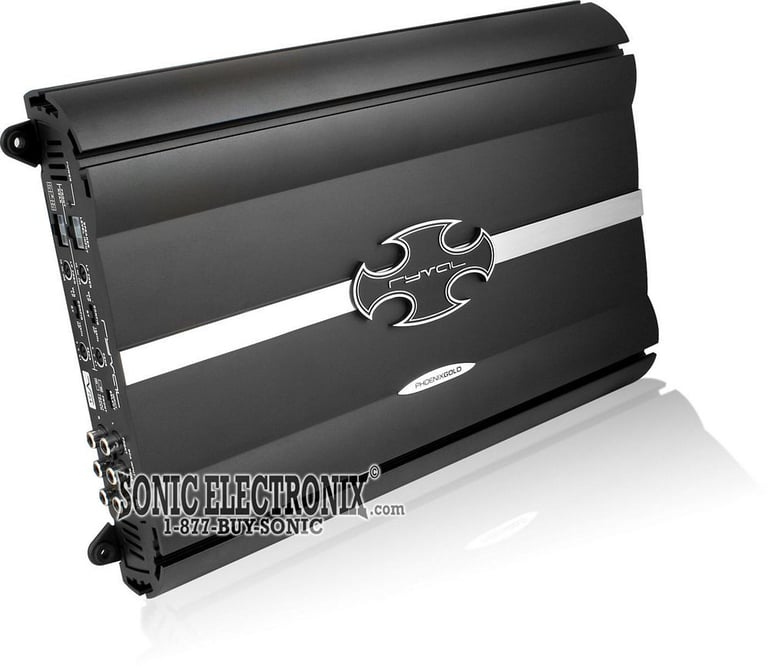

Phoenix Gold Ryval V754

1000W Max, 4-Channel Amplifier (Rival)

Product videos
highlight-star-icon

Ryval Series 4-Channel Class AB Car Amplifier • 75W x 4 chan. @ 4 ohm • 130W x 4 chan. @ 2 ohm • 250W x 2 chan. @ 4 ohm • 500W x 2 chan. Max • Speaker-level input • Preamp RCA outputs

Learn more about the pg-v754

We apologize

This item has been discontinued


Loading...
C2-400X main

JL Audio C2-400x

70W RMS 4" C2 Series 2-Way Coaxial 4-ohm Car Speakers

9

Product Highlights


Ryval Series 4-Channel Class AB Car Amplifier • 75W x 4 chan. @ 4 ohm • 130W x 4 chan. @ 2 ohm • 250W x 2 chan. @ 4 ohm • 500W x 2 chan. Max • Speaker-level input • Preamp RCA outputs

Description


Phoenix Gold brand icon

Authorized dealer

  • Ryval Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 chan.
    • 2 ohm: 130 watts x 4 chan.
    • Bridged, 4 ohm: 250 watts x 2 chan.
  • Max power output: 500 watts x 2 chan.
  • LED power and protection indicators
  • Remote Monitoring Display (RMD) Port
  • 4/3/2 channel operation
  • Speaker-level input
  • Preamp RCA outputs
  • Extruded aluminum heat sink
  • 3 Position crossover configuration switch
  • Switchable high-pass filter (100 Hz, 12 dB/octave)
  • Variable low-pass filter (40-400 Hz, 12 dB/octave)
  • Frequency response: 20-20000 Hz
  • Efficiency: 100 dB
  • 8-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • 1-year SonicElectronix.com warranty

Product history:

Phoenix Gold V754 thumbnail
(newest, current model)
Phoenix Gold R8.0:4 thumbnail
(previous model, replaced by Phoenix Gold Ryval V754)

Loading...
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

Limited time!
P1V2-25 main

Rockford Fosgate Punch P1V2-25

300W Peak (150W RMS) 2.5" Punch P1 Series 3 Way Coaxial 4-ohm Speakers

-25.93%

$159.99

List price $215.99

CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

H80C main

Cerwin-Vega H80C

900W Peak (300W RMS) 8" HED Series 2 Way Component 4-ohm Speaker System

-16.67%

$219.99

List price $263.99

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

No picture

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

S2-S80C main

Alpine S2-S80C

520W Peak (170W RMS) 8" S-Series Hi-Res 2-Way Component Car Speakers

-17.26%

$239.95

List price $290.00

TS-A709 main

Pioneer TS-A709

900W Peak (200W RMS) 2.75" A-Series 2-Way Coaxial Speakers

1
-25.00%

$60.00

List price $80.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
130 watts x 4 channel
Bridged RMS Power
250 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1000 watts
Total RMS Power Output
520 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
High-Pass (HP)
High-Pass Crossover Frequency
100 Hz
Low-Pass Crossover Frequency
40 - 400 Hz
Signal-to-Noise Ratio
100 dB
Remote bass/level controller
No

Item Details


Manufacturer:

Model Number:

V754

Weight:

13.00lbs

Internal SKU:

pg-v754

Internal Product ID:

9209

Product and How-to Videos


Customer Ratings & Reviews


Phoenix Gold Ryval V754 thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
5
Features
4.5
Design
4.5
Usability
5

Customer Reviews

Sort by:

Loading...

Great product for the price

This amplifier has been installed in my Jeep Wrangler for over a year now with absolutely no problems. Puts out at or near rated power, and does it quite cleanly. 80% of the time, my Jeep has no top, leaving this amplifier exposed to the elements, and it is still kicking out tunes like it was new. The only complaint I have is that it does not have an adjustable HPF, yet it does have an adjustable LPF. Not a very smart idea considering this amplifier would RARELY be used for a subwoofer. However, I am VERY impressed with the quality for such a low price. Good Job PG.

By Tyler on September 14, 2009

21 found this helpful


Very good for price

This amp worked very well for me, it was a little light weight but for the price worked very well

By jordan on January 20, 2011

14 found this helpful
