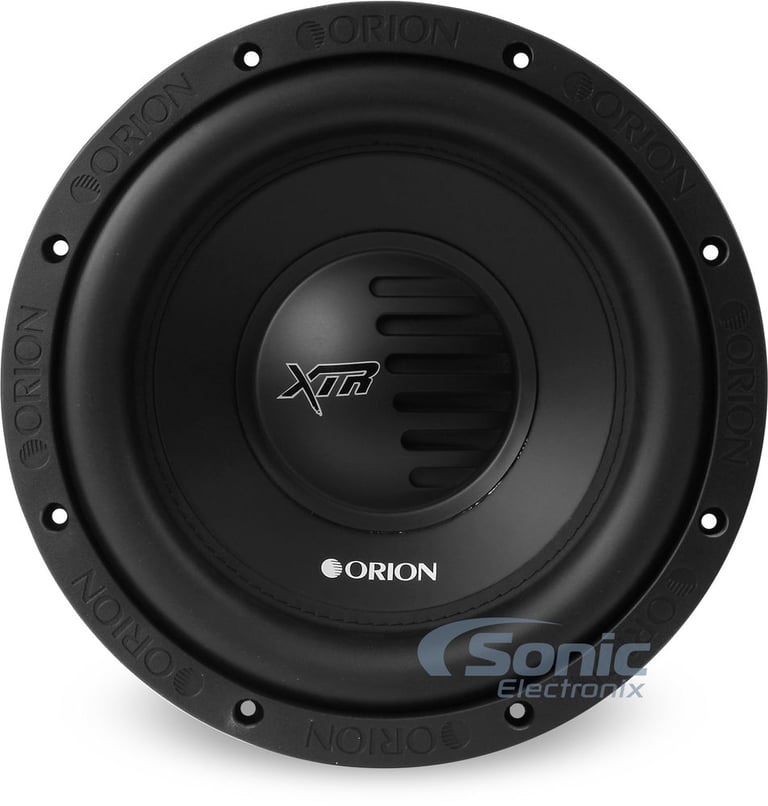

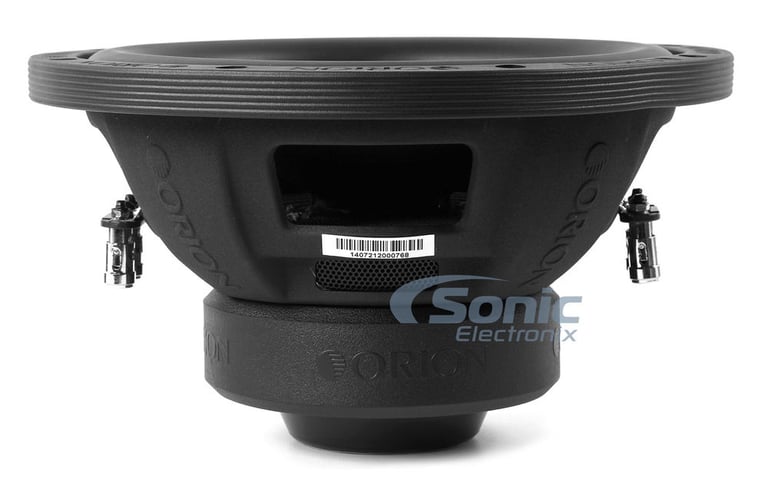

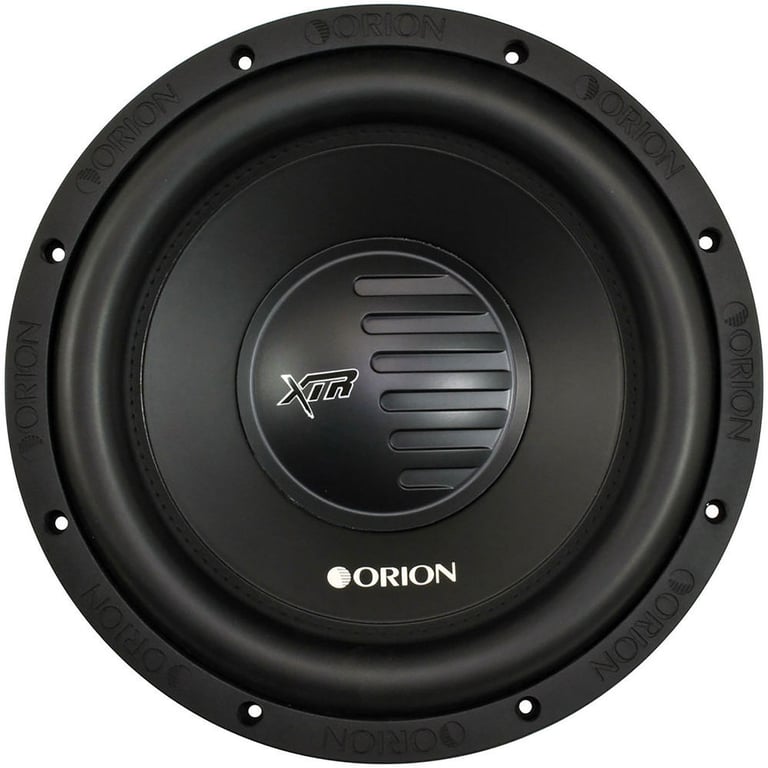

Orion XTR104D

2000W 10" XTR Series Dual 4 ohm Car Subwoofer

Orion
Shop all Orion
Product videos
highlight-star-icon

• RMS Power: 500W
• Polypropylene dust cap - moisture and UV resistant
• Oversized Nitrile-butadiene rubber surround
• Paper cone woofer
• Kapton voice coil former
• Sensitivity: 84.65 dB
• Frequency response: 20 - 250 Hz

Learn more about the xtr104d

We apologize

This item has been discontinued


Loading...
99-8104 main

Metra 99-8104 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 1984-2004 vehicles from Toyota

4
-10.42%

$42.99

List price $47.99

70-1398 main

Metra 70-1398 Wiring Harness

Install a new car stereo in select 1982-1987 vehicles from Toyota

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

560BRGB main

Boss Elite 560BRGB

Single DIN CD Receiver with Bluetooth (Black)

3
CDX3119 main

Jensen CDX3119

Single DIN CD Multimedia Receiver with Bluetooth

3
R14X2 main

Rockford Fosgate Prime R14X2

120W Peak (60W RMS) 4” Prime Series 2 Way Coaxial 4-ohm Speakers

14
Limited time!
DMX958XR main

Kenwood eXcelon DMX958XR

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

3
-25.08%

$899.00

List price $1200.00

VSP4 main

NVX VSP4

450W Peak (150W RMS) 4" V-Series 2 Way Coaxial Car Speakers

17
-16.67%

$54.99

List price $65.99

Product Highlights


• RMS Power: 500W
• Polypropylene dust cap - moisture and UV resistant
• Oversized Nitrile-butadiene rubber surround
• Paper cone woofer
• Kapton voice coil former
• Sensitivity: 84.65 dB
• Frequency response: 20 - 250 Hz

Description


Orion brand icon

Authorized dealer

General Features

  • XTR Series Dual 4 ohm Subwoofer
  • Power Handling:
    • MAX: 2000 watts
    • RMS: 500 watts
  • Polypropylene dust cap - moisture and UV resistant
  • Oversized Nitrile-butadiene rubber surround
  • Paper woofer cone
  • Custom stamp steel frame
  • Kapton voice coil former
  • TT steel front plate
  • Large ceramic magnets
  • Steel back plate/pole piece T yoke assembly
  • 1.125" bottom end vent
  • PVC magnet protector
  • High temperature copper dual voice coil
  • Interlaced conex spider with stitched and looped tinsel leads
  • PVC trim ring decor

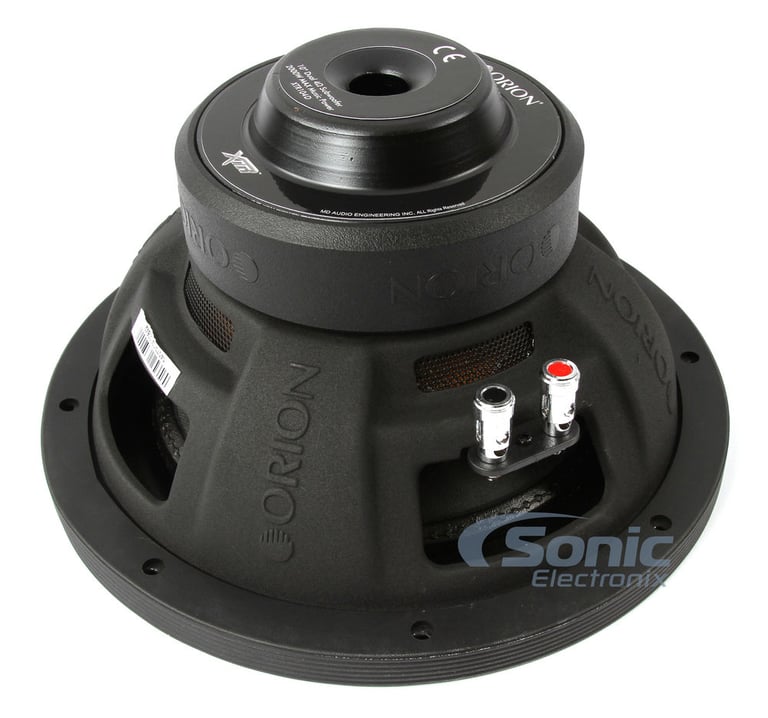

  • Spring loaded push terminals
  • Frequency response: 20 - 250 Hz
  • Sensitivity: 84.65 dB
  • Xmax: 12.075 mm
  • Top-Mount Depth: 5.31"
  • Cutout Diameter: 9.10"
  • Driver Displacement: 0.05 ft³
  • Recommended sealed enclosure: 1.00 ft³
  • Recommended ported enclosure: 1.00 ft³
  • 1-year Sonic Electronix Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Orion XTR104D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Orion XTR104D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Orion XTR104D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Orion XTR104D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
XTR Series
Subwoofer Size
10"
Peak Power Handling
2000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Frequency Response
20 - 250 Hz
Sensitivity
84.65 dB
Xmax (millimeters)
12.075 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Dark Gray
Woofer Composition
Paper
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.00 cubic feet
Optimum Ported Box Volume
1.00 cubic feet
Top-Mount Depth (Mounting Depth)
5.31"
Cutout Diameter
9.10"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
26.5 Hz
Equivalent Compliance (Vas)
50.253 liters
Total Speaker Q Value (Qts)
.515
Electrical Q Value (Qes)
.535
Electrical Resistance of Voice Coil (Re)
7.62 ohm
Mechanical Q Value (Qms)
14.001
Efficiency Bandwidth Product (EBP)
42
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

XTR104D

Weight:

13.40lbs

Internal SKU:

xtr104d

Internal Product ID:

92814
