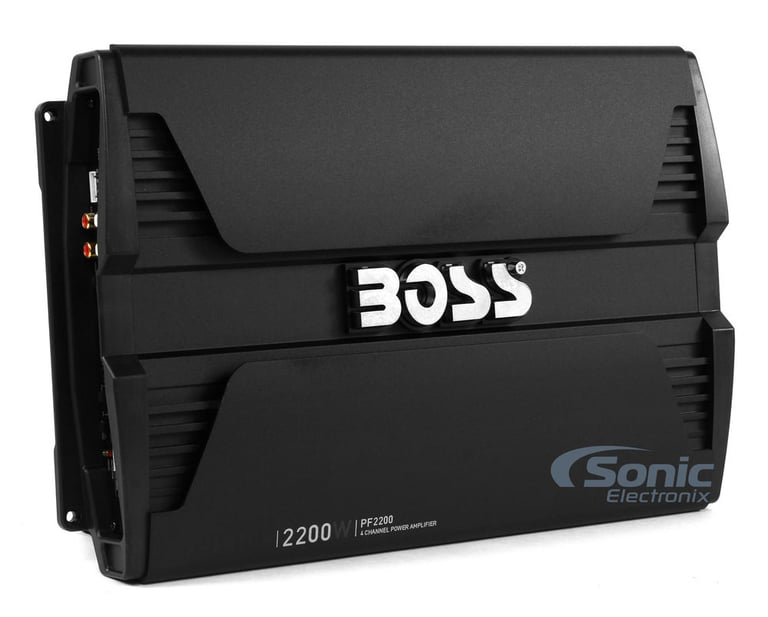

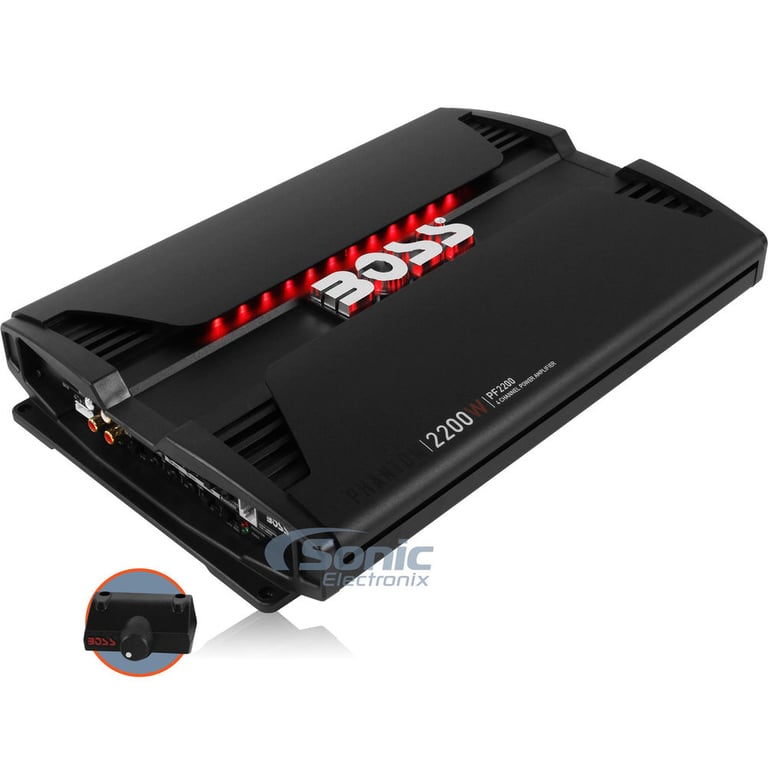

Boss PF2200

2200W 4-Channel Phantom Series Full Range Class AB Amplifier

1
Boss
Shop all Boss
Product videos
highlight-star-icon

• RMS: 275W x 4 @ 4 ohms
• Total Peak Power: 2200W
• Gold-plated RCA low level and high level inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Wired remote bass level control included
• 10.31" W x 15.50" L x 2.25" H

Learn more about the pf2200

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Product Highlights

• RMS: 275W x 4 @ 4 ohms
• Total Peak Power: 2200W
• Gold-plated RCA low level and high level inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Wired remote bass level control included
• 10.31" W x 15.50" L x 2.25" H

Description

Boss

Authorized dealer

General Features:

  • Phantom Series 4 Channel Full Range Class AB Amplifier
  • RMS Power Rating:
    • 4 ohms: 275 watts x 4 chan.
  • Peak Power Rating:
    • 2 ohms: 550 watts x 4 chan.
    • Bridged, 4 ohms: 1100 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply

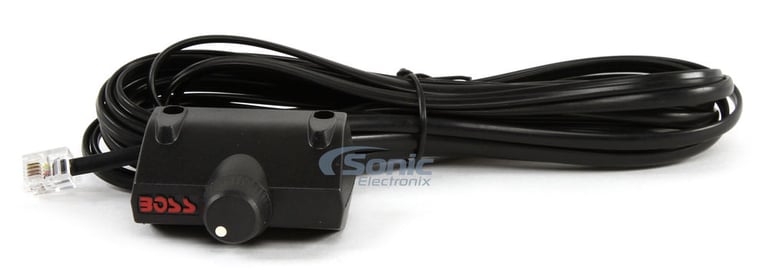

  • Wired remote bass level control included
  • Soft start turn-on

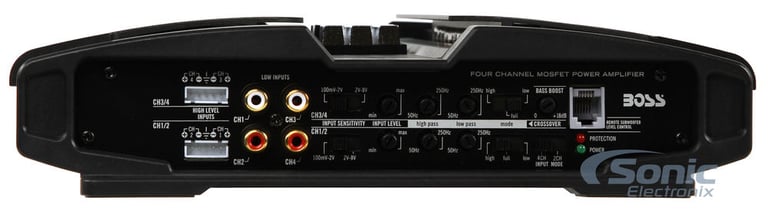

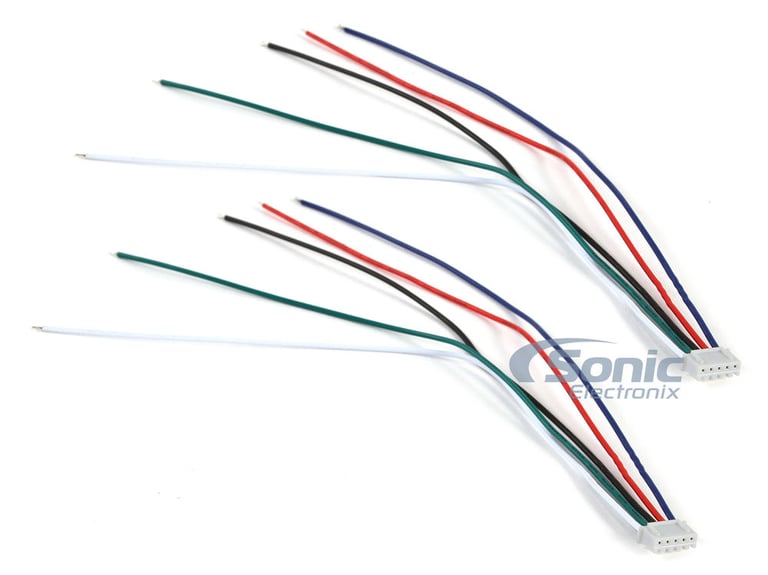

  • Speaker-level (high-level) inputs
  • Gold-plated RCA low level and high level inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

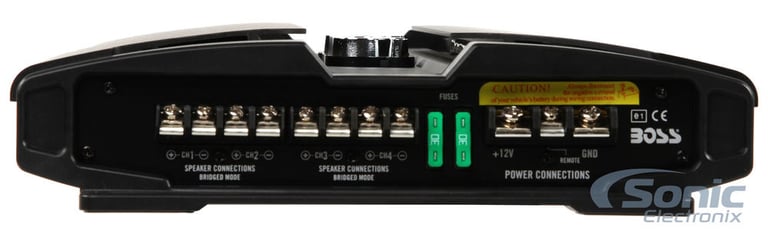

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty black anodized heat-sink
  • Input sensitivity:
    • Low level: 2V - 8V
    • High level: 100mV - 2V
  • Frequency Response: 9 - 50,000 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ration: 103 dB
  • Channel Separation: 90 dB
  • Damping Factor: 125+
  • Variable Bass Boost: 0 to +18dB
  • Variable high-pass filter: 50 - 250 Hz
  • Variable low-pass filter: 50 - 250 Hz
  • Fuse Rating: 30A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 10.31"W x 15.50"L x 2.25"H
  • Authorized Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

Check out the Boss PF2200 Owner's Manual

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
275 watts x 4 channel
Power Specifications - Subwoofer Channel
RMS Power @ .5 ohm
Power Specifications - Full Range Channels
Peak Power @ 2 ohms
550 watts x 4 channel
Bridged Peak/Max Power
1100 watts x 2 channel
Power Specifications - Subwoofer Channel
Peak Power @ .5 ohm
Amplifier Specifications
Series
Phantom Series
Marine Certified
Amplifier Class
A/B
Number of Channels
4
Total Peak Power Output
2200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
103 dB
Channel Separation
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 2
Total Fuse Rating
Strappable
No
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Hi-Res Certified
Low-Level Input Sensitivity
High-Level Input Sensitivity

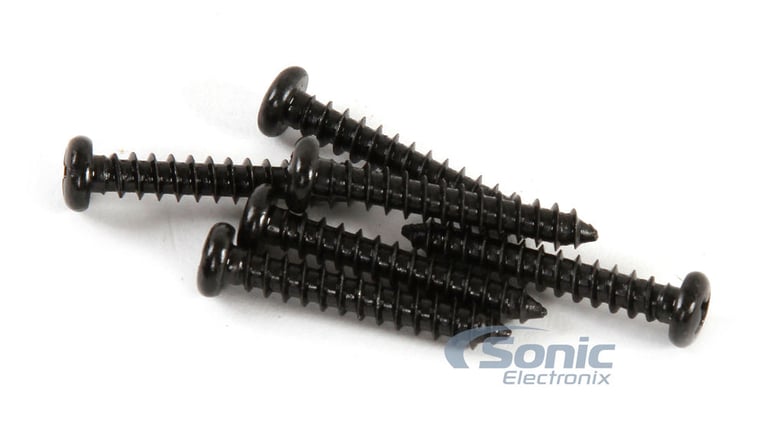

What is in the box?
Paperwork
WITB: Amplifiers
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Boss

Model Number:

PF2200

Weight:

12.00lbs

Internal SKU:

pf2200

Internal Product ID:

93809
