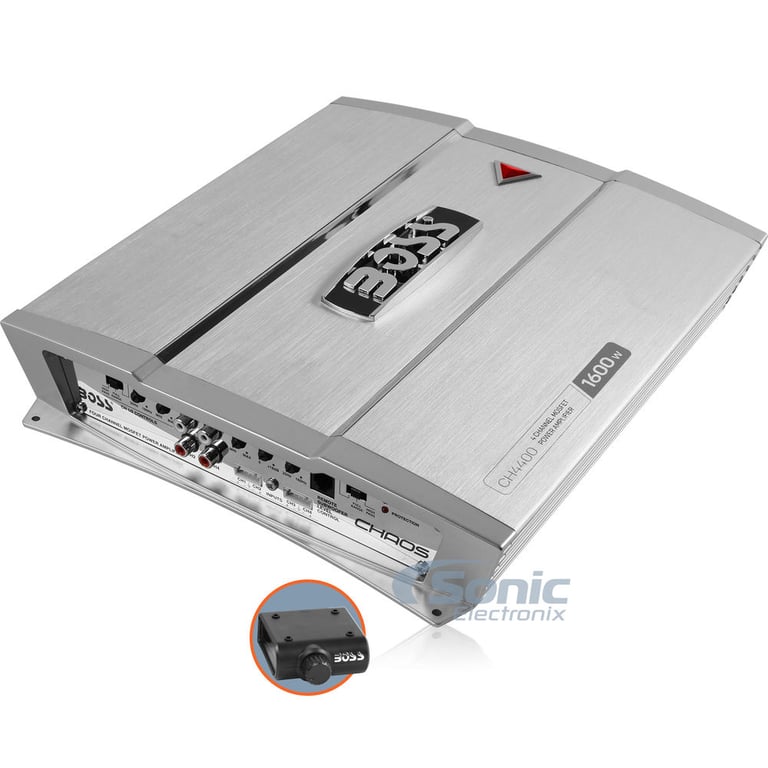

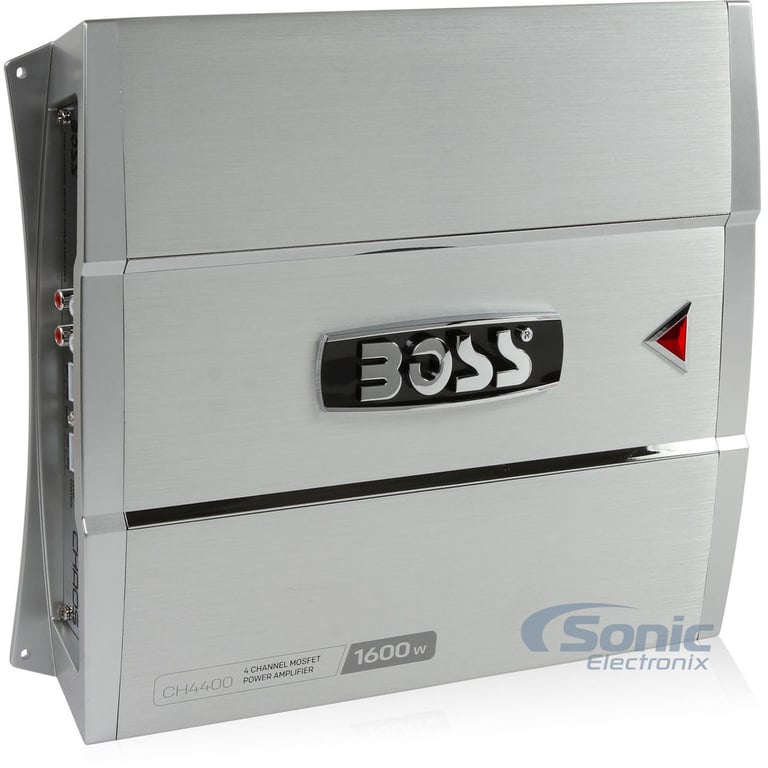

Boss CH4400

1600W 4-Channel Chaos Series Class AB Full Range Amplifier

Boss
Shop all Boss
Product videos
highlight-star-icon

• RMS: 200W x 4 @ 4 ohm
• Total Peak Power: 1600W
• Nickel-plated RCA low level inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Wired remote bass level control included
• 11.00" W x 12.76" L x 2.87" H

Learn more about the ch4400

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
FRING4 main

NVX FRING4

Universal 4" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

4
-36.91%

$11.98

List price $18.99

XED42 main

Cerwin-Vega XED42

300W Peak (40W RMS) 4" XED Series 2-Way Coaxial 4-ohm Speakers

4
-16.67%

$39.99

List price $47.99

TS-T110 main

Pioneer TS-T110

240W Peak (80W RMS) 7/8-Inch Hard-Dome Tweeters (Pair)

43
-9.09%

$50.00

List price $55.00

Product Highlights


• RMS: 200W x 4 @ 4 ohm
• Total Peak Power: 1600W
• Nickel-plated RCA low level inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Wired remote bass level control included
• 11.00" W x 12.76" L x 2.87" H

Description


Boss brand icon

Authorized dealer

General Features:

  • Chaos Series 4-Channel Class AB Full Range Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 4 chan.
  • Peak Power Rating:
    • 2 ohm: 400 watts x 4 chan.
    • Bridged, 4 ohm: 800 watts x 2
  • Pulse Width Modulated MOSFET power supply

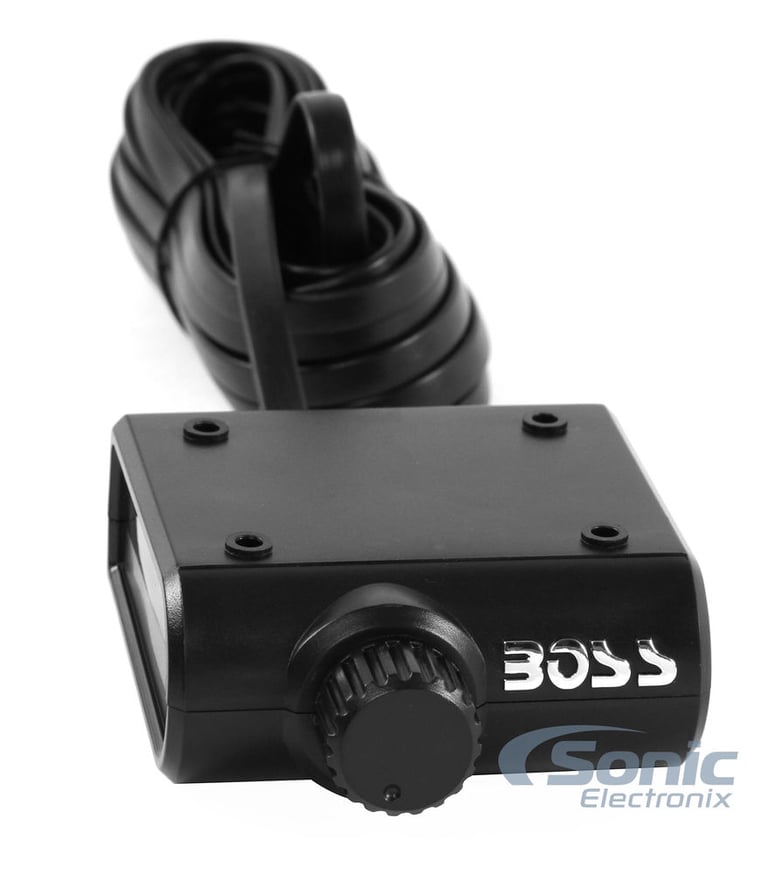

  • Wired remote bass level control included
  • Soft start turn-on
  • High Level Inputs
  • Nickel-plated speaker and power terminals
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Silver anodized heat-sink
  • Frequency Response: 9 - 50,000 Hz
  • Total Harmonic Distortion (THD): ≤ 0.01%
  • Signal to Noise Ration: 103 dB
  • Variable Bass Boost: 0 to +18 dB
  • Variable low-pass filter: 35 - 160 Hz
  • Fixed high-pass filter: 80 Hz
  • Fuse Rating: 30A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 11.00"W x 12.76"L x 2.87"H
  • Authorized Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty
Check out the Boss CH4400 Owner's Manual

Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

35
-9.99%

$90.00

List price $99.99

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DMDX8 main

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

REF3032CFXAM main

Infinity Reference 3032cfx (REF3032CFXAM)

150W Peak (50W RMS) 3.5" Reference Series 2-Way Coaxial 3-ohm Car Speakers

28
-42.32%

$74.95

List price $129.95

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

-16.67%

$79.99

List price $95.99

CVMPCL8.0 main

Cerwin Vega CVMPCL8.0 (Sold Individually)

400W Peak (200W RMS) 8" Stroker Pro Series Full Range 4-ohm Speakers

-16.67%

$139.99

List price $167.99

PPROV2-8 main

Rockford Fosgate Punch Pro V2 PPROV2-8

300W Peak (150W RMS) 8" Punch Pro Series Pro Audio Midrange 4-ohm Car Speakers

Limited time!
REF407F main

Infinity REF407F (INFSPKRF407FUS)

210W Peak (75W RMS) 4" Reference Series 2-Way Coaxial 3-ohm Speakers

-37.16%

$87.95

List price $139.95


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

CXA360.4 small

Kicker CXA360.4 (46CXA3604T)

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

(16)

$229.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
200 watts x 4 channel
Power Specifications - Full Range Channels
Peak Power @ 2 ohms
400 watts x 4 channel
Bridged Peak/Max Power
800 watts x 2 channel
Amplifier Specifications
Series
Chaos EXXtreme II Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
≤ 0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
Fixed 80 Hz
Low-Pass Crossover Frequency
35 - 160 Hz
Signal-to-Noise Ratio
103 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 2
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CH4400

Weight:

12.00lbs

Internal SKU:

ch4400

Internal Product ID:

93820
