See all parts that fit your 2005 TT

Cadence Q4000

1600W 4-Channel Q Series Full Range Class A/B Car Amplifier

Cadence
Shop all Cadence
Product videos
highlight-star-icon

• RMS: 125W x 4 @ 4 ohm, 190W x 4 @ 2 ohm, 380W x 2 @ 4 ohm Bridged
• Total Peak Power: 1600W
• High Speed MosFET Power Supply
• 16V Capable Power Supplies
• Full Range Class A/B
• BiPolar Professional Audio Grade Output Transistors
• 16.9" L x 7.9" W x 2.4 H

Learn more about the q4000

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

Product Highlights


• RMS: 125W x 4 @ 4 ohm, 190W x 4 @ 2 ohm, 380W x 2 @ 4 ohm Bridged
• Total Peak Power: 1600W
• High Speed MosFET Power Supply
• 16V Capable Power Supplies
• Full Range Class A/B
• BiPolar Professional Audio Grade Output Transistors
• 16.9" L x 7.9" W x 2.4 H

Description


Cadence brand icon

Authorized dealer

General Features:

  • 4-Channel Q Series Full Range Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 125 watts x 4 chan.
    • 2 ohm: 190 watts x 4 chan.
    • Bridged, 4 ohm: 380 watts x 2 chan.
  • Max power output total: 1600 watts
  • Frequency Response: 10Hz - 40,000Hz
  • Signal to Noise Ratio: > 97dB
  • Minimum THD: < 0.1%
  • Damping Factor: > 150 @ 100Hz
  • Preamp Input Voltage: 200mV - 8V
  • Crossover Modes: Low Pass / Band Pass, Full Range, High Pass
  • Input Modes: 2Ch, 4Ch
  • High Pass Frequency (Ch1 & 2): 50Hz - 500Hz
  • High Pass Frequency (Ch3 & 4): 50Hz - 150Hz
  • Low Pass Frequency (Ch3 & 4): 50Hz - 500Hz
  • Bass EQ: 0dB - +12dB (Ch3 & 4)
  • Fuse Rating: 25A x 2
  • 16V Capable Power Supplies
  • 12dB Crossover Circuitry
  • High Speed MosFET Power Supply
  • BiPolar Professional Audio Grade Output Transistors

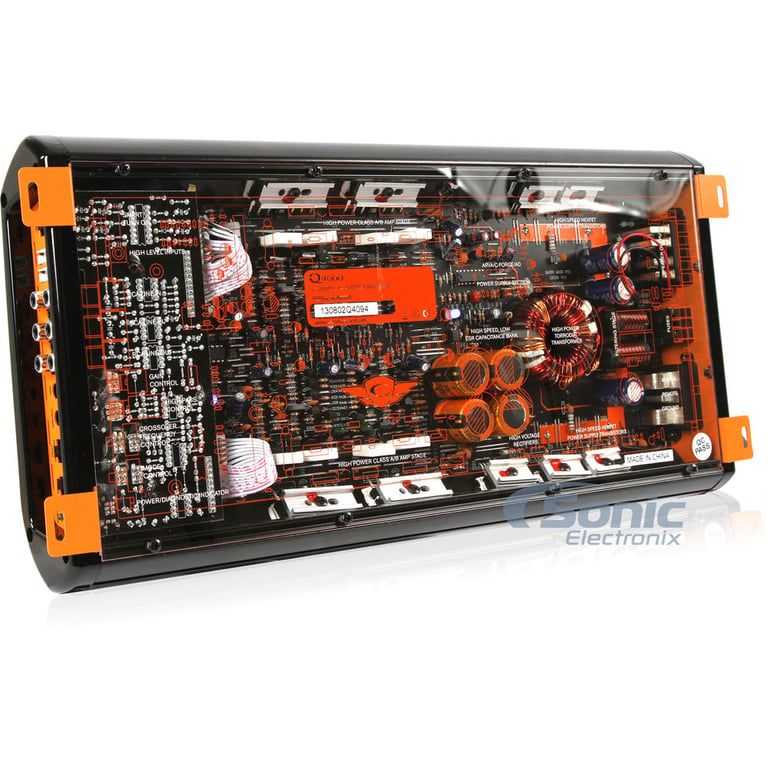

  • Copper Rail PCB Architecture
  • High Level Inputs
  • Smart Turn On: Music Sense / DC Sense (High Level Inputs)
  • Line In / Line Out
  • Power & Diagnostics LED Indicators
  • Accepts 4 Gauge Power & Ground Wire // 14 Gauge Speaker Wire
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 7.9"W x 16.9"L x 2.4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
125 watts x 4 channel
RMS Power @ 2 ohms
190 watts x 4 channel
Bridged RMS Power
380 watts x 2 channel
Amplifier Specifications
Series
Q Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1600 watts
Total RMS Power Output
760 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
>97 dB
Channel Separation
>50 dB
Bass Boost
0 - 12 dB
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Q4000

Weight:

10.13lbs

Internal SKU:

q4000

Internal Product ID:

94125
