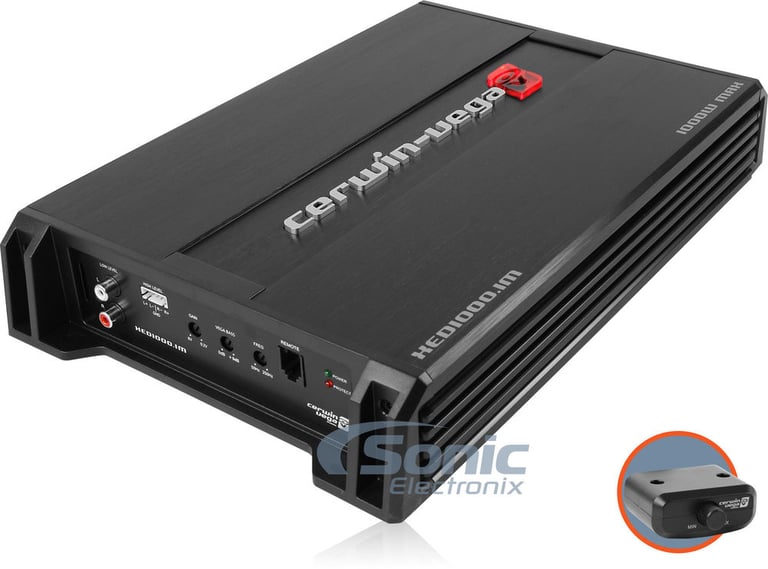

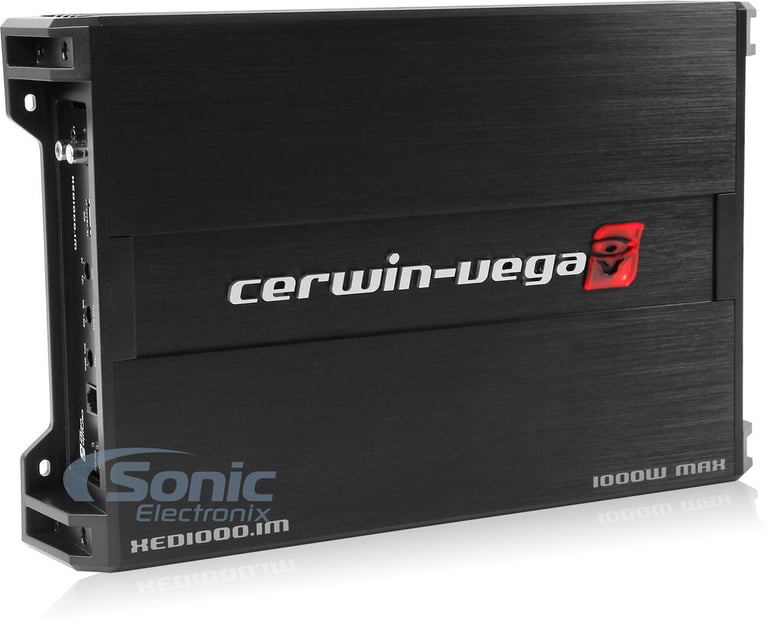

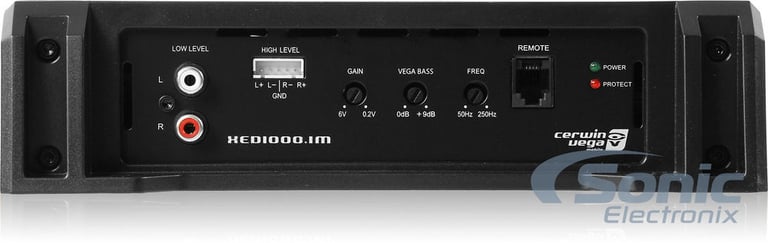

Cerwin Vega XED1000.1M

1000W Monoblock XED Series Class AB Amplifier

Cerwin-Vega
Shop all Cerwin-Vega
highlight-star-icon

• RMS Power: 175W x 1 @ 4 ohm, 275W x 1 @ 2 ohm
• Total Peak Power: 1000W
• High Level Input
• Dimensions: 15.7" L x 8.875" D x 2.187" H

Learn more about the xed10001m

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • XED Series Mono Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 175 watts x 1 chan.
    • 2 ohm: 275 watts x 1 chan.
  • Max Power Output: 1000W
  • High Quality Mono Class AB Topology Design
  • Heavy-Grade Aluminum Alloy Extruded Heatsink

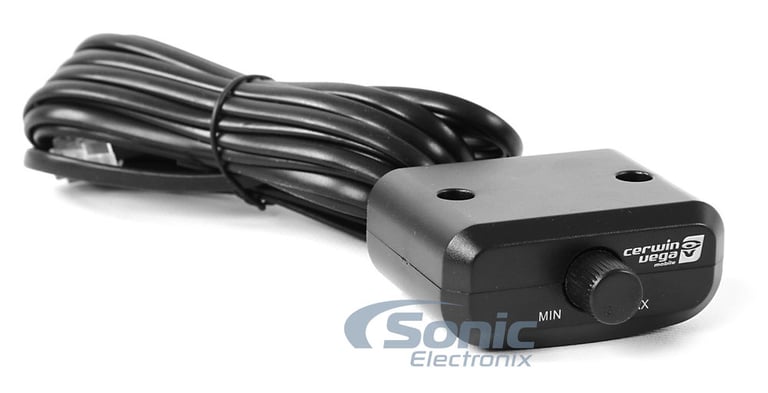

  • Wired Level Control Knob Included
  • LED power (green) and protect (red) indicators
  • Power Supply Threshold: 10.0 VDC - 17.0 VDC
  • Total Harmonic Distortion: 0.1%
  • Signal to Noise Ratio (@1w): 85 dBa
  • Low Input Sensitivity: 0.2 mV - 6.0 V
  • High Input Sensitivity: 2.8 mV - 20.0 V
  • Damping Factory: >70
  • Frequency Response: 10 - 250 Hz
  • Variable low-pass filter: 50 - 250 Hz
  • Variable Bass Boost: 0 - 9 dB

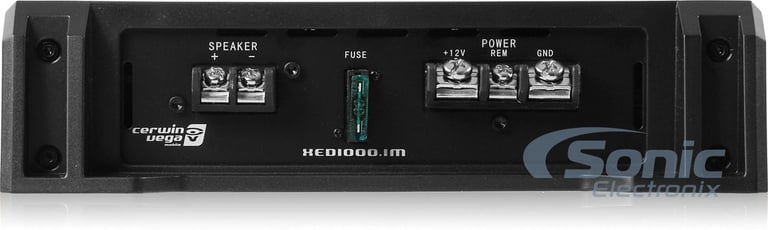

  • Fuse Rating: 30A x 1
  • 4 gauge power and ground wiring is recommended for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 8.875"W x 15.70"L x 2.187H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
175 watts x 1 channel
RMS Power @ 2 ohms
275 watts x 1 channel
Amplifier Specifications
Series
XED Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Total RMS Power Output
275 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.1%
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
101 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 1
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XED1000.1M

Weight:

5.00lbs

Internal SKU:

xed10001m

Internal Product ID:

94248
