Name: Autotek SMA1600.1 OPEN BOX INCOMPLETE
Brand: Autotek
SKU: LS-sma16001-OBIra228671
Price: 79.99 USD
Availability: Discontinued

by Autotek

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

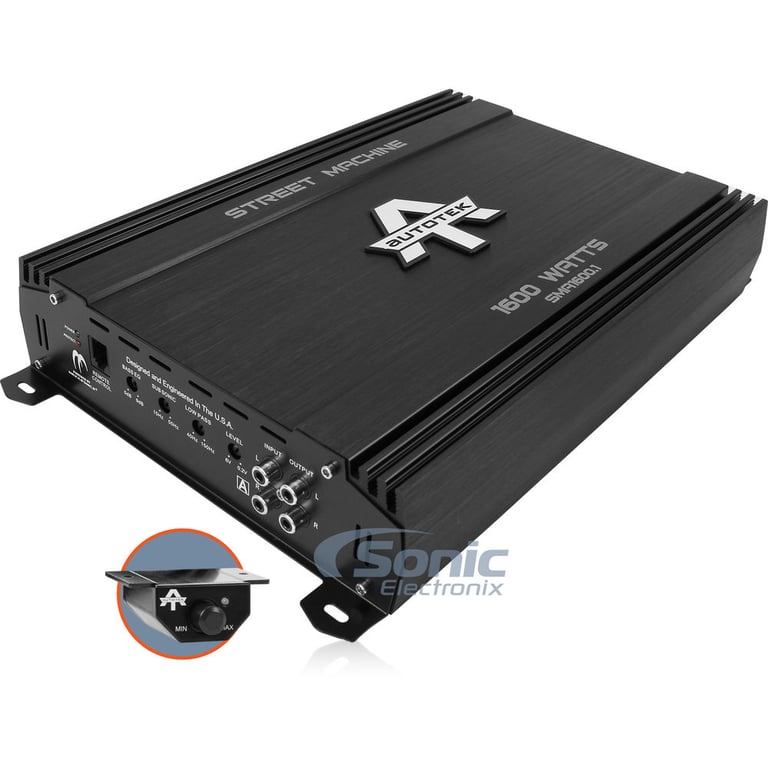

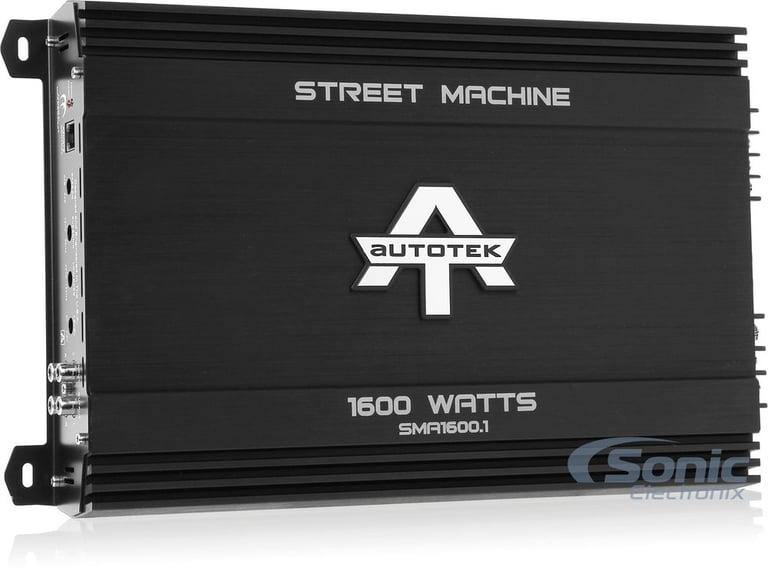

Autotek SMA1600.1 OPEN BOX INCOMPLETE Image 1 — Autotek SMA1600.1 OPEN BOX INCOMPLETE

Autotek SMA1600.1 OPEN BOX INCOMPLETE Image 2 — Autotek SMA1600.1 OPEN BOX INCOMPLETE

Autotek SMA1600.1 OPEN BOX INCOMPLETE Image 3 — Autotek SMA1600.1 OPEN BOX INCOMPLETE

Autotek SMA1600.1 OPEN BOX INCOMPLETE Image 4 — Autotek SMA1600.1 OPEN BOX INCOMPLETE

Autotek SMA1600.1 OPEN BOX INCOMPLETE Image 5 — Autotek SMA1600.1 OPEN BOX INCOMPLETE

Autotek SMA1600.1 OPEN BOX INCOMPLETE Image 6 — Autotek SMA1600.1 OPEN BOX INCOMPLETE

Autotek SMA1600.1 OPEN BOX INCOMPLETE Image 7 — Autotek SMA1600.1 OPEN BOX INCOMPLETE

Autotek SMA1600.1 OPEN BOX INCOMPLETE Image 8 — Autotek SMA1600.1 OPEN BOX INCOMPLETE

Autotek SMA1600.1 OPEN BOX INCOMPLETE Image 9 — Autotek SMA1600.1 OPEN BOX INCOMPLETE

Autotek SMA1600.1 OPEN BOX INCOMPLETE Image 10 — Autotek SMA1600.1 OPEN BOX INCOMPLETE

Autotek SMA1600.1 OPEN BOX INCOMPLETE Image 11 — Autotek SMA1600.1 OPEN BOX INCOMPLETE

Autotek SMA1600.1 OPEN BOX INCOMPLETE Image 12 — Autotek SMA1600.1 OPEN BOX INCOMPLETE

Autotek SMA1600.1 OPEN BOX INCOMPLETE Image 13 — Autotek SMA1600.1 OPEN BOX INCOMPLETE

Autotek SMA1600.1 OPEN BOX INCOMPLETE Image 14 — Autotek SMA1600.1 OPEN BOX INCOMPLETE

Autotek SMA1600.1 OPEN BOX INCOMPLETE Image 15 — Autotek SMA1600.1 OPEN BOX INCOMPLETE

Autotek SMA1600.1 OPEN BOX INCOMPLETE-video

Product videos

Product highlights

Item is missing manual, has been previously installed, and item is used
• RMS: 800W x 1 @ 4 ohm, 1600W x 1 @ 2 ohm
• Pulse Width Modulated MOSFET power supply
•Nickel plated brass connections
• Built-in Variable Low-Pass and Subsonic Filter
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation

Learn more about the LS-sma16001-OBIra228671

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition: Open Box Incomplete

Item is missing manual, has been previously installed, and item is used

General Features:

Street Machine Series Class D Monoblock Amplifier
Max Power Rating:

4 ohm: 800 watts x 1 chan.
2 ohm: 1600 watts x 1 chan.

Pulse Width Modulated MOSFET power supply

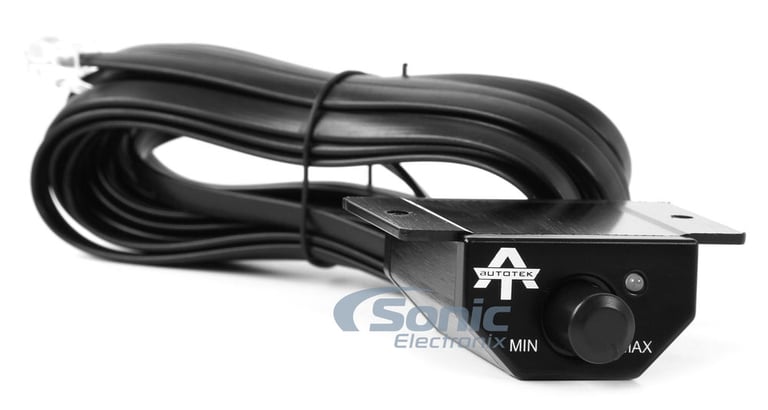

Wired remote bass level control included
LED power and protect indicators
Soft start turn-on
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
Nickel plated brass connections w/ hex set screw terminals

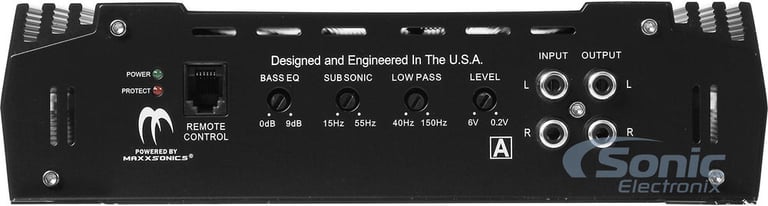

Input sensitivity: 0.2V - 6V
Frequency Response: 15 - 150 Hz
Signal to Noise Ration: >95 dB
Variable Bass Boost: 0 to +9 dB
Variable low-pass filter: 40 - 150 Hz, 12 dB/octave
Subsonic filter: 15 - 55 Hz

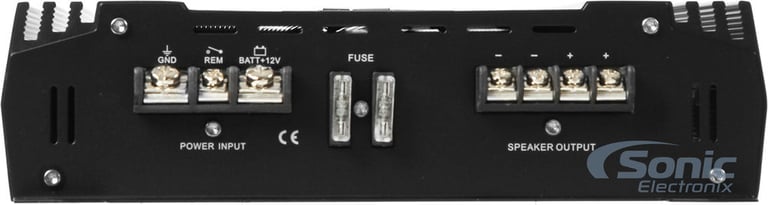

Fuse Rating: 25A x 1
12 gauge speaker output terminals
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 8.80"W x 14.40"L x 2.32"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

800 watts x 1 channel

RMS Power @ 2 ohms

1600 watts x 1 channel

Power Specifications - Subwoofer Channel

Peak Power @ 4 ohm

800 watts x 1 channel

Peak Power @ 2 ohms

1600 watts x 1 channel

Amplifier Specifications

Series

Street Machine Series

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

1600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

Speaker Level Inputs

Built-in Crossover

Low-Pass (LP)
Subsonic

Low-Pass Crossover Frequency

40 - 150 Hz

Subsonic Filter

15 - 55 Hz

Signal-to-Noise Ratio

>95 dB

Bass Boost

0 - 9 dB

Remote bass/level controller

Yes

Fuse Rating

25A x 1

Strappable

Sonic Certified Amplifier

Not Tested

Amp Bluetooth Connectivity

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
