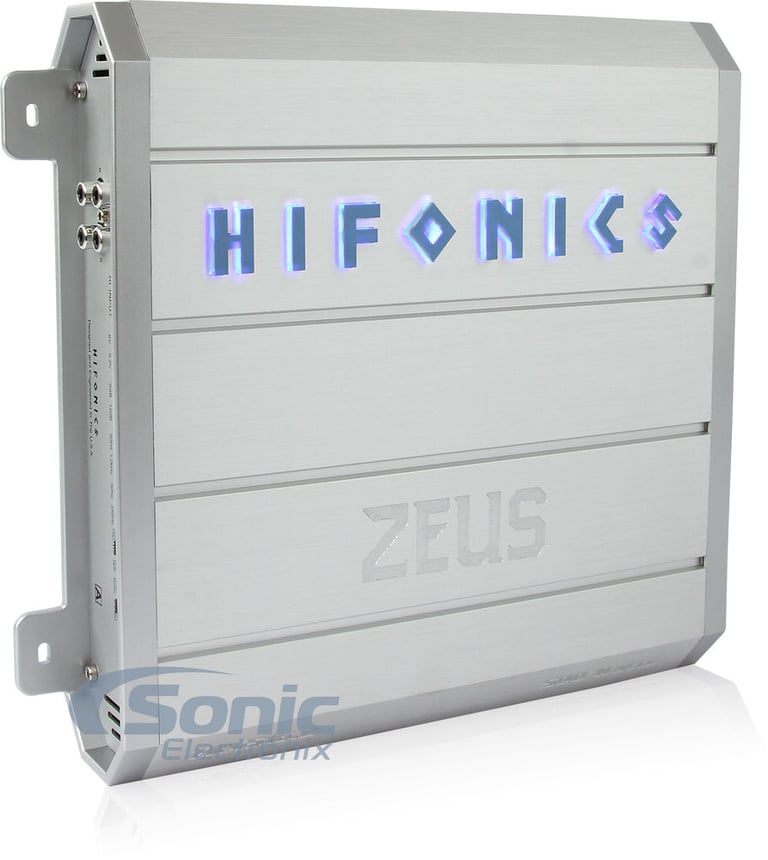

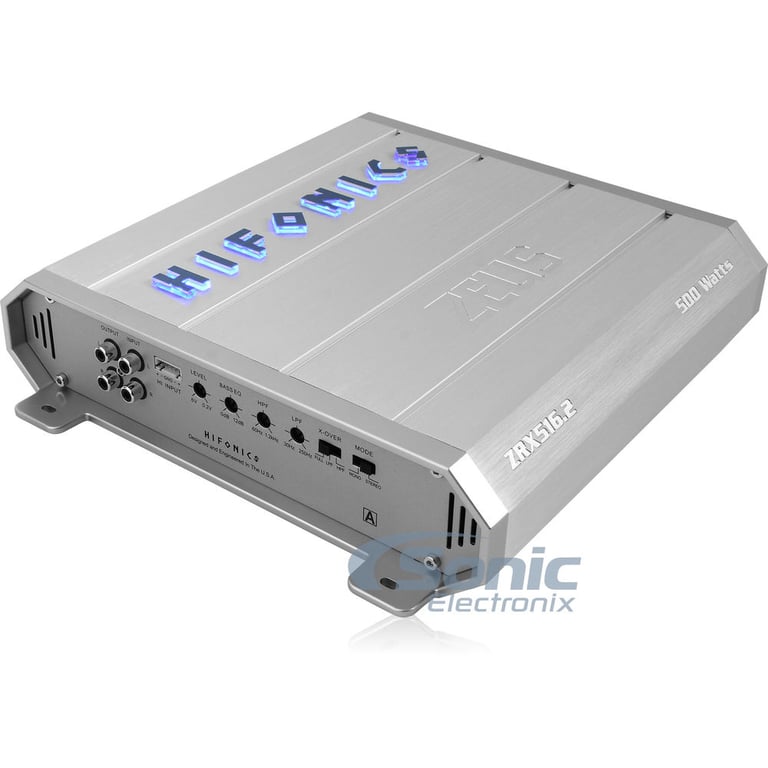

Hifonics Zeus ZRX516.2

500 Watt 2 Channel Zeus Series Class AB Amplifier

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

• Max Power: 125W x 2 @ 4 ohm, 250W x 2 @ 2 ohm
• Total Peak Power: 500W
• Variable High and Low Pass Filters
• Dimensions: 10" W x 11.4" L x 2.4" H

Learn more about the zrx5162

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

29
-28.13%

$22.99

List price $31.99

HRN-HRR-FO2 main

iDataLink Maestro HRN-HRR-FO2 Wiring Harness

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2011-2023 vehicles from Ford

-18.27%

$84.99

List price $103.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

R1675X2 main

Rockford Fosgate Prime R1675X2

180W Peak (90W RMS) 6.75" Prime Series 2 Way Coaxial 4-ohm Speakers

59
H7694 main

Cerwin Vega H7694

800W Peak (150W RMS) 6x9" HED Series 4-Way Coaxial 4-ohm Speakers

32
-25.93%

$79.99

List price $107.99

MM652 main

Polk Audio MM652 (MM 652)

600W Peak (200W RMS) 6.5" Mobile Monitor Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

62
-28.11%

$179.00

List price $249.00

H765C main

Cerwin Vega H765C

800W Peak (120W RMS) 6.5" HED Series 2-Way 4-ohm Component Speaker System

17
-16.67%

$129.99

List price $155.99

ADS-MRR2 main

iDataLink Maestro RR2 Interface Module

Universal Stereo Replacement Interface Module for iDataLink Maestro Compatible Stereos

5
-18.75%

$259.99

List price $319.99

NVX XSP65KIT

600W Peak (200W RMS) 6.5" X-Series 2 Way Component Car Speakers

12
-11.46%

$169.99

List price $191.99

Product Highlights


• Max Power: 125W x 2 @ 4 ohm, 250W x 2 @ 2 ohm
• Total Peak Power: 500W
• Variable High and Low Pass Filters
• Dimensions: 10" W x 11.4" L x 2.4" H

Description


Hifonics brand icon

Authorized dealer



General Features:

  • Zeus Series 2-Channel Class AB Car Amplifier
  • Max Power Rating:
    • 4 ohm: 125 watts x 2 chan.
    • 2 ohm: 250 watts x 2 chan.
    • Bridged, 4 ohm: 500 watts x 1 chan.
  • Max power output: 500 watts
  • Wired remote bass level control included
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • 2 or Mono channel operation

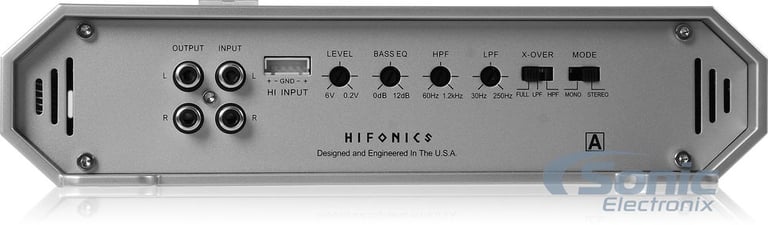

  • Speaker-level (high-level) inputs
  • Variable high-pass filter (60-1200 Hz, 24 dB/octave)
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Old School Hifonics heatsink provides superior heat dissipation
  • Military grade PCB construction
  • Simpatico coil design
  • Hifonics surface mount design
  • DC, short circuit, thermal and overload protection

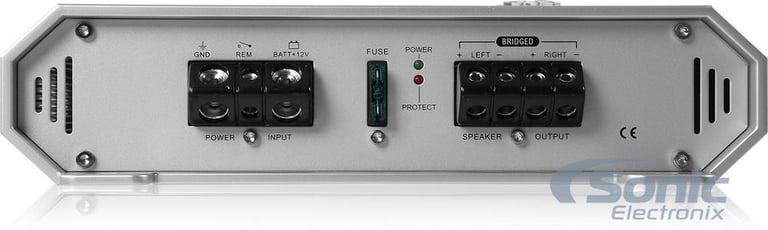

  • 4 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 10"W x 11.4"L x 2.4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Hifonics ZRX516.2 thumbnail
(newest, current model)
Hifonics ZRX500.2 thumbnail
(previous model, replaced by Hifonics Zeus ZRX516.2)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

Specifications & Details


Power Specifications - Full Range Channels
Peak Power @ 4 ohms
125 watts x 2 channel
Peak Power @ 2 ohms
250 watts x 2 channel
Bridged Peak/Max Power
500 watts x 1 channel
Amplifier Specifications
Series
Zeus Series
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB

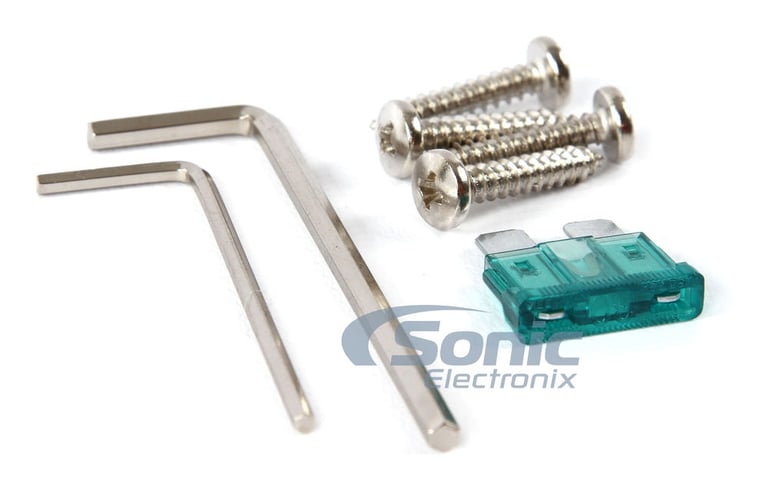

Fuse Rating
30A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZRX516.2

Weight:

6.40lbs

Internal SKU:

zrx5162

Internal Product ID:

94893
