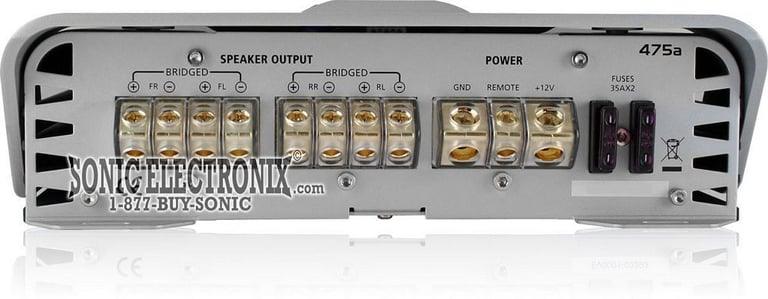

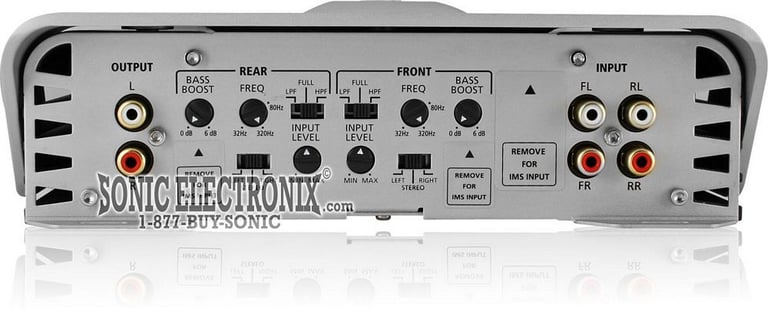

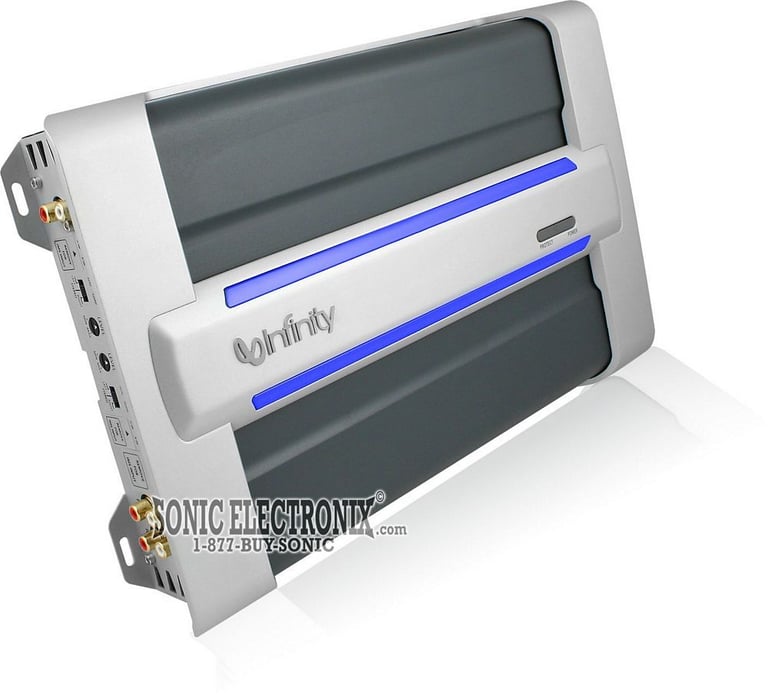

Infinity Reference 475a

468W Reference Series Class AB 4-Channel Amplifier

Infinity
Shop all Infinity
Product videos
highlight-star-icon

• 75W x 4-Chan. @ 4 ohm
• 90W x 4-Chan. @ 2 ohm
• 117W x 4-Chan. Max
• MOSFET power supply
• Gold-plated preamp RCA outputs

Learn more about the 475a

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

ref704aam thumbnail

Infinity Reference 704A

OUR PRICE: $179.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

70-5520 main

Metra 70-5520 Wiring Harness

Install a new car stereo in select 2003-2016 vehicles from Ford, Mercury, Lincoln

56
FMK540 main

American International FMK540

Single DIN or Double DIN Stereo Dash Kit for select 2004-2016 vehicles from Ford, Lincoln, Mercury

14
-71.82%

$10.99

List price $39.00

99-5812 main

Metra 99-5812 Dash Kit

Install a new Single-DIN car stereo in select 2004-2016 vehicles from Ford, Lincoln, Mercury

6
-46.68%

$15.99

List price $29.99

SHFD03B main

Scosche SHFD03B

Speaker Harness for select 1998-2019 vehicles from Ford, Mazda, Lincoln

8
-18.50%

$8.99

List price $11.03

MET-FD4 main

Metra MET-FD4

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2005-2014 vehicles from Ford, Lincoln, Mercury

1
-10.00%

$89.99

List price $99.99

DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

Limited time!
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
-11.43%

$309.99

List price $349.99

VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$99.99

List price $119.99

FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

Product Highlights


• 75W x 4-Chan. @ 4 ohm
• 90W x 4-Chan. @ 2 ohm
• 117W x 4-Chan. Max
• MOSFET power supply
• Gold-plated preamp RCA outputs

Description


Infinity brand icon

Authorized dealer

  • Reference Series Class AB 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 chan.
    • 2 ohm: 90 watts x 4 chan.
    • Bridged, 4 ohm: 180 watts x 2 chan.
  • Max power output: 117 watts x 4 chan.
  • MOSFET power supply
  • LED power and protection indicators
  • Tuned Bass EQ (0-6 dB bass boost at 50 Hz)
  • IMS inputs allows connection to other Infinity expansion products
  • Gold-plated preamp RCA outputs
  • DC, overheat, over or under voltage, and short circuit amplifier protection
  • Gold-plated RCA level inputs
  • Variable high-pass filter (32-320 Hz, 12 dB/octave)
  • Variable low-pass filter (32-320 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20000 Hz
  • Efficiency: 85 dB
  • Dimensions: 14-3/4"L x 9"W x 2-11/16H
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 1 year Manufacturer's warranty

Product history:

Infinity REF704AAM thumbnail
(newest, current model)
Infinity Reference 704A thumbnail
(previous model, replaced by Infinity Reference 704A)
Infinity 475a thumbnail
(previous model, replaced by Infinity Reference 704A)
Infinity 7541A thumbnail
(previous model, replaced by Infinity Reference 475a)

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
90 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
180 watts x 2 channel
Amplifier Specifications
Series
Reference Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
468 watts
Total RMS Power Output
360 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
32 - 320 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
No
Fuse Rating
35A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

475a

Weight:

14.00lbs

Internal SKU:

475a

Internal Product ID:

9712

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Infinity Reference 475a thumbnail image

5 star
65%
4 star
20%
3 star
15%
2 star
0%
1 star
0%



Durability
4
Value
4.5
Features
4.5
Design
4.2
Usability
4.6

Customer Reviews

Sort by:

Loading...

Great Amp

I had this amp connected in my now wife's car in the trunk in Texas Heat.. and it was a great product, never went into protect. Look guys, this is a front stage and rear fill unit.. not really meant for Subs.. of course it's gonna overheat like that.

By JustM3 on July 23, 2011

26 found this helpful


Loud and Clear.

Got this thing hooked up nice to a pair of Component Alpine Type Xref's and a pair of Kenwood Execelon 172's. great clarity...hence Infinity. i only have it turned halfway up and its louder than any of my buddies systems. i can turn my head unit all the way up and its so clear and loud its disgusting. it makes everything sound perfect, and like your at the studio or concert. get it here. okay have fun get one right now cause this item is SICK.

By Derik on July 31, 2008

26 found this helpful


Great Quality Reliable Amp!!!

This is the second Infinity 475a I've purchased and installed, the first was almost 7 years ago and hasn't given me any trouble and it's been in two different trucks I've owned. It's always been pushing Infinity Reference or Kappa Speakers and has done a great job. So I bought another one to install in my little brothers truck and hopefully I will get the same results!!! The amp gets a little hot to the touch but that was to be expected having no active cooling. But the amp has NEVER shut off on me!!! It's got great simple adjustments and the build quality seems solid. Would highly recommend, it's a great amp for the money!!!

By Dalton on October 5, 2013

23 found this helpful


a bit dissapointed...

I bought this amp hoping to use it to push to 12's. It is a great amp for mids and highs, but not much else. The description should make this very clear, and it doesn't.

By joe bl on August 5, 2010

25 found this helpful


not what i expected

this thing over heats even with just speakers hooked to it.i have kappa 6.5 components in rear and front.sound quality is ok not great.very dissapointed.

By bobst on June 3, 2009

23 found this helpful


Great Value!

The amp are easy to plug and give a good sound ! Great product!

By Mathieu on December 26, 2012

22 found this helpful


Not Too Bad

Recently ordered this amp from Sonic. Shipping was fast and customer service was great. Finally got around to hooking it up and although I have not pushed it to hard as yet it sounds pretty good for an "entry level" amp. Signal to noise ratio isn't exactly the best as there is some hiss but so far it gives off pretty good power. Running it in tri way mode. Powering a set of components up front and a sub in the rear. Good enough for a daily system but not for a high sound quality build.

By Jason on September 5, 2011

22 found this helpful


Sounds Excellent!!

I have this amp pushing 4 Infinity Kappa 682.9cf, in my little 2 door truck. It sounds so loud in a little truck!! Excellent high's and mids! I don't know anybody with a better system! Also, have 2 10inch JL W3 subs to balance it out.

By Sonicelectronix=amazing on March 4, 2011

22 found this helpful


Best in its class

$30 off list price isn't one of the better deals on Sonic, but I think this amp is currently being phased out, so get it while it lasts. And it's CEA certified, so you know you're getting exactly what's on the spec sheet. At 75 watts RMS, it's enough to amp your music as loud as your ears can tolerate, and then louder. It's fairly easy to use with an intuitive design, and is definitely one of the sexiest looking amps out there (and the blue lights look awesome).

The biggest downside is the 1% distortion. But if you're thinking about buying this amp, you're probably relatively new to car audio and would not be able to tell the difference between 1% and .1%

The two stars for durability is because my friend bought one and two of the channels blew. So he returned it for another, and one of the channels blew again. He ended up getting fed up and going with Alpine. But when I inspected his system before the alpine install, I noticed a shoddy ground connection. I'm guessing that is why he blew the amps. But I have never had a problem with mine. It overheated ONCE last summer, because it was mounted vertically, in direct sunlight, and being played for 90 minutes on high volume.

Bottom line: if you install it properly, you will have no problems, and will love this amp. As far as "entry level" amps go, 5 stars!

By John on May 22, 2010

22 found this helpful


great product

I use this amp to power my four infinity speakers and one 300x1 infinity for a single sub and my car is loud and rockin, yet perfectly balanced.

By Scott on March 6, 2010

22 found this helpful




RALLYBAR S small

JBL RALLYBAR S

300W Peak (150W RMS) 21" 6-Speaker Amplified Bluetooth Soundbar with 2 Radiators

$571.95

List price $769.95

CAP8000 small

Absolute CAP8000

80 Farad Digital Power Capacitor

$169.99

List price $349.99

CAP800 small

Absolute CAP800

8 Farad Digital Power Car Capacitor

(1)

$79.99

List price $199.99

CAP20B small

Absolute CAP20B

BLUE 1.2 Farad Digital Capacitor

$44.99

List price $99.99

R2W8D2_2 small

Alpine R2-W8D2 - Pair

1000W Peak (350W RMS) 8" R2-Series Dual 2-ohm Car Subwoofer

$479.90

List price $720.00

SWCJACK small

Scosche SWCJACK

Steering Wheel Interface Adapter that Works with JVC, Alpine, Clarion and Kenwood Car Radios with a Wired Remote Input

(3)

$44.99

List price $89.99

JCAM1 small

Jensen JCAM1 Universal Surface Mount Back-Up Camera

Universal Surface Mount Back-Up Camera by Audiovox

(37)

$19.99

List price $99.99

R152 small

Rockford Fosgate PRIME R152

5-1/4" 2-way Car Speakers

(4)

$49.95

List price $79.99

LC-1.1500 small

AudioControl LC-1.1500

1500W Peak (850W RMS) Class D LC Series Monoblock Car Amplifier

(3)

$699.00

List price $949.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2008 Ford Explorer

2015 MINI Cooper

2017 Ford Flex

2014 Hyundai Equus

1978 Audi 5000

2011 Volkswagen Eos

2000 Lexus RX300

1980 Ford LTD

2003 Mazda B3000

2007 Dodge Sprinter 2500

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
