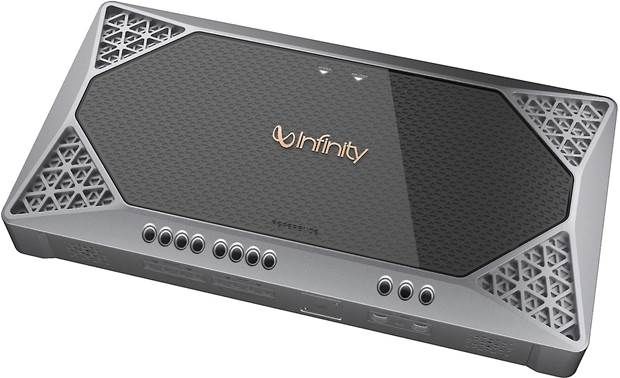

Infinity Reference 704A

1000W Peak (400W RMS) Reference Series 4-Channel Amplifier

Infinity
Shop all Infinity
highlight-star-icon

• 70 Watts RMS x 4 @ 4 ohm
• 100 Watts RMS x 4 @ 2 ohm
• Total Peak Power: 1000 Watts
• Variable Bass Boost: 0 to +9 dB
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Frequency Response: 32 - 320 Hz

Learn more about the ref704aam

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

70-5520 main

Metra 70-5520 Wiring Harness

Install a new car stereo in select 2003-2016 vehicles from Ford, Mercury, Lincoln

56
FMK540 main

American International FMK540

Single DIN or Double DIN Stereo Dash Kit for select 2004-2016 vehicles from Ford, Lincoln, Mercury

14
-71.82%

$10.99

List price $39.00

99-5812 main

Metra 99-5812 Dash Kit

Install a new Single-DIN car stereo in select 2004-2016 vehicles from Ford, Lincoln, Mercury

6
-46.68%

$15.99

List price $29.99

SHFD03B main

Scosche SHFD03B

Speaker Harness for select 1998-2019 vehicles from Ford, Mazda, Lincoln

8
-18.50%

$8.99

List price $11.03

MET-FD4 main

Metra MET-FD4

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2005-2014 vehicles from Ford, Lincoln, Mercury

1
-10.00%

$89.99

List price $99.99

DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

Limited time!
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
-11.43%

$309.99

List price $349.99

VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$99.99

List price $119.99

FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

Description


Infinity brand icon

Authorized dealer

General Features:

  • Infinity Reference Series REF-704A 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 70 watts x 4 chan.
    • 2 ohm: 100 watts x 4 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohm: 200 watts x 2 chan.
  • Total power output: 1000 watts
  • Class-D Amp Technology
  • Pulse Width Modulated MOSFET power supply

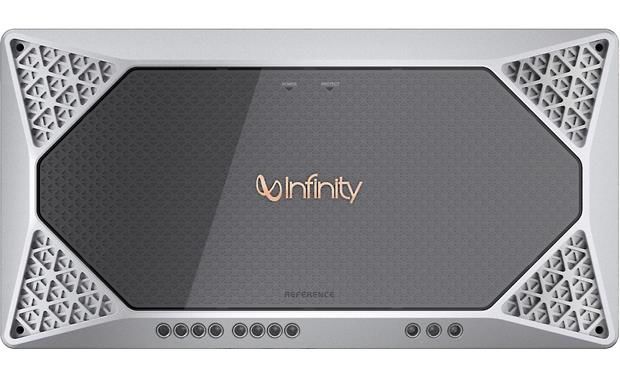

  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4/3/2 or Mono channel operation

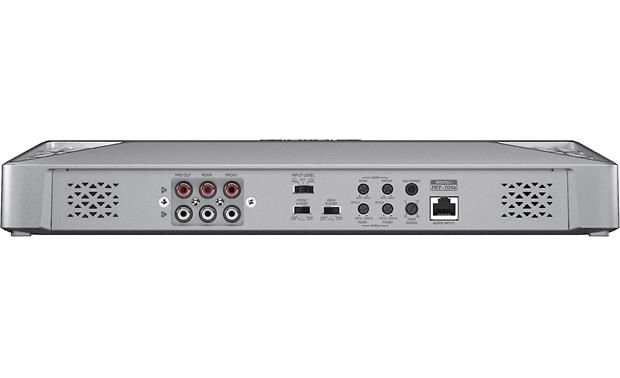

  • High and Low level speaker inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

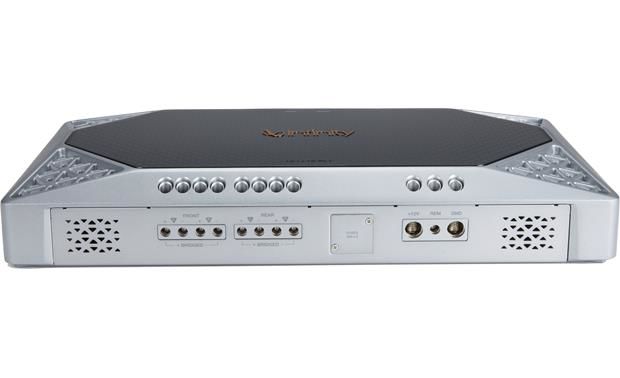

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Slim and compact chassis provides more installation options
  • HALOsonic mixing input
  • Frequency Response: 32 - 320 Hz
  • Signal to Noise Ration: >80 dB
  • Total Harmonic Distortion (THD): <1.0%
  • Phase: 0 - 180°
  • Variable Bass Boost: 0 to +9 dB
  • Fuse Rating: 30 A x 2
  • 4 - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

What's Included

  • 1 REF-704A 4-Channel Amplifier
  • 4 High-level input wiring harnesses
  • 2 spare fuses
  • 2 2-color brand stickers
  • Quick start guide


PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

Product history:

Infinity REF704AAM thumbnail
(newest, current model)
Infinity Reference 704A thumbnail
(previous model, replaced by Infinity Reference 704A)
Infinity 475a thumbnail
(previous model, replaced by Infinity Reference 704A)
Infinity 7541A thumbnail
(previous model, replaced by Infinity Reference 475a)

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
70 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Amplifier Specifications
Series
Reference Series
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
1000 watts
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes - with included adapter
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
32 - 320 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
>80 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Total Fuse Rating
60
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Mounting screws (4)
One spare fuse
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

REF704AAM

Weight:

9.13lbs

Internal SKU:

ref704aam

Internal Product ID:

172619

Customer Ratings & Reviews


Infinity Reference 704A thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Infinity amp

I always loved infinity and this amp is cheap! Very fast shipping!

By nolan on June 20, 2020 Checkmark Icon Verified purchase

6 found this helpful




BASSLINK-4SC small

Infinity BassLink 4SC

4-Channel, Multi-Channel Amplifier Expansion Module for Basslink II

(1)

$129.99

List price $229.99

SWCJACK small

Scosche SWCJACK

Steering Wheel Interface Adapter that Works with JVC, Alpine, Clarion and Kenwood Car Radios with a Wired Remote Input

(3)

$44.99

List price $89.99

JCAM1 small

Jensen JCAM1 Universal Surface Mount Back-Up Camera

Universal Surface Mount Back-Up Camera by Audiovox

(37)

$19.99

List price $99.99

R152 small

Rockford Fosgate PRIME R152

5-1/4" 2-way Car Speakers

(4)

$49.95

List price $79.99

LC-1.1500 small

AudioControl LC-1.1500

1500W Peak (850W RMS) Class D LC Series Monoblock Car Amplifier

(3)

$699.00

List price $949.00

02-08-DODGE-RAMTRK15-RD-INF small

Infinity Reference Series Rear Factory Speaker Replacement Package

Fits select 2002-2008 Ram 2500 / 3500 / 1500

(1)

$117.94

List price $152.94

CAP30S small

Absolute CAP30S Silver

1.8 Farad Digital Capacitor

$54.99

List price $139.99

BEC106 small

Eclipse BEC106

Rearview Backup Camera (BEC-106)

$199.99

List price $259.99

CAP38S small

Absolute CAP38S (SILVER)

2.5 Farad Digital Power Capacitor

$64.99

List price $119.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2008 Ford Explorer

2015 MINI Cooper

2017 Ford Flex

2014 Hyundai Equus

1978 Audi 5000

2011 Volkswagen Eos

2000 Lexus RX300

1980 Ford LTD

2003 Mazda B3000

2007 Dodge Sprinter 2500

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
