1000W Image Dynamics + Crunch Bass Package

2 Image Dynamics CTX128 12" CTX Series Subwoofers + Crunch PZX1000.2 1000W 2-Channel Amp + Amp Wiring Kit + Enclosure

EXCLUSIVE
highlight-star-icon

• 1000 Watts x 1 @ 4 ohm, Bridged
• 350W Peak RMS Each Subwoofer
• 175W RMS Each Subwoofer
• Poly-Mica Cone Woofer
• Butyl Rubber Surround
• Conex Spider with Integrated Tinsel Leads
• Black Anodized Aluminum Voice Coil Former
• Speaker-level (high-level) inputs
• 2 channel or mono operation
• Signal to Noise Ration: >90 dB
• Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
• Dimensions: 9.29" L x 8.66" W x 2.17" H

Learn more about the 2-ctx128_pzx10002_mdfd12_bak82

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Description


Image Dynamics brand icon

Authorized dealer

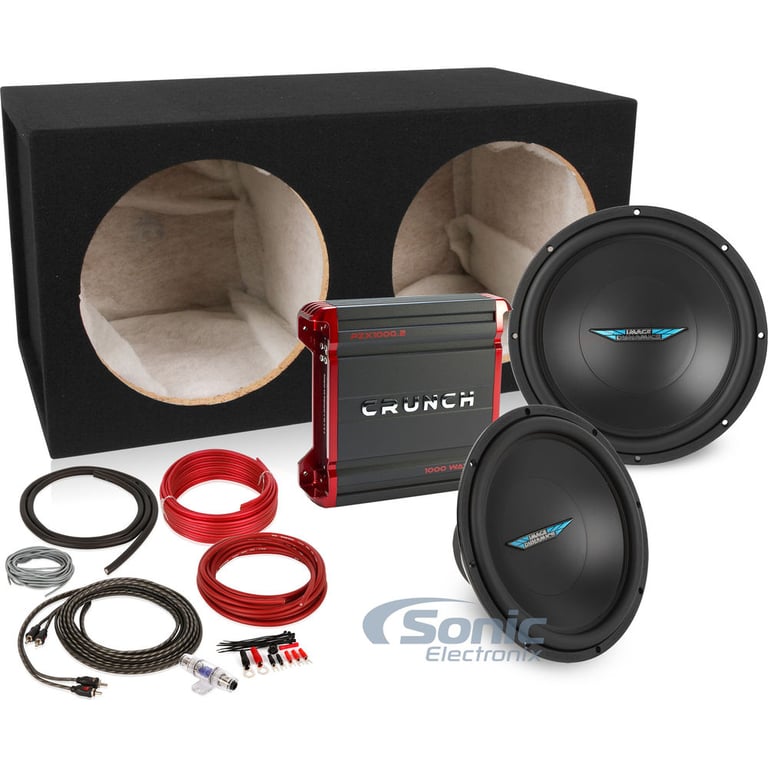

Image Dynamics + Crunch Bass Package

This Sonic Electronix Exclusive Bass package showcases a Crunch PZX1000.2 amplifier along with a pair 12" CTX Series Image Dynamics Subwoofers . This all inclusive package has the ability to put out as much as 1000 Watts of Peak Power Output. The Image Dynamics Subwoofers each have a Single 8 Ohm Voice Coil; meant to be wired in parallel, to a final impedance of 4 Ohms to the amplifier's Bridged connection. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This bundle also includes a complete 4 gauge amplifier kit, which is perfect to supply power to the amplifier, along with a dual 12" sealed enclosure. The sealed design of the enclosure will provide a tighter and quicker responsive bass, often associated to a "Sound Quality" minded system. With the Image Dynamics subwoofers, Crunch amplifier, sealed enclosure, and Belva amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

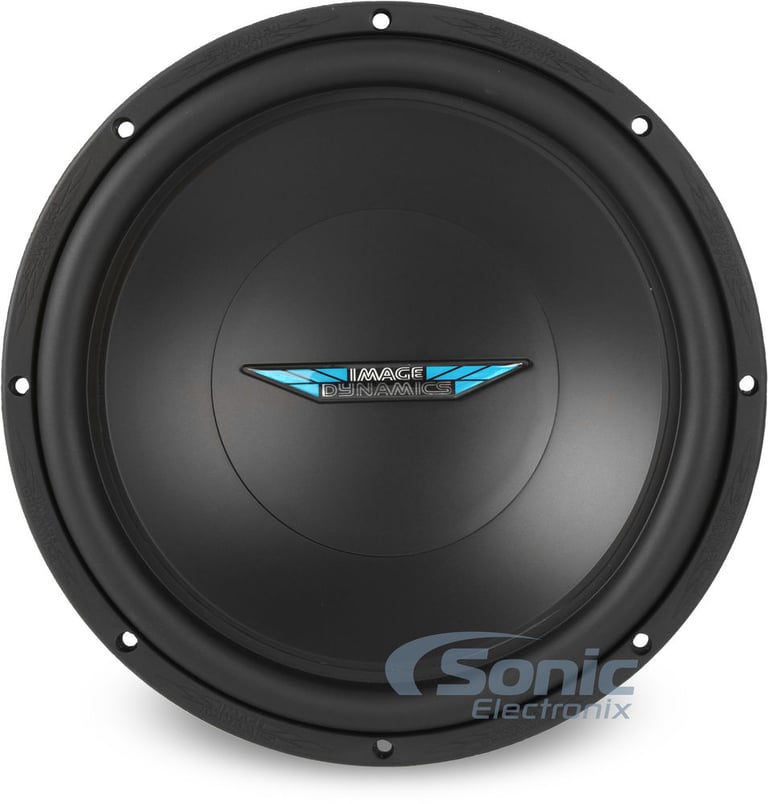

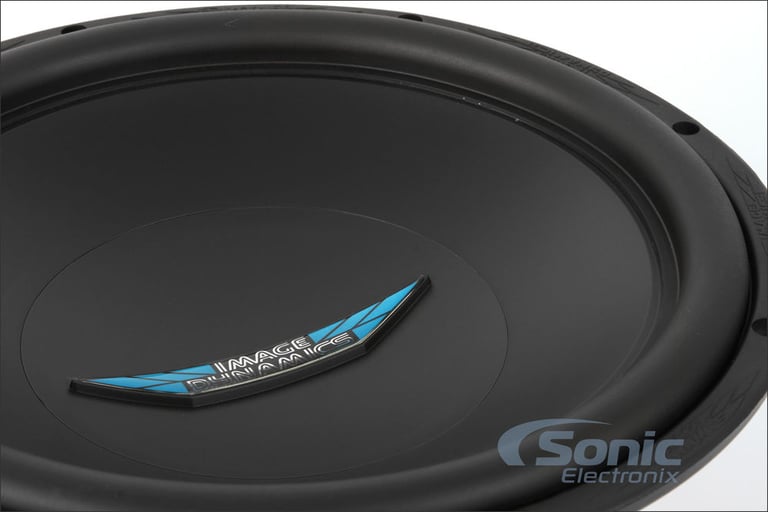

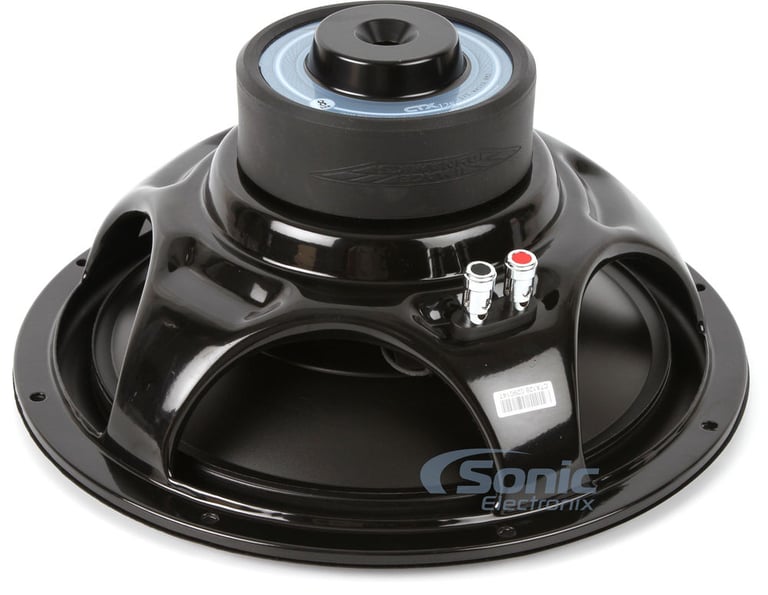

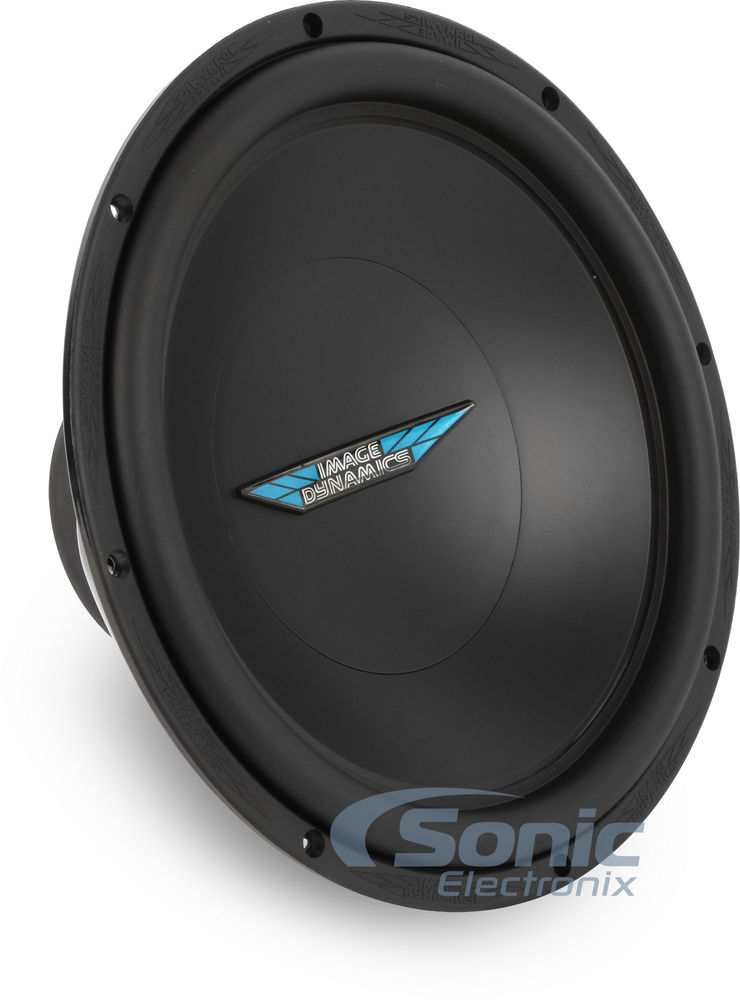

Image Dynamics CTX128

175W 12" CTX Series Single 8-Ohm Subwoofer Driver
Quantity: 2

General Features

  • 12" Single 8-Ohm CTX Series Subwoofer
  • Power Handling:
    • Peak RMS: 350 watts
    • Recommended RMS: 175 watts
  • *Recommended Power Range: 50-350 watts
  • Poly-mica cone woofer
  • Butyl rubber surround
  • Spring loaded push terminals for easy installation
  • Conex spider with integrated tinsel leads
  • Black anodized aluminum voice coil former
  • Frequency response: 16 - 180 Hz
  • Sensitivity: 86 dB
  • Xmax: 16.0 mm
  • Mounting Depth: 5.65"
  • Cutout Dimensions: 11.0"
  • Infinite Baffle "Free Air" Ready/Compatible
  • 1-year Manufacturer's Warranty

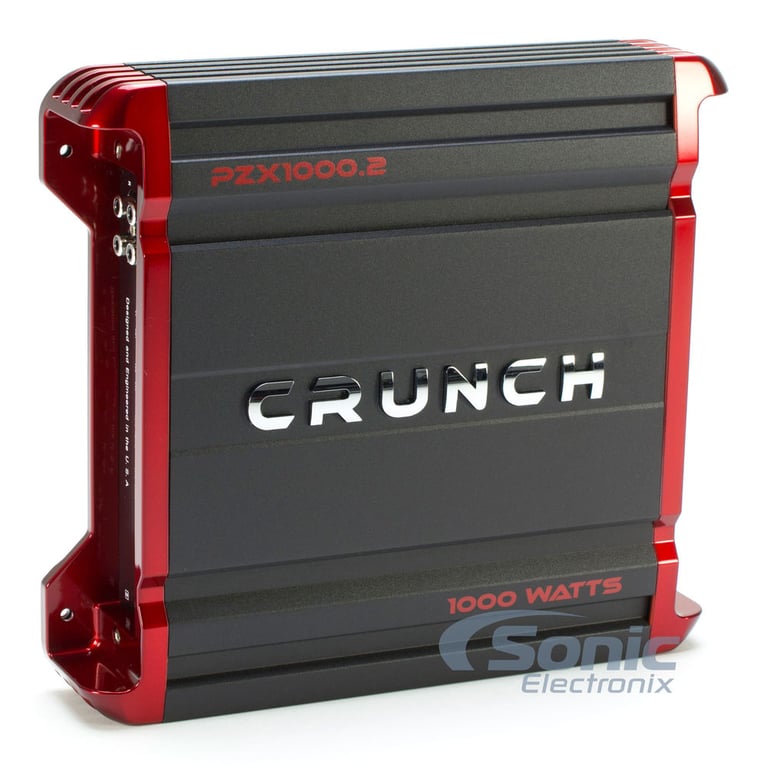

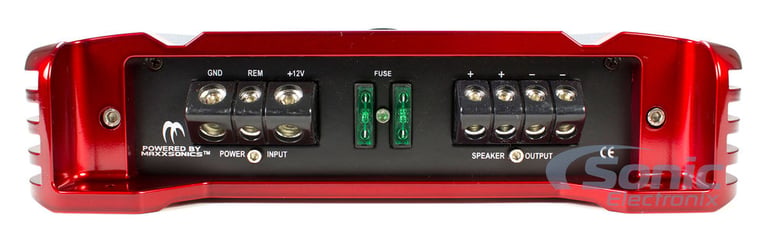

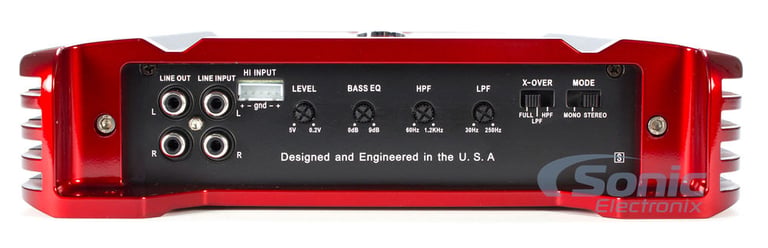

Crunch PZX1000.2

1000W 2-Channel Powerzone Series Class AB Car Amplifier
Quantity: 1

General Features:

  • 2-Channel Powerzone Series Class AB Car Amplifier
  • Max Power Rating:
    • 4 ohm: 250 watts x 2 chan.
    • 2 ohm: 500 watts x 2 chan.
    • Bridged, 4 ohm: 1000 watts x 1 chan.
  • Max power output: 1000 watts
  • SEPP (Single Ended Push Pull) A/B Class Amplifier Designs
  • Rugged Pulse Width Modulated MOSFET power supply
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • 2 channel or mono operation
  • Speaker-level (high-level) inputs
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 200mV - 5V
  • Frequency Response: 10 - 45,000 Hz
  • Total Harmonic Distortion (THD): <0.05%
  • Signal to Noise Ration: >90 dB
  • Selectable crossover modes: FULL / LPF / HPF
  • Variable low-pass filter: 30 - 250 Hz
  • Variable high-pass filter: 60 - 1200 Hz
  • Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
  • Fuse Rating: 40A x 1
    Photo gallery shows a different model, for reference
  • 8 gauge power and ground wiring is recommended for installation.
  • Dimensions: 9.29"L x 8.66"W x 2.17"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

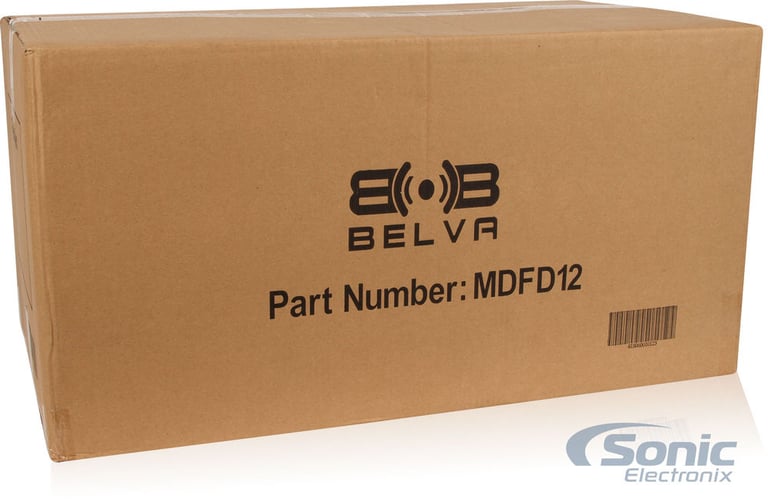

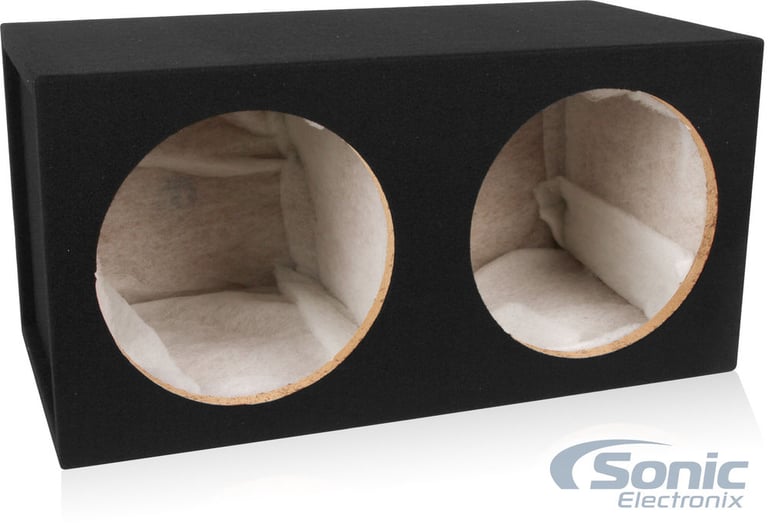

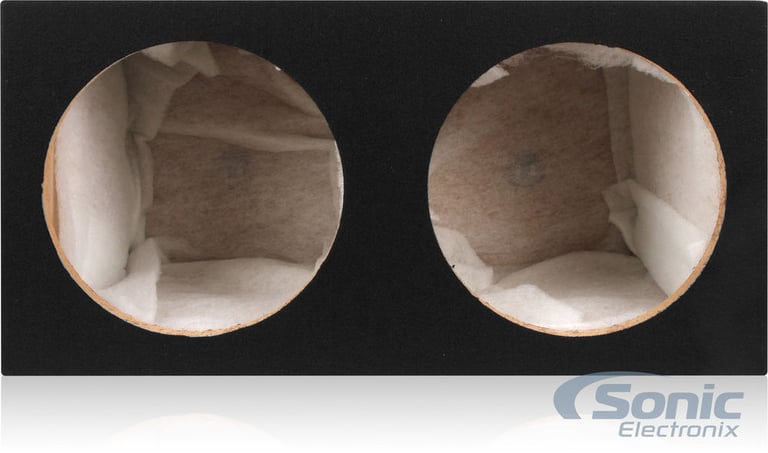

Dual 12" 3/4 MDF Sealed Subwoofer Enclosure (Belva MDFD12)

Dual 12-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/Polyfil (2.46 cu ft Airspace - 12SQB)
Quantity: 1

General Features:

  • Dual Sealed 12" Enclosure
  • Internal box volume: 2.46 cubic ft. total air space - 1.23 cubic ft. per chamber.
  • High Quality 3/4" MDF Construction
  • Durable black carpeting
  • Pre-lined with Poly-Fil
  • Seams are fully caulked for better efficiency
  • 2 Separate chambers allowing each subwoofer its own air space

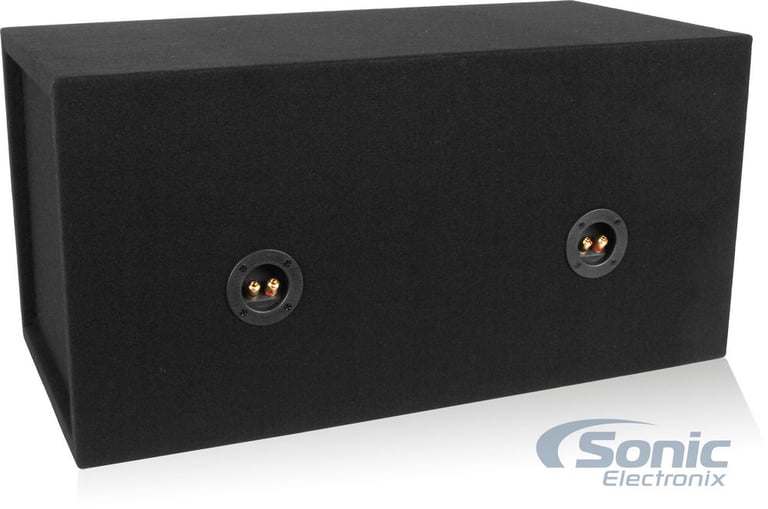

  • Gold post terminals for clean and easy wiring access
  • Box Dimensions: 28-1/2"L x 14-1/4"D x 14-1/4"H
  • 30 Day return policy

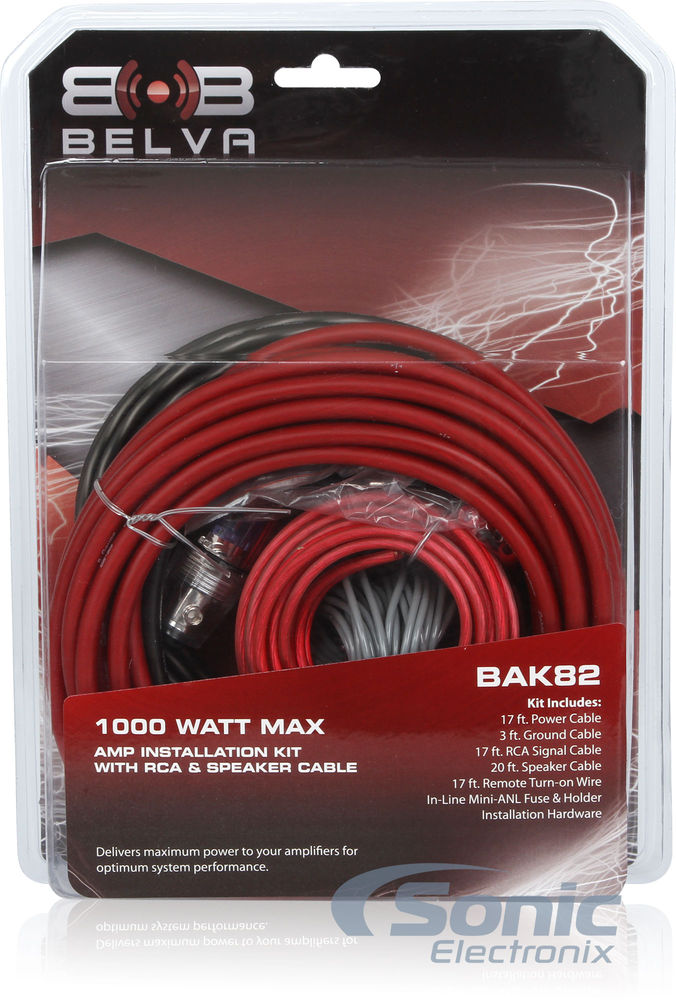

Belva BAK82

Complete 8 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)
Quantity: 1

General Features:

  • Complete 8 Gauge 2-Channel Amplifier Installation Kit
  • Designed specifically for car audio systems up to 500 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
    • Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • Mini-ANL Fuse holder with a 60 amp Mini-ANL fuse offers ideal protection
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

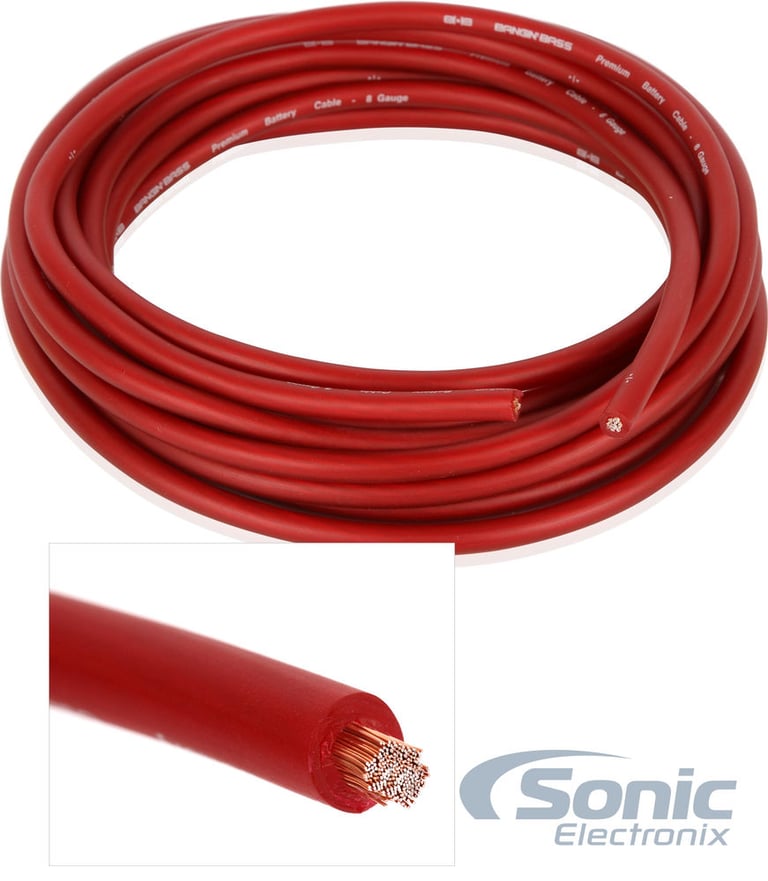

  1. 17 ft. (5.2 meters) Red 8 gauge power wire

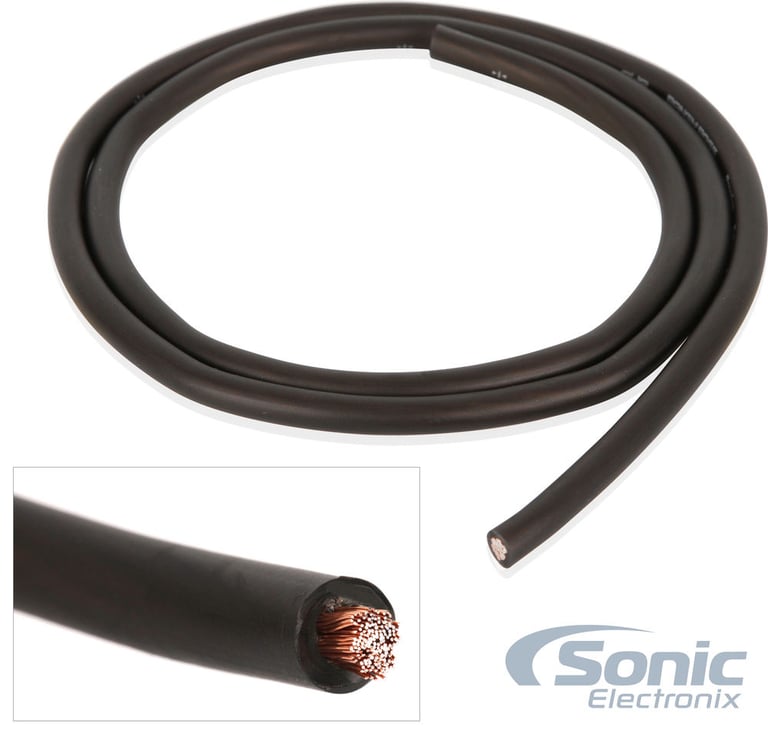

  2. 3 ft. (.91 meters) Black 8 gauge ground wire

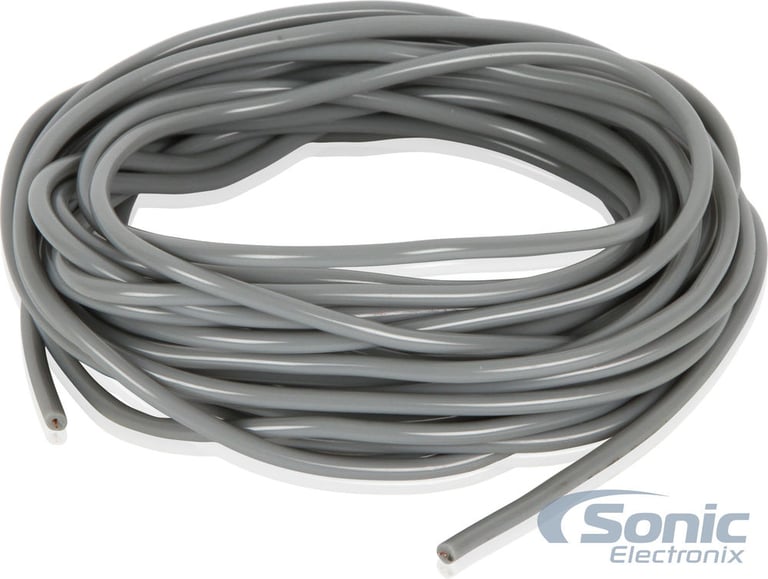

  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

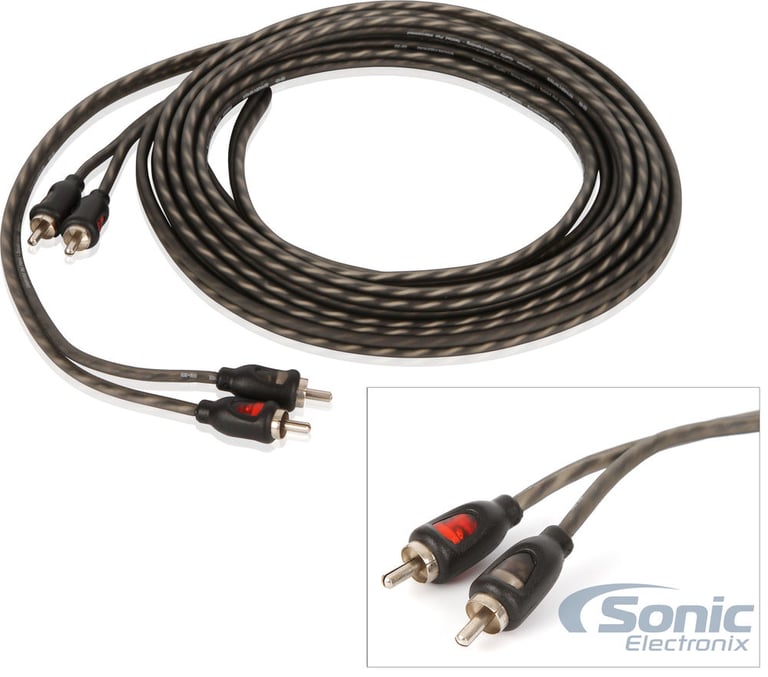

  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

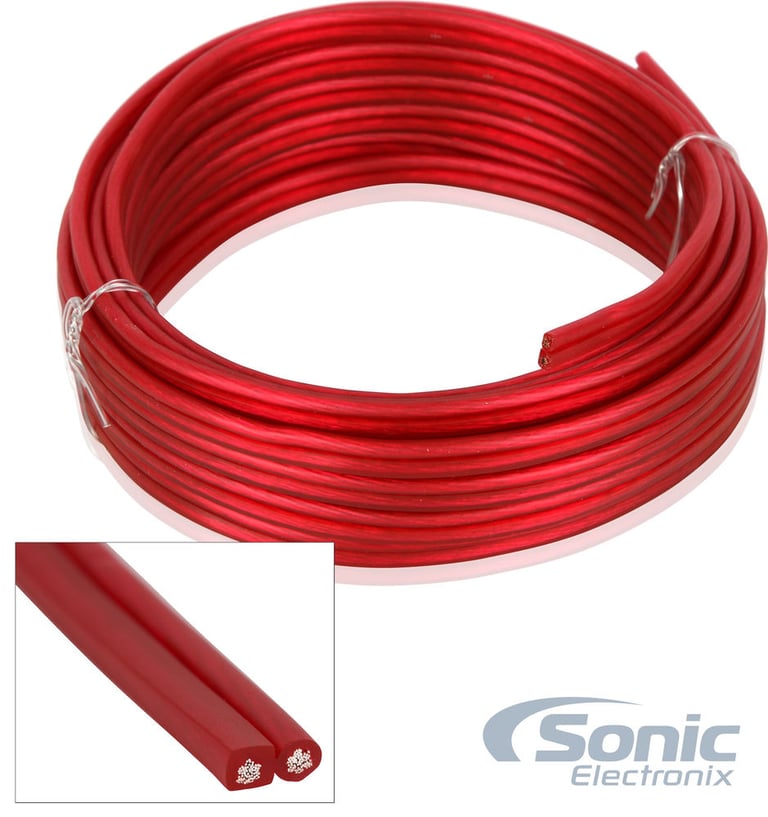

  5. 20 ft. (6.1 meters) Speaker cable

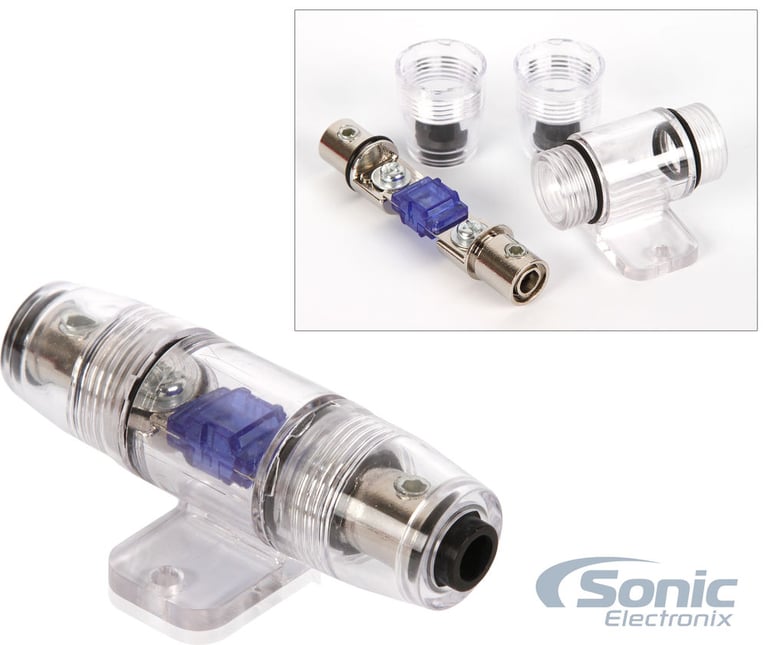

  6. One In-line Mini-ANL Fuse Holder with a 60 amp Mini-ANL fuse

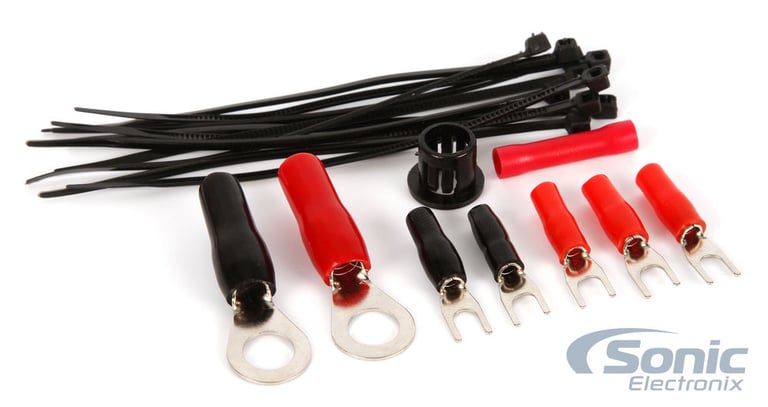

  7. One black rubber firewall grommet
  8. One 8 Gauge red chrome plated ring terminals
  9. One 8 Gauge black chrome plated ring terminal
  10. Three 18 Gauge red Spade terminal
  11. Two 18 Gauge black Spade terminal
  12. One 18 Gauge red butt connector
  13. Ten 4" Black zip ties

This kit is CCA (Copper Clad Aluminum)
For best performance, purchase a 100% OFC Kit!

Oxygen-Free Copper wiring can improve the performance of your system and save you money in the long run. Watch this video to learn why you should choose an OFC Amp Kit!

Click here for Premium OFC kits!


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(81)

$279.99

List price $323.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
125 watts x 2 channel
RMS Power @ 2 ohms
250 watts x 2 channel
Bridged RMS Power
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
1000 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<0.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
>90 dB
Channel Separation
>80 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
40A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Series
CTX Series
Subwoofer Size
12"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
8 ohm
RMS Power Handling
175 watts
Peak Power Handling
Not Specified by Manufacturer
Woofer Surround
Butyl Rubber
Woofer Composition
Polypropylene-Mica
Minimum Sealed Box Volume
1.2 cubic feet
Maximum Sealed Box Volume
1.5 cubic feet
Minimum Ported Box Volume
2.2 cubic feet
Maximum Ported Box Volume
2.8 cubic feet
Sensitivity
86 dB
Frequency Response
16 - 180 Hz
Xmax (millimeters)
16 mm
Top-Mount Depth (Mounting Depth)
5.65"
Cutout Diameter
11.0"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

2-CTX128_PZX1000.2_MDFD12_BAK82

Weight:

64.80lbs

Internal SKU:

2-ctx128_pzx10002_mdfd12_bak82

Internal Product ID:

105469

Customer Ratings & Reviews


1000W Image Dynamics + Crunch Bass Package thumbnail image

5 star
75%
4 star
20%
3 star
4%
2 star
1%
1 star
0%



Durability
4.7
Value
4.8
Features
4.7
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

BAK 82

The following review is for BAK82, which is a part of the bundle you are viewing.

Nice package, quality wire but could more end connectors for the larger wire.

By Sam on June 19, 2014

203 found this helpful


Good product

The following review is for BAK82, which is a part of the bundle you are viewing.

It's exactly what you need for your car amp installation. I bought this kit with Kenwood KAC-1502S amp for 75 bucks. Good deal from Sonic Electronix.

By Collins on January 6, 2014

185 found this helpful


Great kit for the cost

The following review is for BAK82, which is a part of the bundle you are viewing.

Very nice kit for $18.
Wire seems adequately thick. Good quality fuse (not AGU) and fuse holder. RCA's feel durable. Decent assortment of accessories. All together a solid budget kit IMO.

By n2audio on September 24, 2014

185 found this helpful


Don't know what the other guy is talking about.

The following review is for BAK82, which is a part of the bundle you are viewing.

This kit was awesome and included with my package that I bought. In comparison to others for the same price, there is simply not a comparison and the other review is just wrong on so many levels I felt compelled to write this.

The reality is there are a lot of real shoddy amp kits and wire as a whole being used in car audio in terms of cheap amp kits that have over-insulating wires and fake gauge ratings, huge amounts of aluminum, lousy RCA cables, fuse holders and other accessories. BUT and a BIG BUT, this kit excels in those areas where others fall flat on their face. I have bought a few inexpensive 8 gauge kits in my day and XScorpion, Raptor, Install Bay and others haven't even given me the 8 gauge of wire that I paid for, and in some cases gave me wire that heated up to a dangerous level due to the actual make up of the wire.

I also literally laughed when I see that the other reviewer was intending to use spade terminals to connect his amp power and ground wire... It is for the SPEAKER wire knucklehead :-). I am an installer and the smaller accessories work just fine when you use them correctly. Most amps will still work with them when used with the speaker wire. Of course one can be used for the remote wire connection to the amp and the other end with the butt connector being used to connect to the stereo. The funny thing is, if you do not need them, who cares? It is like ordering this kit for a compact car or single cab pickup. You will not use all of the power wire for these applications, so do you complain that the manufacturer gave you extra wire? That just made me laugh.

Now, onto the other accessories. The AFS fuse and holder that are included are so far superior to others in this price range and the amount of copper (albeit CCA) is much better than others in the price range. Lastly, the RCAs included are awesome for the price. I cannot find ANYTHING to complain about here for $21.99.

All in all, you will not get a better value for the money.

By Double Down on August 14, 2012

180 found this helpful


Good product for the price

The following review is for BAK82, which is a part of the bundle you are viewing.

Good wiring package, good quality fuse holder and wires, I would like more connectors on it and maybe some tube for the power wire, but overall is a good kit.

By Alfredo on October 29, 2014

175 found this helpful


Good Purchase

The following review is for BAK82, which is a part of the bundle you are viewing.

I used this kit to install a 2 channel Boss amp. The quality of the pieces in this kit is five stars, but I'm giving it 4 because it is my belief that to do a clean install you need (4) 8 gauge terminals (one at the batt, one at the amp, one at ground, one at the amp), not just two. I had to spend an extra six bucks at Orchard for the extra terminals, but since the cost of the kit here at Sonic was only $20 at the time, it was still a good deal.

By Jumbo Dumbo on December 19, 2013

167 found this helpful


Good kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Good kit for basic setups. Using it right now in my mothers system powering a simple 12. Could handle more if needed.

Pros: Handles power, Wires are HQ, More copper than rubber, Wires are good length, Fuse is HQ, Comes with lots of ties and rubbers.

Cons: None

I would recommend this kit to anyone who has a simple system. All around good kit.

By Mitch on January 31, 2014

174 found this helpful


Great wiring kit

The following review is for BAK82, which is a part of the bundle you are viewing.

works great on my MB Quart 2x100 watt amp.

By Eric on November 29, 2013

166 found this helpful


Good Kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Great kit for the price. the price is good. Long wires.

By Joshua on December 8, 2013

162 found this helpful


Good Box

The following review is for MDFD12, which is a part of the bundle you are viewing.

Great box does well with my subs would buy again

By Dennis on May 4, 2012

147 found this helpful




BPR 1 12 small

Ground Shaker BPR 1 12-OPEN BOX

12" Single Sealed Regular Bandpass Subwoofer Box

$59.95

List price $124.95

ICON-HDP-RED small

NuForce Icon HDP Audiophile Grade Headphone Amplifier & DAC (Red)

24-Bit/192 kHz Headphone Amp and Preamp Output with USB, S/PDIF Coaxial, and 3.5mm Optical

$299.99

List price $449.00

HAFX8P small

JVC HAFX8P (HA-FX8P) Pink RIPTIDZ In-Ear Headphones/Earbuds

Lightweight Rubber Earbuds w/ 3 Sets of Silicone Earpieces (Pink)

$8.99

List price $9.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2023 Audi A4

1990 Nissan D21

2006 Kia Sorento

2000 Toyota Avalon

2015 Lexus ES350

2011 Volvo XC90

2022 Jeep Compass

2002 Dodge Ram 1500 Van

1969 Ford Thunderbird

2013 Audi RS5

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
