JBL GTR-7535

2300W Peak 5-Channel Class-D Bluetooth Car Amplifier with Clari-Fi Technology, ADAS input and cabin-mounted control panel

JBL
Shop all JBL
Product videos
highlight-star-icon

• 75 Watts RMS x 4 @ 4 ohm
• 100 Watts RMS x 1 @ 2 ohm
• 200 Watts RMS x 2 @ 4 ohm
• Subwoofer Channel: 4 ohm: 200 watts x 1 chan. or 2 ohm: 350 watts x 1 chan.
• Total Peak Power: 2300Watts
• Clari-fi Technology
• Bluetooth Streaming
• ADAS Input
• Cabin mounted control panel

Learn more about the gtr7535

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Product Highlights


• 75 Watts RMS x 4 @ 4 ohm
• 100 Watts RMS x 1 @ 2 ohm
• 200 Watts RMS x 2 @ 4 ohm
• Subwoofer Channel: 4 ohm: 200 watts x 1 chan. or 2 ohm: 350 watts x 1 chan.
• Total Peak Power: 2300Watts
• Clari-fi Technology
• Bluetooth Streaming
• ADAS Input
• Cabin mounted control panel

Description


JBL brand icon

Authorized dealer






Bluetooth Streaming: wireless audio streaming from phones and other devices. Receive phone calls by touching a button on the control panel. Plays through the car audio system.



Party Mode - Enabling Party Mode on the control panel allows Bluetooth multi-device pairing so anyone in the car can control the music.


Clari-fi Technology: Clari-Fi Technology is a predictive algorithm that analyzes music files and improves highly compressed digital music files in real time.

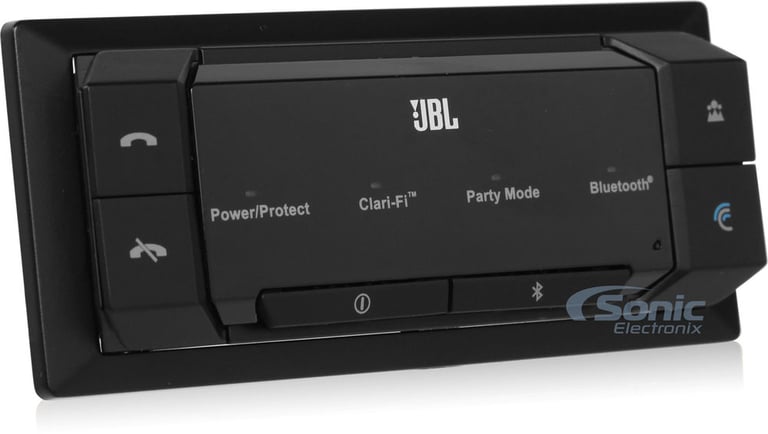

Cabin mounted control panel: The cabin-mounted control panel has an omni-directional microphone and puts functions at your fingertips. You can activate Bluetooth pairing, accept/end phone calls, select Party Mode and cancel Clari-Fi


ADAS Input: The ADAS input will override the audio signal when connected to Advanced Driver Assistant System (ADAS) accessories for safety.





General Features:

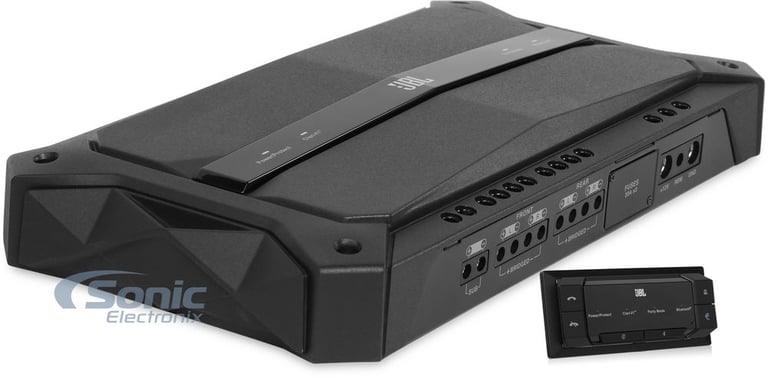

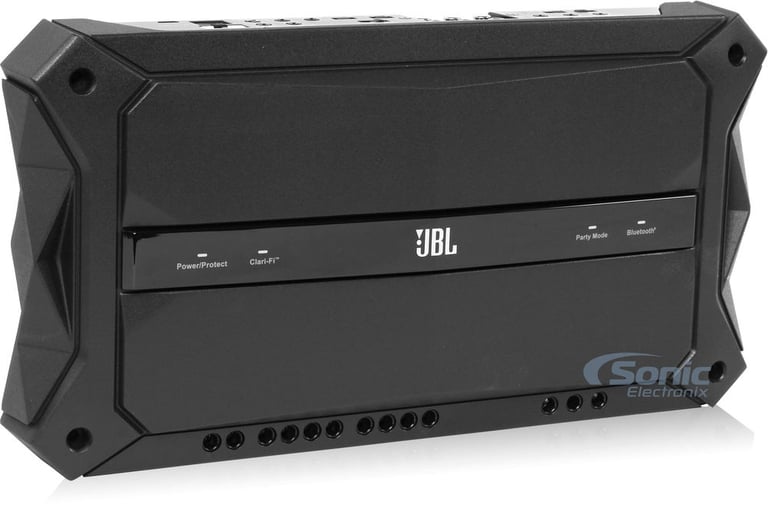

  • JBL GTR-7535
  • Class-D Full Range 2-Ohm Stable 5-Channel Car Amplifier
  • Full Range Channels RMS Power Rating:
    • 4 ohm: 75 watts x 4 chan.
    • 2 ohm: 100 watts x 4 chan.
    • Bridged, 4 ohm: 200 watts x 2 chan.
  • Subwoofer Channel RMS Power Rating:
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 350 watts x 1 chan.
  • Total power output: 2300 watts Peak
  • Pulse Width Modulated MOSFET power supply

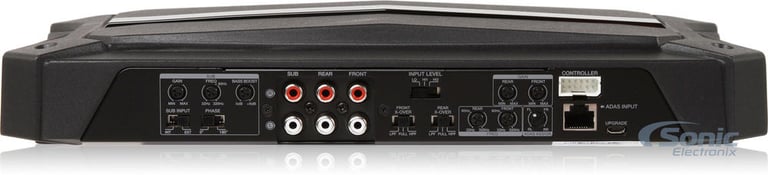

  • Full-Range Line Outputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Bluetooth Streaming: wireless audio streaming from phones and other devices. Receive phone calls by touching a button on the control panel. Plays through the car audio system.
  • Party Mode - Bluetooth multi-device pairing so anyone in the car can control the music
  • Clari-fi Technology: A predictive algorithm that analyzes music files and improves highly compressed digital music files in real time.

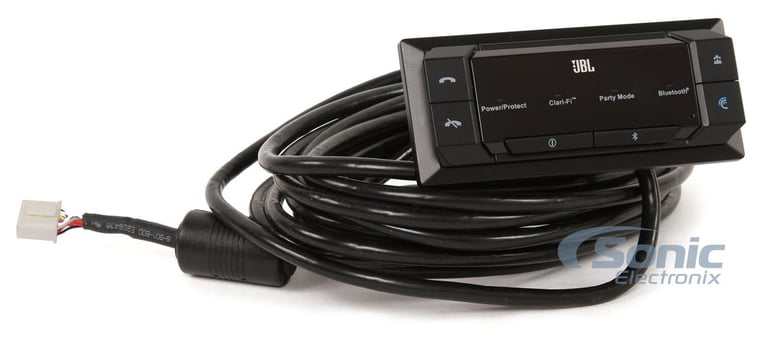

  • Cabin mounted control panel: has an omni-directional microphone and puts functions at your fingertips. Activate Bluetooth pairing, accept/end phone calls, select Party Mode and cancel Clari-Fi
  • ADAS Input: The ADAS input will override the audio signal when connected to Advanced Driver Assistant System (ADAS) accessories for safety.
  • Upgradable firmware via the mini-USB port
  • Variable Line and Speaker Level Inputs: 0.2 - 20V
  • Signal to Noise Ration: >75 dB
  • Variable high-pass filter: 32 - 320 Hz, 24 dB/octave
  • Variable low-pass filter: 32 - 320 Hz, 24 dB/octave
  • Bass Boost: 0 to +9 dB
  • Phase Switch: 0° - 180°

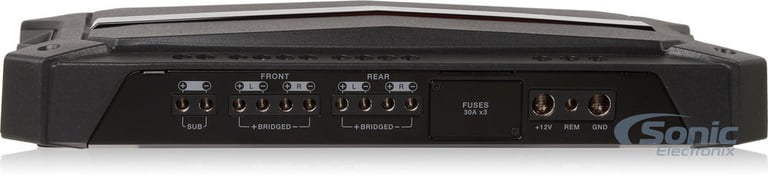

  • Fuse Rating: 30 A x 3
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

What's in the Box

  • GTR-104 Amplifier
  • Cabin-mounted control panel

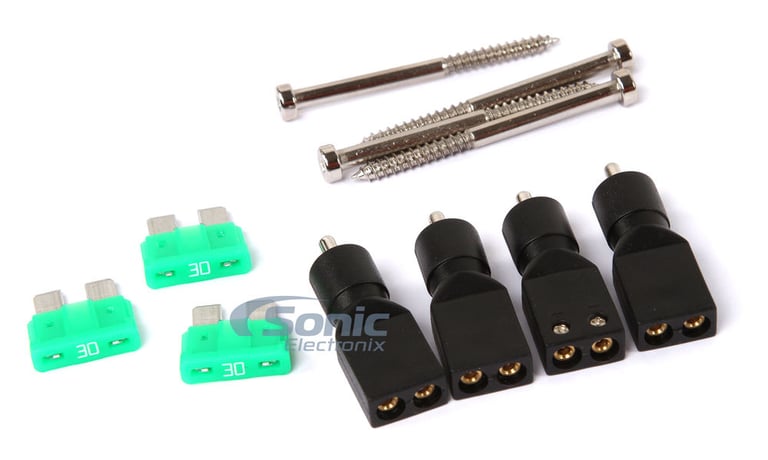

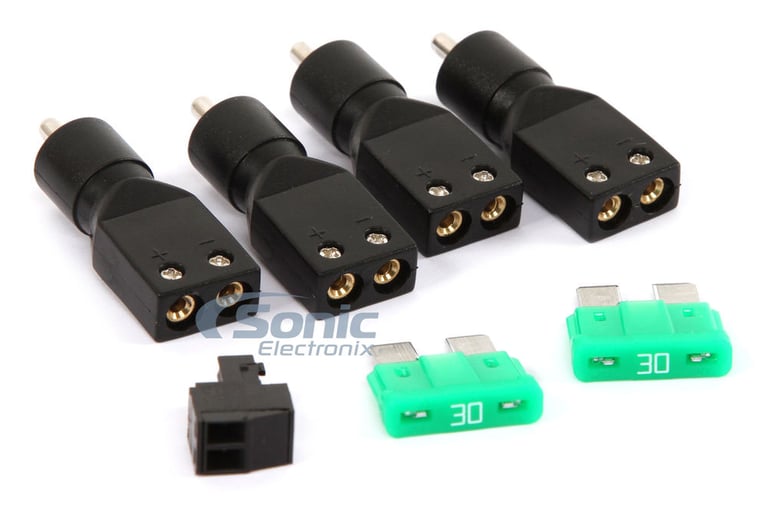

  • 2 spare fuses
  • Owner’s manual



Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(9)

$259.99

List price $323.99

MVPA6 small

NVX MVPA6

• 100 watts x 6 channel @ 4 ohm
• 150 watts x 6 channel @ 2 ohm
• Bridged: 300 watts x 3 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(7)

$319.99

List price $383.99

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

XQA16005 small

NVX XQA16005

• 125 watts x 4 channel + 300W x1 @ 4 ohm
• 200 watts x 4 channel + 500W x 1 @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 800W @ 1 ohm
• Total RMS Power: 1600 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$449.99

List price $719.99

46CXA6605t small

Kicker CXA660.5T (46CXA6605T)

• 65 watts x 4 channel + 150 watts x 1 channel @ 4 ohm
• 90 watts x 4 channel + 300 watts x 1 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm + 300 watts x 1 channel @ 2 ohm
• Total RMS Power: 660 watts
• Class A/B 2 ohm Stable 5-Channel Amplifier

$449.99

List price $479.99

MICRO85U small

Diamond Audio MICRO85U

• + @ 4 ohm
• 85 watts x 1 channel + 375 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm + 375 watts x 1 channel @ 2 ohm
• Total RMS Power: 1035 watts
• Class D 2 ohm Stable 5-Channel-Channel Amplifier

$659.99

List price $719.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
350 watts x 1 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
150 watts x 4 channel
Peak Power @ 2 ohms
200 watts x 4 channel
Bridged Peak/Max Power
400 watts x 2 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
400 watts x 1 channel
Peak Power @ 2 ohms
700 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
5-Channel
Total Peak Power Output
2300 watts
Total RMS Power Output
1000 watts
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
32 - 320 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
>75 dB
Bass Boost
0 - 9 dB
Fuse Rating
30A x 3
Amp Bluetooth Connectivity
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

GTR-7535

Weight:

7.00lbs

Internal SKU:

gtr7535

Internal Product ID:

106723
