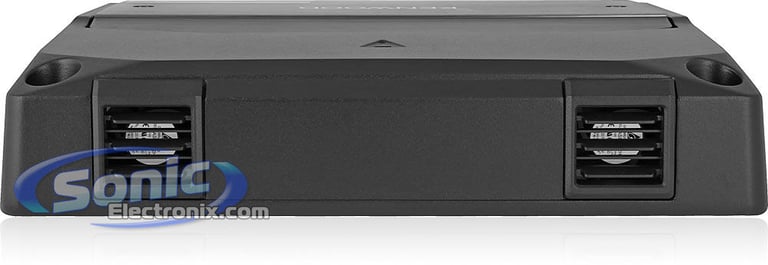

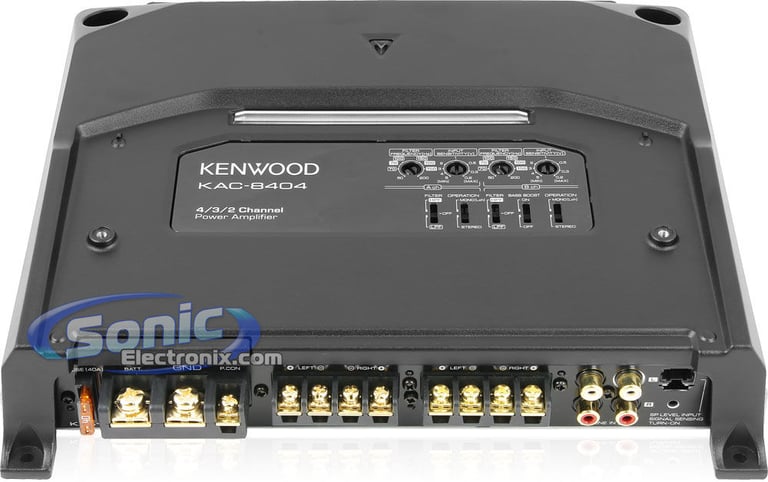

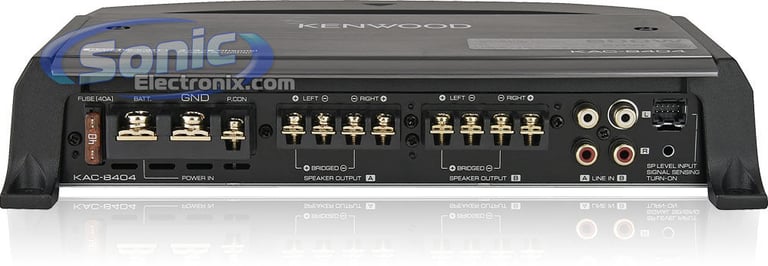

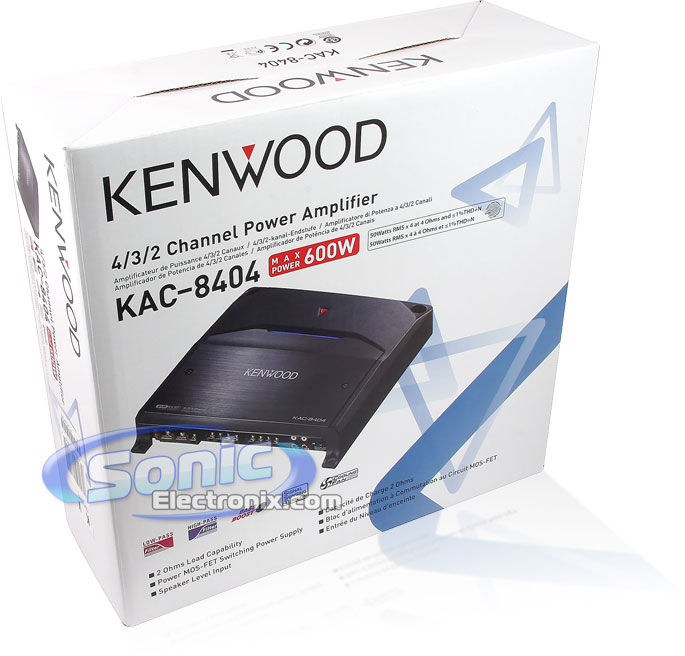

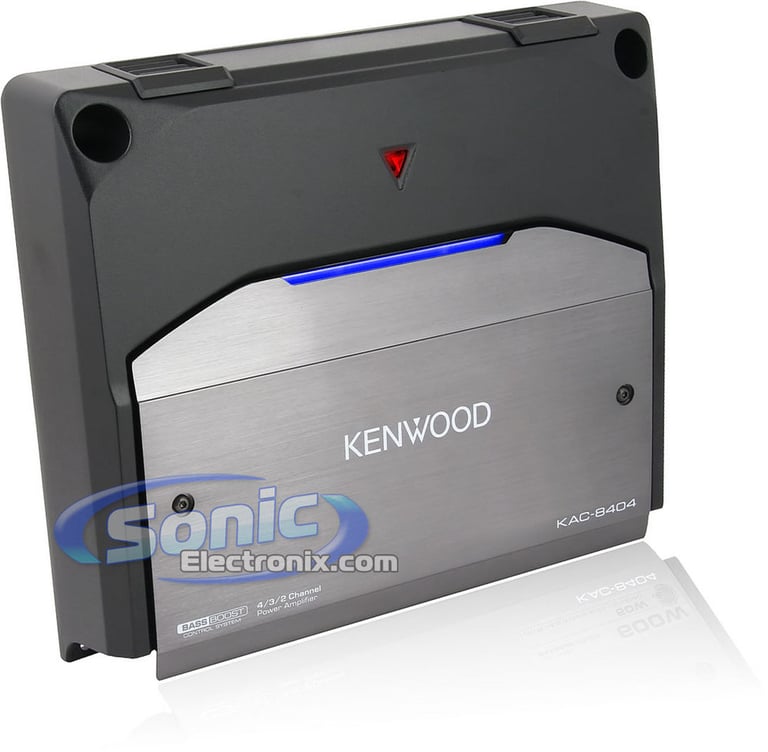

Kenwood KAC-8404

600W Max, 4-Channel Amplifier

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

4-Channel Class AB Car Amplifier • 50W x 4 chan. @ 4 ohm • 75W x 4 chan. @ 2 ohm • 180W x 2 chan. @ 4 ohm • 150W x 4 chan. Max • Built-in cooling fan • Short circuit, DC offset, overload, and thermal protection circuitry

Learn more about the kac8404

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

kac8406 thumbnail

Kenwood KAC-8406

OUR PRICE: $139.99

View item

Loading...
CP1-S main

PAC CP1-S

CAN-Bus Interface Module for select 2015-2024 vehicles from Ford, Tesla

-30.20%

$104.00

List price $149.00

AXLOC-FD2 main

Axxess AXLOC-FD2

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ford with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

CP1-FRD2 main

PAC CP1-FRD2

CAN-Bus Plug-and-Play Harness for 24-pin Connector at OBD2 Gateway Module in select 2014-2024 vehicles from Ford

-34.18%

$52.00

List price $79.00

AP4-FD31 main

PAC AP4-FD31

AmpPRO Series Amplifier Integration Interface for select 2018-2024 vehicles from Ford

-12.75%

$479.00

List price $549.00

SB-F-RNGSCG4/10TW1 main

JL Audio Stealthbox® SB-F-RNGSCG4/10TW1

Custom-Fit Loaded 10" Subwoofer Enclosure for select 2019-2025 Ranger

$1,149.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

OEMADAPT6.5 main

DS18 OEMADAPT6.5

Universal 6.5" Speaker Mounting Adapters

C2-350X main

JL Audio C2-350x

50W RMS 3.5” C2 Series 2 Way Coaxial 4-ohm Car Speakers

15

Product Highlights


4-Channel Class AB Car Amplifier • 50W x 4 chan. @ 4 ohm • 75W x 4 chan. @ 2 ohm • 180W x 2 chan. @ 4 ohm • 150W x 4 chan. Max • Built-in cooling fan • Short circuit, DC offset, overload, and thermal protection circuitry

Description


Kenwood brand icon

Authorized dealer

  • 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 4 chan.
    • 2 ohm: 75 watts x 4 chan.
    • Bridged, 4 ohm: 180 watts x 2 chan.
  • Max power output: 150 watts x 4 chan.
  • MOSFET power supply
  • LED power indicators
  • 4/3/2 channel operation
  • Speaker-level inputs
  • Short circuit, DC offset, overload, and thermal protection circuitry
  • Aluminum die cast heat sink
  • Built-in cooling fan
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Variable high-pass filter (50-200 Hz, 12 dB/octave)
  • Variable low-pass filter (50-200 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 50-200 Hz
  • Dimensions: 11"L x 2-5/16"H x 9-3/8"D
  • 8-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

Kenwood KAC-8406 thumbnail
(newest, current model)
Kenwood KAC-8405 thumbnail
(previous model, replaced by Kenwood KAC-8406)
Kenwood KAC-8404 thumbnail
(previous model, replaced by Kenwood KAC-8405)
Kenwood KAC-8403 thumbnail
(previous model, replaced by Kenwood KAC-8404)
Kenwood KAC-8402 thumbnail
(previous model, replaced by Kenwood KAC-8403)
Kenwood KAC-8401 thumbnail
(previous model, replaced by Kenwood KAC-8402)

Loading...
SB-F-RNGSCG4/10TW1 main

JL Audio Stealthbox® SB-F-RNGSCG4/10TW1

Custom-Fit Loaded 10" Subwoofer Enclosure for select 2019-2025 Ranger

$1,149.99

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
180 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
600 watts
Total RMS Power Output
360 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.8%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
40A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

KAC-8404

Weight:

9.00lbs

Internal SKU:

kac8404

Internal Product ID:

11791

Product and How-to Videos


Customer Ratings & Reviews


Kenwood KAC-8404 thumbnail image

5 star
37%
4 star
63%
3 star
0%
2 star
0%
1 star
0%



Durability
4.6
Value
4.7
Features
4.3
Design
4.4
Usability
4.7

Customer Reviews

Sort by:

Loading...

Quality

I install this amp in a friends car. It is very powerful unlike many other car amps you can trust the specs. It is also has a very clean sounding amp.

By Donovan on August 11, 2008

14 found this helpful


Decent amp at a good price

I bought this amp for my Miata after receiving professional sound system advice. Grouped with a Sony head unit, Infinity speakers and a Kicker sub, this amp really drives some sweet clean sound. I don't play it super loud but rather look for quality sound - tough order in a top down Miata - and this equipment delivers. Recommended.

By GlennO on October 14, 2010

9 found this helpful


Great Little Amp!

This little amp is perfect. I have it pushing 2 6 x 9's and a JL 8W1 and it is a great combination even using the factory head unit. The signal sensing turn on is a great feature using the high level inputs because you don't need to run the REM. Power supplied via OFC 8 gauge wire and this little thing runs like a champ. Very satisfied.

By Robert on April 7, 2010

9 found this helpful


Great Value & Product

The Kenwood amp is an awesome amp. Quiet, powerful, stays cool and easy to setup. I am running Polk speakers with this amp in conjunction with a zapco competition series amp. Excellent amp for the price.

By taj on July 27, 2010

8 found this helpful


nice

I have this amp hooked up to a pair of Kenwood 5 1/2 Excelon speakers and a Kicker CVT 6 1/2 subwoofer in my Honda Silverwing 600 scooter and its banging

By eric on May 25, 2010

8 found this helpful


Quality not quantity

Good quality amplifier. Output is very clean, no distortion at high volumes. I like the fact that all wirering is on one side of the amplifier, this allows for a neat and easy installation. Currently I have this amplifier driving a pair of kicker KS13 tweeters and 4 pioneer 6 1/2 speakers and a kenwood KAC-8104D driving a dual 4 ohm pioneer 12" sub.

By Michael on July 14, 2009

8 found this helpful


Kenwood KAC-8404

This product was every easy to setup, the sound quality had been great. I have Infinity Speakers attached and these seem like a very good match to a nice amp for a reasonable price.

By Jeff on February 3, 2009

8 found this helpful


Fantastic Item

Great product and easy to use and very affordable price too.

By David on March 31, 2010

8 found this helpful


A great little amp!

I purchased this amp primarily because it mounts very easily in a horizontal position and it looks great in my truck. I was impressed with the sound, I was a little skeptical but I was really surprised with the highs and the lows it produced. I would certainly recommend it to anyone with a descent system! It matches perfectly with the KAC-8104!

By kenneth r on February 11, 2010

7 found this helpful


Clean Sound with enough punch

pushing the following:
t1462c Rockford Fosgate Power T1462C (rear) &
p163c Rockford Fosgate Punch P163C (front)
in a regular cab 2003 Silverado

This amp is a big time upgrade from running the stock speakers off the head unit (including the new speakers too).

Installation needed a little bit of customization on my part, but that is all in fun.

All the connections are on one side so it made it easy to hide the wires when installing.

Not a bad buy for the price and the sound is nice and clear. This is also paired with a KAC-8104D pushing 2 kenwood 10s; so this amp just adds to the overall ensemble of quality sound.

By The Fixer on December 27, 2009

7 found this helpful




ZXX-2000.4 BAK42 BBIC5 small

New Hifonics Zeus ZXX-2000.4 2000 Watt RMS 4-Channel Car Audio Amplifier+Amp Kit

2000W Peak Zeus Series Class-A/B 4-Channel 2-Ohm Stable Amplifier (ZXX-20004) Package

(87)

$219.90

List price $528.98

GM1483B small

Scosche GM1483B / GM1483 Dash Kit

Install a new Single-DIN car stereo in select 1995-2023 vehicles from GMC, Chevrolet, Cadillac trucks (Black)

(119)

$6.34

List price $13.95

MBL MC CLNTCH PEN WW small

Monster Cable CleanTouch Pen (MBL MC CLNTCH PEN WW) Electronic Device Cleaner

Alcohol and Ammonia Free Antibacterial Touchscreen Cleaning Solution

$3.99

List price $24.95

HP-1-WHITE small

i.Fuzen HP-1 (Original V1 - White)

iPhone 4/4S Case with Built-in Headphone Amplifier, Splitter and Extended, Rechargeable Battery

$69.99

List price $129.99

2XL-154D small

PowerBass Xtreme 2XL-154D

15" Dual 4 ohm 2XL Series Subwoofer

$299.99

List price $479.99

R400-4D_XKIT44 small

Rockford Fosgate Prime R400-4D 4 Channel Amplifier w/ Complete 4 AWG OFC Amp Kit

400W 4-Channel Class D Prime Series Full Range Amplifier + Amp Kit

(122)

$299.98

List price $435.98

08S8L72 small

Kicker Solo-Baric S8L72 (08S8L72)

8" Dual 2 ohm Solo-Baric L7 Series Car Subwoofer

(8)

$133.89

List price $299.95

M6-880STR-S-Cr small

JL Audio M6-880STR-S-Cr

8.8" Trim Ring for Sport Grilles in JL Audio M6 Series Marine Speakers (Chrome)

$47.99

List price $47.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2000 BMW 323i

2017 Audi R8

2021 Lexus IS300

2003 Chevrolet SSR

2021 Toyota RAV4

2009 Mazda Tribute

2002 BMW X5

2013 Lexus ES350

2012 Ram 2500

2003 Dodge Durango

Vehicle
Store
Delete

2016 Can-Am Defender DPS HD8

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
