Kenwood KAC-8406

900W Max 4-Channel Class AB Performance Series Car Amplifier

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

• RMS Power: 70W x 4 @ 4 ohm, 100W x 4 @ 2 ohm
• Total Peak Power: 900W
• CEA-2006 Compliant
• Dimensions: 13-3/16" W x 7-9/16" D x 2-3/16" H

Learn more about the kac8406

We apologize

This item has been discontinued


Loading...
CR1291B main

Scosche CR1291B (CR1291) Dash Kit

Install a new Double-DIN car stereo in select 2007-2019 vehicles from Dodge, Jeep, Chrysler (Black)

71
-23.17%

$9.95

List price $12.95

70-6522 main

Metra 70-6522 Wiring Harness

Install a new car stereo in select 2007-2018 vehicles from Dodge, Jeep, Chrysler

37
-10.35%

$25.99

List price $28.99

VWA3B main

Scosche VWA3B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2000-2018 vehicles from BMW, Mercedes-Benz, Ford

56
-5.19%

$8.95

List price $9.44

KW-X850BTS main

JVC KW-X850BTS

Double DIN Digital Media Receiver with Bluetooth and Amazon Alexa (SiriusXM Ready)

3
-11.83%

$149.00

List price $169.00

Cerwin-Vega CV7BM

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

12

$109.00

List price $109.99

Product Highlights


• RMS Power: 70W x 4 @ 4 ohm, 100W x 4 @ 2 ohm
• Total Peak Power: 900W
• CEA-2006 Compliant
• Dimensions: 13-3/16" W x 7-9/16" D x 2-3/16" H

Description


Kenwood brand icon

Authorized dealer

General Features:

  • Kenwood Performance Series KAC-8406
  • Class-AB FullRange 2-Ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 70 watts x 4 chan.
    • 2 ohm: 100 watts x 4 chan.
    • Bridged, 4 ohm: 200 watts x 2 chan.
  • Max power output: 900 watts
  • CEA-2006 Compliant Amplifier
  • Speaker-level (high-level) inputs
  • Power MOS-FET Switching Power Supply
  • Soft start turn-on
  • 4, 3 or 2 channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on

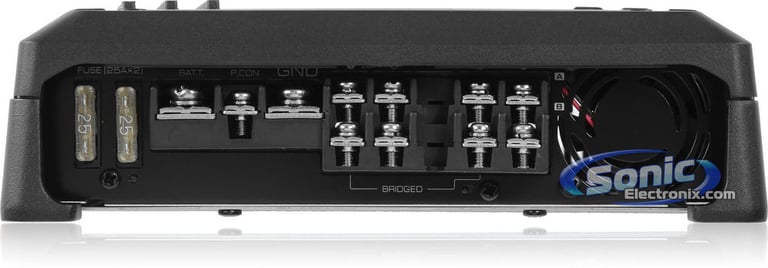

  • Nickel-plated Power, Ground and Speaker terminals.
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation

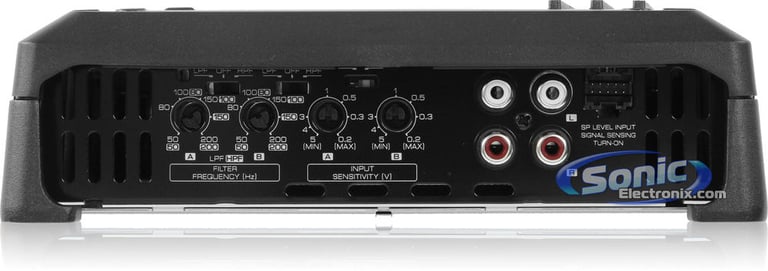

  • Input sensitivity:
    • Low level: 200mV - 5V
    • High level: 400mV - 12V
  • Frequency Response: 5 - 50,000 Hz (+0dB, -3dB)
  • Total Harmonic Distortion (THD): <1.0%
  • Signal to Noise Ration: 80 dBA
  • Selectable Crossover Filter Mode: LPF / Off / HPF
  • Variable crossover filter: 50 - 200 Hz, 12 dB/octave
  • Variable Bass Boost (B Ch Only): 0 to +18 dB bass boost at 40Hz
  • Fuse Rating: 25A x 2
  • 4 - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 13-3/16"W x 7-9/16"D x 2-3/16"H
  • 1-year Sonic Electronix Warranty

Product history:

Kenwood KAC-8406 thumbnail
(newest, current model)
Kenwood KAC-8405 thumbnail
(previous model, replaced by Kenwood KAC-8406)
Kenwood KAC-8404 thumbnail
(previous model, replaced by Kenwood KAC-8405)
Kenwood KAC-8403 thumbnail
(previous model, replaced by Kenwood KAC-8404)
Kenwood KAC-8402 thumbnail
(previous model, replaced by Kenwood KAC-8403)
Kenwood KAC-8401 thumbnail
(previous model, replaced by Kenwood KAC-8402)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
70 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Power Specifications - Full Range Channels
Peak Power @ 2 ohms
225 watts x 4 channel
Bridged Peak/Max Power
450 watts x 2 channel
Amplifier Specifications
Series
Performance Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
900 watts
Total RMS Power Output
400 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1.00%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KAC-8406

Weight:

6.60lbs

Internal SKU:

kac8406

Internal Product ID:

76494
