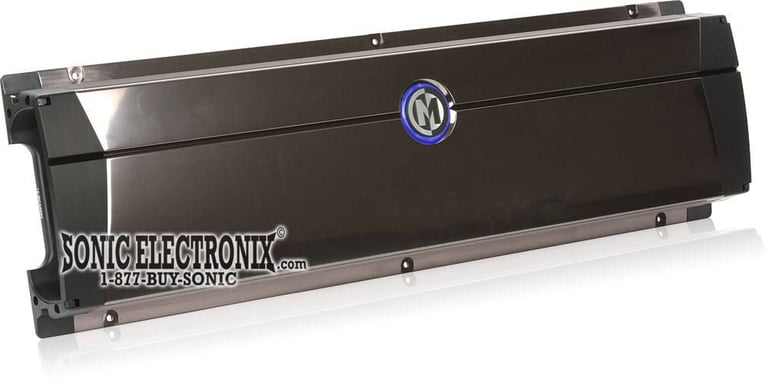

Memphis 16-MCA5004

1000W RMS, 4-Channel MClass Series Amplifier

Memphis
Shop all Memphis
Product videos
highlight-star-icon

MClass Series 4-Channel Class AB Car Amplifier • 125W x 4 chan. @ 4 ohm • 250W x 4 chan. @ 2 ohm • 500W x 2 chan. @ 4 ohm • 500W x 4 chan. Max • Bridgeable operation • Gold-plated connectors

Learn more about the 16mca5004

We apologize

This item has been discontinued


Loading...
XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

SA69CXV2 main

Sundown Audio SA-69CX v.2 (SA69CX)

250W RMS 6x9" SA Series 2 Way Coaxial 4-ohm Speakers (S-SA69CXV2)

-16.67%

$259.99

List price $311.99

Product Highlights


MClass Series 4-Channel Class AB Car Amplifier • 125W x 4 chan. @ 4 ohm • 250W x 4 chan. @ 2 ohm • 500W x 2 chan. @ 4 ohm • 500W x 4 chan. Max • Bridgeable operation • Gold-plated connectors

Description


Memphis brand icon

Authorized dealer

  • MClass Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 125 watts x 4 chan.
    • 2 ohm: 250 watts x 4 chan.
    • Bridged, 4 ohm: 500 watts x 2 chan.
  • Max power output: 500 watts x 4 chan.
  • MOSFET power supply
  • LED power and protection indicators
  • Bridgeable operation
  • Overload, short circuit, thermal, and reversed polarity protection circuitry
  • Heavy duty aluminum chassis
  • Gold-plated RCA level inputs

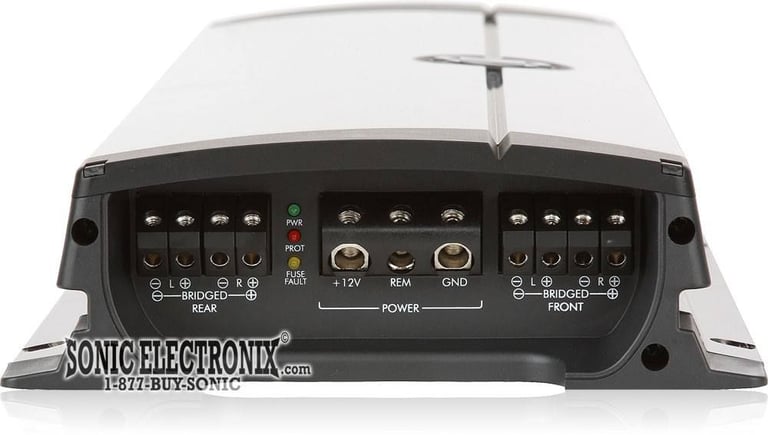

  • Gold-plated screw terminals

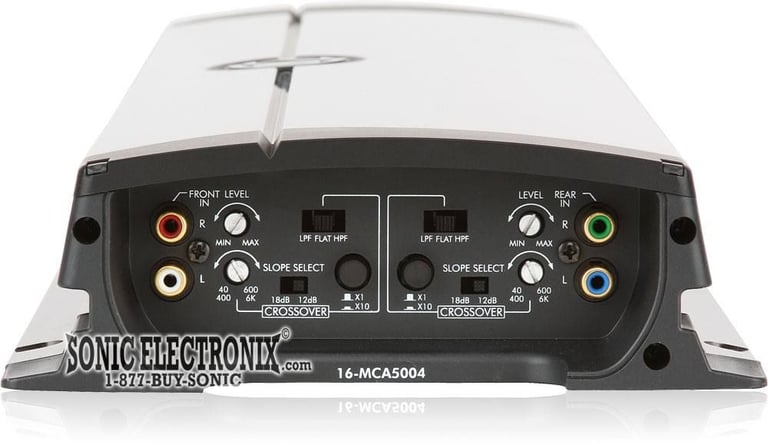

  • Variable high-pass filter (40-6000 Hz, 12/18 dB/octave)
  • Variable low-pass filter (40-6000 Hz, 12/18 dB/octave)
  • Dimensions: 25.81"L x 7.6"W x 2.4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

KTA-450 small

Alpine KTA-450 Power Pack

• 50 watts x 4 channel @ 4 ohm
• 45 watts x 4 channel @ 2 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(20)

$299.95

List price $360.00

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
125 watts x 4 channel
RMS Power @ 2 ohms
250 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
500 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
2000 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.03%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 6000 Hz
Low-Pass Crossover Frequency
40 - 6000 Hz
Signal-to-Noise Ratio
90 dB
Remote bass/level controller
No
Fuse Rating
30A x 3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

16-MCA5004

Weight:

15.00lbs

Internal SKU:

16mca5004

Internal Product ID:

12335

Product and How-to Videos


Customer Ratings & Reviews


Memphis 16-MCA5004 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

I run this amp (5004)

I been using this amp for a few years now. If you get a chance to buy one, do it. Powerful and clean. Love it!

By 2Dcore on February 14, 2012
