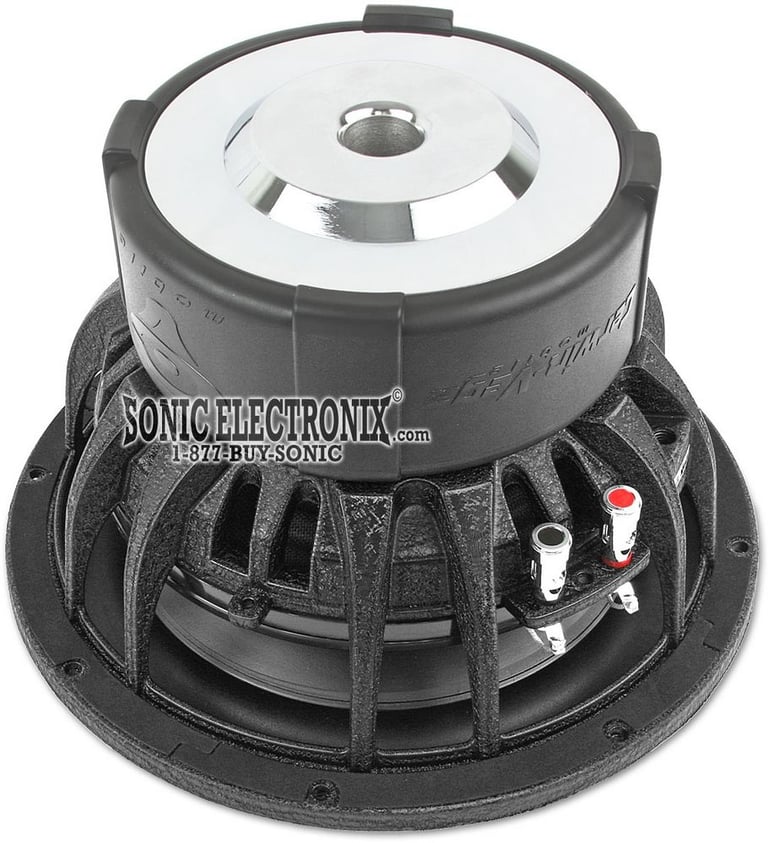

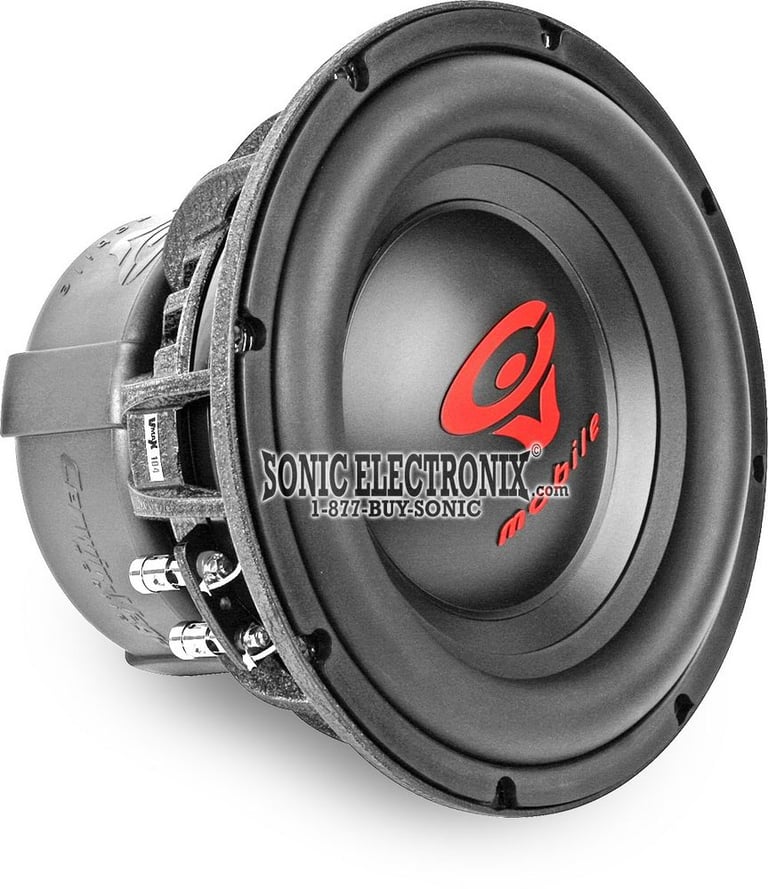

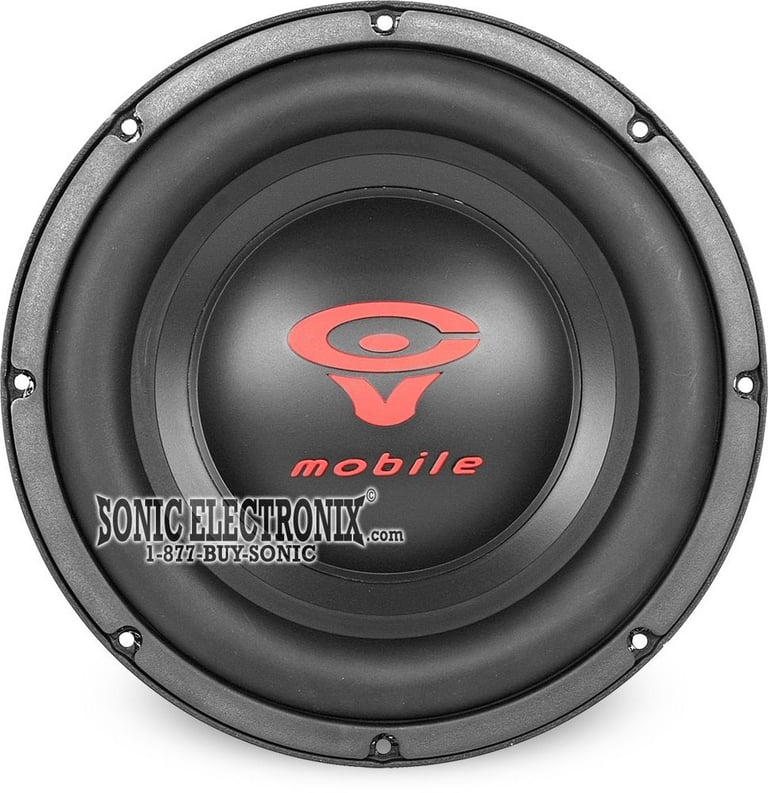

Cerwin-Vega VMAX104

10" Dual 4 ohm VMAX Series Car Subwoofer

Product videos
highlight-star-icon

10" Dual 4 Ohm VMAX Series Subwoofer • 1000W Max • 500W RMS • Composite Polypropylene Woofer Cone • Wide Rubber Surround • Window Framed Venting Cooling • Dual Linear Rolled Spiders • 2.5" Dual 4 ohm Voice Coils

Learn more about the vmax104

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

vmax10d4 thumbnail

Cerwin Vega VMAX10D4

OUR PRICE: $209.99

View item

Loading...
40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

95-9307B main

Metra 95-9307B Dash Kit

Install a new Double-DIN car stereo in select 1997-2003 vehicles from BMW (Matte Black)

5
-46.01%

$26.99

List price $49.99

Product Highlights


10" Dual 4 Ohm VMAX Series Subwoofer • 1000W Max • 500W RMS • Composite Polypropylene Woofer Cone • Wide Rubber Surround • Window Framed Venting Cooling • Dual Linear Rolled Spiders • 2.5" Dual 4 ohm Voice Coils

Description


Cerwin-Vega brand icon

Authorized dealer

Award Winning Cerwin-Vega VMAX Subwoofers

VMAX series subwoofers, like the VMAX104, has been the most popular, award-winning, series of Cerwin-Vega subwoofers for the last 10 years for many reasons. The series of subwoofers are offered in a 10", 12", and 15" size with each respective size having the option of a Dual 2 ohm or Dual 4 ohm voice coil. They offer a power rating of 1000 watts peak and 500 watts of continuous RMS power making them your daily "ground-pounders". With these many different sizes and impedance options, these woofers offer versatility and a significant amount of bass that is sure to fit anyone's bass needs. The woofers feature a composite polypropylene cone and a wider larger than normal rubber surround for increased excursion level, performance, quality, and strength. The use of O2 Cast technology increases basket strength and lowers basket resonance, which also increases the quality and performance of the subwoofers. The woofers also feature cross-flow window venting that reduces voice coil temperatures and radial contact convex domes that reduce cone flex and minimize distortion. If you want to achieve exceptional low-frequency reproduction that is accompanied by quality manufacturing and amazing value, look no further than the Cerwin-Vega VMAX series subwoofers.

Product Features

  • 10" Dual 4 Ohm VMAX Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Impedance: Dual 4 ohm
  • Polypropylene composite cone woofer for the perfect weight to strength ratio
  • Wide rubber surround
  • Radial contact convex domes design minimizes cone flex and reduces distortion
  • Window framed venting draws cool air directly to the voice coil for increased power handling
  • Dual linear rolled spiders for unmatched assembly cone control at all volumes
  • 2.5" Dual 4 ohm high-grade voice coils
  • O2 Cast technology increases basket strength while lowering basket resonance for increased performance and quality
  • Sensitivity: 82.7 dB
  • Cutout Dimensions: 9-1/4"
  • Mounting Depth: 6-3/8"
  • 1-year Manufacture's warranty

Product history:

Cerwin-Vega VMAX10D4 thumbnail
(newest, current model)
Cerwin-Vega VPRO104D-2 thumbnail
(previous model, replaced by Cerwin Vega VMAX10D4)
Cerwin-Vega VMAX3104 thumbnail
(previous model, replaced by Cerwin-Vega VPRO104D)
Cerwin-Vega VMAX104.2 thumbnail
(previous model, replaced by Cerwin-Vega VMAX3104)
Cerwin-Vega VMAX104 thumbnail
(previous model, replaced by Cerwin-Vega VMAX104.2)
Cerwin-Vega VMX-10.4 thumbnail
(previous model, replaced by Cerwin-Vega VMAX104)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cerwin-Vega VMAX104 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cerwin-Vega VMAX104 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cerwin-Vega VMAX104 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Cerwin-Vega VMAX104 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

15
-11.11%

$239.99

List price $269.99

MVH-S622BS main

Pioneer MVH-S622BS

Double DIN Digital Media Receiver with Bluetooth, Amazon Alexa and SiriusXM Ready

4
-10.00%

$179.99

List price $200.00

BE7ACP.XC main

Boss Elite BE7ACP.XC

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and Backup Camera (SiriusXM Ready)

-16.67%

$329.99

List price $395.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
VMAX Series
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
82.7 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Composite Polypropylene Cone - CPPC
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.7 cubic feet
Maximum Sealed Box Volume
0.7 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Maximum Ported Box Volume
1.0 cubic feet
Top-Mount Depth (Mounting Depth)
6-3/8"
Cutout Diameter
9-1/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
39.552 Hz
Equivalent Compliance (Vas)
12.387 liters
Total Speaker Q Value (Qts)
0.559
Electrical Q Value (Qes)
0.636
Electrical Resistance of Voice Coil (Re)
7.2 ohm
Mechanical Q Value (Qms)
4.598
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VMAX104

Weight:

20.00lbs

Internal SKU:

vmax104

Internal Product ID:

12856

Product and How-to Videos


Customer Ratings & Reviews


Cerwin-Vega VMAX104 thumbnail image

5 star
71%
4 star
14%
3 star
14%
2 star
0%
1 star
0%



Durability
4.3
Value
4.9
Features
4.7
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Cerwin Vega Vmax104

This was a great product, hit really well and sounded crisp. Unfortunately after bumping it for 6 months the cone separated from the surrounding. Sending it in now for the warranty.

By Lane on May 26, 2010

22 found this helpful


V-Max104

This subwoofer is really nice! I bought it a couple of months ago and i love it! I made a sealed fiberglass box for it at 1.35cubic feet of airspace and it pounds out the lows incredibly! This thing LOVES to move so be careful when making or choosing your box. I am running a true 550watts Rms to it and it holds up fine just watch out for bottoming.
It sounds great everywhere! It really loves the lows but it bumps out the higher stuff equally well.

I promise you will love this sub. It looks great, is made incredibly well, Cerwin-Vega is very helpful if you need any advice (i asked them about my box size)

Great price, Great finish, Great sound.... It rocks! Oh mounting size is a bit different than other 10s so watch out when you are making a speaker ring or getting a prefab. You may get either a too large of a hole or too small.

By Garen on September 7, 2009

19 found this helpful


ballin

it sounds as sleek as it looks. very clean sound, has great lows for a 10, very loud. ive been giving it about 50 watts more rms than recommended for six months, and still pounds and the coil is not even loose

By rat on August 20, 2009

18 found this helpful


Nice sub, very clean sound

I ownded this sub for many years and I never regret it. I made a sealed enclosure up to specs and it produced very clean bass with great lows. Too bad my mechanic "misplaced" something on the cone and has a big hole in it... Looking for a replacement, thinking of two Idmax 12". But for someone that doesn't have that much space and still wants a nice sounding subwoofer than this is it!

By Elroy on June 23, 2012

17 found this helpful


Great Value

I bought the Cerwin-Vega V-MAX104 for my husband. This is a great speaker and it was priced just right.

By Nicole on May 21, 2010

18 found this helpful


great price great sub!

good clean sound, impressive lows, good long throw with no mechanical noise. all in all a great value.

By Sarducci on April 21, 2010

17 found this helpful


awesome subwoofer!

great sub holds a lot of power and hits really hard.

By scotty on March 17, 2010

16 found this helpful




KFC-XW1024D small

Kenwood eXcelon KFC-XW1024D

10" Dual 4 ohm eXcelon Series Car Subwoofer

(4)

$129.95

List price $249.99

VEGA124-2 small

Cerwin-Vega Vega124

12" Dual 4 ohm VEGA Series Subwoofer ( Vega124, Vega12, Vega 12)

(1)

$39.99

List price $99.99

VEGA3122 small

Cerwin-Vega VEGA3122

12" Dual 2 Ohm Vega3 Series Car Subwoofer

(2)

$84.99

List price $159.99

KFC-XW1022D small

Kenwood eXcelon KFC-XW1022D

10" Dual 2 ohm eXcelon Series Car Subwoofer

(5)

$94.95

List price $249.99

K518 LE Blue small

AKG K518 LE Blue

On-Ear Headphones with Closed Back Noise Isolating Design for Deep Bass & 3D-Axis Folding Mechanism

(2)

$34.95

List price $119.95

CS-HX438_SDSK2 small

JVC CS-HX438 + NVX Sound Dampening

4" 3-Way HX Series 3-Way Coaxial Speakers with Two 10" x 10" Pieces of NVX Sound Dampening

$44.99

List price $89.94

Vega-122 small

Cerwin-Vega Vega-122

12" Dual 2 ohm VEGA Series Car Subwoofer

(1)

$74.95

List price $99.99

No picture

Hertz Venezia V4 (Open-box, Like New)

1160W RMS Class D Venezia Series 4-Channel Full Range Marine Amplifier

$1099.99

List price $1255.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 Volvo XC70

1997 BMW 540i

2000 Pontiac Sunfire

2014 Volkswagen Jetta

2001 BMW 740iL

2023 Dodge Challenger

2004 Cadillac CTS

2008 Bentley Continental

2010 BMW 650i

1955 Chrysler Windsor

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
