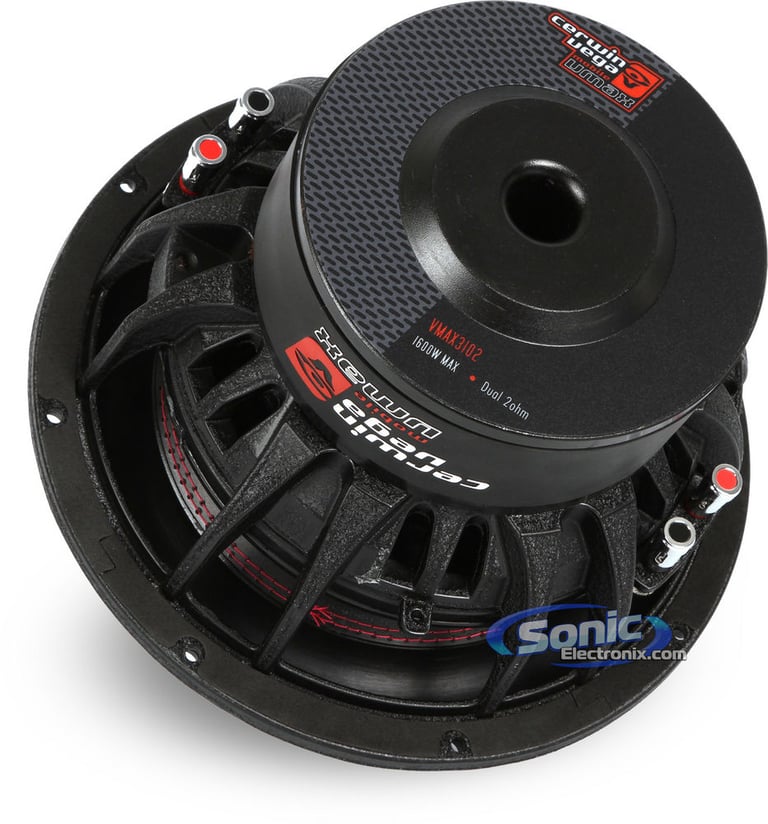

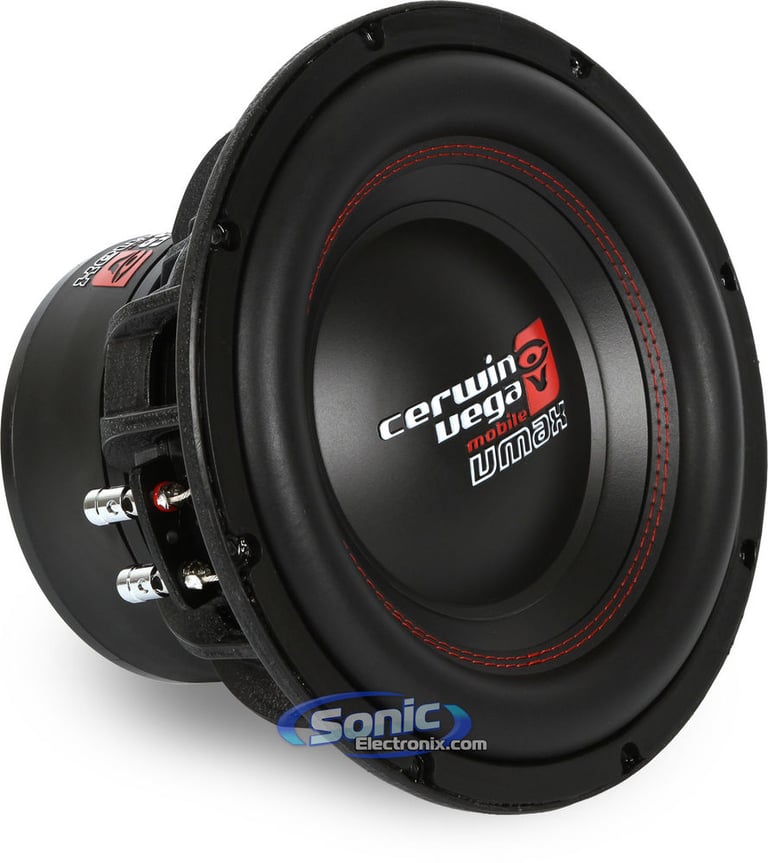

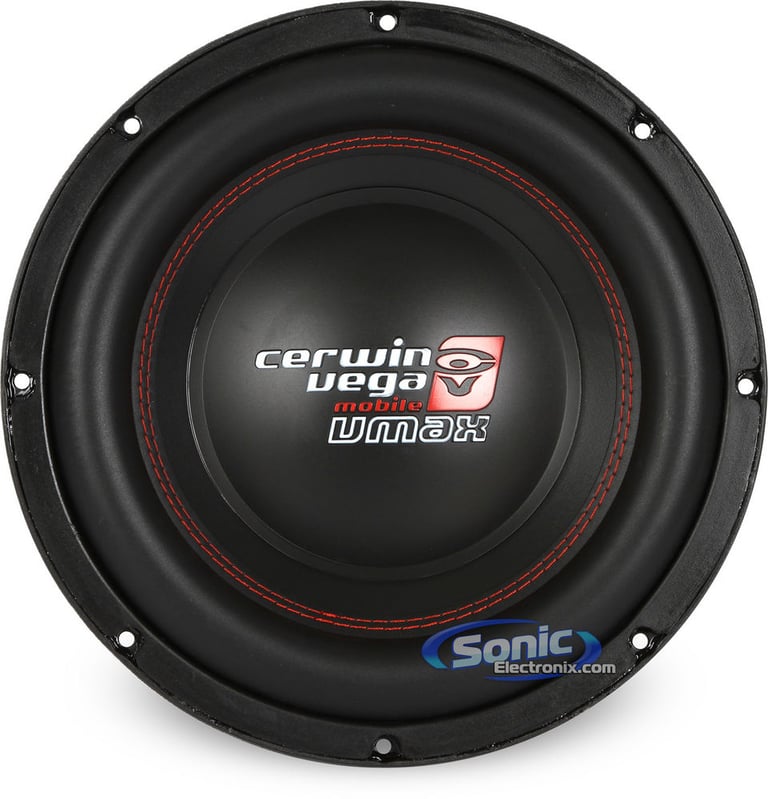

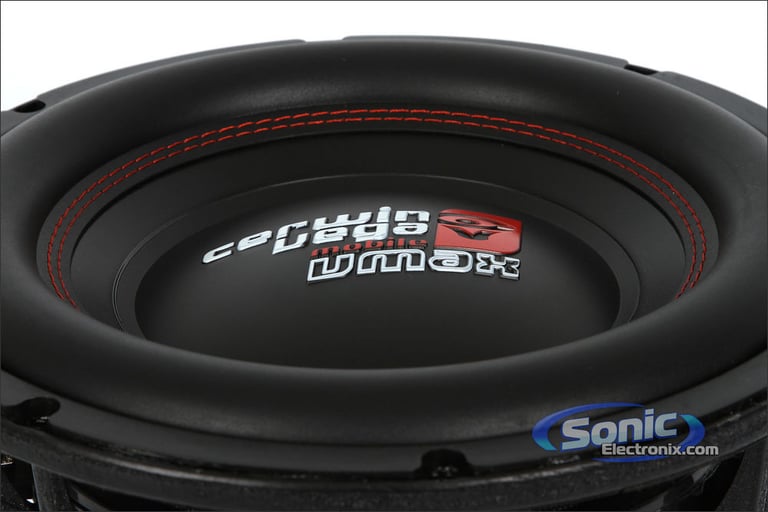

Cerwin-Vega VMAX3104

10" Dual 4 Ohm VMAX3 Series Car Subwoofer

Product videos
highlight-star-icon

• 10" VMAX Series Subwoofer
• Dual 4 ohm Voice Coil
• 1600W Max
• 1000W RMS
• High Strength Composite Polypropylene Cone
• Butyl Rubber Surround
• O2 Cast Heavy Duty Aluminum Basket
• 2-1/2" High Power Dual Voice Coil

Learn more about the vmax3104

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

vmax10d4 thumbnail

Cerwin Vega VMAX10D4

OUR PRICE: $209.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Product Highlights


• 10" VMAX Series Subwoofer
• Dual 4 ohm Voice Coil
• 1600W Max
• 1000W RMS
• High Strength Composite Polypropylene Cone
• Butyl Rubber Surround
• O2 Cast Heavy Duty Aluminum Basket
• 2-1/2" High Power Dual Voice Coil

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • 10" Dual 4 Ohm VMAX3 Series Subwoofer
  • Power Handling:
    • Peak: 1600 watts
    • RMS: 1000 watts
  • Impedance: 4 ohm
  • High strength composite polypropylene cone
  • Butyl rubber surround
  • O2 Cast heavy duty aluminum basket
  • XFV Cross-flow window venting allows for massive heat dissipation from the voice coil
  • Pushpin terminals
  • Linear rolled spider with over-under weave design
  • 2-1/2" High power dual voice coil with rolled aluminum former
  • Resonance Frequency (Fs): 38 Hz
  • Top-mount depth: 5-3/8"
  • Sensitivity: 83 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Cerwin-Vega VMAX10D4 thumbnail
(newest, current model)
Cerwin-Vega VPRO104D-2 thumbnail
(previous model, replaced by Cerwin Vega VMAX10D4)
Cerwin-Vega VMAX3104 thumbnail
(previous model, replaced by Cerwin-Vega VPRO104D)
Cerwin-Vega VMAX104.2 thumbnail
(previous model, replaced by Cerwin-Vega VMAX3104)
Cerwin-Vega VMAX104 thumbnail
(previous model, replaced by Cerwin-Vega VMAX104.2)
Cerwin-Vega VMX-10.4 thumbnail
(previous model, replaced by Cerwin-Vega VMAX104)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cerwin-Vega VMAX3104 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cerwin-Vega VMAX3104 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cerwin-Vega VMAX3104 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Cerwin-Vega VMAX3104 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
Vmax3 Series
Subwoofer Size
10"
Peak Power Handling
1600 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Sensitivity
83 dB
Xmax (millimeters)
11.9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Composite Polypropylene Cone - CPPC
Woofer Surround
Butyl Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.75 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
38 Hz
Equivalent Compliance (Vas)
13.37 liters
Total Speaker Q Value (Qts)
0.476
Electrical Q Value (Qes)
0.552
Electrical Resistance of Voice Coil (Re)
3.70 ohm
Mechanical Q Value (Qms)
3.471
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VMAX3104

Weight:

19.00lbs

Internal SKU:

vmax3104

Internal Product ID:

68599

Product and How-to Videos


  • Cerwin-Vega VMAX3 Car Subwoofers | New VMAX Subs for 2013!
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Cerwin-Vega VMAX3104 thumbnail image

5 star
67%
4 star
11%
3 star
11%
2 star
11%
1 star
0%



Durability
4.2
Value
4.7
Features
4.6
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

Cerwin Vega Vmax104

The following review is for a previous version (VMAX104).

This was a great product, hit really well and sounded crisp. Unfortunately after bumping it for 6 months the cone separated from the surrounding. Sending it in now for the warranty.

By Lane on May 26, 2010

22 found this helpful


V-Max104

The following review is for a previous version (VMAX104).

This subwoofer is really nice! I bought it a couple of months ago and i love it! I made a sealed fiberglass box for it at 1.35cubic feet of airspace and it pounds out the lows incredibly! This thing LOVES to move so be careful when making or choosing your box. I am running a true 550watts Rms to it and it holds up fine just watch out for bottoming.
It sounds great everywhere! It really loves the lows but it bumps out the higher stuff equally well.

I promise you will love this sub. It looks great, is made incredibly well, Cerwin-Vega is very helpful if you need any advice (i asked them about my box size)

Great price, Great finish, Great sound.... It rocks! Oh mounting size is a bit different than other 10s so watch out when you are making a speaker ring or getting a prefab. You may get either a too large of a hole or too small.

By Garen on September 7, 2009

19 found this helpful


ballin

The following review is for a previous version (VMAX104).

it sounds as sleek as it looks. very clean sound, has great lows for a 10, very loud. ive been giving it about 50 watts more rms than recommended for six months, and still pounds and the coil is not even loose

By rat on August 20, 2009

18 found this helpful


Nice sub, very clean sound

The following review is for a previous version (VMAX104).

I ownded this sub for many years and I never regret it. I made a sealed enclosure up to specs and it produced very clean bass with great lows. Too bad my mechanic "misplaced" something on the cone and has a big hole in it... Looking for a replacement, thinking of two Idmax 12". But for someone that doesn't have that much space and still wants a nice sounding subwoofer than this is it!

By Elroy on June 23, 2012

17 found this helpful


Great Value

The following review is for a previous version (VMAX104).

I bought the Cerwin-Vega V-MAX104 for my husband. This is a great speaker and it was priced just right.

By Nicole on May 21, 2010

18 found this helpful


Great Subwoofer

I put two of these in my Suzuki Samurai with 190Watts RMS pushing each one. I have each one in a sealed 1 cubic foot enclosure and they are crossed over on the amp at 100Hz. They sound great! Very impressed as I always am with Cerwin Vega products. Highly recommend!

By Phil on February 21, 2014

16 found this helpful


great price great sub!

The following review is for a previous version (VMAX104).

good clean sound, impressive lows, good long throw with no mechanical noise. all in all a great value.

By Sarducci on April 21, 2010

17 found this helpful


awesome subwoofer!

The following review is for a previous version (VMAX104).

great sub holds a lot of power and hits really hard.

By scotty on March 17, 2010

16 found this helpful


Not the best.

I have owned cerwin vega in the past but this subwoofer did not perform as i was expecting. It hit the low bass notes really well, but any other type of bass not such as notes in rock or other music, my door speakers did a better job in that area. I sent it back. pretty disappointed.

By Nick on November 10, 2013

14 found this helpful




TFE60 small

DCM Loudspeakers TFE60

6-1/2" 2-Way Bookshelf Speaker

$249.95

List price $249.95

HM-50DG small

Cuisinart HM-50DG

Power Advantage™ 5-Speed Hand Mixer (Dark Green)

$49.95

List price $90.00

Kappa 693C-2 small

Infinity Kappa 693C (INFSPKKA693CAM)

870W Peak (290W RMS) 6x9” Kappa Series 2 Way 3-ohm Component Speaker System

(1)

$439.95

List price $489.95

No picture

JBL Club 64 (JBLSPKCB64) (Open Box, Good)

360W Peak (120W RMS) 6.5" Club Series 2 Way Coaxial 3-ohms Speakers

$65.97

List price $139.95

HM-50DY small

Cuisinart HM-50DY

Power Advantage™ 5-Speed Hand Mixer (Dark Yellow)

$49.95

List price $90.00

HD-7BK small

Power Acoustik HD-7BK (Black)

2 Universal BLACK Headrests Loaded with 7" TFT-LCD Monitors and Remote

$179.99

List price $399.99

Stroker-122 small

Cerwin-Vega Stroker 122

12" Dual 2 ohms Stroker Series Subwoofer (Stroker122, Stroker 12, Stroker12)

(4)

$219.99

List price $499.99

H-8GR small

Power Acoustik H-8GR (Gray)

Individual 8.8" TFT-LCD Monitor Loaded in a Universal GRAY Leather Headrest

$119.99

List price $299.99

ICD-PX312F small

Sony ICD-PX312F Digital FM Radio Voice Recorder (ICD-PX312/F)

2GB Digital Voice Recorder with Memory Card Slot and FM radio

(1)

$69.99

List price $99.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1979 Ford Pinto

2024 Ford Ranger

2009 BMW M3

2004 Saab 9-3

2007 Jaguar XK

1989 Chevrolet Astro

1987 Nissan Van

2003 Dodge Ram 1500 Van

1980 Dodge Omni

2007 Chevrolet TrailBlazer

Vehicle
Store
Delete

2007 Harley Davidson FXSTC Softail Custom

Vehicle
Store
Delete

2019 Can-Am Defender HD5

2024 Can-Am Defender MAX DPS

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
