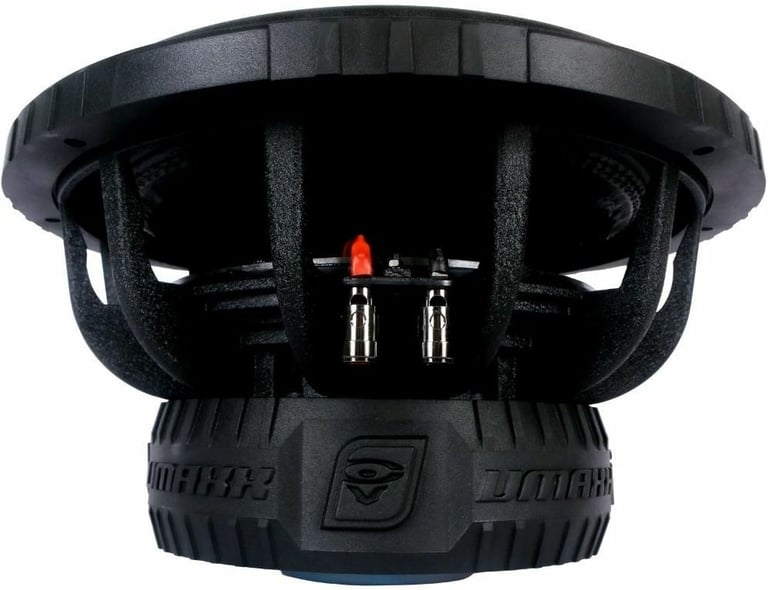

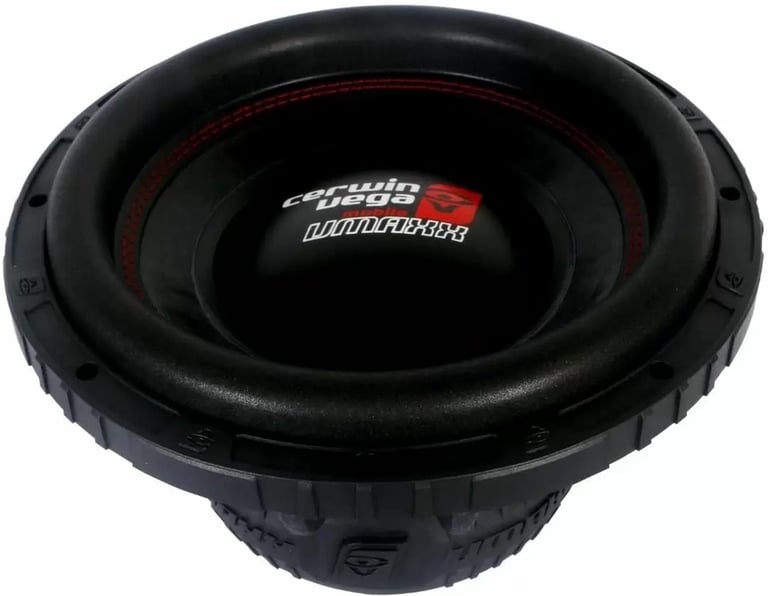

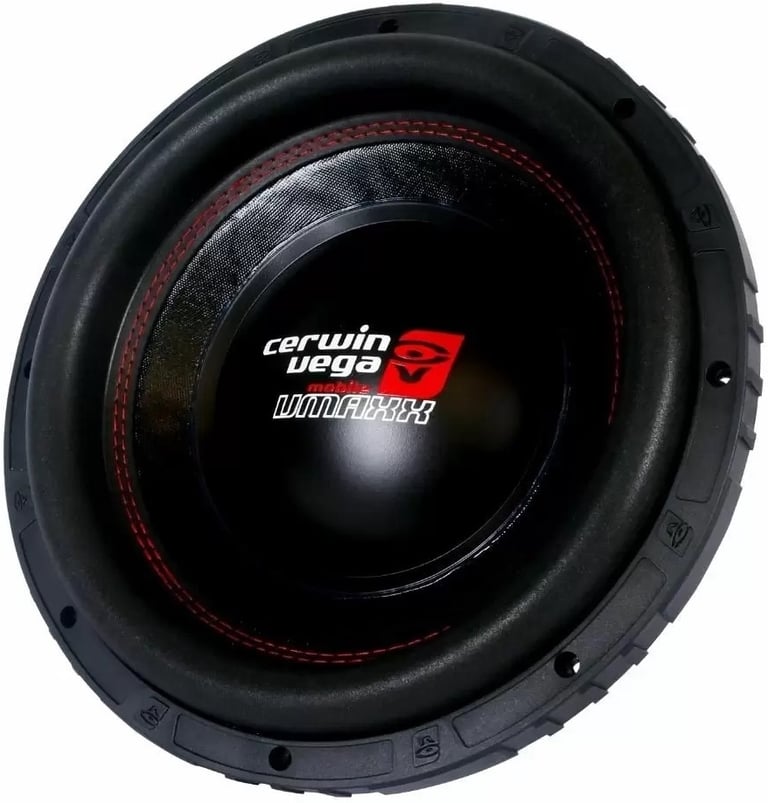

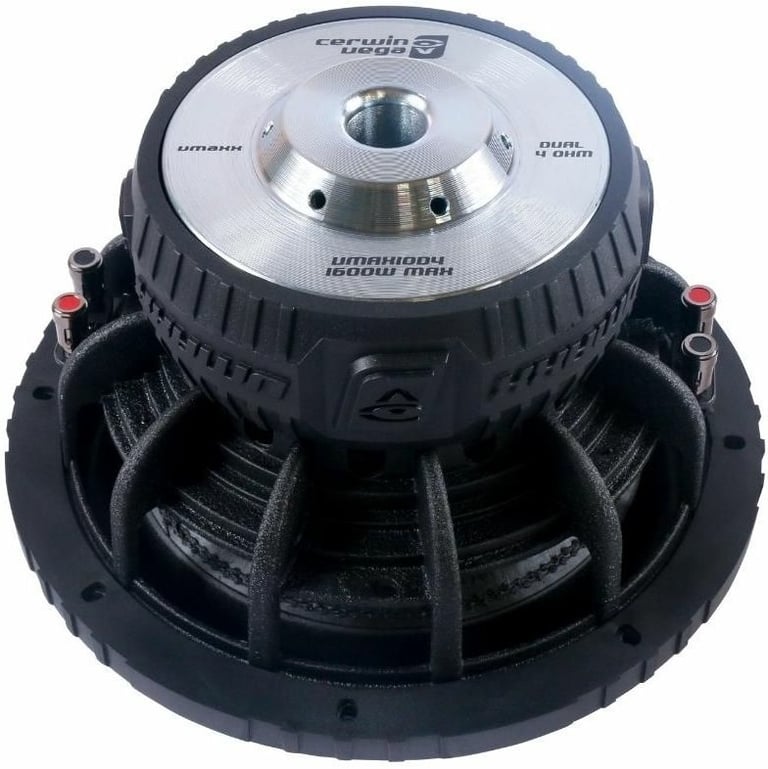

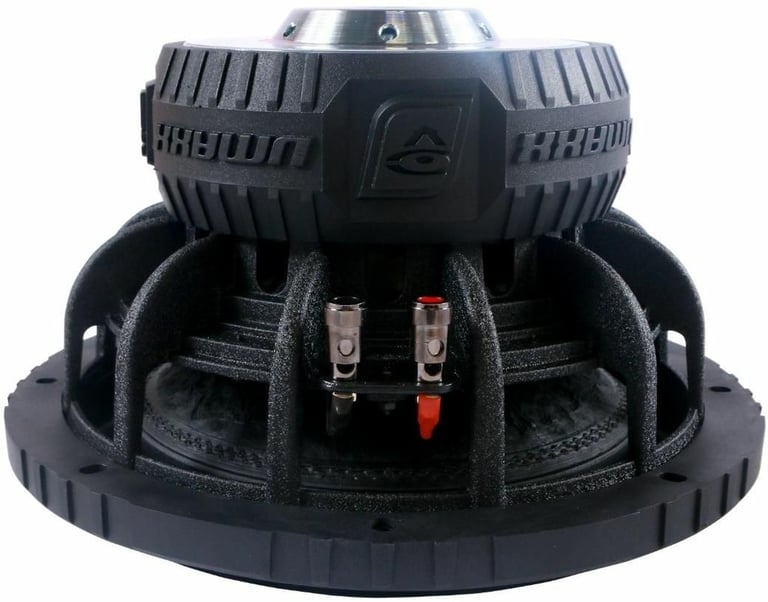

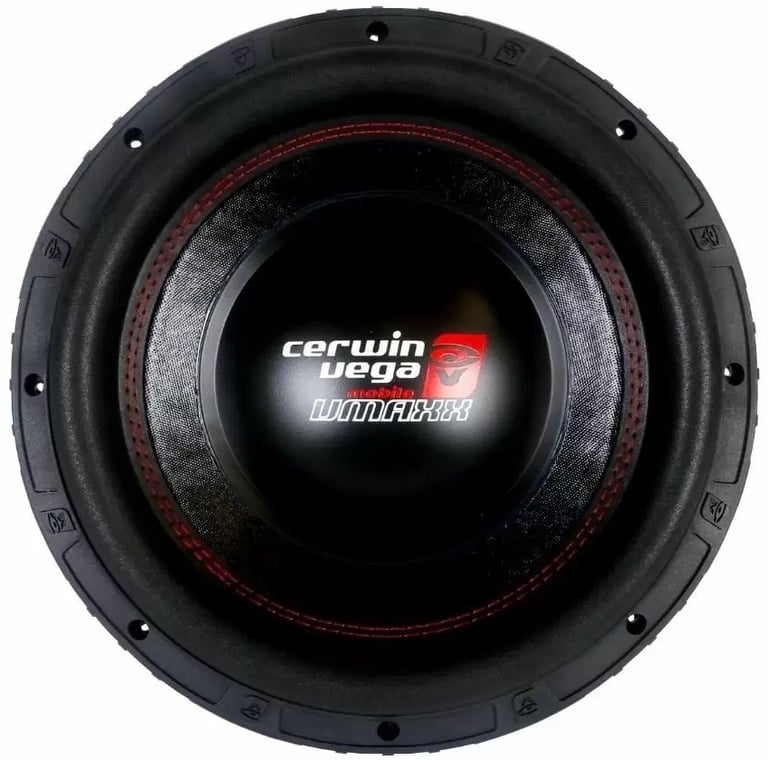

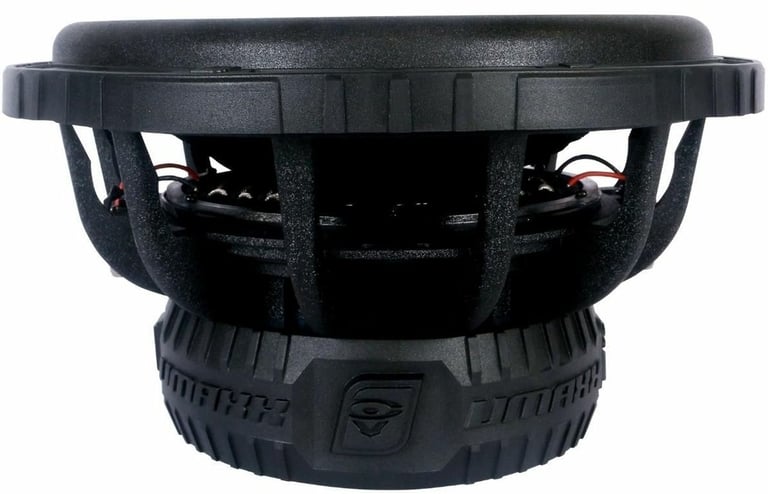

Cerwin Vega VMAX10D4

1600W Peak (800W RMS) 10” VMAXX Series Dual 4-ohm Car Subwoofer

highlight-star-icon

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Treated Semi-Pressed Pulped Cone
• Rubber Surround
• Mount depth: 6.18"
• Sensitivity: 83.3 dB

Learn more about the vmax10d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

Description


Cerwin-Vega brand icon

Authorized dealer


VMAX10D4

These subwoofers are available in different impedance configurations (2 ohm or 4 ohm), providing flexibility for various wiring setups and compatibility with different amplifiers. This allows you to optimize your system for maximum performance. Cerwin Vega subwoofers are capable of handling substantial amounts of power, making them suitable for high-output applications. They are designed to manage high wattage without distortion, ensuring clean and powerful bass..


Product Details:

  • 10" Dual 4 ohm VMAX Series Subwoofer
  • Power Handling:
    • Peak: 1600 watts
    • RMS: 800 watts
  • Treated Semi-Pressed Pulped Cone
  • Rubber Surround
  • Heavy Industrial Strength Aluminum Cast Frame
  • Elevated Motor Structure
  • Oversized Spider
  • Oversized Polished Black Chrome Terminals
  • Shorting Ring for lower Distortion
  • Polished Bumped Backplate
  • Klippel Optimized Motor/Suspension Symmetry
  • 2.5" High Temperature Voice coil
  • 15 mm Xmax
  • Single Stacked magnet motor structure
  • Resonance Frequency (Fs): 36.9 Hz
  • Sensitivity: 83.3 dB
  • Recommended sealed box volume: 1.0 cubic feet
  • Recommended ported box volume: 1.25 cubic feet
  • Top-mount depth: 6.18"
  • Cutout diameter: 9.13"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Product history:

Cerwin-Vega VMAX10D4 thumbnail
(newest, current model)
Cerwin-Vega VPRO104D-2 thumbnail
(previous model, replaced by Cerwin Vega VMAX10D4)
Cerwin-Vega VMAX3104 thumbnail
(previous model, replaced by Cerwin-Vega VPRO104D)
Cerwin-Vega VMAX104.2 thumbnail
(previous model, replaced by Cerwin-Vega VMAX3104)
Cerwin-Vega VMAX104 thumbnail
(previous model, replaced by Cerwin-Vega VMAX104.2)
Cerwin-Vega VMX-10.4 thumbnail
(previous model, replaced by Cerwin-Vega VMAX104)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cerwin Vega VMAX10D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cerwin Vega VMAX10D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cerwin Vega VMAX10D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Cerwin Vega VMAX10D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
VMAX Series
Subwoofer Size
10"
Peak Power Handling
1600 watts
RMS Power Handling
800 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Sensitivity
83.3 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Treated Semi-Pressed Pulped
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.0 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
6.18"
Cutout Diameter
9.13"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
36.9 Hz
Equivalent Compliance (Vas)
21.5 liters
Total Speaker Q Value (Qts)
0.54
Electrical Q Value (Qes)
0.6
Mechanical Q Value (Qms)
5.23
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VMAX10D4

Weight:

18.74lbs

Internal SKU:

vmax10d4

Internal Product ID:

169375
