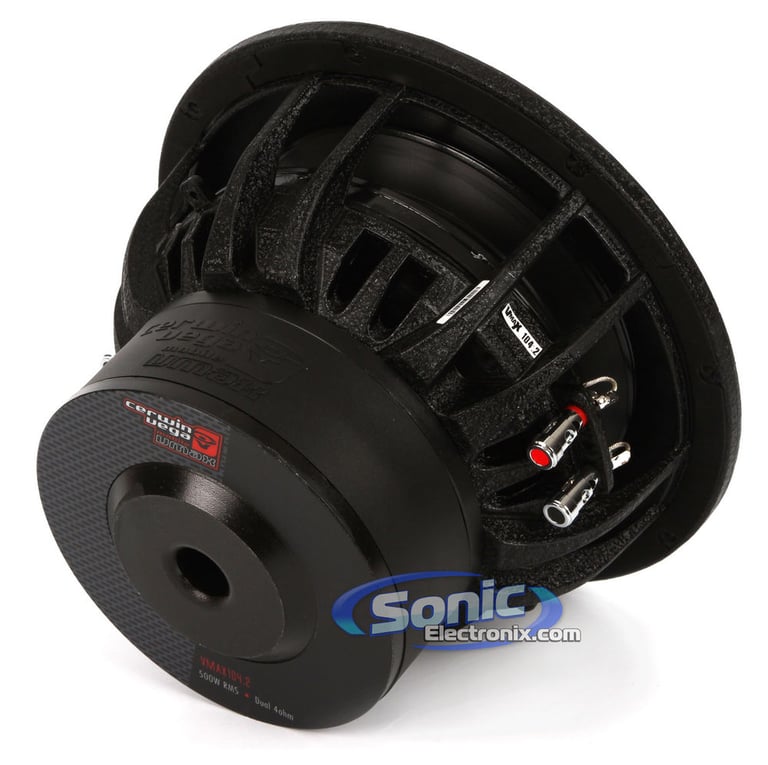

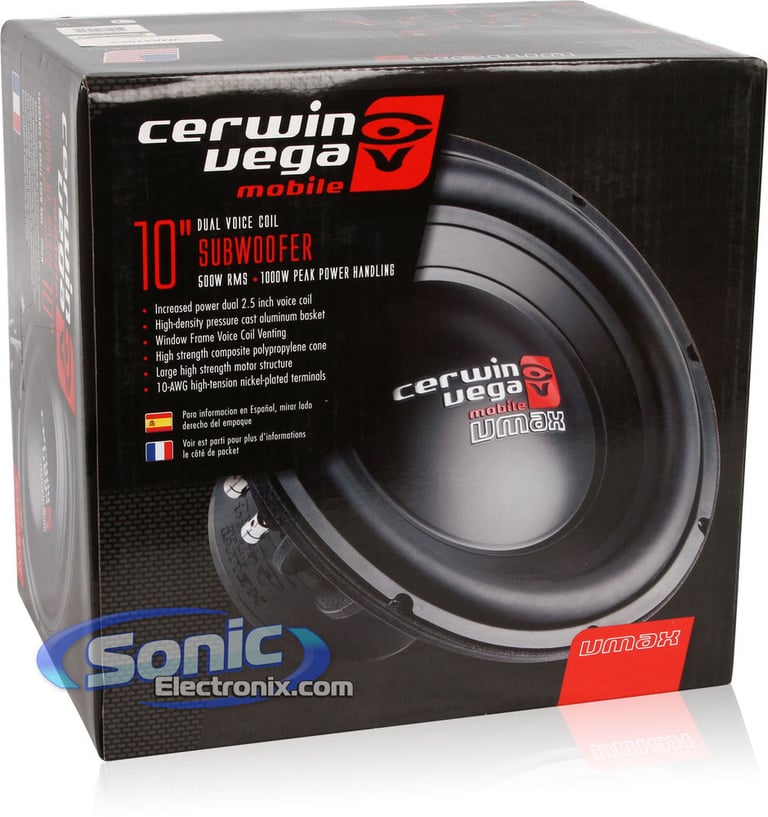

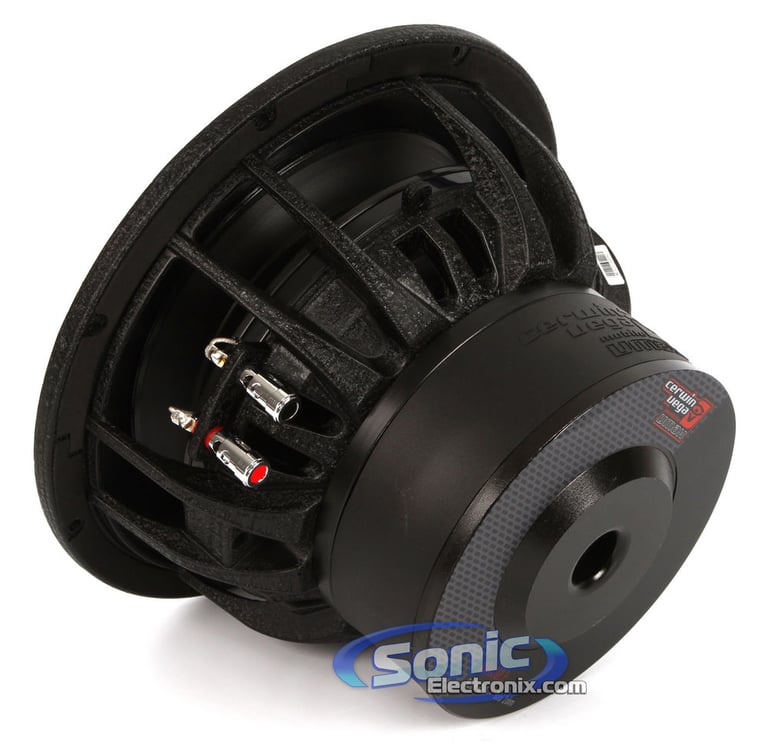

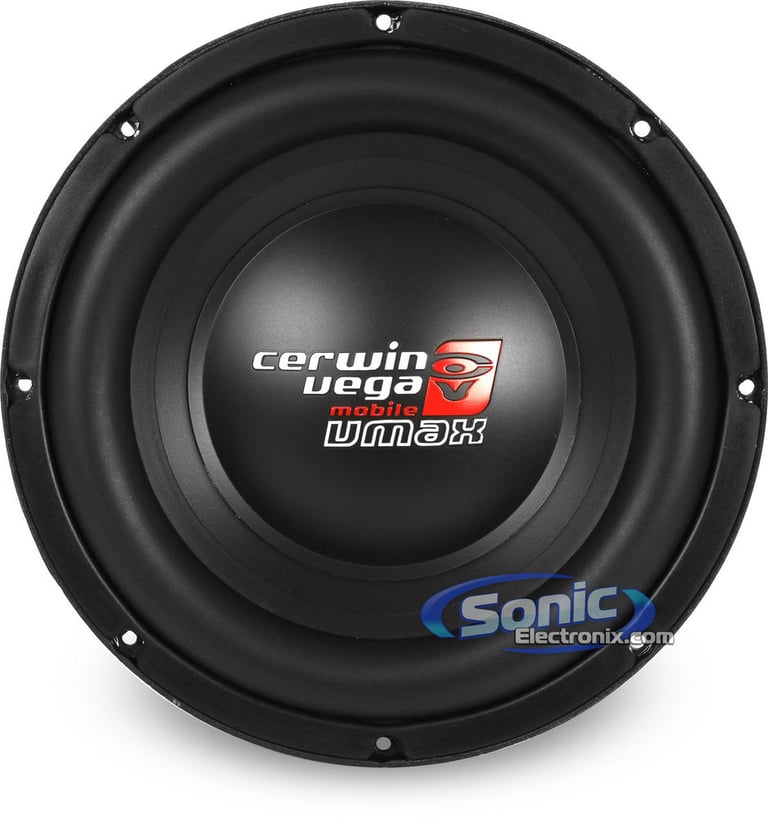

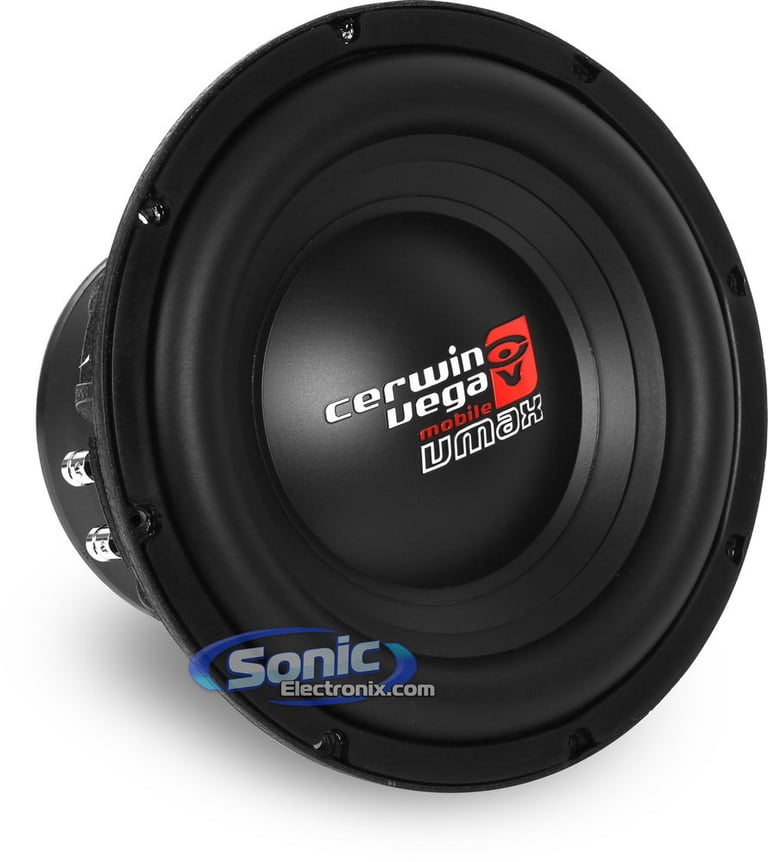

Cerwin-Vega VMAX104.2

10" Dual 4 ohm VMAX Series Car Subwoofer

Cerwin-Vega
Shop all Cerwin-Vega
Product videos
highlight-star-icon

10" Dual 4 Ohm VMAX Series Subwoofer • 1000W Max • 500W RMS • Composite Polypropylene Woofer Cone • Wide Rubber Surround • Window Framed Venting Cooling • Dual Linear Rolled Spiders • 2.5" Dual 4 ohm Voice Coils

Learn more about the vmax1042

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

vmax10d4 thumbnail

Cerwin Vega VMAX10D4

OUR PRICE: $209.99

View item

Loading...
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5

Product Highlights


10" Dual 4 Ohm VMAX Series Subwoofer • 1000W Max • 500W RMS • Composite Polypropylene Woofer Cone • Wide Rubber Surround • Window Framed Venting Cooling • Dual Linear Rolled Spiders • 2.5" Dual 4 ohm Voice Coils

Description


Cerwin-Vega brand icon

Authorized dealer

Award Winning Cerwin-Vega VMAX Subwoofers

VMAX series subwoofers, like the VMAX104.2, has been the most popular, award-winning, series of Cerwin-Vega subwoofers for the last 10 years for many reasons. The series of subwoofers are offered in a 10", 12", and 15" size with each respective size having the option of a Dual 2 ohm or Dual 4 ohm voice coil. They offer a power rating of 1000 watts peak and 500 watts of continuous RMS power making them your daily "ground-pounders". With these many different sizes and impedance options, these woofers offer versatility and a significant amount of bass that is sure to fit anyone's bass needs. The woofers feature a composite polypropylene cone and a wider larger than normal rubber surround for increased excursion level, performance, quality, and strength. The use of O2 Cast technology increases basket strength and lowers basket resonance, which also increases the quality and performance of the subwoofers. The woofers also feature cross-flow window venting that reduces voice coil temperatures and radial contact convex domes that reduce cone flex and minimize distortion. If you want to achieve exceptional low-frequency reproduction that is accompanied by quality manufacturing and amazing value, look no further than the Cerwin-Vega VMAX series subwoofers.

Product Features

  • 10" Dual 4 Ohm VMAX Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Impedance: Dual 4 ohm
  • Polypropylene composite cone woofer for the perfect weight to strength ratio
  • Wide rubber surround
  • Radial contact convex domes design minimizes cone flex and reduces distortion
  • Window framed venting draws cool air directly to the voice coil for increased power handling
  • Dual linear rolled spiders for unmatched assembly cone control at all volumes
  • 2.5" Dual 4 ohm high-grade voice coils
  • O2 Cast technology increases basket strength while lowering basket resonance for increased performance and quality
  • Sensitivity: 82.7 dB
  • Cutout Dimensions: 9-1/4"
  • Mounting Depth: 6-3/8"
  • 1-year Manufacture's warranty

Product history:

Cerwin-Vega VMAX10D4 thumbnail
(newest, current model)
Cerwin-Vega VPRO104D-2 thumbnail
(previous model, replaced by Cerwin Vega VMAX10D4)
Cerwin-Vega VMAX3104 thumbnail
(previous model, replaced by Cerwin-Vega VPRO104D)
Cerwin-Vega VMAX104.2 thumbnail
(previous model, replaced by Cerwin-Vega VMAX3104)
Cerwin-Vega VMAX104 thumbnail
(previous model, replaced by Cerwin-Vega VMAX104.2)
Cerwin-Vega VMX-10.4 thumbnail
(previous model, replaced by Cerwin-Vega VMAX104)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cerwin-Vega VMAX104.2 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cerwin-Vega VMAX104.2 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cerwin-Vega VMAX104.2 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Cerwin-Vega VMAX104.2 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
VMAX Series
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Sensitivity
82.7 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Composite Polypropylene Cone - CPPC
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.7 cubic feet
Maximum Sealed Box Volume
0.7 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Maximum Ported Box Volume
1.0 cubic feet
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
39.552 Hz
Equivalent Compliance (Vas)
12.387 liters
Total Speaker Q Value (Qts)
0.559
Electrical Q Value (Qes)
0.636
Electrical Resistance of Voice Coil (Re)
7.2 ohm
Mechanical Q Value (Qms)
4.598
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VMAX104.2

Weight:

21.50lbs

Internal SKU:

vmax1042

Internal Product ID:

45870
