Audiobahn AW100T

10" Single 4 ohm Excursion Series Car Subwoofer

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

10" Single 4 Ohm Excursion Series Subwoofer • 800W Max • 400W RMS • Spruce Pulp Paper Cone • Treated Foam Surround • 2" 4-Layer ASV Voice Coil • 60 oz. Strontium Magnet

Learn more about the aw100t

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

29
-28.13%

$22.99

List price $31.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

11
-38.81%

$20.80

List price $33.99

72-5605 main

Metra 72-5605

Install a New Tweeter in select 2011-2024 vehicles from Ford, Lincoln

-22.23%

$13.99

List price $17.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

206
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

Product Highlights


10" Single 4 Ohm Excursion Series Subwoofer • 800W Max • 400W RMS • Spruce Pulp Paper Cone • Treated Foam Surround • 2" 4-Layer ASV Voice Coil • 60 oz. Strontium Magnet

Description

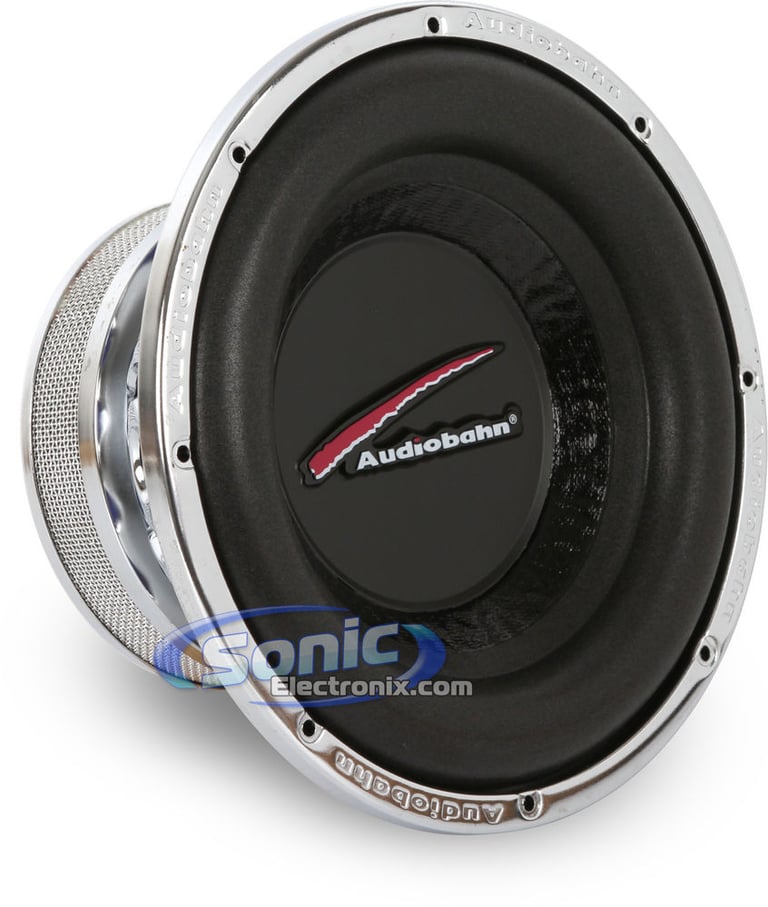

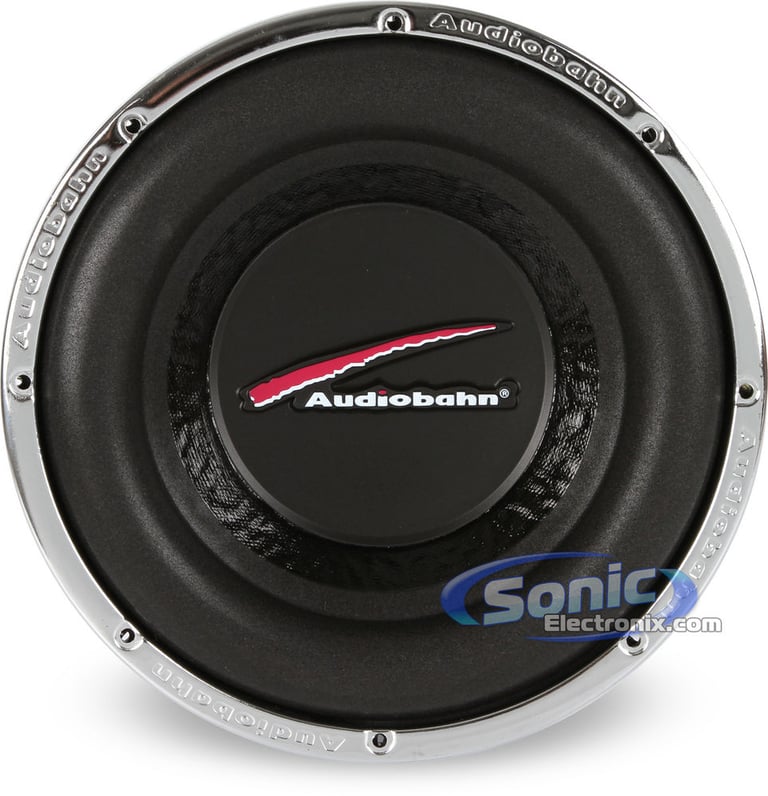

Audibahn Excursion Series Subwoofer

Audiobahn's AW100T High Excursion series subwoofer features a spruce pulp paper cone with molded, texture injected poly dust cap, along with a treated foam surround for increased rigidity, performance, excursion levels, and cone control for better sound reproduction. The woofer is rated at 400 watts RMS and features a Single 4 ohm 4-layer ASV voice coil for high temperature handling capabilities. One of the most interesting features is the use of multi-connect Lug Lock terminals. These terminals will allow for each terminal to have a single connection instead of the traditional combination of multiple wire into one terminal. This will improve installation ease when looking to install more than one subwoofer. This also allows for a cleaner install and decreases the chances of wires crossing and picking up dirty signal. With a flat spider design for improved symmetrical control and vented oversized back plate for increase heat dissipation, the Audiobahn AW100T if the perfect sub when looking to add some bass into your life.

  • 10" Single 4 ohm Excursion Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: Single 4 ohm

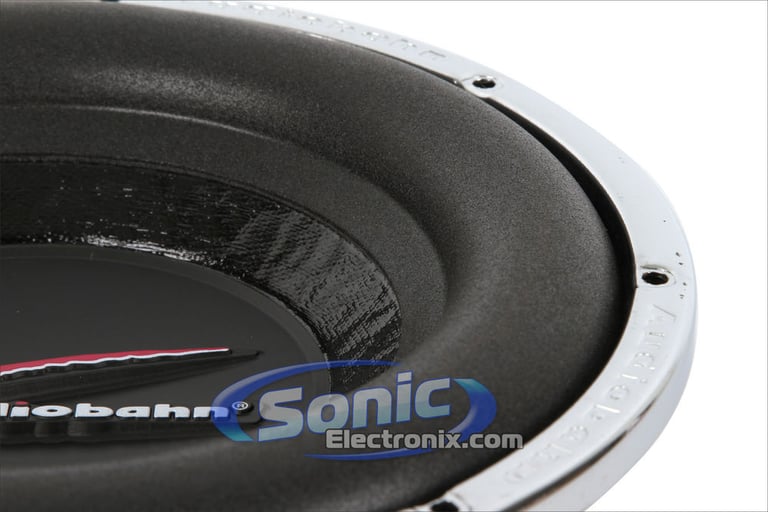

  • Spruce pulp paper cone with molded, texture injected poly dust cap
  • Treated foam surround
  • Flat spider for symmetrical control
  • 2" 4-Layer ASV voice coil
  • 60 oz. Strontium magnet
  • Aluminum voice coil former
  • Extended pole piece
  • Vented oversized back plate

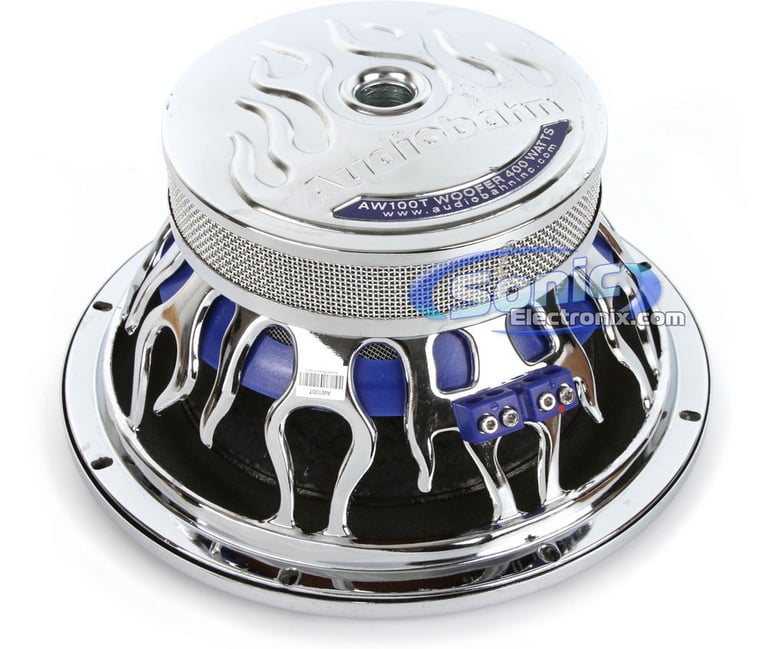

  • Chrome finished basket
  • Frequency response: 26-500 Hz
  • Sensitivity: 93 dB
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiobahn AW100T Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiobahn AW100T Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiobahn AW100T Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Audiobahn AW100T Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
Excursion Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
26 - 500 Hz
Sensitivity
93 dB
Xmax (millimeters)
9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Treated Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.25 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
0.65 cubic feet
Maximum Ported Box Volume
2.35 cubic feet
Top-Mount Depth (Mounting Depth)
5"
Cutout Diameter
9"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AW100T

Weight:

12.50lbs

Internal SKU:

aw100t

Internal Product ID:

129

Product and How-to Videos


Customer Ratings & Reviews


Audiobahn AW100T thumbnail image

5 star
83%
4 star
17%
3 star
0%
2 star
0%
1 star
0%



Durability
4.4
Value
5
Features
3.5
Design
4.2
Usability
5

Customer Reviews

Sort by:

Loading...

Hits Hard for a Paper Cone

I ran this sub in an enclosure with 1.7ft^3 gross volume. I hit it with 450 rms from a cheap Profile Clarus CL600. The bass would make your ears feel warm and render your hearing seemingly muffled for about an hour after a long episode of higer volume levels. The sub lacks bass output in the 80Hz-150Hz field, but makes up for it with warm and detailed sound that compensate for lacking tones. I eventually bottomed the sub out with some sub-harmonic frequencies but a decent subsonic filter at 30Hz with 24db/octave slope would have prolonged it's life until the foam or paper gave up the ghost. A wonderful sub overall, and for the money I can't imagine a better sub. This sub will impress, but leave you wantinh more spl. However, if your not a spl freak and just require a moderate volume, this sub will hit it's mark and leave you quite satisfied. I have been working with car audio for 11 years so don't be afraid to put faith in the words preceding this closing. This is a great sub for the money.

By Phillip on January 20, 2005

21 found this helpful


Real Bass

Awesome Subs for my Inifiniti G35X Sedan, the sounds is unreal. look forward to buying most electronics from you guys

By Stanley on September 18, 2013

19 found this helpful


amazing!!!!!!

I had two of these in a 1.7 cu.ft. ported box in the trunk of my cavalier and they beat hard as hell. definitely recommend audiobahn to anyone wanting good bass at a low price.

By drew on February 4, 2011

16 found this helpful


BOOM!

If you're into smooth jazz and nice, relaxing music, then this subwoofer is not the way to go. If however, you want the whole neighborhood listen to you're blaring music then I would definietly recomend this sub. You know it's a great deal when you can use this sub as a pacer. I can feel my heart beat with the music and my internal organs vibrating rapidly. I would not reccomend playing this near any unstable fault line though or you might be in for a surprise. But if you want to make your friends jealous the audiobahn AW100T is the way to go. They will think your pumbing dual 12" subs. Definintely worth the price, unless you want to spend $200+ on the same quality speaker at the local audio store.

By Kevin on October 28, 2011

15 found this helpful


Oh-Boy

These Subwoofers Kick A%&!!

By Easy e on August 22, 2011

15 found this helpful


good

These are not true 400watt rms they are 200watt rms they post the maximum wattage on the back of the magnet. After correcting the spec errors, here is my review.
If you have a suv/van/or hatchback car, put in a ported box and a 100-150watt rms amp and people will swear u have 2-12" subs

By p on February 6, 2011

15 found this helpful




AU-VAT small

Omega AU-VAT

VAT (Vehicle Anti-Theft) Override Socket and Relay

$3.49

List price $14.99

RT8GP small

Xscorpion RT8GP

10 Pack of Gray 8 Gauge Platinum-Plated Ring Terminals w/ 5/16" Hole

(2)

$3.99

List price $6.99

FX1-5500D small

SPL FX1-5500D

5500W Max, Class D Monoblock Amplifier

(14)

$222.99

List price $499.99

SE35 small

Boston Acoustics SE35

SE Series 3-1/2" 2-way Speakers (SE35)

(21)

$49.95

List price $74.95

HO1200M-WR small

Morningware HO1200M-WR

1200-watt Halogen Oven with Extender Ring (HO1200M-WR)

(3)

$159.99

List price $159.99

TS-SW3041D small

Pioneer TS-SW3041D

Shallow-mount 12" Single 4 ohm Subwoofer

(7)

$99.99

List price $219.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2009 Scion xD

2017 Ford Escape

1982 Dodge B350

2012 Mazda 5

2003 Dodge Sprinter 2500

1982 Mazda 626

2006 MINI Cooper

2017 BMW M6

2024 MINI Clubman

2016 Buick Regal

Vehicle
Store
Delete

2014 Can-Am Commander E

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
