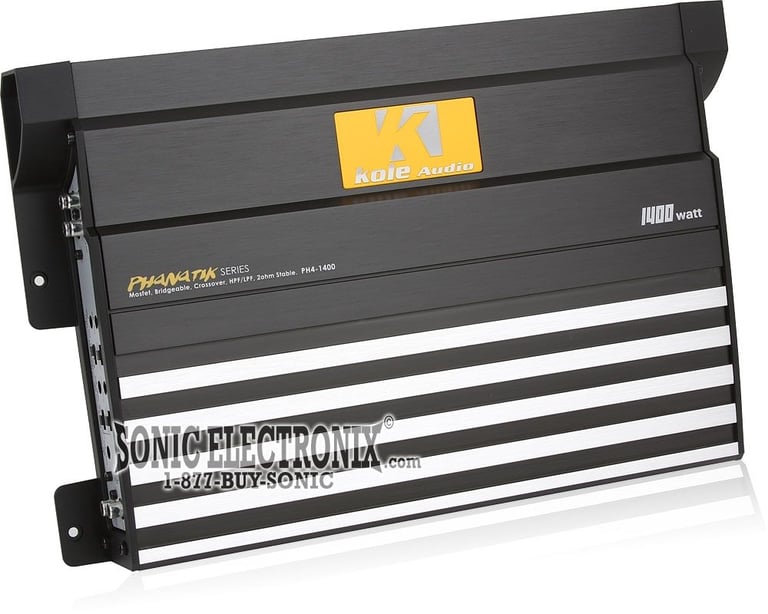

Kole Audio PH4-1400

1400W Max, 4-Channel Phanatik Series Amplifier

Product videos
highlight-star-icon

Phanatik Series 4-Channel Class AB Car Amplifier • 150W x 4 chan. @ 4 ohm • 180W x 4 chan. @ 2 ohm • 360W x 2 chan. @ 4 ohm • 700W x 2 chan. Max • PWM (Pulse Width Modulated) MOSFET power supply and transistor outputs • Preamp RCA outputs

Learn more about the ph41400

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

NSP46 main

NVX NSP46

300W Peak (100W RMS) 4x6" N-Series 2 Way Coaxial Car Speakers

34
-16.67%

$49.99

List price $59.99

R1525X2 main

Rockford Fosgate Prime R1525X2

160W Peak (80W RMS) 5.25" Prime Series 2 Way Coaxial 4-ohm Speakers

21
XED52 main

Cerwin-Vega XED52

550W Peak (60W RMS) 5.25" XED Series 2-Way Coaxial 4-ohm Speakers

7
-16.67%

$44.99

List price $53.99

Product Highlights


Phanatik Series 4-Channel Class AB Car Amplifier • 150W x 4 chan. @ 4 ohm • 180W x 4 chan. @ 2 ohm • 360W x 2 chan. @ 4 ohm • 700W x 2 chan. Max • PWM (Pulse Width Modulated) MOSFET power supply and transistor outputs • Preamp RCA outputs

Description


Kole Audio brand icon

Authorized dealer

  • Phanatik Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 4 chan.
    • 2 ohm: 180 watts x 4 chan.
    • Bridged, 4 ohm: 360 watts x 2 chan.
  • Max power output: 700 watts x 2 chan.
  • PWM (Pulse Width Modulated) MOSFET power supply and transistor outputs
  • LED power and protection indicators
  • Tuned Bass EQ (0-18 dB bass boost)
  • Tri-mode capable
  • Preamp RCA outputs
  • 3-Way protection circuitry
  • System distress indicator
  • Shiny jet black heatsink with diamond cut rubs
  • Platinum-plated RCA level inputs
  • Platinum-plated screw terminals
  • Variable high-pass filter (40-250 Hz, 24 dB/octave)
  • Variable low-pass filter (40-250 Hz, 24 dB/octave)
  • Frequency response: 10-30000 Hz
  • Dimensions: 15.4"L x 10.4"W x 2.4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

CXA360.4 small

Kicker CXA360.4 (46CXA3604T)

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

(16)

$229.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 4 channel
RMS Power @ 2 ohms
180 watts x 4 channel
Bridged RMS Power
360 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1400 watts
Total RMS Power Output
720 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Signal-to-Noise Ratio
97 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
25A x 3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PH4-1400

Weight:

10.75lbs

Internal SKU:

ph41400

Internal Product ID:

14088

Product and How-to Videos


Customer Ratings & Reviews


Kole Audio PH4-1400 thumbnail image

5 star
80%
4 star
20%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
5
Features
5
Design
4.8
Usability
5

Customer Reviews

Sort by:

Loading...

Great Amp,Great Price, Fast delivery

The functionality of this is fit my build just great. The four channel adjust-ability with the high/low pass filters and the line out daisy chain made the integration into my existing system a snap. The only fault I found was no mounting hardware came with the amp and the placement of the mounting holes. But other than that the amp performs as described and plays nicely.

By Jon on September 12, 2011

1 found this helpful


Very Good amp

This amp by far exceeded my expectations. I have it pushing 4 6x9's. Most people think I paid way more than I did for it. You will not be disappointed if you buy it.

By Storm on July 27, 2010

1 found this helpful


Super Amp

Unexpected Quality, Solid, Super Clean. I am running this Amp in 4 channel mode, full frequency response with a Sony GT720 head unit and driving 4 Infinity Kappas; 2 6x9's and 2 3 1/2 dash speakers. These are 2 Ohm speakers, 110watts rms /330 peak and 35 rms / 105 peak respectively. This system is VERY loud, very solid, sounds like there is a small sub in the system. The lows, mids and highs are crystal clear, sound stage is very open, warm and spacious. The channel separation is awesome and rivals high end home stereo for sound quality. The sound quality and pressure achieved is amazing and the Amp is not even using 1/2 of it's potential. The music stays ROCK solid, super clean even at that level. All Gear was purchased here, top notch quality on everything. Immediate shipping.

By eugene on November 25, 2008

1 found this helpful


Good Product

This is a good product. Only problem is it gets hot. Am runnin it to two tens and they hit nice.

By Daniel on July 27, 2011


Great Buy!

It's a good amp. I got four bullet tweeters and 5.25 component set hooked up to it. The highs tickle your ears.

By Aycha on August 12, 2010
