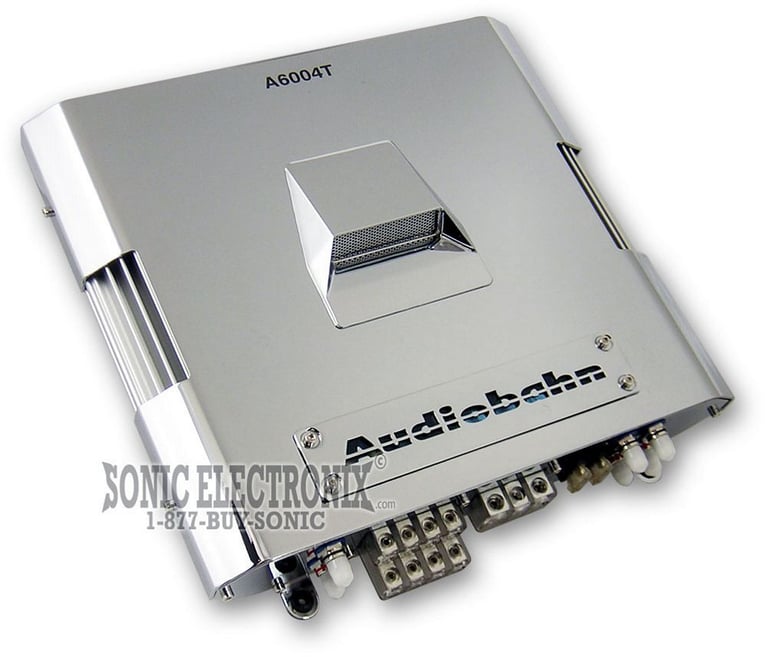

Audiobahn A6004T

1200W Max, 4-Channel Intake Series Amplifier

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

1200W Max, Intake 4-Channel Amplifier • Optional bass remote and digital volt-meter display available and sold separately • Class A/B • 600W RMS @ 2 ohm • 300W RMS @ 4 ohm • Preamp outputs • Cobalt Blue Illumination • Intake cooling fan • 4-way protection circuitry

Learn more about the a6004t

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

a6004j thumbnail

Audiobahn A6004J

OUR PRICE: $159.99

View item

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

82-5606 main

Metra 82-5606

6x9" Front Door Speaker Bracket for select 2015-2025 vehicles from Ford, Lincoln

15
-48.62%

$16.95

List price $32.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

82-5602 main

Metra 82-5602

6X9" Speaker Adapter for select 2011-2020 Explorer and F-Pace

2
-47.51%

$20.99

List price $39.99

82-5603 main

Metra 82-5603

6" to 6-3/4" Speaker Adapter for select 2011-2019 Explorer

2
-50.01%

$19.99

List price $39.99

99-5858CH main

Metra 99-5858CH Dash Kit

[Single DIN and Double DIN Stereo Dash Kit and Harness for select 2011-2019 Explorer with Factory 8" Screens

-33.91%

$379.99

List price $574.99

AXAMP-FD2 main

Axxess AXAMP-FD2

Amplifier Integration Interface for select 2011-2023 vehicles from Ford

-10.07%

$410.99

List price $456.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Product Highlights


1200W Max, Intake 4-Channel Amplifier • Optional bass remote and digital volt-meter display available and sold separately • Class A/B • 600W RMS @ 2 ohm • 300W RMS @ 4 ohm • Preamp outputs • Cobalt Blue Illumination • Intake cooling fan • 4-way protection circuitry

Description


The new Intake series amplifiers are Audiobahn's newest line of full-throttle beauties. Each amp is equipped with an air induction cooling fan to keep the unit running cool for hours. Combined with optional accessories such as a digital voltmeter and remote bass control, the Intake amplifiers provide both performance and customization to your sounds.

Key Features:

  • 1200W Max, Intake Series 2-Channel Amplifier
  • RMS Power Output:
    • 75 watts x 4 chan. @ 4 ohm
    • 150 watts x 4 chan. @ 2 ohm
    • 300 watts x 2 chan. @ 4 ohm Bridged
  • Max Power Output: 1200 watts @ 2 ohm
  • Class A/B MOSFET Circuitry
  • PWM MOSFET Power Supply
  • Semi-double Sided Glass Epoxy Circuit Board

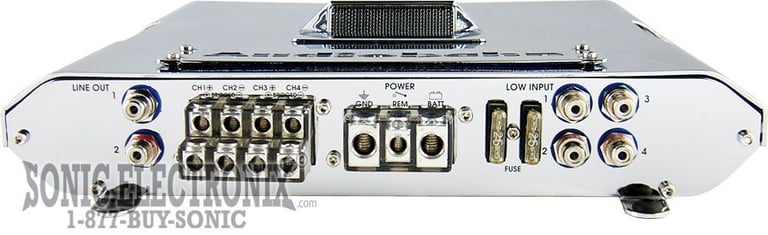

  • 4-way Protection Circuitry: Thermal, Short Circuit, Overload and DC Offset
  • Air Induction Cooling Fan
  • Cobalt Blue Illumination
  • Speaker level (high-level) inputs
  • Preamp outputs
  • Nickel-Plated Block Terminals
  • Optional Remote Bass Control (Audiobahn ABR100T sold separately)
  • Optional Remote-mount Digital Volt-meter display (Audiobahn ADM100T sold separately)

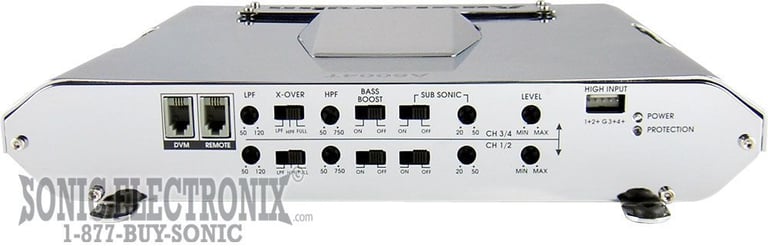

  • Variable Bass Boost Control: 0-18dB @ 45Hz
  • Variable Low-Pass Crossover: 50-120Hz
  • Variable High-Pass Crossover: 50-750Hz
  • Signal-to-Noise Ratio: 100dB
  • Frequency Response: 10Hz-40kHz
  • Variable Subsonic Filter: 20-50Hz
  • THD: 0.02%
  • Phase Control: 0 or 180°
  • Input Sensitivity: 200mV-8V
  • Dimensions: 9-7/8"L x 11-1/16"W x 1-7/8"H
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • 1-year SonicElectronix.com warranty

Product history:

Audiobahn A6004J thumbnail
(newest, current model)
Audiobahn A6004V thumbnail
(previous model, replaced by Audiobahn A6004J)
Audiobahn A6004T thumbnail
(previous model, replaced by Audiobahn A6004V)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
Bridged RMS Power
300 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1200 watts
Total RMS Power Output
600 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 750 Hz
Low-Pass Crossover Frequency
50 - 120 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
On/Off Switch (0 or +18dB)
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
25A x 2

Item Details


Manufacturer:

Model Number:

A6004T

Weight:

13.00lbs

Internal SKU:

a6004t

Internal Product ID:

1545

Product and How-to Videos


Customer Ratings & Reviews


Audiobahn A6004T thumbnail image

5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.7
Design
5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Great Deal

For the price, you can't beat the numbers. The amp does run on the hot side, so avoid placing it in close quarters and next to other subs. The fan helps, but for long drives on a nice hot day the amp might cut out. (safety reasons, the amp won't let itself burn out) It does suck a lot of juice so if you have another amp installed, you might need a cap or you'll have blinky lights.

By Samson on May 4, 2006

7 found this helpful


POWER AND LOOKS IN ONE

I GOT THIS AMP TO RUN MY JL AUDIO VR CsI AND AUDIOBAHN ACS2062P. THIS LITTLE AMP CAN DISH OUT ALL THE POWER YOU NEED, WITH AMAZING CLARITY. HIGHLY RECOMMENED DON'T GO WITH ANY OTHER AMP. AUDIOBAHN IS THE BEST NO MATTER WHAT.

By Audelino on April 8, 2005

5 found this helpful


Audiobahn A6004T

Awesome amp, i don't even have to turn it up half way and it powers all 4 of my speaks with great clarity. Blue light is awesome also. Great price and the product was shipped to me the next day! extremely fast processing. Thank you!

By Joe on October 23, 2005

4 found this helpful


Good Amp for Inside Speakers

This Amp is really good for inside speakers but i find that its hard to tune once it is installed. It does give off really great sound the

By Blake on August 15, 2005

4 found this helpful


Clean Amp and Very Affordable

I purchased the Audiobahn A6004T to run a set of Components up front and a par of 6x9 rear fill speakers. The Amp sounds as great as it looks. I have it installed under my seat and at night you can see the blue glow of the Amp emulating from there. I like the terminals and adjustability the Amp offers; all power and speaker leads connect to one end while all adjustment selectors are on the other end. The Amp runs much cooler than the one it replaced; the built-in fan is definitely a big plus.
The only drawback in my opinion is the speaker connectors are staggered; instead of having all the "+" terminals up top and all the "-" terminals across the bottom, they are "staggered
+ -
- +
+ -
- +
However this is a great Amp, Highly recommended.

By JASON on May 1, 2005

4 found this helpful


Good Amp

I bought this amp to power my 2 x 12 bass system in my car, and it really does the trick. Would recommend this product to anyone looking to get some real power fed into their system for a fair price.

By Benjamin on February 17, 2006

2 found this helpful


Shiny with kick

Just got this guy installed, works perfect.
Had a slight issue finding the "GAIN" adjustment listed in the documentation (Labled "Level" on the "front" of the unit.)

Bass Boost is significant, and if you plan on using it, I recommend getting the remote and tuning LPF to take some stress of the smaller speakers. My 5.25" Infinity Reference were 'challenged' by Bass Boost, however, the setup puts out rich clear bass (as well as the rest of the sound spectrum) at a much higher volume than I expected.

I must say, it's a tight fit in a Miata, but having the battery and the Amp in the trunk make for a very straightforward install.

By Derek on November 28, 2005

2 found this helpful


Quality Amplifier

I bought this amp to hook it up to 4 Pioneer Rev series speakers. Which are all i'd say around 80 RMS. Hooking this up was very easy, looks very nice with the blue neon. More importantly it made those speakers sound loud and kept the clarity, everyone that hears them tells me how clear my speakers sound even when it gets loud, best part is if you get this amplifier you will not need to get another battery or a capacitor. You alternator will be able to handle this. So because of the great price and the sound quality it added to my speakers and the fact that it was easy to install and tune, i would give this a two thumbs up. If you need an amplifier for your interior speakers, this amp will give you exactly what you need and won't drain your wallet!

By stan on March 11, 2005

2 found this helpful




No picture

NVX VSW84V2 - Open Box, Very Good Condition Used

500 Watt Peak (250W RMS) 8" VS-Series Version 2 Dual 4-ohm Car Subwoofer (VSW 84 v2)

$39.99

List price $99.99

R168X2 (2) small

Rockford Fosgate Prime R168X2 (2-Pairs)

220W Max (110W RMS) 6"x8" Prime Series 2-Way Coaxial Car Speakers

(16)

$149.00

List price $179.98

180-UDLM-200 small

SSV Works 180-UDLM-200

2" LED Dome Light with Cage Clamps and Billet Mount

$69.99

List price $69.99

V469 small

Cerwin-Vega V469

1000W Peak (200W RMS) 6x9" Vega Series 2-Way Coaxial 4-ohm Speakers

(20)

$139.99

List price $167.99

SonicElectronix-70-Gift-Card small

$70 e-e-Gift Card at Sonic Electronix

Digital e-Gift Card for value of $70 applies electronically to account

$70.00

List price $70.00

99-7504 small

Metra 99-7504 Dash Kit

Install a new Single-DIN car stereo in select 2004-2009 3

(2)

$21.99

List price $43.99

CHOPPER2 SOLDIER small

Aerial7 CHOPPER2 (Soldier)

Over-Ear CHOPPER2 Series Multi-Device Stereo Headphones with In-Line Microphone

$48.00

List price $70.00

HE-SS3950 small

Heise HE-SS3950

90W Universal 39.5" Super Slimline Series Single Row 30 LED Light Bar

$565.99

List price $628.99

M1400.4 small

Autotek Mean Machine M1400.4

1400W Mean Machine Series 4-Channel Car Audio Amplifier

(11)

$89.95

List price $203.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Ford Explorer

2021 Ram 3500

2003 Toyota Solara

2005 Ford Taurus

2007 Buick Rainier

2001 Ford Explorer

2018 Lincoln MKC

2002 Audi TT

1981 Cadillac DeVille

1984 Ford Thunderbird

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
