Audiobahn A6004V

1200W Max, Intake Series 4-Channel Amplifier

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

600W Intake Series 4-Channel Amplifier • 75W x 4 chan. @ 4 Ohm • 150W x 4 chan. @ 2 Ohm • MOSFET power supply • 4-way protection circuitry • digital volt meter • air induction fan cooled

Learn more about the a6004v

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

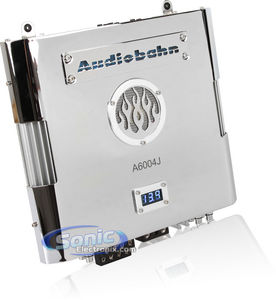

a6004j thumbnail

Audiobahn A6004J

OUR PRICE: $159.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

95-7526B main

Metra 95-7526B Dash Kit

Install a new Double-DIN car stereo in select 2014-2018 3

-10.00%

$89.99

List price $99.99

40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

82-7501 main

Metra 82-7501

Speaker Brackets for select 2013-2023 vehicles from Mazda - Pair

3
-48.85%

$21.99

List price $42.99

70-7905 main

Metra 70-7905 Wiring Harness

Install a New Car Stereo in select 2016-2024 vehicles from Mazda

-11.12%

$23.99

List price $26.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Product Highlights


600W Intake Series 4-Channel Amplifier • 75W x 4 chan. @ 4 Ohm • 150W x 4 chan. @ 2 Ohm • MOSFET power supply • 4-way protection circuitry • digital volt meter • air induction fan cooled

Description


The new Intake series amplifiers are Audiobahn's latest line of full-throttle beauties. Each amp is equipped with an air induction cooling fan to keep the unit running cool for hours. New this year is the on-board, cobalt blue digital voltmeter display which adds more style to already fabulous looking amplifier. If you want to add even more control, an optional remote bass control and remote-mount volt-meter display module are available separately. As always, the Intake amplifiers provide both performance and customization to your sounds.

Key Features:

  • 1200W Max , Intake Series 4-Channel Amplifier
  • RMS Power Output:
    • 75 watts x 4 chan. @ 4 ohm
    • 150 watts x 4 chan. @ 2 ohm
    • 300 watts x 2 chan. @ 4 ohm Bridged
  • Max Power Output: 1200 watts @ 2 ohm
  • Class A/B MOSFET Circuitry
  • PWM MOSFET Power Supply
  • Non-regulated Power Supply
  • Semi-double Sided Glass Epoxy Circuit Board
  • 4-way Protection Circuitry: Thermal, Short Circuit, Overload and DC Offset
  • Air Induction Cooling Fan
  • Soft Start Circuitry
  • Cobalt Blue Illumination

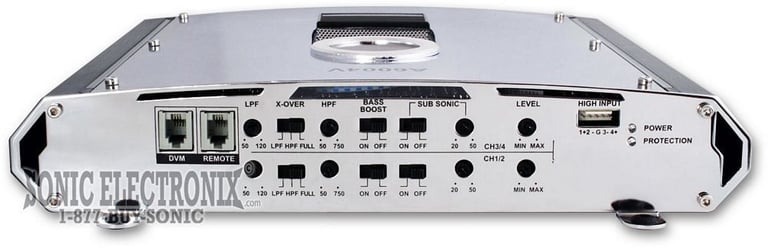

  • Speaker level (high-level) inputs
  • Preamp outputs

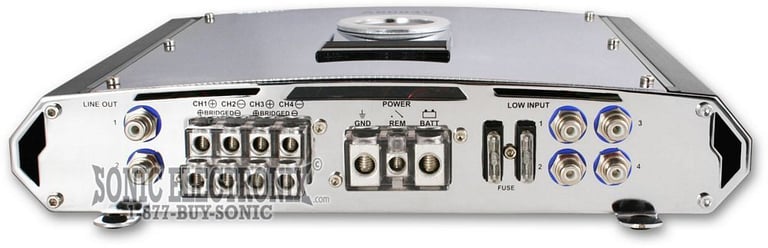

  • Nickel-Plated Block Terminals
  • Bass Boost Control: On/Off (0 or +18dB)
  • Optional Remote Bass Control (Audiobahn ABR100T VERSION 2 sold separately)
  • Digital volt-meter display on amplifier and the ability to have an optional Remote-mount Digital Volt-meter display (Audiobahn ADM100T VERSION 2 sold separately)
  • Variable Low-Pass Crossover: 50-120Hz
  • Variable High-Pass Crossover: 50-750Hz
  • Signal-to-Noise Ratio: 100dB
  • Frequency Response: 10Hz-40kHz
  • Variable Subsonic Filter: 20-50Hz
  • THD: 0.02%
  • Input Sensitivity: 200mV-8V
  • Dimensions: 9-7/8"L x 11-1/16"W x 2-1/8"H
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • 1-year SonicElectronix.com warranty

Product history:

Audiobahn A6004J thumbnail
(newest, current model)
Audiobahn A6004V thumbnail
(previous model, replaced by Audiobahn A6004J)
Audiobahn A6004T thumbnail
(previous model, replaced by Audiobahn A6004V)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

CXA360.4 small

Kicker CXA360.4 (46CXA3604T)

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

(16)

$229.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
Bridged RMS Power
300 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1200 watts
Total RMS Power Output
600 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 750 Hz
Low-Pass Crossover Frequency
50 - 120 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
On/Off Switch (0 or +18dB)
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
25A x 2

Item Details


Manufacturer:

Model Number:

A6004V

Weight:

10.00lbs

Internal SKU:

a6004v

Internal Product ID:

7070

Product and How-to Videos


Customer Ratings & Reviews


Audiobahn A6004V thumbnail image

5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.7
Design
5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Great Deal

The following review is for a previous version (A6004T).

For the price, you can't beat the numbers. The amp does run on the hot side, so avoid placing it in close quarters and next to other subs. The fan helps, but for long drives on a nice hot day the amp might cut out. (safety reasons, the amp won't let itself burn out) It does suck a lot of juice so if you have another amp installed, you might need a cap or you'll have blinky lights.

By Samson on May 4, 2006

7 found this helpful


POWER AND LOOKS IN ONE

The following review is for a previous version (A6004T).

I GOT THIS AMP TO RUN MY JL AUDIO VR CsI AND AUDIOBAHN ACS2062P. THIS LITTLE AMP CAN DISH OUT ALL THE POWER YOU NEED, WITH AMAZING CLARITY. HIGHLY RECOMMENED DON'T GO WITH ANY OTHER AMP. AUDIOBAHN IS THE BEST NO MATTER WHAT.

By Audelino on April 8, 2005

5 found this helpful


Audiobahn A6004T

The following review is for a previous version (A6004T).

Awesome amp, i don't even have to turn it up half way and it powers all 4 of my speaks with great clarity. Blue light is awesome also. Great price and the product was shipped to me the next day! extremely fast processing. Thank you!

By Joe on October 23, 2005

4 found this helpful


Good Amp for Inside Speakers

The following review is for a previous version (A6004T).

This Amp is really good for inside speakers but i find that its hard to tune once it is installed. It does give off really great sound the

By Blake on August 15, 2005

4 found this helpful


Clean Amp and Very Affordable

The following review is for a previous version (A6004T).

I purchased the Audiobahn A6004T to run a set of Components up front and a par of 6x9 rear fill speakers. The Amp sounds as great as it looks. I have it installed under my seat and at night you can see the blue glow of the Amp emulating from there. I like the terminals and adjustability the Amp offers; all power and speaker leads connect to one end while all adjustment selectors are on the other end. The Amp runs much cooler than the one it replaced; the built-in fan is definitely a big plus.
The only drawback in my opinion is the speaker connectors are staggered; instead of having all the "+" terminals up top and all the "-" terminals across the bottom, they are "staggered
+ -
- +
+ -
- +
However this is a great Amp, Highly recommended.

By JASON on May 1, 2005

4 found this helpful


Good Amp

The following review is for a previous version (A6004T).

I bought this amp to power my 2 x 12 bass system in my car, and it really does the trick. Would recommend this product to anyone looking to get some real power fed into their system for a fair price.

By Benjamin on February 17, 2006

2 found this helpful


Shiny with kick

The following review is for a previous version (A6004T).

Just got this guy installed, works perfect.
Had a slight issue finding the "GAIN" adjustment listed in the documentation (Labled "Level" on the "front" of the unit.)

Bass Boost is significant, and if you plan on using it, I recommend getting the remote and tuning LPF to take some stress of the smaller speakers. My 5.25" Infinity Reference were 'challenged' by Bass Boost, however, the setup puts out rich clear bass (as well as the rest of the sound spectrum) at a much higher volume than I expected.

I must say, it's a tight fit in a Miata, but having the battery and the Amp in the trunk make for a very straightforward install.

By Derek on November 28, 2005

2 found this helpful


Quality Amplifier

The following review is for a previous version (A6004T).

I bought this amp to hook it up to 4 Pioneer Rev series speakers. Which are all i'd say around 80 RMS. Hooking this up was very easy, looks very nice with the blue neon. More importantly it made those speakers sound loud and kept the clarity, everyone that hears them tells me how clear my speakers sound even when it gets loud, best part is if you get this amplifier you will not need to get another battery or a capacitor. You alternator will be able to handle this. So because of the great price and the sound quality it added to my speakers and the fact that it was easy to install and tune, i would give this a two thumbs up. If you need an amplifier for your interior speakers, this amp will give you exactly what you need and won't drain your wallet!

By stan on March 11, 2005

2 found this helpful




JWM-120 small

Jensen JWM-120

Waterproof AM/FM Shower Radio Speaker System

(1)

$19.50

List price $19.99

No picture

Oral-b S15-4

4-pk. Pulsonic Toothbrush Heads

$19.02

List price $29.99

No picture

Swann SWDVK-825508C

8-channel Dvr With 8 Cmos Cameras & Smartphone Viewing

$538.00

List price $549.99

PR-D6BU small

Sangean PR-D6 (Blue)

Compact Analog AM/FM Tuning Portable Receiver with Built-In Speaker

$31.99

List price $59.95

DLC-2ADP small

Cuisinart DLC-2ADP

Mini-prep Plus Food Processor (Dark Purple)

$39.95

List price $75.00

DLC-2A small

Cuisinart DLC-2A

Mini Prep Plus Processor (White)

$39.95

List price $75.95

NVE-N872A small

Alpine NVE-N872A

Satellite Linked In-Car Navigation System

$1149.99

List price $1749.99

IED12 small

ION PRO SESSION DRUMS (iED12)

Heavyweight Electronic Drum Set

$289.99

List price $299.99

R-1210 small

SHARP R-1210 1.5 Cubic Foot Over-the-Counter Microwave

Black 1.5 Cubic Foot 1100 Watt Over-the-Counter Microwave

$244.60

List price $269.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Mazda 3

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
