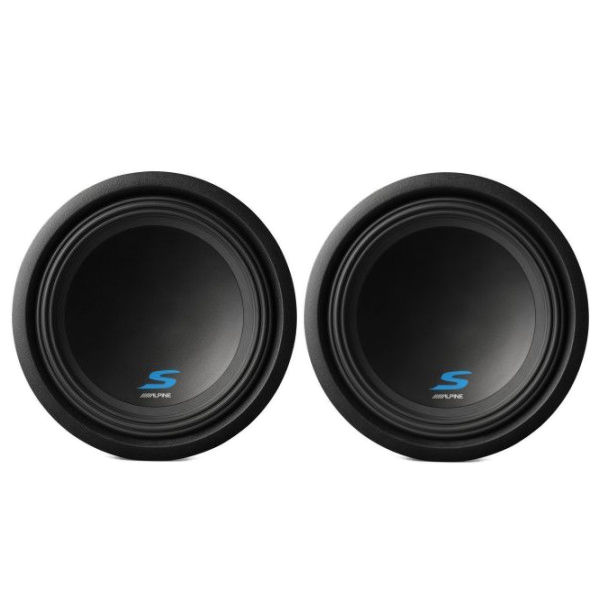

BOGO 50% OFF Alpine S-W12D4 (Includes 2 Woofers)

1800W Max (600W RMS) 12" S-Series (Type-S) Dual 4 Ohm Car Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• 1800 Watts Max
• 600 Watts RMS
• Pulp/Kevlar Cone
• High Amplitude Multi-Roll (HAMR) Surround
• High Strength Steel Frame Basket
• Progressive Spider with Reinforced Layer Tinsel Leads
• 65 mm Voice Coil with High-Temp 5-Layer DVC Winding on AL Former

Learn more about the sw12d4_x2

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
95-5817 main

Metra 95-5817 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

45
-21.92%

$17.95

List price $22.99

70-5601 main

Metra 70-5601

Wiring Harness for Aftermarket Head Unit to JBL System for select 1995-1997 Explorer and Town Car

14
-10.00%

$53.99

List price $59.99

72-5512 main

Metra 72-5512

Install New Speakers in select 1990-2006 vehicles from Ford, Mercury, Mazda

26
-26.68%

$10.99

List price $14.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

48
-42.51%

$22.99

List price $39.99

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-17.65%

$139.95

List price $169.95

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

Description


Alpine brand icon

Authorized dealer

Alpine S-W12D4

1800W Peak (600W RMS) 12" Type-S Series Dual 4 Ohm Car Subwoofer
Quantity: 2

General Features:

  • 12" 4 Ohm Type-S Series Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 600 watts
  • Recommended power range: 250- 600W RMS
  • Pulp/Kevlar Cone
  • High Amplitude Multi-Roll (HAMR) Surround
  • Progressive Spider with Reinforced Layer Tinsel Leads
  • Airflow Optimized Dual Flare Pole Vent
  • High Strength Steel Frame Basket
  • 8 AWG Push Terminals with VC Configuration Jumpers
  • Dual Voice Coil
  • High Grade Strontium Ferrite Magnets
  • Top-mount depth: 5-1/16"
  • Cutout diameter: 10-9"
  • Frequency Response: 26- 200Hz
  • Sensitivity: 86.4dB
  • Resonance Frequency (Fs): 31 Hz
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • Priced Individually

Product history:

Alpine S-W12D4-2 thumbnail
(newest, current model)
Alpine SWS-12D4 thumbnail
(previous model, replaced by BOGO 50% OFF Alpine S-W12D4 (Includes 2 Woofers))
Alpine SWS-1243D thumbnail
(previous model, replaced by Alpine Type-S SWS-12D4)
Alpine SWS-1242D thumbnail
(previous model, replaced by Alpine SWS-1243D)
Alpine SWS-1241D thumbnail
(previous model, replaced by Alpine SWS-1242D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 BOGO 50% OFF Alpine S-W12D4 (Includes 2 Woofers) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 BOGO 50% OFF Alpine S-W12D4 (Includes 2 Woofers) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 BOGO 50% OFF Alpine S-W12D4 (Includes 2 Woofers) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 BOGO 50% OFF Alpine S-W12D4 (Includes 2 Woofers) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Type-S Series
Subwoofer Size
12"
Peak Power Handling
1800 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.6"
Frequency Response
24 - 200 Hz
Sensitivity
86.4 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Surround
High Roll Foam
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.55 cubic feet
Maximum Sealed Box Volume
1 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/16"
Cutout Diameter
10-9/16"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
31 Hz
Equivalent Compliance (Vas)
46.4 liters
Total Speaker Q Value (Qts)
0.52
Electrical Q Value (Qes)
0.58
Electrical Resistance of Voice Coil (Re)
3.8 ohm
Mechanical Q Value (Qms)
4.68
What is in the box?
Paperwork
User manual
Warranty/Registration card
Serial number card
WITB: Subwoofers
Subwoofer
Other Accessory #1
Banana Plugs (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

S-W12D4-2

Weight:

30.00lbs

Internal SKU:

sw12d4_x2

Internal Product ID:

157803

Customer Ratings & Reviews


BOGO 50% OFF Alpine S-W12D4 (Includes 2 Woofers) thumbnail image

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
5
Features
4.9
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Alpine S-W12D4

The following review is for S-W12D4, which is a part of the bundle you are viewing.

Great speaker for the price!!
Clear low notes
They are also truck friendly

By Anonymous on May 17, 2023 Checkmark Icon Verified purchase

26 found this helpful


goood

The following review is for S-W12D4, which is a part of the bundle you are viewing.

item worked as described. can always trust alpine with there stuff

By ivan on August 4, 2021 Checkmark Icon Verified purchase

23 found this helpful


best budget sub

The following review is for S-W12D4, which is a part of the bundle you are viewing.

bought 2 of these they sound great on my nvx amps

By Anonymous on August 21, 2018

22 found this helpful


???? wow

The following review is for S-W12D4, which is a part of the bundle you are viewing.

Brought this sub as a package deal! Let me tell you it hits hard. Will not disappoint.

By Anonymous on August 9, 2018

24 found this helpful


Great value, great name and great bass

The following review is for S-W12D4, which is a part of the bundle you are viewing.

If your looking for a budget happy bass build you'll be happy with this one. I purchased one of these not thinking about my box being a single 15" box. Well I had a piece of solid hardwood flooring that I cut a 12" face out of and put over the 15" whole. I have an Infinity Reference series 611a amp on this thing turned almost halfway on the gain, nearly full on the bass boost and 3/4 on the variable bass optimisation. I ported and tuned the box myself and people think I got two twelves instead of one. Pros. Alpine Great price Cons. Don't hit the low end bass notes as well

By Anonymous on August 14, 2018

20 found this helpful


Slams!

The following review is for S-W12D4, which is a part of the bundle you are viewing.

I havent had a sub since the 90s. I installed this with an Alpine mono amp in my son's cx5. I'm absolutely blown away at how deep this sub pounds, just floored. I don't even like rap, but this sub makes it enjoyable. I have it in an Atrend sealed box and I'm contemplating buying one for myself now.

By Mike on January 7, 2023 Checkmark Icon Verified purchase

17 found this helpful


Hard Hitters

I've had these for 3 weeks now in a 17 Camry with a 3000w hifonics amp. speakers are ridiculously loud and pretty clear once broken in. True Alpine sound and quality and I can highly recommend these speakers

By Anonymous on August 25, 2018


Sweet deal

Subs are nice and sound is excellent very happy with my purchase from sonic thanks

By Anonymous on August 19, 2018


Perfect match

I jumped on this deal and hooked up both type S to a hifonics 1500w amp and threw them in a sealed box. Still breaking in the subs, but I could not be happier. Great sounding bass from high to low with factory system and deck in a 2017 Camry.

By Anonymous on August 19, 2018


Great value for the money

I will recommend this product because it is a really good deal and it's a good value for the price

By Anonymous on August 13, 2018




KAPPA 1000W, 1SV12B small

Infinity KAPPA 1000W Subwoofer + 12" Ported Enclosure (Belva 1SV12B)

1800W Peak 10" Selectable Smart Impedance Subwoofer + 1SV12B Ported Enclosure

(126)

$199.94

List price $355.94

DEH-X3900BT small

Pioneer DEH-X3900BT

Single DIN Bluetooth In-Dash CD/AM/FM Car Stereo Receiver

(10)

$79.99

List price $110.00

C15EX07FB10-TN small

MTX Audio Thunderform C15EX07FB10-TN (Black, Loaded)

Chevrolet 1500/2500 Extra Cab 2007-2010 Loaded 10" 4 ohm Subwoofer Enclosure

$449.95

List price $549.95

F250X00C20-T45 small

MTX Audio Thunderform F250X00C20-T45 (Charcoal, Loaded)

Ford F-250 Super Cab 2000-2007, 2 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure

$392.99

List price $499.99

SXPL1V1 small

SiriusXM Onyx Plus (SXPL1V1) + 3 Months Free Satellite & Streaming

Sirius XM Onyx Plus Advanced Dock & Play Satellite Radio with Vehicle Docking Kit

(6)

$99.99

List price $129.99

JCR-295-BK small

Jensen JCR-295-BK (Black)

Bluetooth Alarm Clock Radio with Smartphone Cradle

(1)

$31.95

List price $49.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1997 Lincoln Town Car

1965 Ford Thunderbird

1993 Toyota 4Runner

2017 Nissan Frontier

2009 Ford Taurus

2021 Toyota Corolla

2007 Kia Optima

2003 Lexus RX300

2003 Chevrolet Cavalier

1999 Lexus SC400

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
