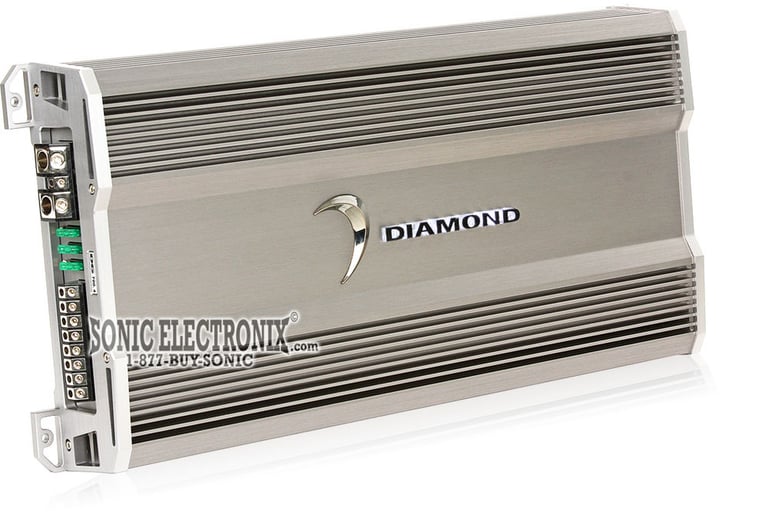

Diamond Audio D6 700.4 (D6700.4)

700W Max, D6 Series Four-Channel Amplifier

Diamond Audio
Shop all Diamond Audio
Product videos
highlight-star-icon

Audio D6 Series 4-Channel Class A/B Car Amplifier • 115W x 4 Chan. @ 4 ohm• 175W x 4 Chan. @ 2 ohm • 700W x 2 Chan. Max • Tuned Bass EQ • Aluminum Alloy Heatsink • Bridgeable • Daisey Chain Capable

Learn more about the d67004

We apologize

This item has been discontinued


Loading...
AXLOC-CH5 main

Axxess AXLOC-CH5

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ram, Dodge, Jeep with Non-Amplified Systems

10
-10.48%

$93.99

List price $104.99

95-6511-17 main

Metra 95-6511-17 Dash Kit

Install a new Double-DIN car stereo in select 2007-2020 vehicles from Dodge, Jeep, Chrysler

8
-48.02%

$12.99

List price $24.99

40-EU55 main

Metra 40-EU55

Antenna Adapter for select 2000-2026 vehicles from Audi, Chevrolet, Ram

49
-13.05%

$19.99

List price $22.99

VWA4B main

Scosche VWA4B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2000-2026 vehicles from Audi, Chevrolet, Volkswagen

11
-17.73%

$12.99

List price $15.79

72-6514-12 main

Metra 72-6514-12

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

7
-14.30%

$11.99

List price $13.99

SWRCR-59LV main

Crux SWRCR-59LV Wiring Interface

Install a New Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2014-2022 vehicles from Ram, Jeep

-35.71%

$251.10

List price $390.60

95-6545B main

Metra 95-6545B

Double DIN Stereo Dash Kit for select 2018 Compass

-38.19%

$33.99

List price $54.99

MET-CH6 main

Metra MET-CH6

Install a New Car Stereo and Retain Steering Wheel Controls, Backup Camera and Other Factory Features in select 2014-2023 vehicles from Ram, Jeep, Fiat with Non-Amplified Systems

-10.38%

$94.99

List price $105.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Product Highlights


Audio D6 Series 4-Channel Class A/B Car Amplifier • 115W x 4 Chan. @ 4 ohm• 175W x 4 Chan. @ 2 ohm • 700W x 2 Chan. Max • Tuned Bass EQ • Aluminum Alloy Heatsink • Bridgeable • Daisey Chain Capable

Description


Introducing the Diamond Audio D6 amplifier. Capable of powering up to 4 channels of audio signal with its MOSFET power supply. This amp has all the standard features that you will find on the standard amplifiers, but many more. Consider the daisy-chaining capabilities. Consider the panel mounted RCA jacks. Consider the 30% more aluminum in a 20% smaller heat sink. Consider the Diamond Audio quality. When looking for a solid amplifier to get the job done, look at the Diamond Audio D6 amplifiers. You are sure to be impressed.

  • Diamond Audio D6 Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 115 watts x 4 Chan.
    • 2 ohm: 175 watts x 4 Chan.
    • Bridged, 4 ohm: 350 watts x 2 Chan.
  • Max power output: 700 watts x 2 Chan.
  • MOSFET power supply
  • Power On and Protection LED power indicators
  • Tuned Bass EQ (0-18 dB bass boost)
  • 4/2 Channel operation
  • Pass-thru line output for daisy chaining amplifiers together
  • Thermal, short circuit, and overload protection
  • Chassis mounted ATC/ATO type automotive fuses
  • Heavy duty aluminum alloy heatsink for heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable high-pass filter (30-500 Hz, 12 dB/octave)
  • Variable low-pass filter (30-500 Hz, 24 dB/octave)
  • Frequency response: 20-20,000 Hz
  • Versatile for either full range or subwoofers
  • Dimensions: 19-7/8"L x 9-5/8"W x 3"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

5
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
115 watts x 4 channel
RMS Power @ 2 ohms
175 watts x 4 channel
Bridged RMS Power
350 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
700 watts
Total RMS Power Output
350 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
30 - 500 Hz
Low-Pass Crossover Frequency
30 - 500 Hz
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

D6 700.4

Weight:

11.50lbs

Internal SKU:

d67004

Internal Product ID:

15816
