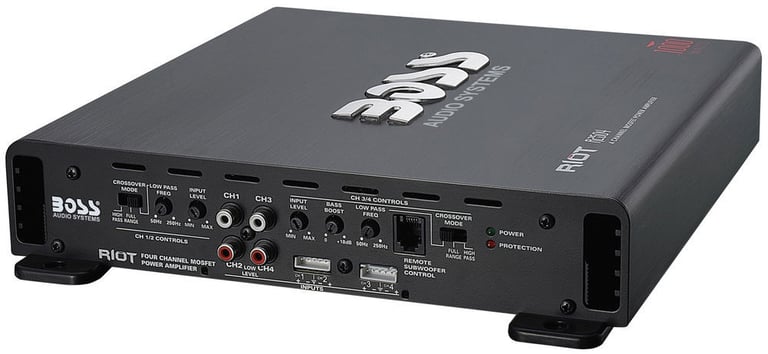

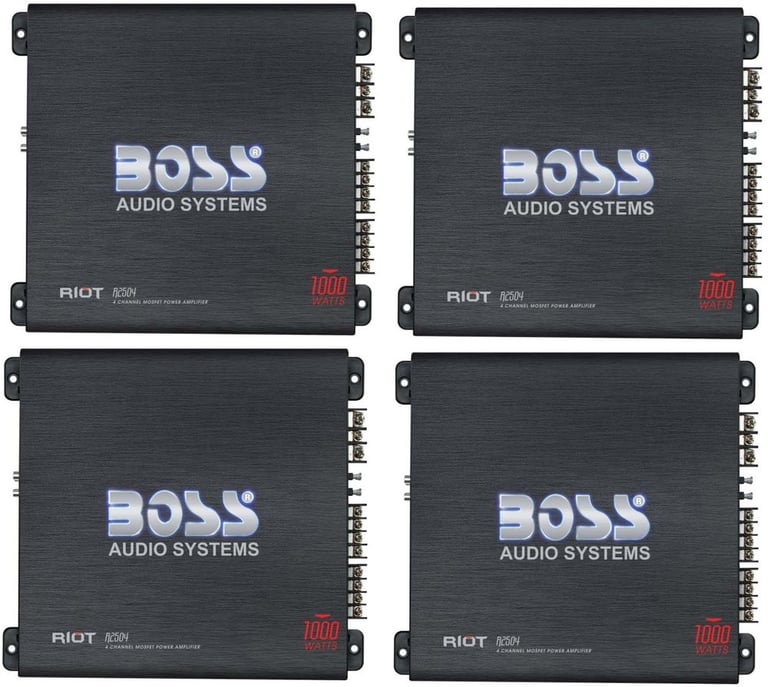

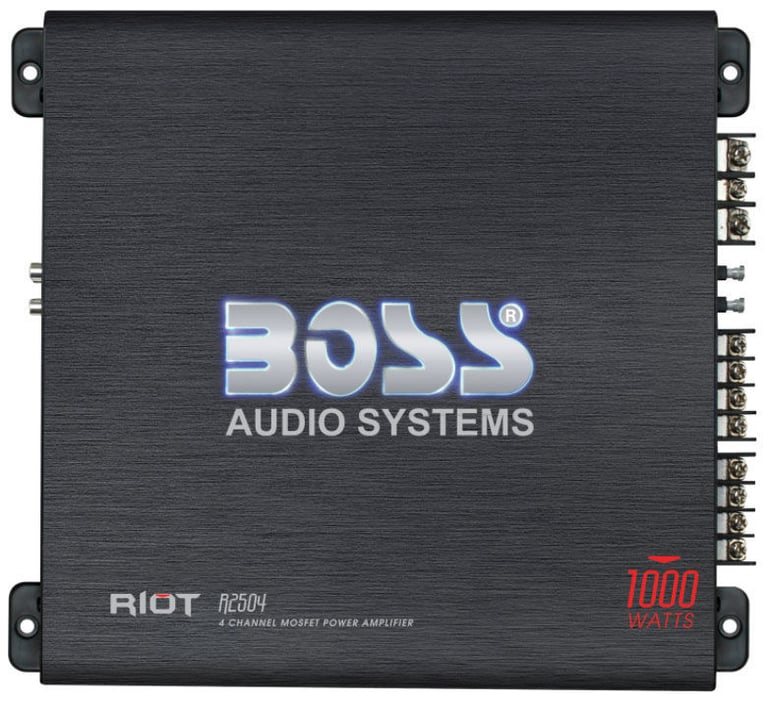

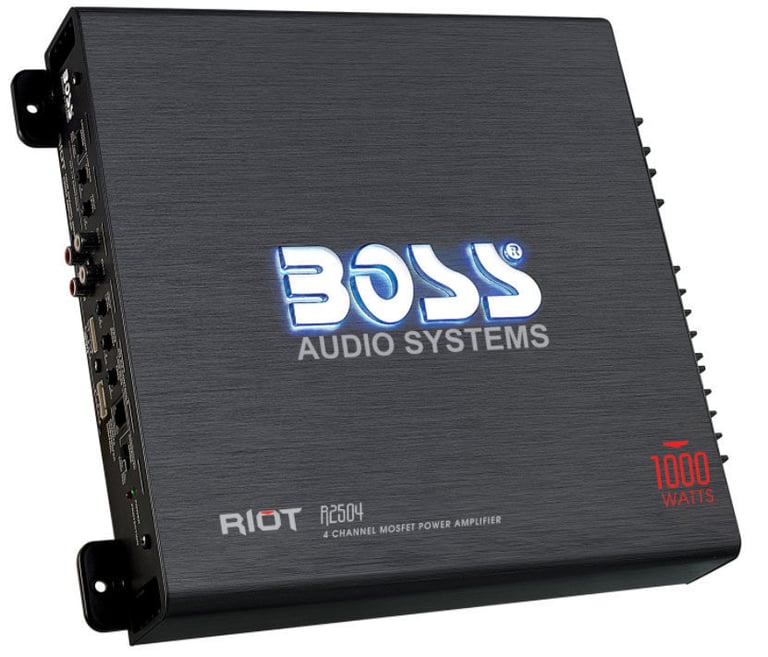

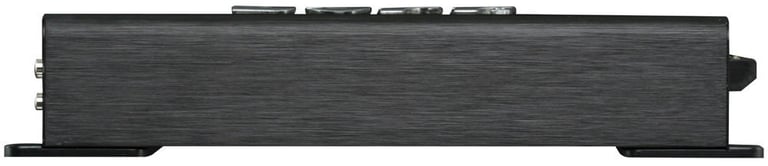

Boss Audio Amplifier w/ Remote (4 Pack)

Boss Audio 1000W 4 Channel Car Audio Power Stereo Amplifier w/ Remote (4 Pack)

Boss
Shop all Boss
highlight-star-icon

• 94 Watts RMS x 4 @ 4 ohms
• 188 Watts RMS x 4 @ 2 ohms
• 375 Watts RMS x 2 @ 4 ohms, Bridged
• Total Peak Power: 1000 Watts
• Variable Low Pass Filter
• 0 - 18dB Bass Boost
• Aluminum Heatsink
• Dimensions: 11.57" W x 10.43" L x 2.25" H

Learn more about the boss-r2504_4

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Description

Boss

Authorized dealer

Boss R2504

1000W Max (750W RMS) Riot Series Class A/B 2-Ohm Stable 4-Channel Full Range Amplifier w/ Remote Level Control
Quantity: 4

General Features:

  • Boss Riot Series R2504
  • Class-A/B Full Range 2-ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 94 watts x 4 chan.
    • 2 ohms: 188 watts x 4 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohms: 375 watts x 2 chan.
  • Total power output: 1000 watts
  • Pulse Width Modulated MOSFET power supply

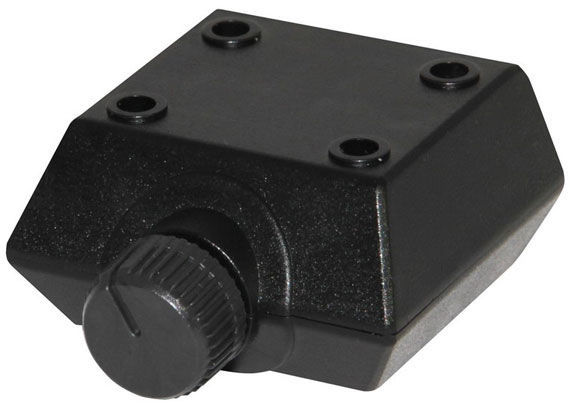

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4/3/2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

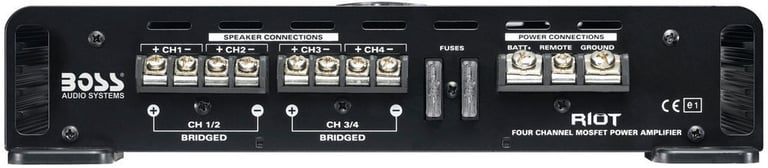

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity: variable
  • Frequency Response: 9 - 50000 Hz
  • Total Harmonic Distortion (THD): .01%
  • Signal to Noise Ratio: 102 dB
  • High-pass filter: Fixed, 80Hz
  • Variable low-pass filter: 50-250Hz
  • Variable Bass Boost: 0 to +18 dB bass boost
  • Fuse Rating: 25A x 2
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 11.57"W x 10.43"L x 2.25"H
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty
Boss R2504 owner’s manual

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
94 watts x 4 channel
RMS Power @ 2 ohms
188 watts x 4 channel
Bridged RMS Power
375 watts x 2 channel
Amplifier Specifications
Series
Riot Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1000 watts
Total RMS Power Output
750 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
102 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 2
Total Fuse Rating
50
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Boss

Model Number:

R2504 4 Pack

Weight:

29.20lbs

Internal SKU:

boss-r2504_4

Internal Product ID:

166815
