Name: Sound Storm (SSL) F3600D R/B
Brand: Sound Storm Labs (SSL)
SKU: LS-f3600d-RB
Price: 89.99 USD
Availability: Discontinued

by Sound Storm Labs (SSL)

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

Sound Storm (SSL) F3600D R/B Image 1 — Sound Storm (SSL) F3600D R/B

Sound Storm (SSL) F3600D R/B Image 2 — Sound Storm (SSL) F3600D R/B

Sound Storm (SSL) F3600D R/B Image 3 — Sound Storm (SSL) F3600D R/B

Sound Storm (SSL) F3600D R/B Image 4 — Sound Storm (SSL) F3600D R/B

Sound Storm (SSL) F3600D R/B Image 5 — Sound Storm (SSL) F3600D R/B

Sound Storm (SSL) F3600D R/B Image 6 — Sound Storm (SSL) F3600D R/B

Product videos

Product highlights

SSL Series Monoblock Class D Car Amplifier • 1200 Watts x 1 Chan. @ 4 Ohm • 1800 Watts x 1 Chan. @ 2 Ohm • 3600 Watts x 1 Chan. @ 1 Ohm • MOSFET PWM Power Supply • Nickel-Plated RCA Level/Screw Terminals

Learn more about the LS-f3600d-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

SSL Series Monoblock Class D Car Amplifier
RMS Power Rating:

4 ohm: 1200 watts x 1 chan.
2 ohm: 1800 watts x 1 chan.

Max Power Rating:

2 ohm: 2200 watts x 1 chan.
1 ohm: 3600 watts x 1 chan.

Max power output: 3600 watts
MOSFET PWM (Pulse Width Modulated) power supply

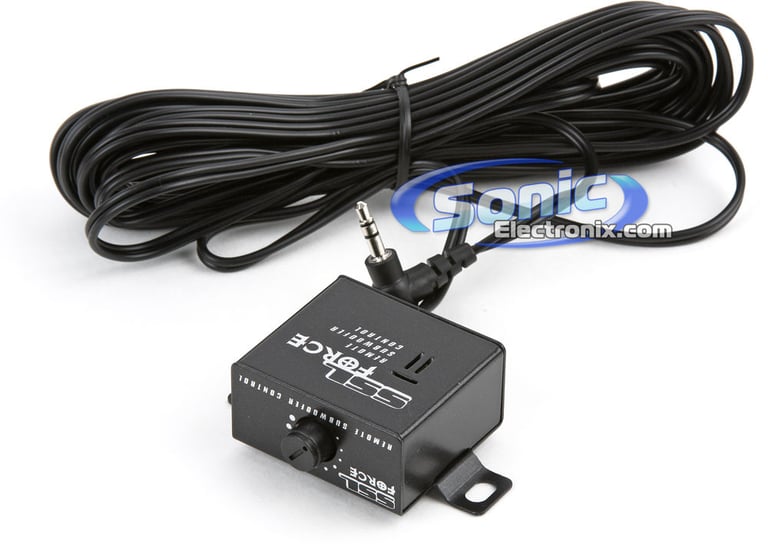

Wired remote bass level control included
LED power and protection indicators
Bass boost (0-18 dB bass boost at 50 Hz)
Selectable phase shift (0-180 Degrees)
Mono channel operation
Soft turn-on circuit
Low level RCA input
Preamp RCA output
3-Way system protection circuitry (thermal, overload, and speaker short protection)
Datalink port for strapping two identical Force Class D amplifiers together
Heavy duty black anodized heatsink
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Variable low-pass filter (50-150 Hz, 24 dB/octave)
Subsonic filter (24 dB at 15-45 Hz)
Input sensitivity: 100mV-2V or 2V-8V
Frequency response: 50-150 Hz
Damping factor: 125
Dimensions: 11-1/2"L x 10"W x 2-7/16"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
90 Day SonicElectronix.com Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

1200 watts x 1 channel

RMS Power @ 2 ohms

1800 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

3600 watts

Total RMS Power Output

1800 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

THD at Rated RMS Power

0.01%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 150 Hz

Subsonic Filter

15 - 45 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fuse Rating

30A x 3

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
