Hifonics HAW10D4

10" Alpha Series 1000W Dual 4-Ohm Car Audio Subwoofer

Hifonics
Shop all Hifonics
highlight-star-icon

• 1000W Max / 500W RMS
• 4 Ohm
• UV rubber
• Alpha Series
• Steel Basket
• 5.54" Top Mount

Learn more about the haw10d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
ANC-GMH1 main

Axxess ANC-GMH1

Active Noise Cancellation (ANC) Bypass Harness for select 2014-2025 vehicles from Chevrolet, GMC, Cadillac

4
-11.43%

$30.99

List price $34.99

Description


Hifonics brand icon

Authorized dealer

Product Overview

ALPHA’s distinct subwoofer appearance highlights glass fiber cones and large concave dust caps. The utilization of these materials provides outstanding performance because they are light-weight and rigid at the same time. Featuring up to 2.5" voice coils, ALPHA subwoofers handle up to 1400 watt peaks of energy.)

General Features:

  • 10" 4 Ohm ALPHA Series Car Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Round, easy to choose a prefabricated enclosure

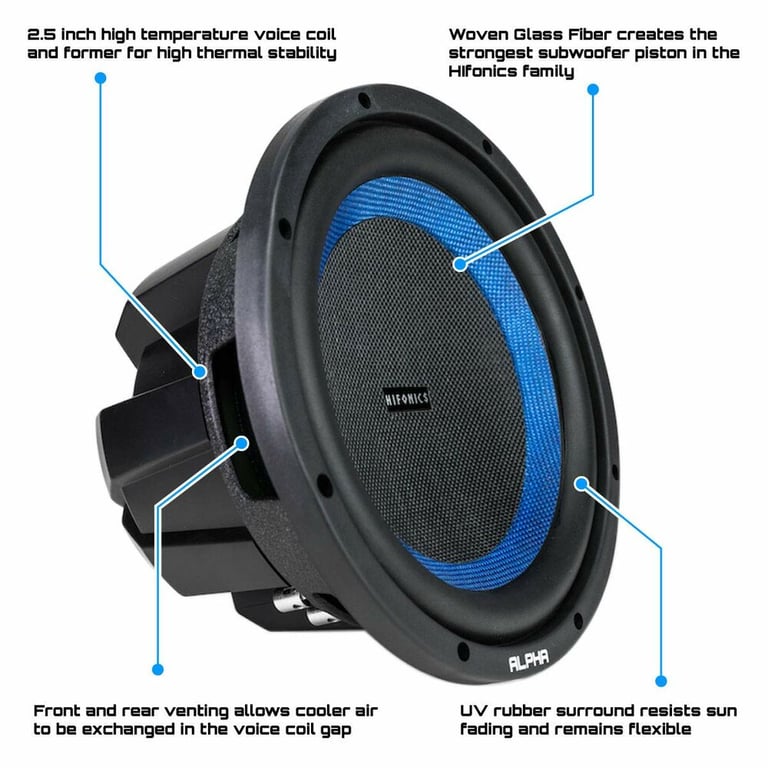

  • Woven Glass Fiber creates the strongest subwoofer piston in the HIfonics family
  • UV rubber surround resists sun fading and remains flexible
  • Stainless Push & Insert for a very secure electrical connection with a high end fit and finish
  • Vented former allows more dissipation of heat
  • Powder coated, deep draw stamped steel basket
  • Nickel plated push & insert to resist corrosion and aide in easy of installation
  • 2.5" high temperature voice coil and former for high thermal stability in small enclosure volumes where the internal box temperatures can rob you of performance
  • Top-mount depth:5.54"
  • Cutout diameter: 9.15"
  • Sensitivity: 88 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Check out the Hifonics HAW10D4 Owner's Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Hifonics HAW10D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Hifonics HAW10D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Hifonics HAW10D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Hifonics HAW10D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Subwoofer Design
Round / Circle
Main Cone Color
Blue
Woofer Surround
Rubber
Subwoofer Grille
No
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
5.54"
Shallow Mount Installation
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Mounting screws (4)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HAW10D4

Weight:

13.00lbs

Internal SKU:

haw10d4

Internal Product ID:

178545
