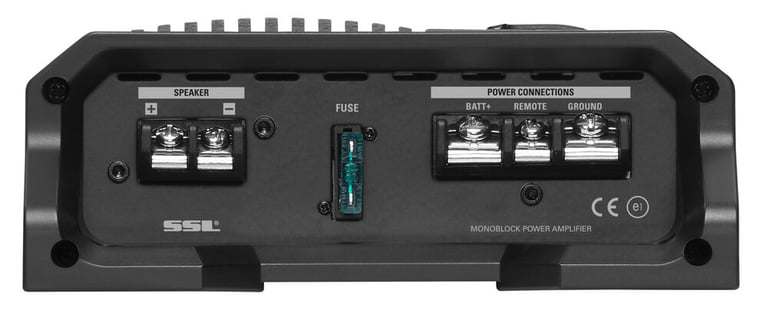

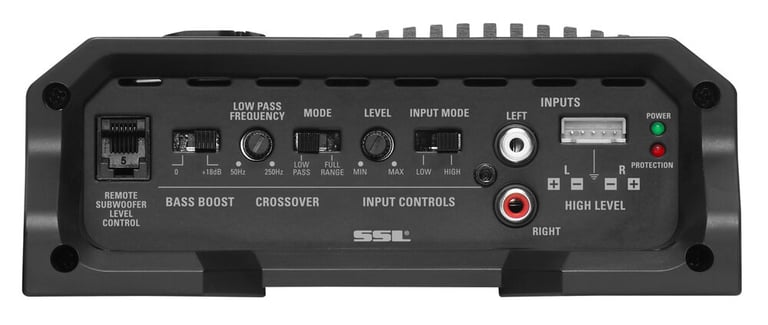

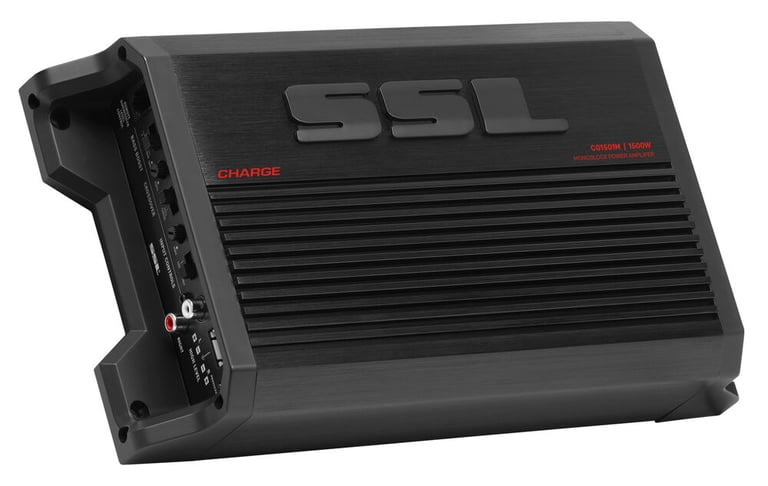

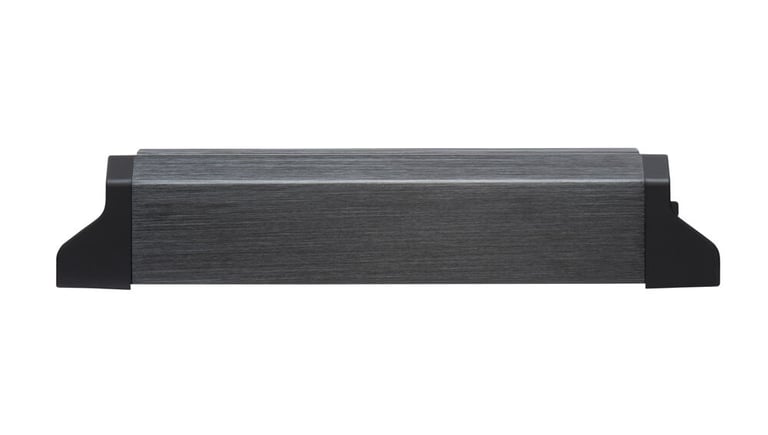

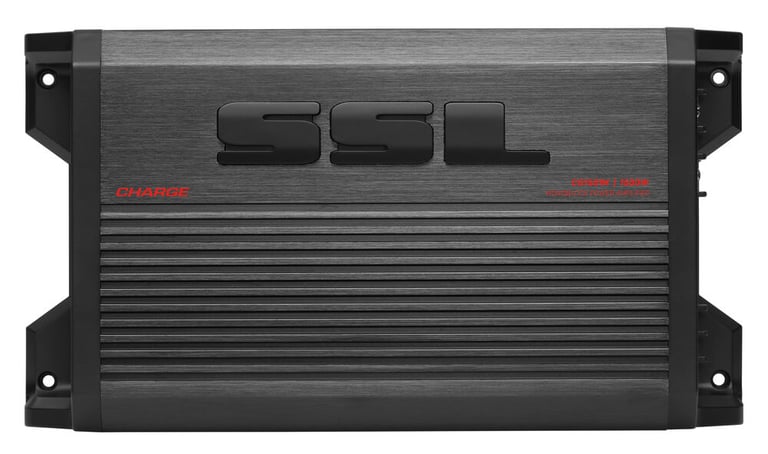

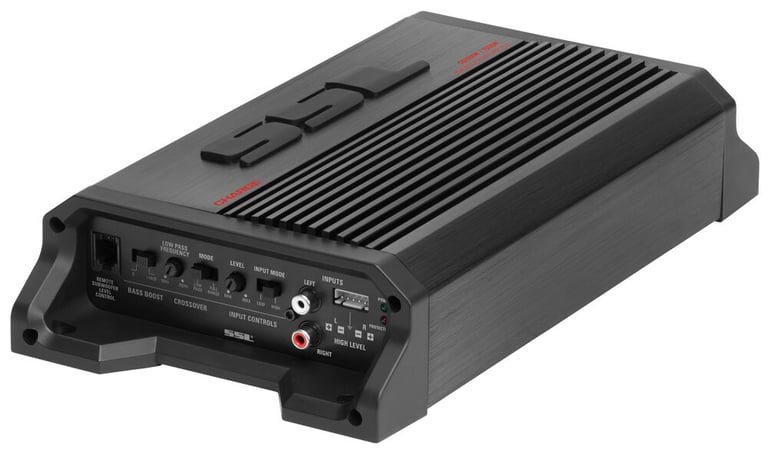

Sound Storm Labs (SSL) CG1501M

1500W Charge Series Monoblock Full Range Class A/B Amplifier

highlight-star-icon

• 563 Watts RMS x 1 @ 4 ohms
• 1125 Watts RMS x 1 @ 2 ohms
• Total Peak Power: 1500 Watts
• CEA-2006 Compliant
• MOSFET Power Supply
• Dimensions: 6.5"W x 11.7"L x 2.5"H

Learn more about the cg1501m

We apologize

This item has been discontinued

Description


Sound Storm Labs (SSL) brand icon

Authorized dealer

General Features:

  • SSL Charge CG1501M
  • Class A/B Full Range 2-Ohm Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 563 watts x 1 chan.
    • 2 ohms: 1125 watts x 1 chan.
  • Total power output: 1500 watts
  • CEA-2006 Compliant Amplifier
  • High and Low Level Inputs

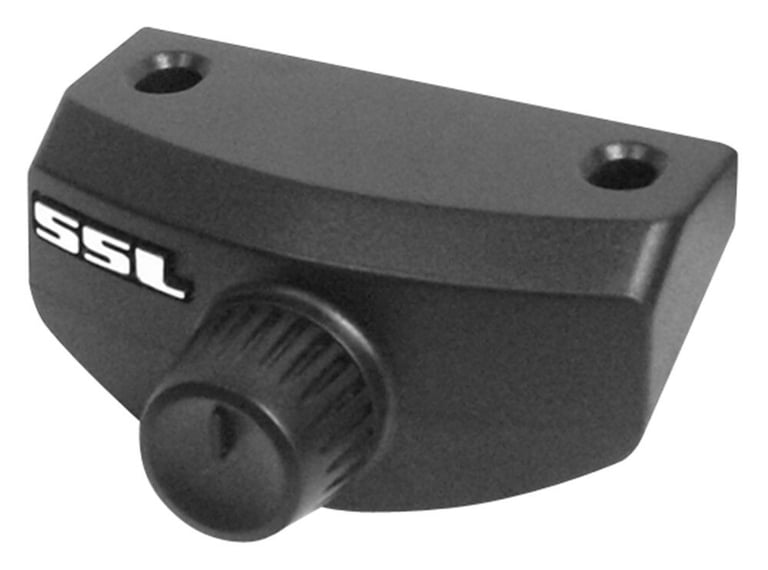

  • Include Remote Subwoofer Control
  • MOSFET Power Supply
  • 1 channel operation
  • Frequency Response: 9 - 50000 Hz
  • Total Harmonic Distortion (THD): 0.010%
  • Signal to Noise Ratio: 105 dB
  • Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +18 dB bass boost at 50 Hz
  • Dimensions: 6.5"W x 11.7"L x 2.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Sound Storm Labs CG1501M Owner's Manual

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
563 watts x 1 channel
RMS Power @ 2 ohms
1125 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
1500 watts
Total RMS Power Output
1125 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohms
THD at Rated RMS Power
0.01%
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 18 dB
Strappable
No
Sonic Certified Amplifier
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Mounting screws (4)
High-level input wiring harness w/ molex connector
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CG1501M

Weight:

5.70lbs

Internal SKU:

cg1501m

Internal Product ID:

179769
