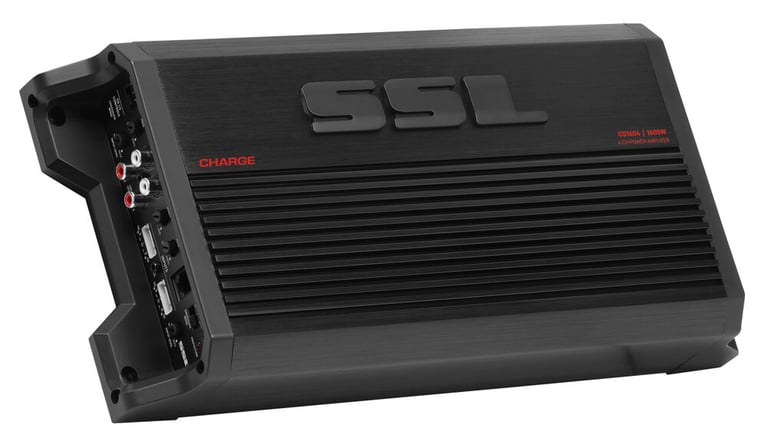

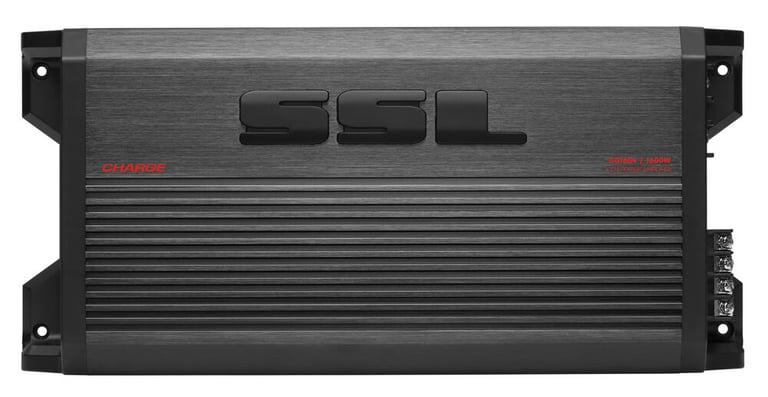

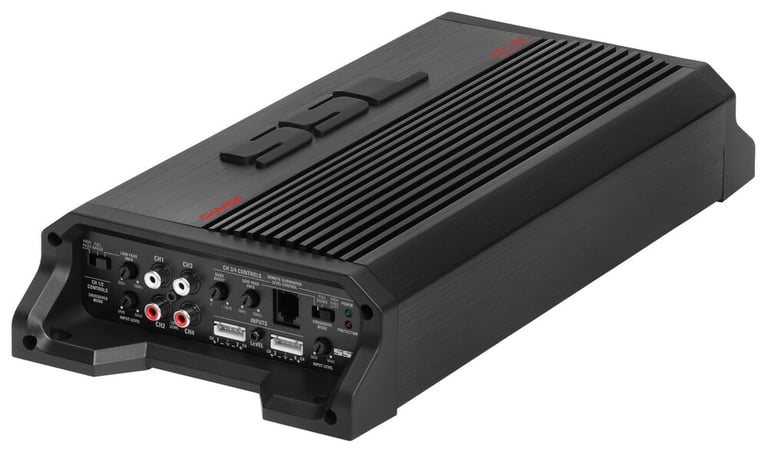

Sound Storm Labs (SSL) CG1604

Charge 1600W 4 Channel Full Range Class A/B Subwoofer Audio Amplifier

1
Sound Storm Labs (SSL)
highlight-star-icon

• 150 Watts RMS x 4 @ 4 ohms
• 300 Watts RMS x 4 @ 2 ohms
• Total Peak Power: 1600 Watts
• CEA-2006 Compliant
• MOSFET Power Supply
• Dimensions: 6.5"W x 13.7"L x 2.5"H

Learn more about the cg1604

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Description

Sound Storm Labs (SSL)

Authorized dealer

General Features:

  • SSL Charge CG1202
  • Class A/B Full Range 2-Ohm 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 150 watts x 4 chan.
    • 2 ohms: 300 watts x 4 chan.
    • Bridged, 4 ohms: 600 watts x 2 chan.
    • 1 ohm: ------------N/A------------
  • Total power output: 1600 watts
  • CEA-2006 Compliant Amplifier

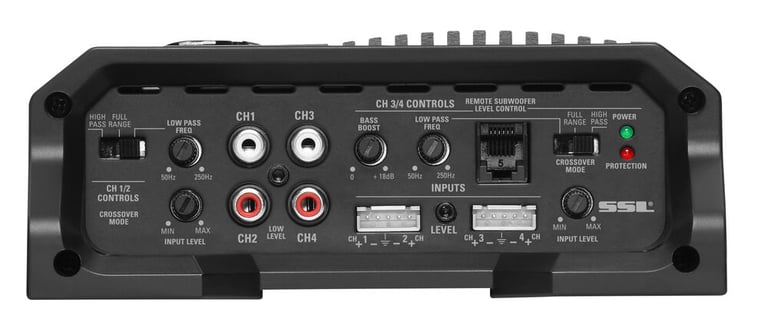

  • High and Low Level Inputs

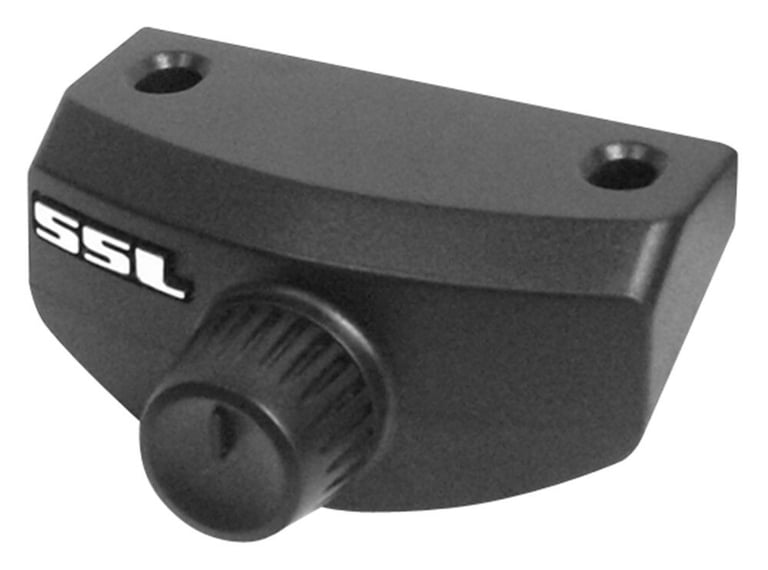

  • Include Remote Subwoofer Control

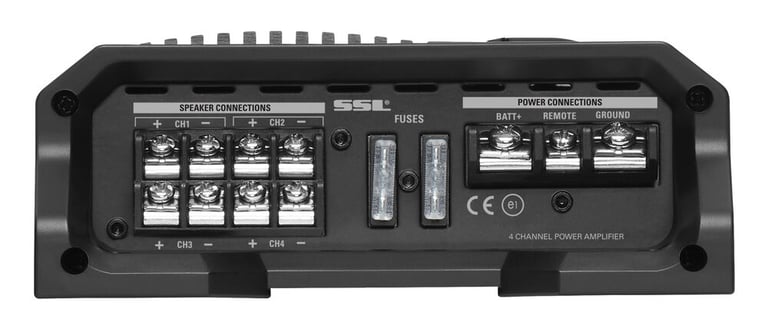

  • MOSFET Power Supply
  • 4/3/2 channel operation
  • Frequency Response: 9 - 50000 Hz
  • Total Harmonic Distortion (THD): 0.010%
  • Signal to Noise Ratio: 105 dB
  • Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +18 dB bass boost at 50 Hz
  • Dimensions: 6.5"W x 13.7"L x 2.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Sound Storm Labs CG1604 Owner's Manual

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 4 channel
RMS Power @ 2 ohms
300 watts x 4 channel
Bridged RMS Power
600 watts x 2 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
300 watts x 4 channel
Peak Power @ 2 ohms
600 watts x 4 channel
Bridged Peak/Max Power
1200 watts x 2 channel
Amplifier Specifications
Series
Marine Certified
No
Amplifier Class
A/B
Number of Channels
4
Total Peak Power Output
1600 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Preamp Outputs
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Remote bass/level controller
Fan Cooled
No
Strappable
No
CEA-2031 Compliant
Yes
Sonic Certified Amplifier
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Mounting screws (4)
High-level input wiring harness w/ molex connector
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Sound Storm Labs (SSL)

Model Number:

CG1604

Weight:

6.65lbs

Internal SKU:

cg1604

Internal Product ID:

179771
