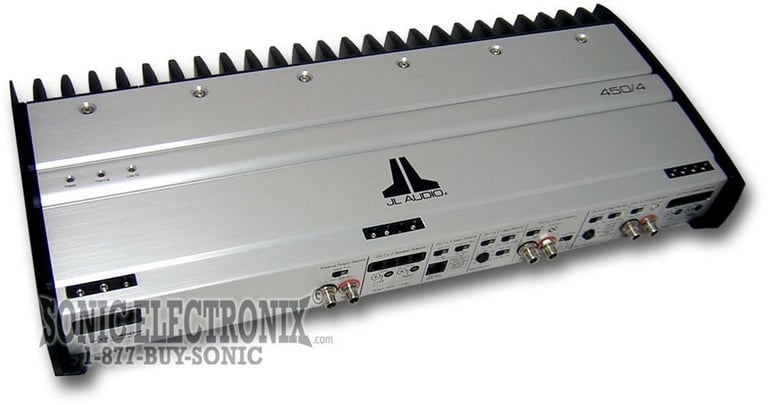

JL Audio 450/4

450 watts, 4-Channel Amplifier

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

4-Channel Power Amplifier • (150W x 2 front chan.) + (75W x 2 rear chan.) • Bridged:(300W x 1 front chan.) + (150W x 1 rear chan.) • 108.5 dB S/N Ratio • 1.5 ohm - 8 ohm stable (1.5 - 4 ohm unbridged, 3 - 8 ohm when bridged)

Learn more about the jl4504

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

4504v2 thumbnail

JL Audio Slash v2 450/4v2

OUR PRICE: $449.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
99-5716 main

Metra 99-5716

Single DIN Installation Dash Kit for select 2000-2003 Taurus and Sable w/Rotary Climate Controls

8
-10.22%

$166.99

List price $185.99

Product Highlights


4-Channel Power Amplifier • (150W x 2 front chan.) + (75W x 2 rear chan.) • Bridged:(300W x 1 front chan.) + (150W x 1 rear chan.) • 108.5 dB S/N Ratio • 1.5 ohm - 8 ohm stable (1.5 - 4 ohm unbridged, 3 - 8 ohm when bridged)

Description


JL Audio brand icon

Authorized dealer

Specifications:
  • Channels 1 and 2:
    • Rated Power (stereo mode): 150W RMS x 2 @ 1.5 ohm-4 ohm (11V-14.5V)
    • Rated Power (bridged mode): 300W RMS x 1 @ 3 ohm-8 ohm (11V-14.5V)
  • Channels 3 and 4:
    • Rated Power (stereo mode): 75W RMS x 2 @ 1.5 ohm-4 ohm (11V-14.5V)
    • Rated Power (bridged mode): 150W RMS x 1 @ 3 ohm-8 ohm (11V-14.5V)
  • THD at Rated Power: <0.03% @ 4 ohm
  • S/N Ratio*: >108.5 dB below rated power
  • Frequency Response: 5 Hz-30 KHz (+0, -1dB)
  • Damping Factor: >200 @ 4 ohm per ch./50 Hz
  • Input Range: switchable from 200mV-2V RMS to 800mV-8V RMS
  • Dimensions: 13.4"L x 9.25"W x 2.36"H
Features:
  • Differential-Balanced Input Topology: (2 pairs of inputs)
  • Channels 1 and 2 Crossover:
    • Fully-variable (50 Hz-5 KHz), selectable-slope LP or HP (12 or 24 dB per octave)
  • Channels 3 and 4 Crossover:
    • Fully-variable (50 Hz-5 KHz), selectable-slope LP or HP (12 or 24 dB per octave)
  • Preamp Output: 2-channel (Pass-through with selectable input sourcing)
  • Bass EQ: +6 dB (variable boost up to +15 dB with Remote Bass Option)
  • Infrasonic Filter (Channels 1&2 only): defeatable 24dB/octave at 30 Hz
  • Speaker output connections: accept up to 8ga. wire
  • +12V and Ground connections: accept up to 4ga. Wire
  • 1-year Manufacturer's Warranty


Product history:

JL Audio 450/4v2 thumbnail
(newest, current model)
JL Audio 450/4 thumbnail
(previous model, replaced by JL Audio Slash v2 450/4v2)

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
Ch. 1&2: 150W x 2; Ch 3&4: 75W x 2
RMS Power @ 2 ohms
Ch. 1&2: 150W x 2; Ch 3&4: 75W x 2
RMS Power @ 1 ohm
(at 1.5 ohms) Ch. 1&2: 150W x 2; Ch 3&4: 75W x 2
Bridged RMS Power
Ch. 1&2: 300W x 1; Ch 3&4: 150W x 1
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Minimum Impedance Unbridged
1.5 ohm
Minimum Impedance Bridged
1.5 ohms
THD at Rated RMS Power
0.03%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
108.5 dB
Bass Boost
Bass EQ (on/off)
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
60A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

450/4

Weight:

18.00lbs

Internal SKU:

jl4504

Internal Product ID:

1868
