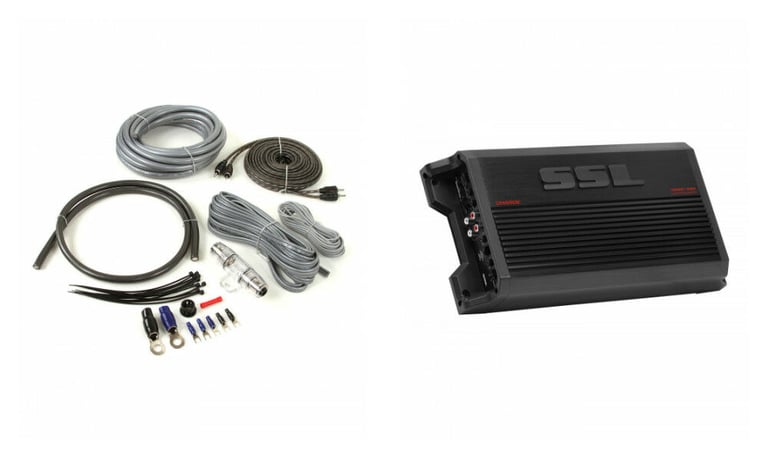

Sound Storm Labs (SSL) CG30001D + Belva 4 Gauge Amp Wiring Kit

Charge 3000W Monoblock Full Range Class D Subwoofer Audio Amplifier

highlight-star-icon

• 563 Watts RMS x 1 @ 4 ohm
• 1125 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 3000 Watts
• CEA-2006 Compliant
• MOSFET Power Supply
• Dimensions: 6.5"W x 13.7"L x 2.5"H

Learn more about the cg30001d_bak42

We apologize

This item has been discontinued


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

NSP46 main

NVX NSP46

300W Peak (100W RMS) 4x6" N-Series 2 Way Coaxial Car Speakers

34
-16.67%

$49.99

List price $59.99

XED52 main

Cerwin-Vega XED52

550W Peak (60W RMS) 5.25" XED Series 2-Way Coaxial 4-ohm Speakers

7
-16.67%

$44.99

List price $53.99

Rockford Fosgate Prime R1525X2

160W Peak (80W RMS) 5.25" Prime Series 2 Way Coaxial 4-ohm Speakers

17

Description


Sound Storm Labs (SSL) brand icon

Authorized dealer

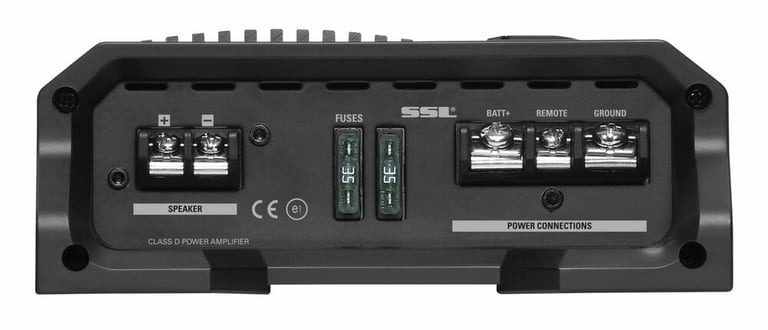

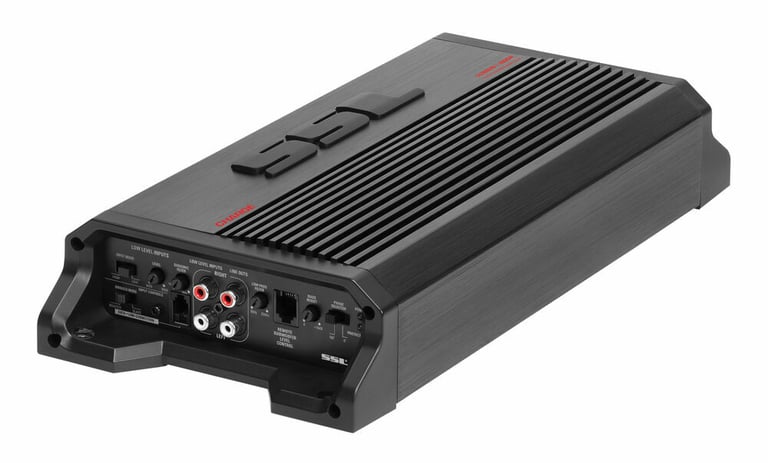

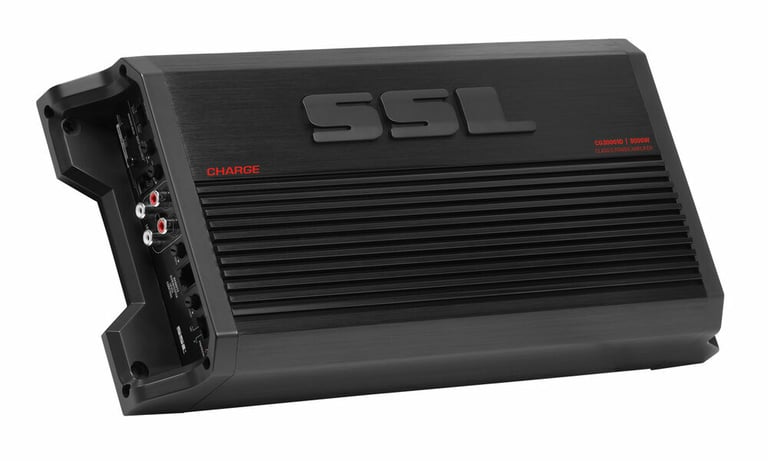

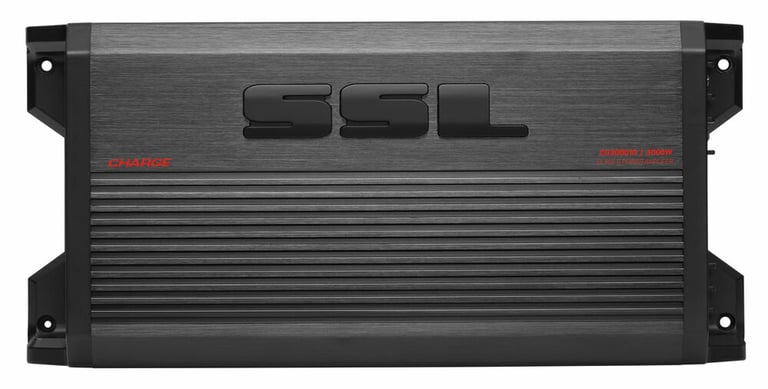

Sound Storm Labs (SSL) CG30001D

3000W Peak (2250W RMS) Charge Series Class-D Monoblock Amplifier with Bass Remote
Quantity: 1

Product Details:

  • Charge Series Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 563 watts x 1 channel
    • 2 ohm: 1125 watts x 1 channel
    • 1 ohm: 2250 watts x 1 channel
    • Strapped Bridged: 4500 watts x 1 channel @ 2 ohm
  • Peak Power Rating:
    • 2 ohm: 1500 watts x 1 channel
    • 1 ohm: 3000 watts x 1 channel
  • Total RMS power output: 2250 watts
  • LED Power/Protect Light

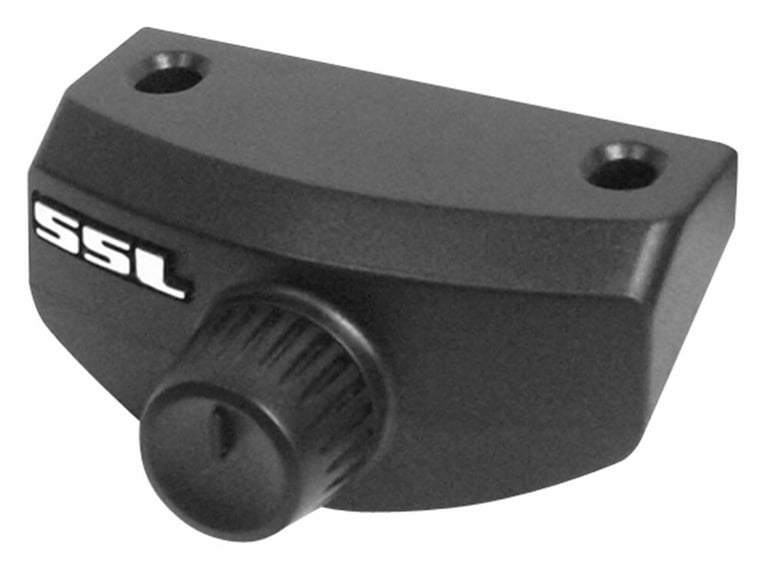

  • Wired bass level remote control included
  • Speaker-level (high-level) inputs
  • 1 pair of pre-amp outputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • MOSFET PWM (Pulse Width Modulated) Power supply
  • Soft turn-on circuit
  • Nickel plated RCA low level inputs
  • Nickel plated speaker and power terminals
  • Black anodized heatsink
  • DataLink circuitry

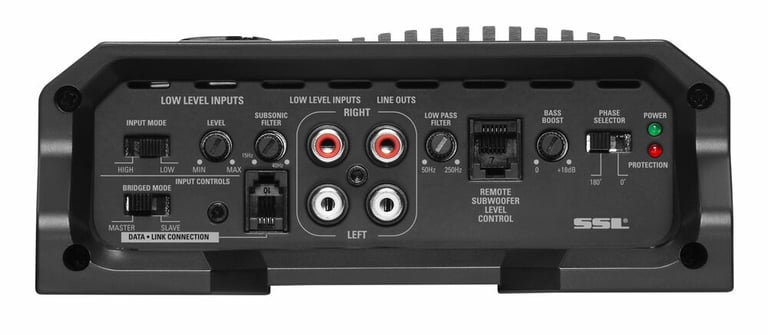

  • Switchable phase control: 0 to 180°
  • Input sensitivity:
    • Low level: 100mV - 2 volts
    • High level: 2V - 8 volts
  • Frequency Response: 15 - 250 Hz
  • Total Harmonic Distortion (THD): <0.01%
  • Signal to Noise Ratio: >100 dB
  • Variable low-pass filter: 50 - 250 Hz
  • Subsonic filter: 15 - 40 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 70A
  • 1/0 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 13.7" L x 6.5" W x 2.52" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: CG30001D

Check out the Sound Storm Labs CG30001D Owner's Manual

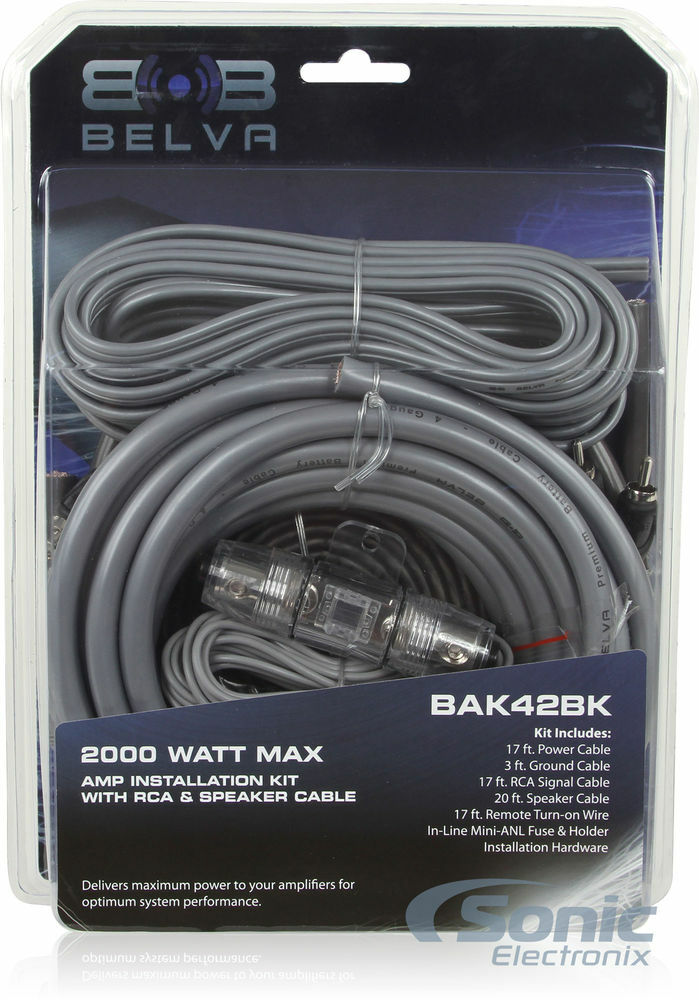

Belva BAK42BK

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - GRAY
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

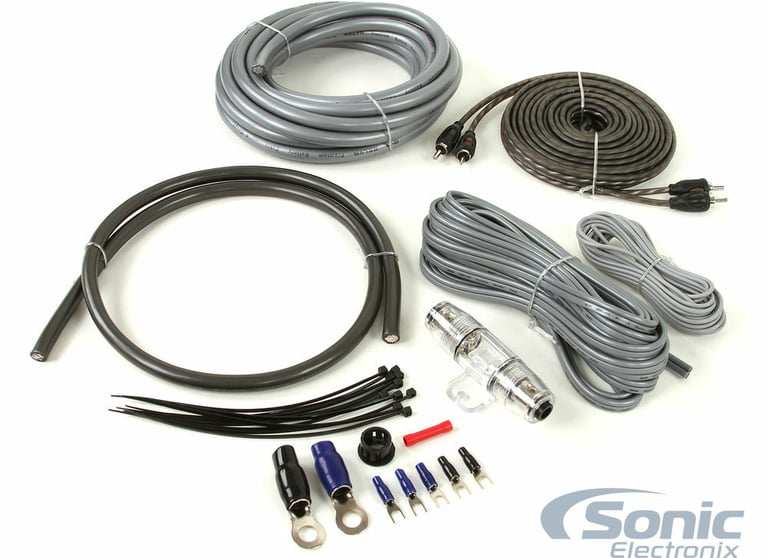

Kit includes:

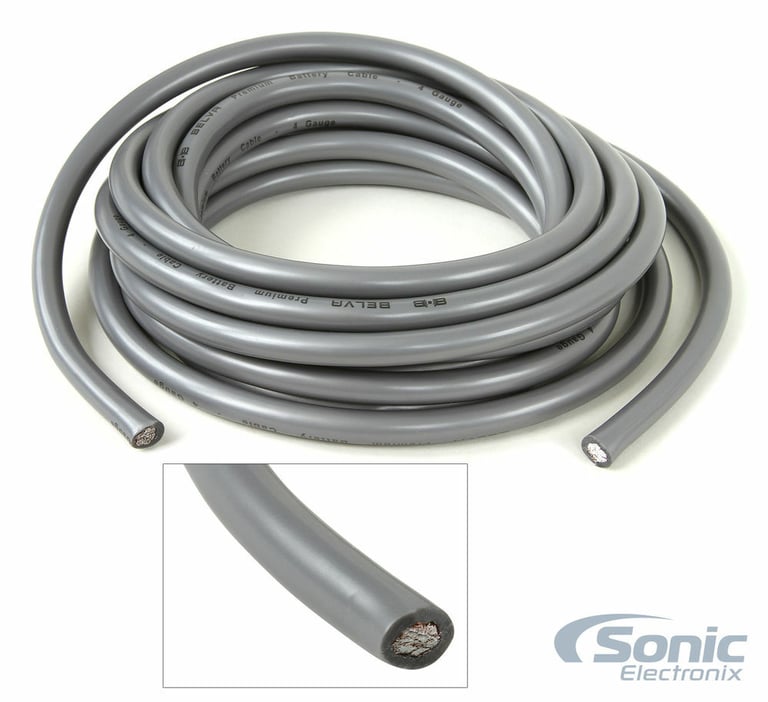

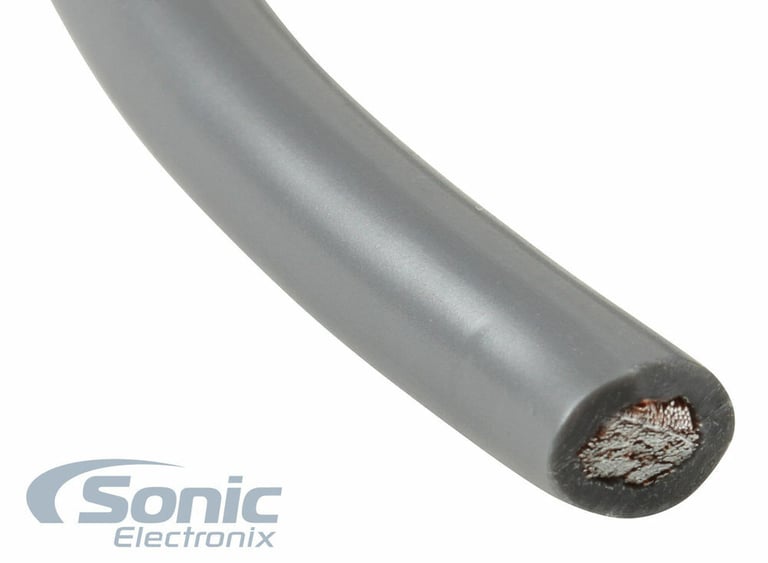

  1. 17 ft. Gray 4 gauge power wire

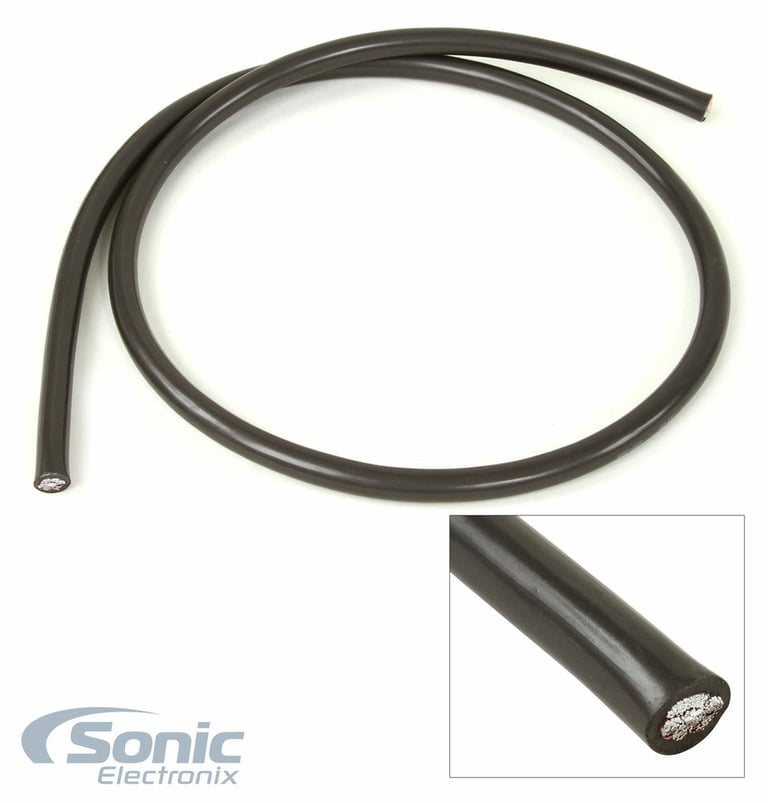

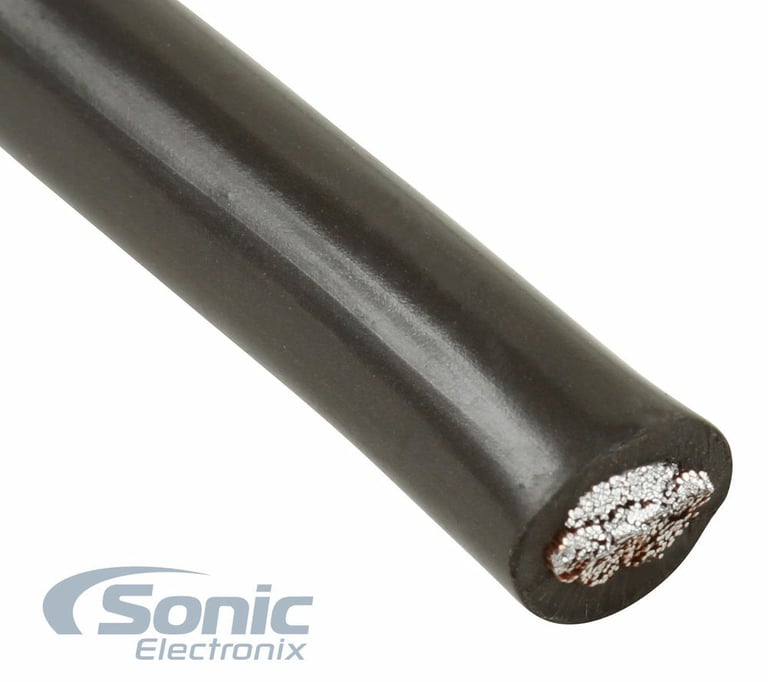

  2. 3 ft. Black 4 gauge ground wire

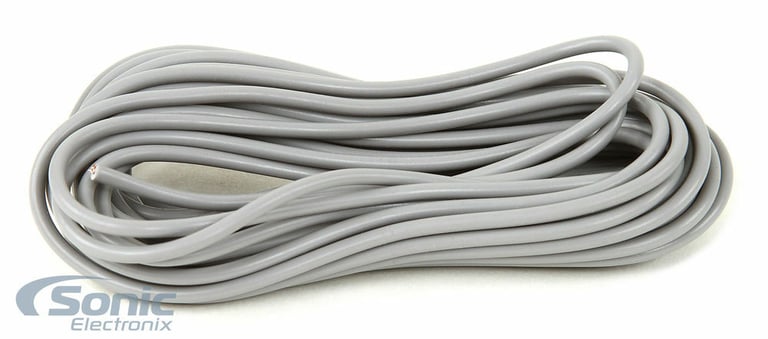

  3. 17 ft. Gray 18 gauge remote lead wire

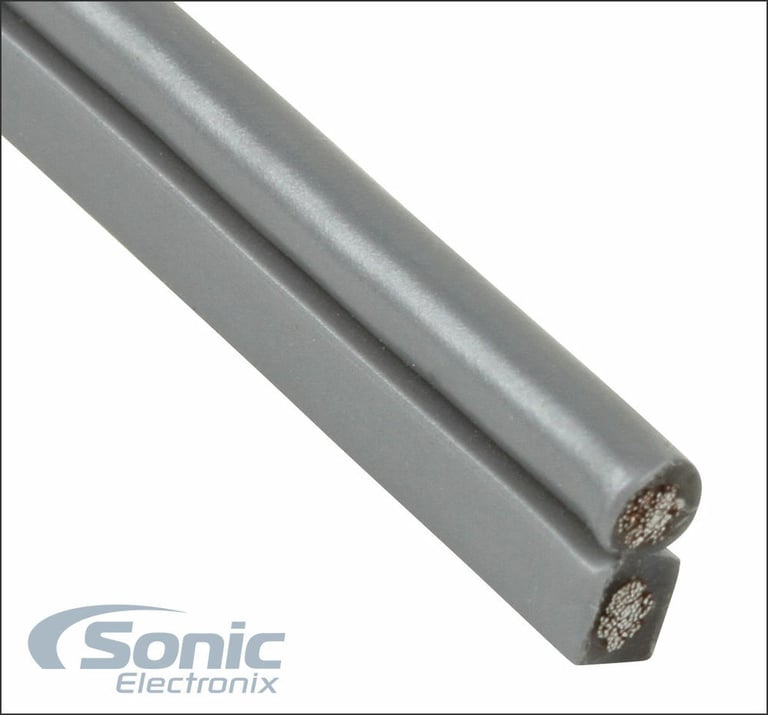

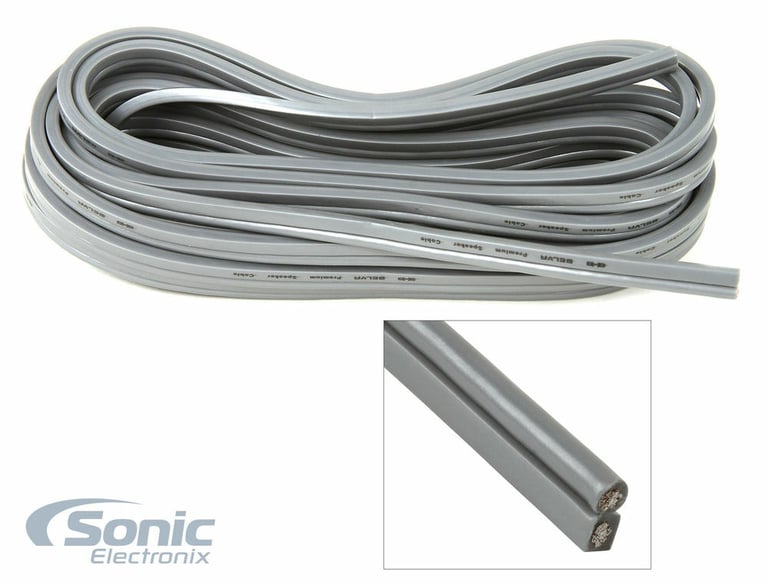

  4. 20 ft. 16 gauge speaker wire

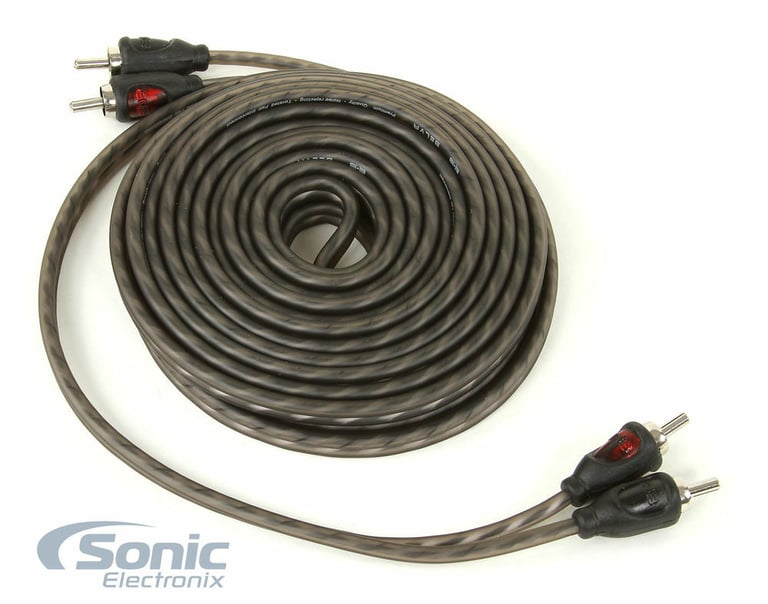

  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable

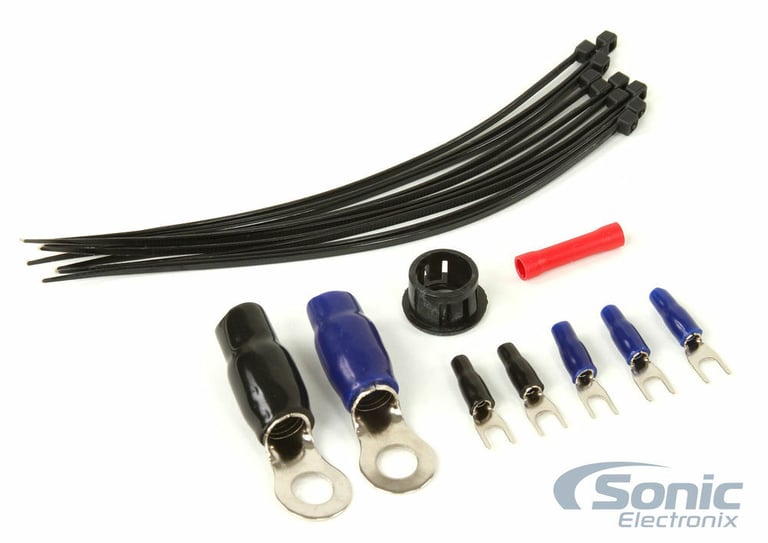

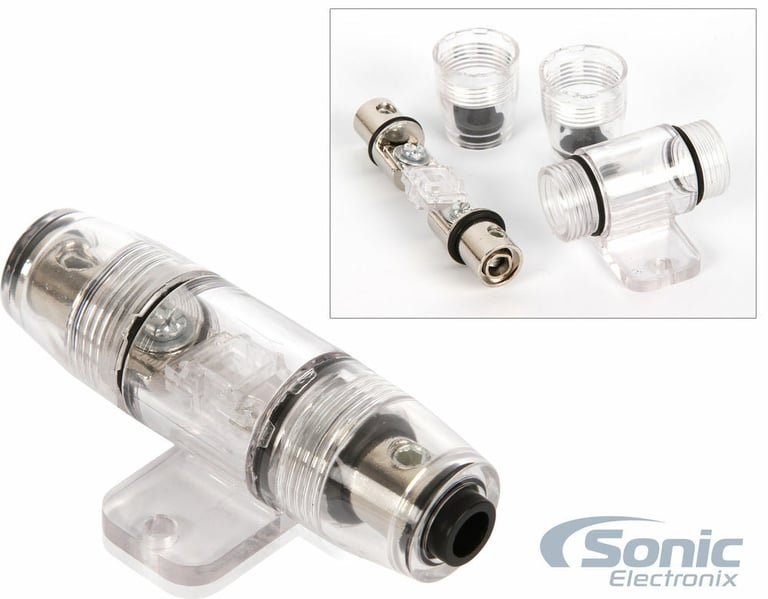

  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties
