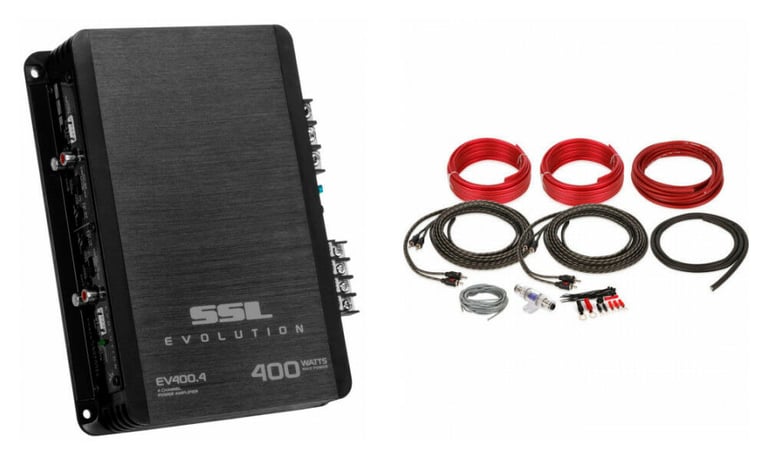

SSL EV400.4 with Amplifier Wiring Kit

400W (75w RMS) Evolution Series 2 ohm Stable 4-Channel Class A/B Amplifier

highlight-star-icon

• Power: 50W x 4 @ 4 ohm, 100W x 4 @ 2 ohm
• Total Peak Power: 400W
• Fixed Low and High Pass Filters
• Includes Amplifier Wiring Kit

Learn more about the ev4004_bak84

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
95-5817 main

Metra 95-5817 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

44
-21.92%

$17.95

List price $22.99

72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107
-33.36%

$9.99

List price $14.99

99-5802 main

Metra 99-5802 Dash Kit

Install a new Single-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

3
-46.17%

$13.99

List price $25.99

FM-K552 main

American International FM-K552

Single DIN or Double DIN Stereo Dash Kit for select 1995-2011 vehicles from Ford, Lincoln, Mazda

21
-55.03%

$8.99

List price $19.99

FD1423B main

Scosche FD1423B / FD1423 Dash Kit

Install a new Single-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Lincoln (Black)

25
-18.81%

$12.95

List price $15.95

FD3090B main

Scosche FD3090B Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 1995-2016 vehicles from Ford, Mazda, Lincoln

5
-35.16%

$10.99

List price $16.95

99-5804 main

Metra 99-5804 Dash Kit

Install a new Single-DIN car stereo in select 1998-2011 vehicles from Ford, Lincoln, Mercury

3
-42.56%

$26.99

List price $46.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Description


Sound Storm Labs (SSL) brand icon

Authorized dealer

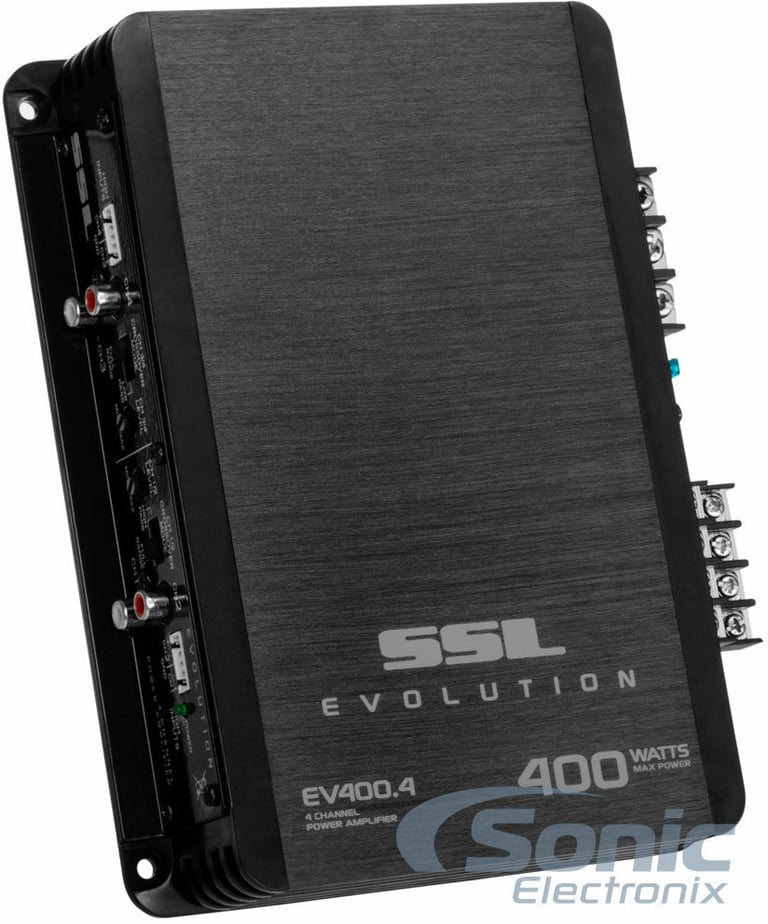

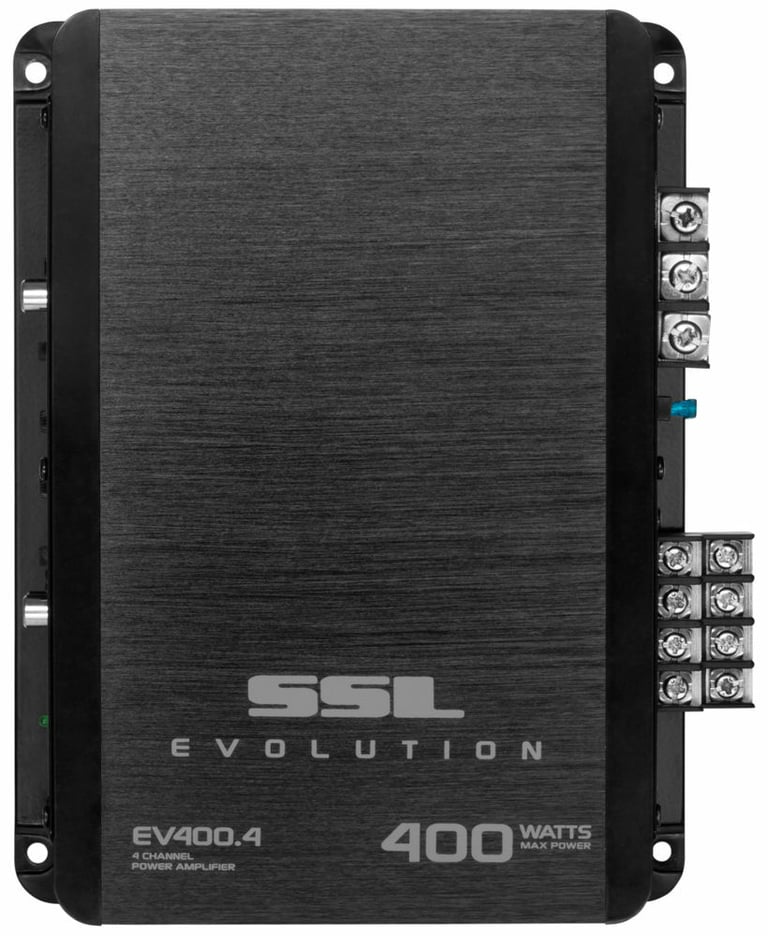

Sound Storm Labs (SSL) EV400.4

400W (75w RMS) Evolution Series 2 ohm Stable 4-Channel Class A/B Amplifier
Quantity: 1


General Features:

  • SSL Evolution EV400.4
  • Class-A/B Full Range 2-Ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 38 watts x 4 chan.
    • 2 ohm: 75 watts x 4 chan.
    • 1 ohm: ------------N/A------------
  • Total power output: 400 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft turn-on circuit
  • 4/3/2 channel operation

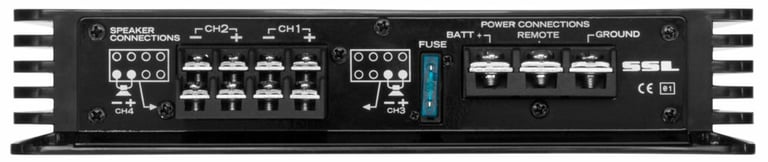

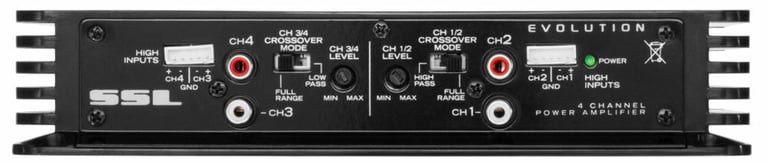

  • Nickel-plated RCA low level and high level inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty black aluminum heat-sink for extreme heat dissipation
  • Frequency Response: 12 - 22000 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ratio: 90 dB
  • Channel Separation: 60 dB
  • Variable high-pass filter: Fixed 200 Hz, 24 dB/octave
  • Variable low-pass filter: Fixed 120 Hz, 24 dB/octave
  • Variable input gain control
  • Fuse Rating: 15 A x 1
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.

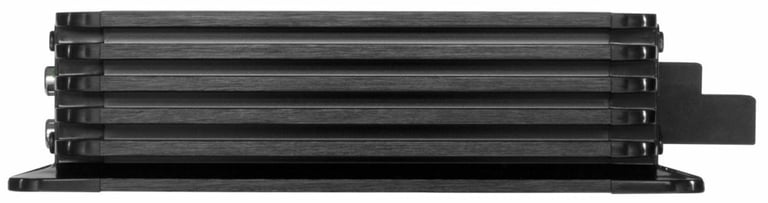

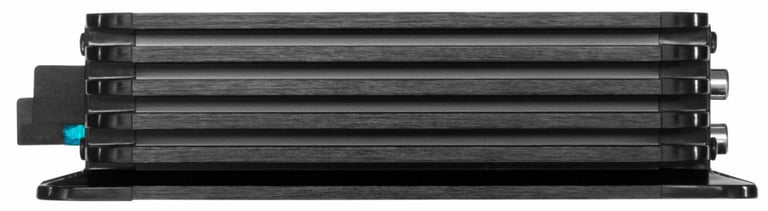

  • Dimensions: 7.5"W x 9"L x 1.75"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Sound Storm Labs EV400.4 owner’s manual

Belva BAK84

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED
Quantity: 1

Product Details:

  • 8 Gauge 4-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards

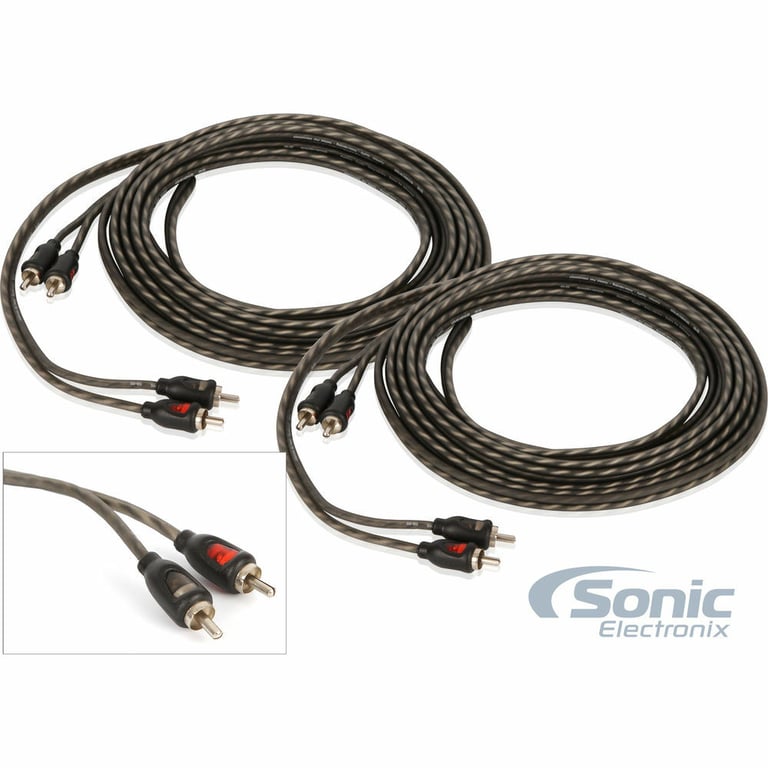

  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

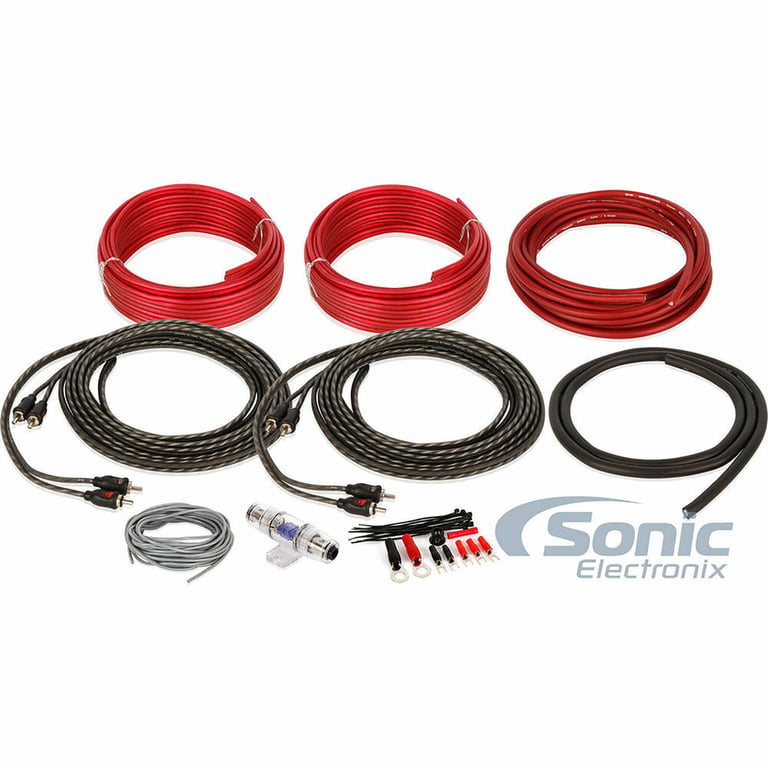

Kit includes:

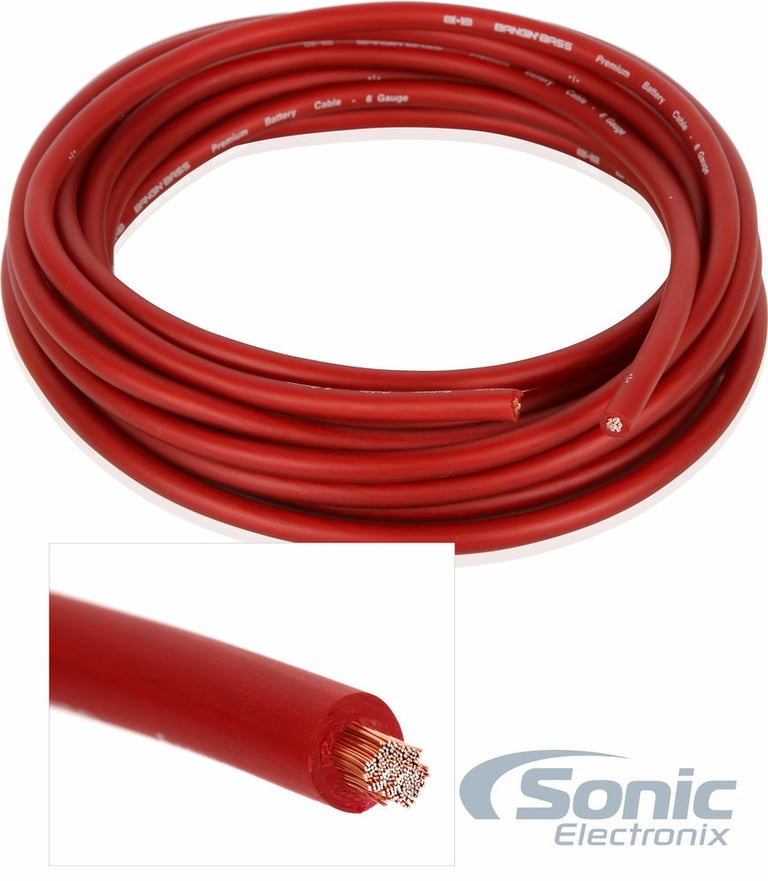

  1. 17 ft. Red 8 gauge power wire

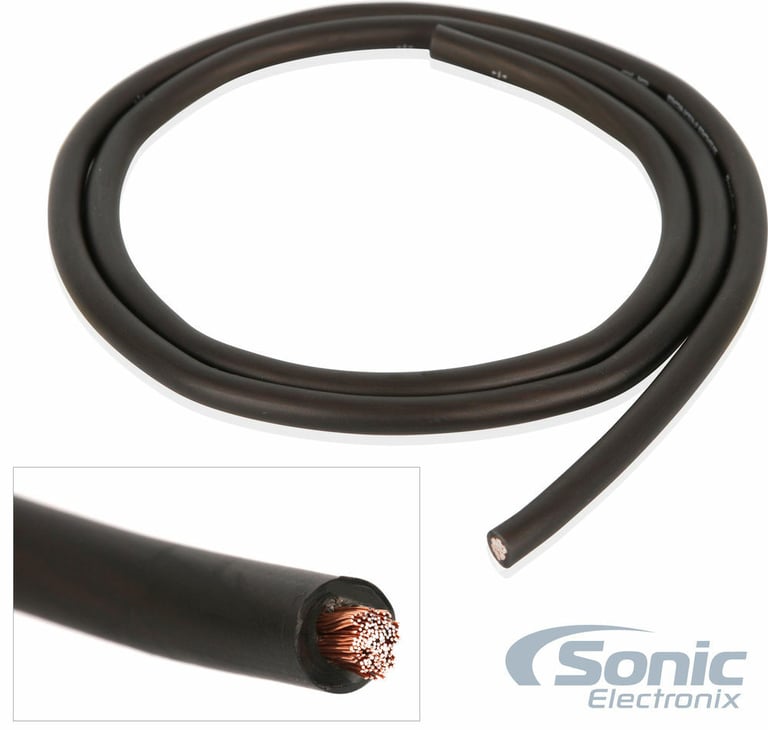

  2. 3 ft. Black 8 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire

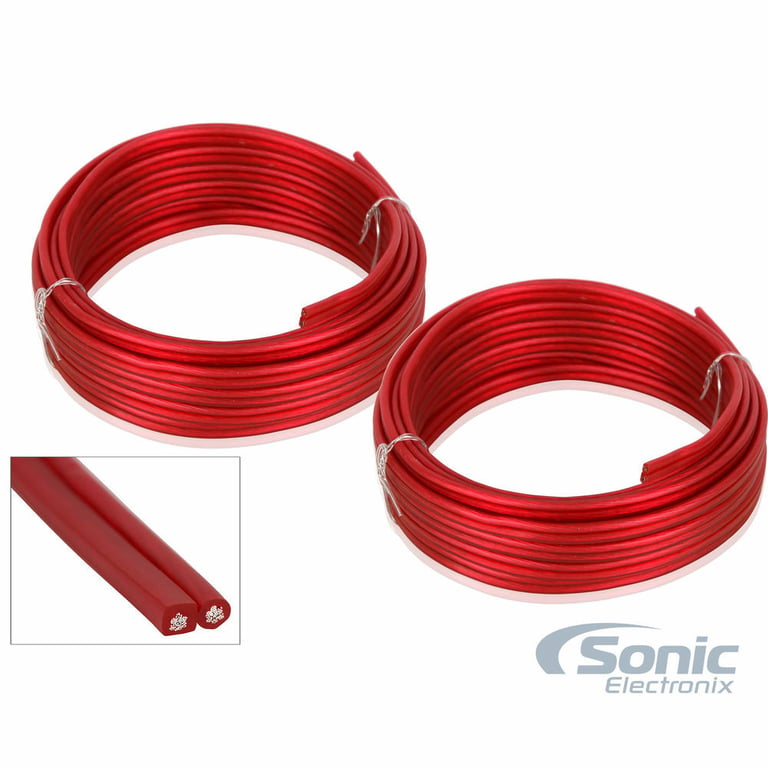

  4. 40 ft. 16 gauge speaker wire
  5. One 17 ft. 4-channel twisted-par construction RCA interconnect Cable

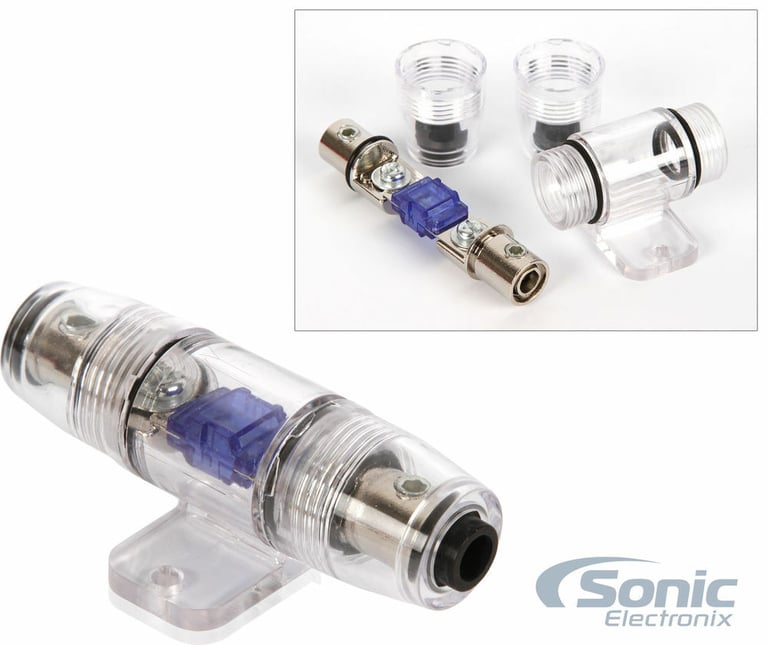

  6. One Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 8 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(255)

$486.93

List price $677.43

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

46CS65_46CS69_VA4_XK84_SK small

Pair Kicker 6.5" and 6x9" Speakers + NVX Amp w/ Free Amp Install Kit

  • Kicker CSC65 600W Peak 6.5-inch 2-Way Coaxial 4-Ohm Speakers
  • CSC693 900W Peak 6x9-inch 3-Way Coaxial 4-Ohm Speakers with Integrated Midrange
  • NVX VADM4 v2 500W RMS Micro Full-Range Class D 4-Channel Amplifier
  • XKIT84 Full Spec 8 Gauge 100% OFC Complete 4-Channel Wiring Kit with RCA
  • Sonic Electronix Premium Polyurethane Foam Can Insulator Sleeve Koozie

(243)

$401.94

List price $637.94

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(244)

$311.43

List price $533.42

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
38 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
Peak Power Output
100 watts x 4 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
THD at Rated RMS Power
.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Signal-to-Noise Ratio
90 dB
Channel Separation
60 dB
Remote bass/level controller
No
Fuse Rating
15A x 1
Total Fuse Rating
15
CEA-2031 Compliant
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EV400.4, BAK84

Weight:

6.80lbs

Internal SKU:

ev4004_bak84

Internal Product ID:

193399

Customer Ratings & Reviews


SSL EV400.4 with Amplifier Wiring Kit thumbnail image

5 star
88%
4 star
8%
3 star
3%
2 star
3%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
4.9
Usability
5

Customer Reviews

Sort by:

Loading...

Great value

The following review is for BAK84, which is a part of the bundle you are viewing.

Fast shipping works great with no problems. I would order other if i ever needed it

By Anonymous on August 5, 2018

86 found this helpful


Ok starter Kit

The following review is for BAK84, which is a part of the bundle you are viewing.

It's a ok kit to buy but check the RCA jacks my kit came defective one pair of RCA jacks failed. When I finished completely installing it in my truck and turned on the head unit only to fine out 3 of my 4 channel amp was working had to take out the multimeter tested the Amp then uninstall all the head unit tested RCA jacks and one pair was defective I would assume that they would work they are New. So save time and test the RCA jacks for continuity.

By JESUS C on December 28, 2020 Checkmark Icon Verified purchase

83 found this helpful


Great value!

The following review is for BAK84, which is a part of the bundle you are viewing.

Fast shipping and I recommend it for anyone. Everything u see in the picture is what u get.

By Anonymous on August 14, 2018

86 found this helpful


Good Value Kit!

The following review is for BAK84, which is a part of the bundle you are viewing.

Everything I needed and good quality wire, not like some other cheap thin gauge wire you get in similarly priced kits elsewhere.

By Adam on February 1, 2018 Checkmark Icon Verified purchase

83 found this helpful


Works as said

The following review is for BAK84, which is a part of the bundle you are viewing.

Everything needed for a 4 ch amp install. Better quality than other cca kits I have used before. Nice thick strands.

By brian on October 19, 2015

82 found this helpful


Great deals

The following review is for BAK84, which is a part of the bundle you are viewing.

I recommend this to anyone. The shipping is fast and you always get a good deal.

By Anonymous on September 22, 2018

80 found this helpful


Great value

The following review is for BAK84, which is a part of the bundle you are viewing.

Included in a bundle package for the price well worth it

By Chad on September 15, 2017 Checkmark Icon Verified purchase

77 found this helpful


Awesome Buy

The following review is for BAK84, which is a part of the bundle you are viewing.

It was everything I needed one package for a great price

By Frankie on April 24, 2017

76 found this helpful


Works as said

The following review is for BAK84, which is a part of the bundle you are viewing.

Works good and is high quality cca wiring, better than many others I have used. Fine for about a 400 watt rms 4 ch amp set up. Larger go with 4ga to be safe.

By brian on November 15, 2015 Checkmark Icon Verified purchase

75 found this helpful


Good value

The following review is for BAK84, which is a part of the bundle you are viewing.

Good value. All the stuff you need for a couple of speakers and a sub to an amp. Easier than buying it individually.

By Jason on April 11, 2020 Checkmark Icon Verified purchase

70 found this helpful



XX-HERCULES small

Hifonics XX-HERCULES R/B

2000W RMS Generation XX Series Class D Monoblock Amplifier

$299.99

List price $899.99

No picture

VizuaLogic 82A-79062-L511

Lexus ES 330 2004 Ivory Leather

$999.99

List price $2499.99

No picture

VizuaLogic 82A-79084-L602

Infiniti QX56 2004 Graphite Leather

$999.99

List price $2499.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Ford Ranger

1998 Dodge Ram 2500

2003 Volvo XC70

1997 BMW 540i

1961 Buick Special

1978 Dodge Challenger

2024 Buick Envision

2004 Infiniti I35

2004 Volvo S40

2017 Toyota Prius C

Vehicle
Store
Delete

2007 Harley Davidson FXSTC Softail Custom

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
