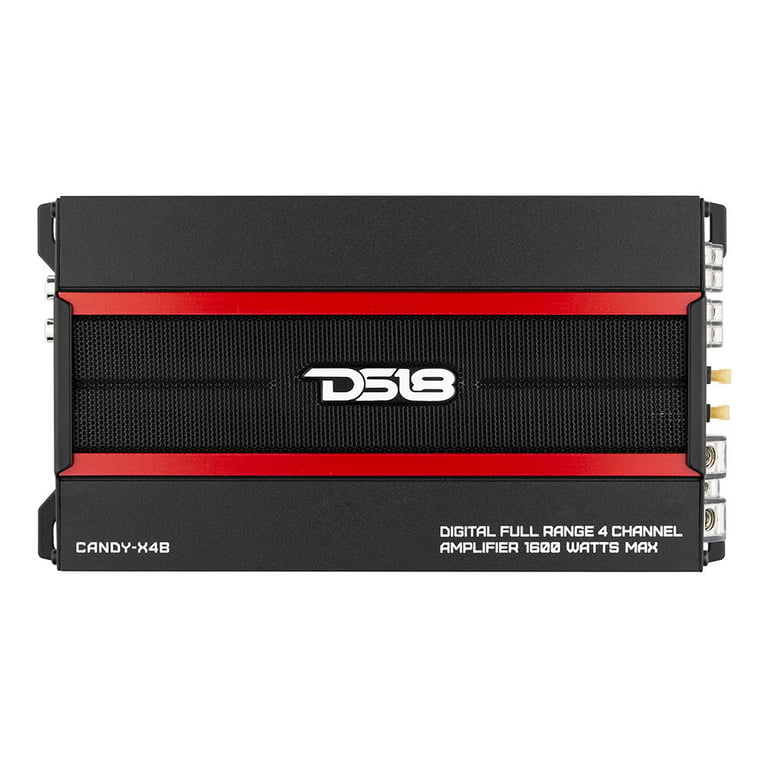

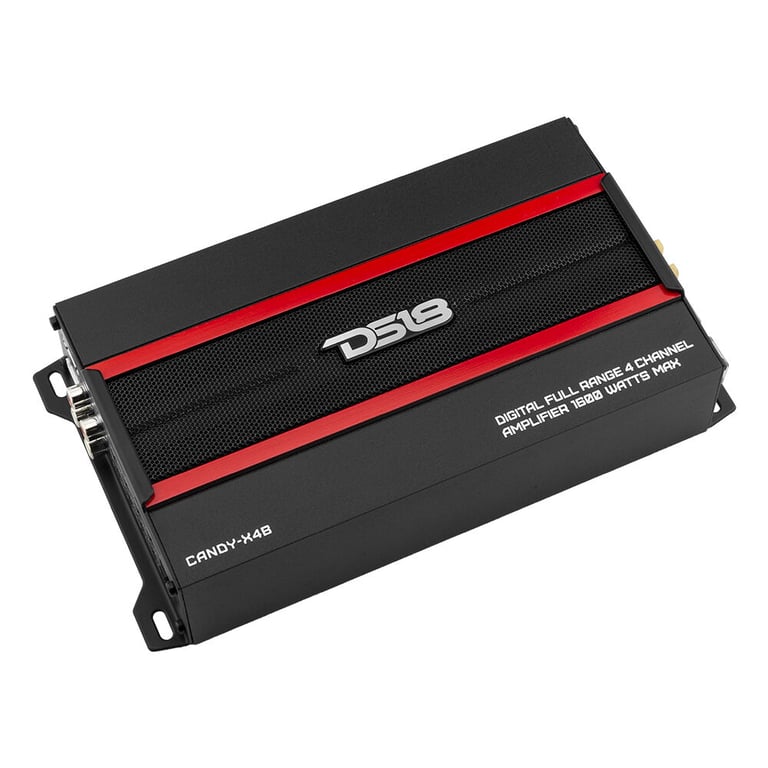

DS18 CANDY-X4B

1600W Peak (480W RMS) Candy-X Series Full Range Class D 4-Channel Amplifier

DS18
Shop all DS18
highlight-star-icon

• 80 watts x 4 channel @ 4 ohms
• 120 watts x 4 channel @ 2 ohms
• Bridged: 240 watts x 2 channel @ 4 ohms
• Total RMS Power: 480 watts
• Class D Stable 4-Channel Amplifier

Learn more about the candyx4b

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Description

DS18

Authorized dealer

Product Details:

  • CANDY-X Series Class D Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 80 watts x 4 channel
    • 2 ohms: 120 watts x 4 channel
    • Bridged, 4 ohms: 240 watts x 2 channel
  • Total power output: 480 watts

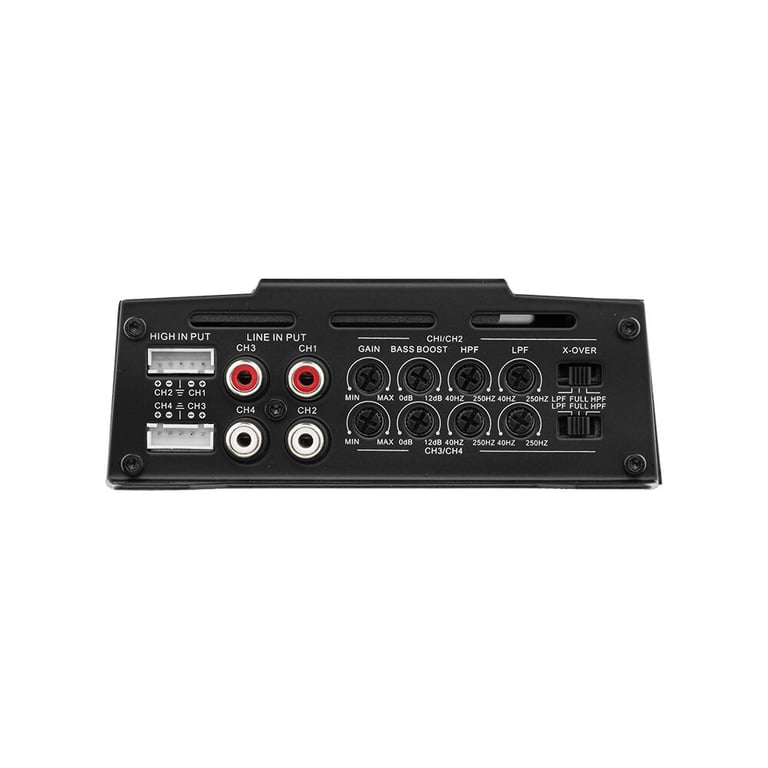

  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • LED Power/Protect Light
  • Input sensitivity:
    • Low level: .2 - 6 volts
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ratio: 100 dB
  • Variable high-pass filter: 40 - 250 Hz, 24 dB/octave
  • Variable low-pass filter: 40 - 250 Hz, 24 dB/octave
  • Variable Bass Boost: 0 - 12 dB bass boost at 50 Hz

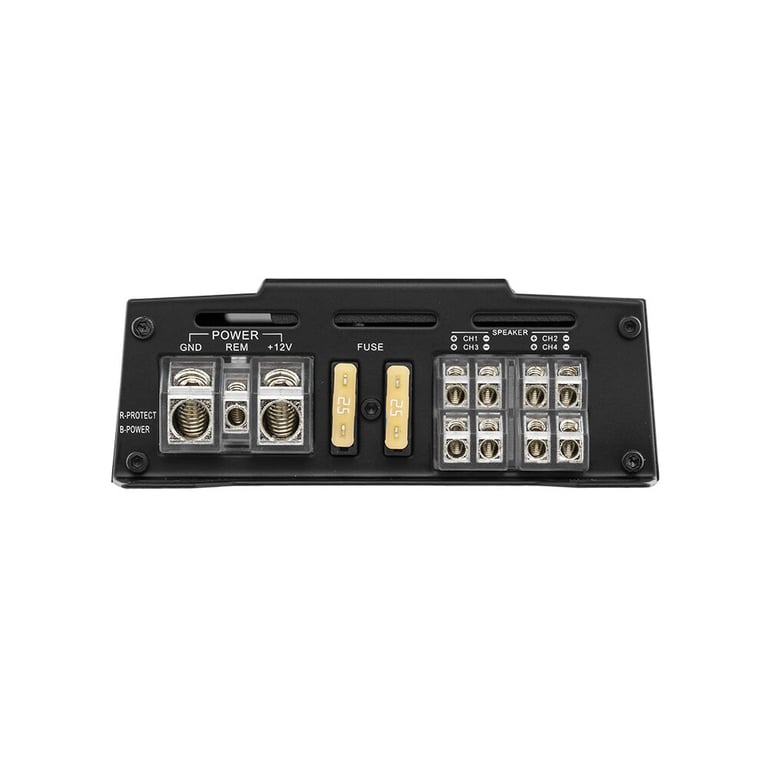

  • Fuse Rating: 50
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 5" W x 9.21" L x 1.87" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
80 watts x 4 channel
RMS Power @ 2 ohms
120 watts x 4 channel
Bridged RMS Power
240 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ .5 ohm
Power Specifications - Full Range Channels
Bridged Peak/Max Power
240 watts x 2 channel
Power Specifications - Subwoofer Channel
Peak Power @ .5 ohm
Amplifier Specifications
Series
CANDY-X Series
Marine Certified
No
Amplifier Class
D
Number of Channels
4
Total Peak Power Output
1600 watts
Total RMS Power Output
480 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Bridged
2 ohms
Frequency Response
20 - 20,000 Hz
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Signal-to-Noise Ratio
100 dB
Channel Separation
50 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
25A x 2
Total Fuse Rating
50
Strappable
No
CEA-2031 Compliant
No
Sonic Certified Amplifier
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
.2 - 6 volts
What is in the box?
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

DS18

Model Number:

CANDY-X4B

Weight:

4.00lbs

Internal SKU:

candyx4b

Internal Product ID:

195071
