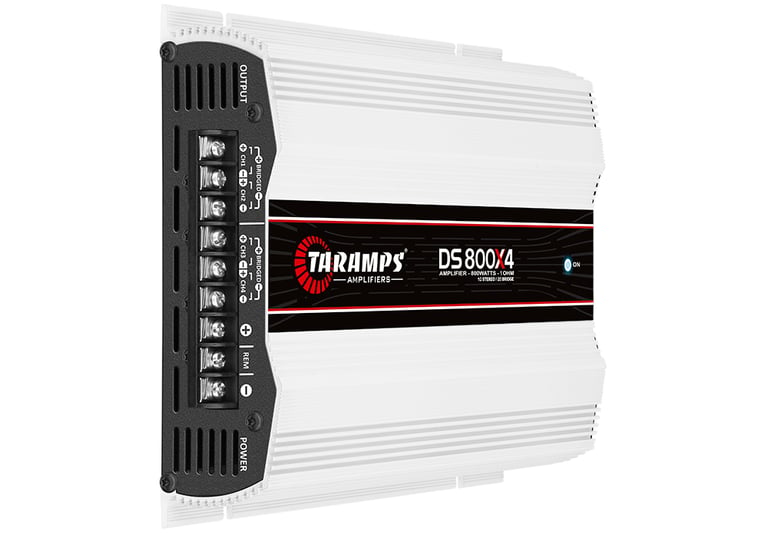

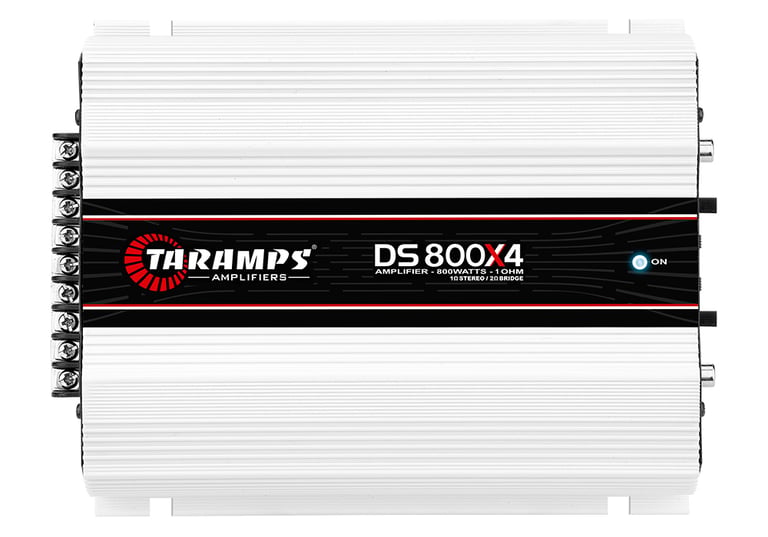

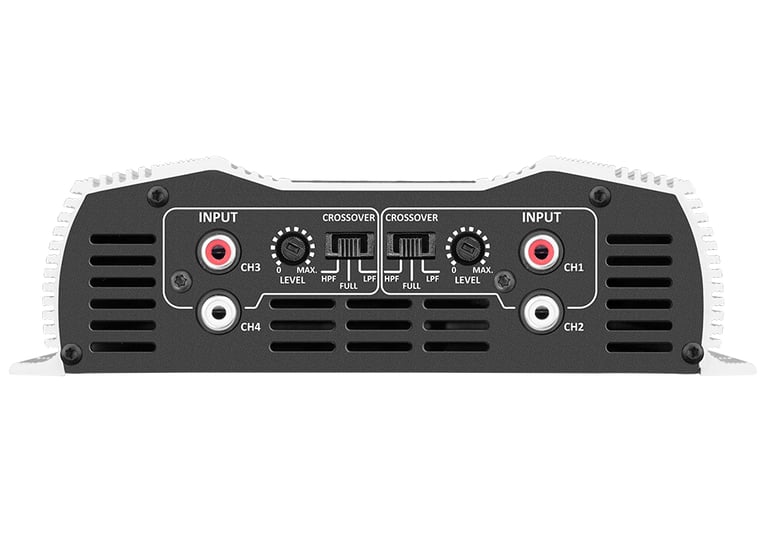

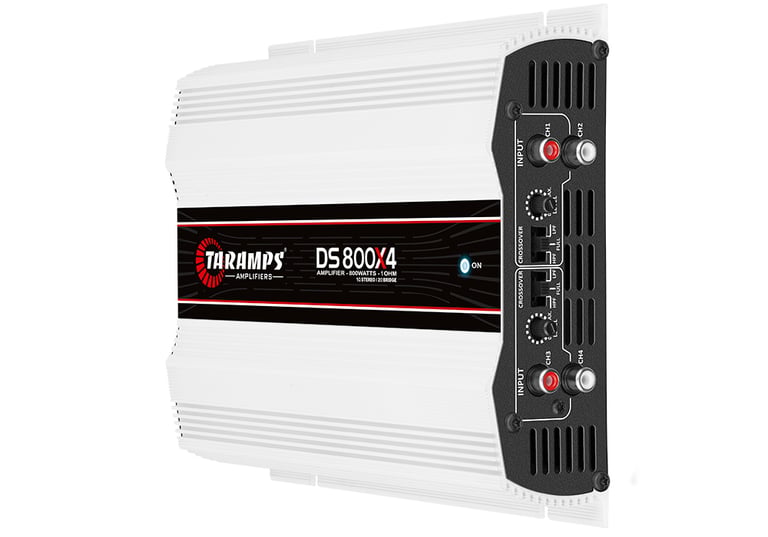

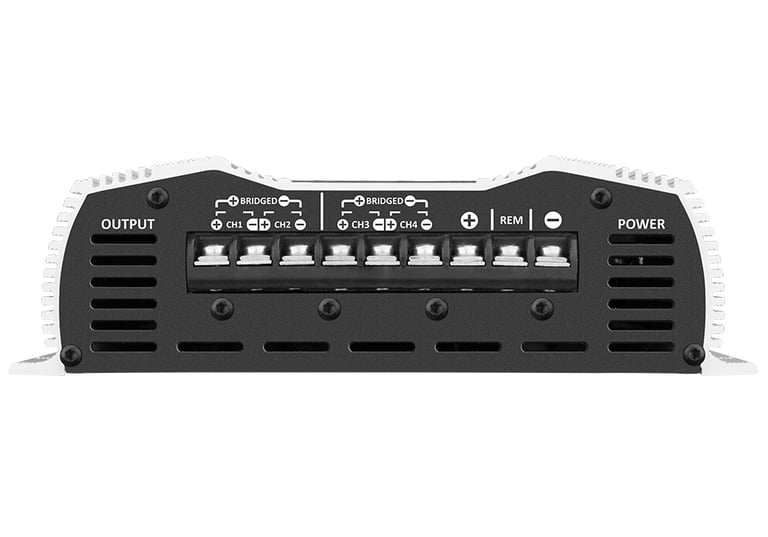

Taramps DS 800x4 -1 OHM

800W RMS DS Series 1-Ohm Stable Class-D 4-Channel Amplifier

Taramps
Shop all Taramps
highlight-star-icon

• 136 watts x 4 channel @ 2 ohms
• 200 watts x 4 channel @ 1 ohms
• Bridged: 400 watts x 2 channel @ 2 ohms
• Total RMS Power: 800 watts
• Class D 1 ohms Stable 4-Channel Amplifier

Learn more about the ds800x4-1ohm

We apologize

This item has been discontinued

Description


Taramps brand icon

Authorized dealer

Product Details:

  • DS Series Class D 1 ohms Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 2 ohms: 136 watts x 4 channel
    • 1 ohms: 200 watts x 4 channel
    • Bridged, 2 ohms: 400 watts x 2 channel
  • Total power output: 800 watts
  • MOSFET power supply
  • LED Power/Protect Light
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 250mV - 6 volts
  • Frequency Response: 10 - 36,000 Hz
  • Total Harmonic Distortion (THD): .1%
  • Signal to Noise Ratio: >88 dB
  • Variable high-pass filter: 90Hz Fixed
  • Variable low-pass filter: 90Hz Fixed
  • Fuse Rating: 102A
  • Any Gauge with use of Spade Terminal AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 7.24" W x 7.48" L x 2.13" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 2 ohms
136 watts x 4 channel
RMS Power @ 1 ohm
200 watts x 4 channel
Bridged RMS Power
400 watts x 2 channel
Amplifier Specifications
Series
DS Series
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
800 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
2 ohms
Frequency Response
10 - 36,000 Hz
THD at Rated RMS Power
.1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
90Hz Fixed
Low-Pass Crossover Frequency
90Hz Fixed
Signal-to-Noise Ratio
>88 dB
Remote bass/level controller
No
Total Fuse Rating
102A
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
250mV - 6 volts
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Mounting screws (6)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DS 800x4 - 1 OHM

Weight:

3.52lbs

Internal SKU:

ds800x4-1ohm

Internal Product ID:

196890

Customer Ratings & Reviews



5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4
Design
5
Usability
4

Customer Reviews

Sort by:

Loading...

Great Price and Value

The Amplifier Taramps DS 800x4 -1 OHM has got good Power and believe me it makes your speakers go, BOOM, BOOM, BOOM!

By Juan on April 1, 2023 Checkmark Icon Verified purchase
