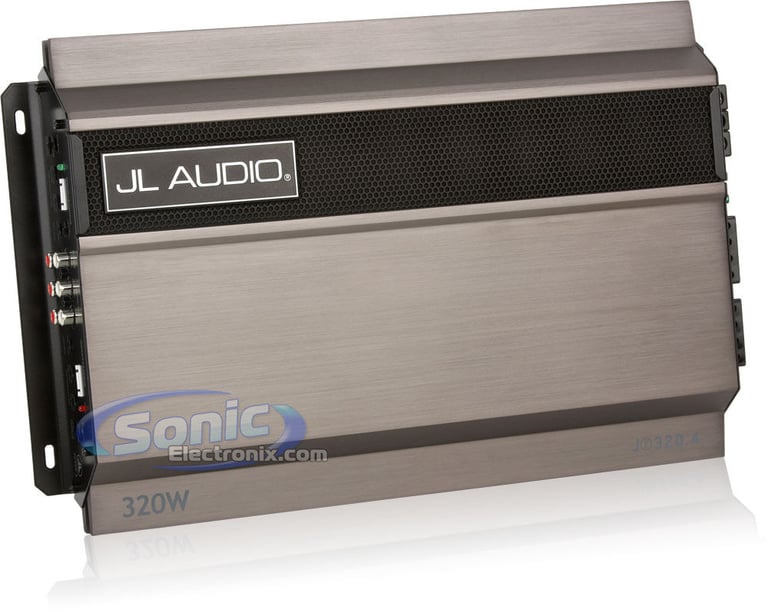

JL Audio J2 320.4 (J2320.4)

320W RMS, J2 Series Full-Range 4-Channel Amplifier

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

J2 Series 4-Channel Class B Car Amplifier • 60W x 4 Chan. @ 4 ohm • MOSFET Power supply • Bass Boost 0-12 dB • 2/4 Channel input switch • High-pass and low-pass filters

Learn more about the j23204

We apologize

This item has been discontinued


Loading...
82-5600 main

Metra 82-5600

5-1/4" / 6-1/2" Speaker to 6" x 8" Adapters for select 1981-2017 vehicles from Mercury, Mazda, Lincoln

3
-11.12%

$15.99

List price $17.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Lowest price in 30 days
H7694 main

Cerwin Vega H7694

800W Peak (150W RMS) 6x9" HED Series 4-Way Coaxial 4-ohm Speakers

32
-25.93%

$79.99

List price $107.99

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13
CS693 main

Crunch CS693

800W Peak (150W RMS) 6x9" CS Series 3-Way Coaxial 4-ohm Car Speakers

25
-32.01%

$33.99

List price $49.99

480BRGB main

Boss Elite 480BRGB

Double DIN Digital Media Receiver with Bluetooth

17
XS-690GS main

Sony XS-690GS

840W (120W RMS) 6x9“ GS Series 2-way 4-ohm Coaxial Car Speakers

$168.00

List price $169.99

ZS525CX main

Hifonics ZS525CX

400W Peak (60W RMS) 5.25” Zeus Series 2-way 4-ohm Coaxial Car Speakers

7
-31.05%

$19.99

List price $28.99

Limited time!
KFC-C6866S main

Kenwood KFC-C6866S

500W Peak (60W RMS) 6x8" Sport Series 2 Way Coaxial 4-ohm Car Speakers

3
-31.00%

$69.00

List price $100.00

Product Highlights


J2 Series 4-Channel Class B Car Amplifier • 60W x 4 Chan. @ 4 ohm • MOSFET Power supply • Bass Boost 0-12 dB • 2/4 Channel input switch • High-pass and low-pass filters

Description


JL Audio brand icon

Authorized dealer

  • J2 Series 4-Channel Class B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 4 chan.
    • 2 ohm: 80 watts x 4 chan.
    • Bridged, 4 ohm: 160 watts x 2 chan.
  • MOSFET Power supply
  • Linear bi-polar design
  • Power and protection LED indicators
  • Bass Boost 0-12 dB at 45 Hz

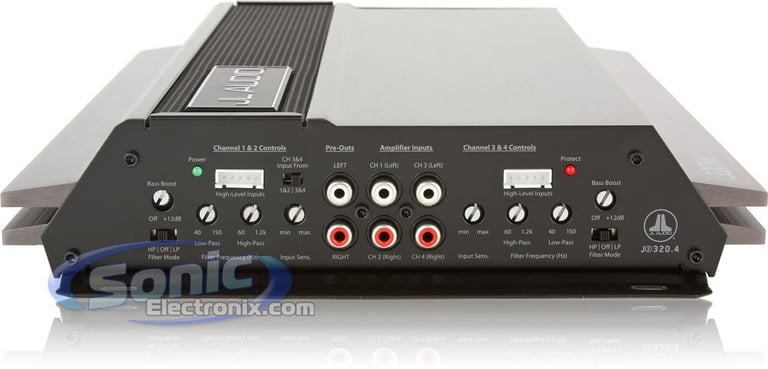

  • High-level and low-level inputs
  • 2/4 Channel input switch
  • Preamp RCA outputs
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity can be used to match the unit's output voltage to the input stage of each amplifier channel
  • Outer casing is designed to remove heat from the circuitry
  • High-pass filter (60-1200 Hz)
  • Low-pass filter (40-150 Hz)
  • Frequency response: 10-25,000 Hz
  • Dimensions: 15.4"L x 9.6"W x 2.15H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Sonic Electronix warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

KTA-450 small

Alpine KTA-450 Power Pack

• 50 watts x 4 channel @ 4 ohm
• 45 watts x 4 channel @ 2 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(20)

$299.95

List price $360.00

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
80 watts x 4 channel
Bridged RMS Power
160 watts x 2 channel
Amplifier Specifications
Amplifier Class
B
Number of Channels
4-Channel
Total RMS Power Output
320 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
40 - 150 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
No

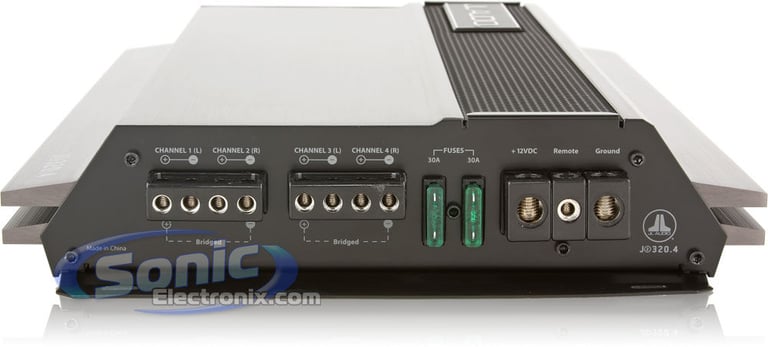

Fuse Rating
30A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

J2-320.4

Weight:

12.00lbs

Internal SKU:

j23204

Internal Product ID:

20626
