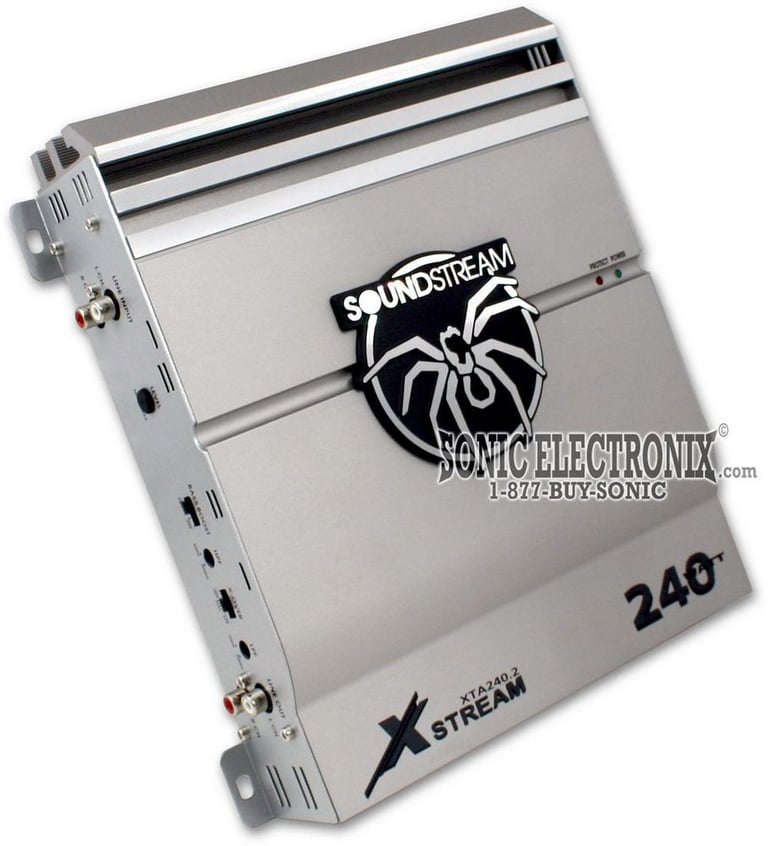

Soundstream XTA240.2

240 watts, 2-Channel Xstream Series Amplifier XTA 240.2

Soundstream
Shop all Soundstream
Product videos
highlight-star-icon

240W RMS 2 channel Xstream Series • 120W x 2 channel power output at 2 ohms • 60W x 2 channel at 4 ohms • Bass EQ Control • Drive Delay II • Selectable X-Over HPF / Full / LPF

Learn more about the xta2402

We apologize

This item has been discontinued

Product Highlights


240W RMS 2 channel Xstream Series • 120W x 2 channel power output at 2 ohms • 60W x 2 channel at 4 ohms • Bass EQ Control • Drive Delay II • Selectable X-Over HPF / Full / LPF

Description


Soundstream brand icon

Authorized dealer

  • Bass EQ Control: Fully adjustable subwoofer equalization circuit providing frequency and boost ("Q") adjustment for optimum subwoofer performance. A frequency tracking subsonic filter protects woofers from potentially harmful low frequency information and maximizes output in a usable range.
  • Drive Delay II: Amplifier section powers up 2 to 3 seconds after the poewr supply eliminating turn-on and off pops. The turn off process is reversed: Amplifier section turns off first, followed by the power supply.
  • Flexible Input Level Control: Allows 500 mV to 4 V input sensativity.
  • Trident 3-way Protection
  • IDI (Intelligent Distress Indicator)
  • Thermal / Short / Over Load Protection
  • Stability:
    • 2/4 ohms Stereo Mode
    • 4 ohms Mono/Bridged Mode
  • P.W.M Mosfet Power Supply
  • Power and Protection Indicator
  • Selectable X-Over HPF / Full / LPF
  • 18db Bass Boost with Switch Sub (50Hz)
  • Frequency Response: 10Hz - 30kHz
  • Variable High-Pass Crossover (50-500Hz)
  • Variable Low-Pass Crossover (30Hz~500Hz)
  • Gold Plated Terminal Strips / RCA Jacks
  • Heavy Duty Heat Sink
  • Adjustable Input Sensativity
  • Soft Delay Remote Turn-On
  • Low Level Inputs
  • Phantom Channel For Powering Center Speaker or Subwoofer
  • Dimensions: 10.7"L x 12.4"W x 3"H
  • 1-year SonicElectronix.com warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 2 channel
RMS Power @ 2 ohms
120 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
240 watts
Amplifier Specifications
Number of Channels
2-Channel
Total RMS Power Output
240 watts
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
30 - 500 Hz
Signal-to-Noise Ratio
96 dB
Bass Boost
0 - 18 dB
Fuse Rating
25A
Warranty and Return Policy

Item Details


Manufacturer:

Model Number:

XTA240.2

Weight:

8.65lbs

Internal SKU:

xta2402

Internal Product ID:

2072
