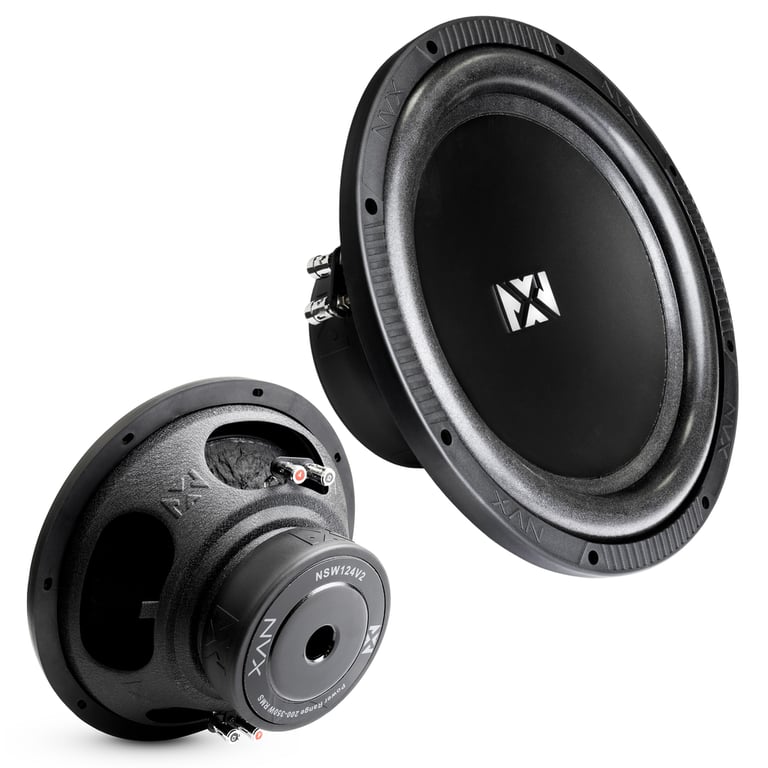

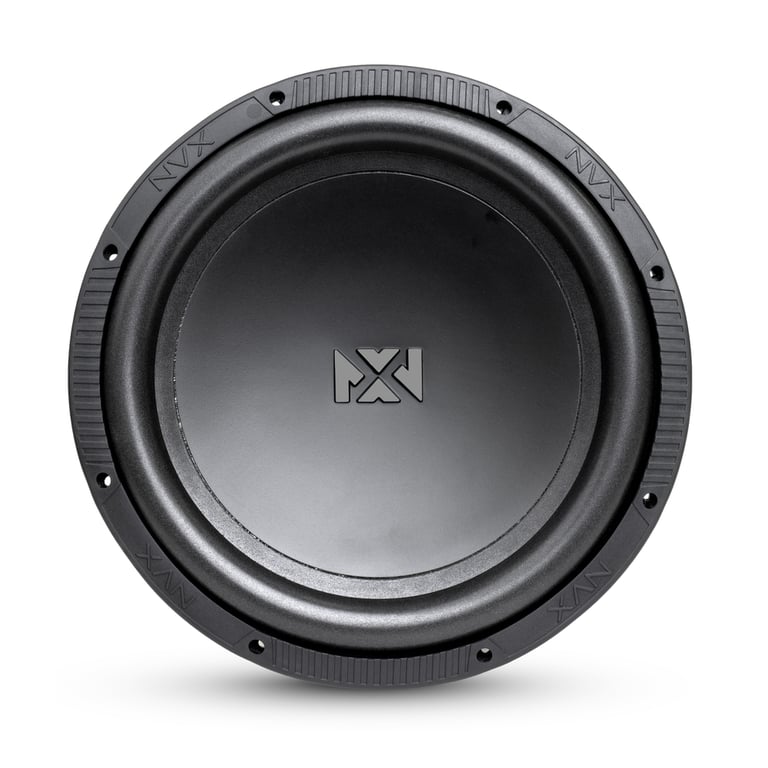

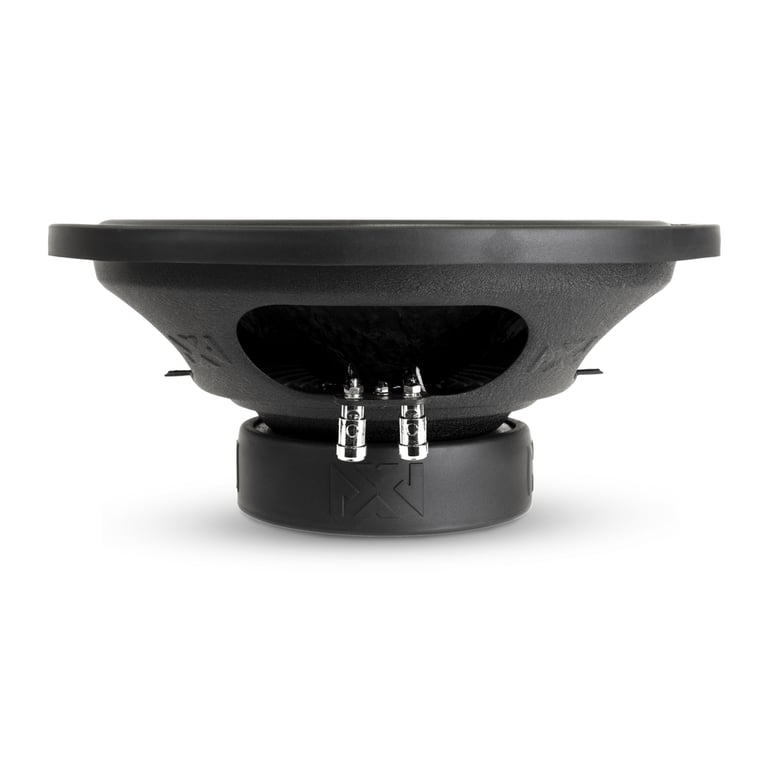

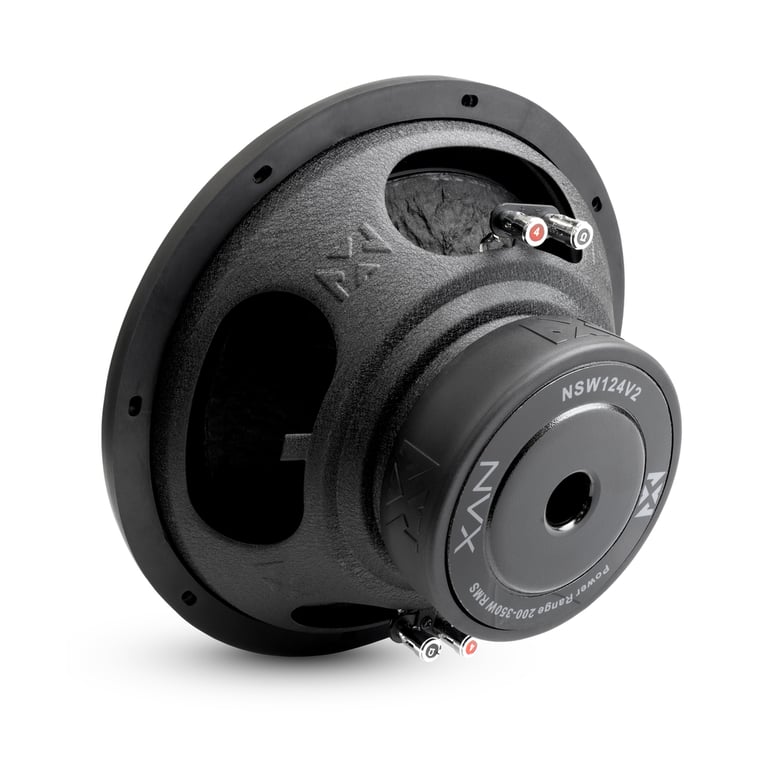

NVX NSW124 Version 2

700W Peak (350W RMS) 12" N Series Dual 4-ohm Car Subwoofer

NVX
Shop all NVX
highlight-star-icon

• Peak Power: 700 watts
• RMS Power: 350 watts
• Impedance: Dual 4 ohm
• Ultra-light Non-Pressed Paper cone
• Custom-blended High Roll Foam surround
• Mount depth: 5.01"
• Sensitivity: 92 dB

Learn more about the nsw124v2

We apologize

This item has been discontinued


Loading...
40-EU55 main

Metra 40-EU55

Antenna Adapter for select 2000-2026 vehicles from Audi, Chevrolet, Ram

49
-13.05%

$19.99

List price $22.99

99-6515B main

Metra 99-6515B Dash Kit

Install a new Single-DIN car stereo in select 2012-2015 500 (Matte Black)

1
-49.13%

$28.99

List price $56.99

AXDI-6515 main

Axxess AXDI-6515

Install a New Car Stereo and Retain Factory Features in select 2012-2015 500

-10.00%

$116.99

List price $129.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

116
-37.15%

$21.99

List price $34.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
RKFR6 main

Stinger Roadkill RKFR6

FAST Foam Speaker Enhancer System Kit for 6" and 6.5" Drivers 3pc

27
-27.62%

$20.99

List price $29.00

Limited time!
TS-G1620F main

Pioneer TS-G1620F

600W Peak (80W RMS) 6.5" G-Series 2-Way Coaxial 4-ohm Car Speakers

13
-26.15%

$48.00

List price $65.00

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

DCX 165.3 main

Hertz DCX 165.3 (DCX165.3)

240W Peak (120W RMS) 6.5" Dieci Series 2-Way Coaxial 4-ohm Car Speakers

4
-13.34%

$129.99

List price $150.00

FRING525 main

NVX FRING525

Universal 5.25" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

2
-45.02%

$10.99

List price $19.99

Description


NVX brand icon

Authorized dealer

Product Details:

  • 12" Dual 4 ohm N Series Subwoofer
  • Power Handling:
    • Peak: 700 watts
    • RMS: 350 watts
  • Ultra-light Non-Pressed Paper cone
  • Custom-blended High Roll Foam surround
  • High strength steel basket
  • Chrome-plated, spring-loaded push terminals
  • 2" High Temperature Aluminum voice coil
  • 12 mm Xmax
  • High energy Ferrite magnet motor structure
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 28 Hz
  • Sensitivity: 92 dB
  • Recommended sealed box volume: 1.25 cubic feet
  • Recommended ported box volume: 1.75 cubic feet
  • Top-mount depth: 5.01"
  • Cutout diameter: 10.83"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Frequently Asked Questions (FAQ)


N Series subwoofers cater to the need for high quality sound at a more affordable price. With this, NVX redefined what an entry-level sub should be, and setting up the standard in sound quality for value-driven car audio beginners.
Think of it more as a 'sound quality plus' (SQ+) subwoofer. It’s accurate enough for jazz but has enough punch for trap. It won't win a world-record SPL contest, but it will make your daily driver sound like a front-row concert seat.
NSW124v2 is the greater value-driven choice. While it has a slightly lower RMS (350W), it’s extremely efficient and fits into even tighter budgets. It’s the perfect solution for a first-time build where every dollar counts.
No. Even with 350W RMS, you still need an aftermarket amplifier. Factory amplifiers don't have the power to move a 12-inch sub cone. You’ll just get distortion and a very sad-sounding stereo. Get a small monoblock instead.
Older N series subwoofers have a non-pressed paper cone. Non-pressed paper is thicker and more "unstructured," which prevents internal resonances. It gives you a warm, "lifelike" sound that cheaper materials often lack.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 NVX NSW124 Version 2 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 NVX NSW124 Version 2 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 NVX NSW124 Version 2 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 NVX NSW124 Version 2 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

52L7XS121 small

Kicker L7XS121 (52L7XS121)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 10-1/8"

$1399.99

List price $1499.99

Specifications & Details


Subwoofer Specifications
Series
N Series
Subwoofer Size
12"
Peak Power Handling
700 watts
RMS Power Handling
350 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
2"
Frequency Response
20 - 200 Hz
Sensitivity
92 dB
Xmax (millimeters)
12 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
High Roll Foam
Magnet Type
Ferrite
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.25 cubic feet
Optimum Ported Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
5.01"
Cutout Diameter
10.83"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28 Hz
Equivalent Compliance (Vas)
56.29 liters
Total Speaker Q Value (Qts)
0.734
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

NSW124v2

Weight:

15.00lbs

Internal SKU:

nsw124v2

Internal Product ID:

208045

Customer Ratings & Reviews


NVX NSW124 Version 2 thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


NSW122v3 main

NVX NSW122 Version 3 (NSW122v3)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.0"
• Sensitivity: 87 dB

(33)

$99.99

List price $119.99

NSW124v3 main

NVX NSW124 Version 3 (NSW124v3)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.0"
• Sensitivity: 87 dB

(33)

$99.99

List price $119.99

VADM1 main

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VADM5v2 main

NVX VADM5 v2 (VADM5v2)

• 65 watts x 4 channel + 230 watts x 1 channel @ 4 ohm
• 100 watts x 4 channel + 350 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm + 350 watts x 1 channel @ 2 ohm
• Total RMS Power: 750 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(1)

$249.99

List price $347.99

XQA6001 main

NVX XQA6001

• 250 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

$249.99

List price $299.99


P3001 small

Rockford Fosgate P3001

900W Max, Monoblock Amplifier

(4)

$109.99

List price $299.99

998U(H) small

Directed 998U(H)

Bitwriter Upgrade Chip, Version 2.3 (998UH)

$6.99

List price $29.99

KD-AVX11 small

JVC KD-AVX11

True Single DIN 2.7" TFT-LCD Monitor with DVD, DVD-R/-RW, DivX, VCD, CD/MP3 Receiver and Remote

(3)

$289.99

List price $449.99

MVH-P8200BT small

Pioneer MVH-P8200BT

3" LCD In-Dash Multimedia Receiver with Built-in Bluetooth, SD Card Slot and USB Direct Control

(8)

$199.99

List price $369.99

07C124 small

Kicker C124 (07C124)

12" Single 4 ohm Comp Series Car Subwoofer

(137)

$59.46

List price $129.95

2SVK15-GRAY small

Sonic Sub Box: 2SVK15 (Gray)

15" Kicker Solo-Baric Square-Hole Dual Slot Vented MDF Enclosure

(3)

$79.99

List price $269.99

SB-D-TRKCTR3/13W3v3/DG small

JL Audio SB-D-TRKCTR3/13W3v3/DG

Stealthbox for 2002-2005 Dodge Ram with 40/20/40 split front bench seat and Dark Slate Gray interior

$949.99

List price $0.00

XMDSON110 small

Terk XMDSON110 / XMDSON100

XM Direct For Sony Units, Revised Version of XMDSON100

$49.99

List price $69.99

CNP2000UCA small

Audiovox SiriusXM CNP2000UCA

XM Direct Satellite Radio Programmable Interface Adapter Tuner

(13)

$129.99

List price $129.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Fiat 500

2018 Dodge Challenger

2002 Ford Excursion

1994 Acura Vigor

1992 Isuzu Amigo

2015 Jeep Renegade

2020 Kia K900

1989 GMC V3500 Pickup

2020 Audi A4 allroad

2003 Mitsubishi Montero

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
